Automatic Longitudinal seam welding machine
Haoyu provides automatic longitudinal seam welding machines for manufacturers that need stable and repeatable welding of long straight joints on metal components.
Our systems can be customized for cylindrical and flat workpieces, including tanks, pipes, pressure vessels, ducts, metal shells and fabricated panels.
Depending on the workpiece structure and welding position, we provide standard external seam welders, elevating longitudinal seam welding machines, internal longitudinal seam welding machines and flat plate / panel straight seam welding systems.
Different welding processes including TIG, MIG/MAG, Laser and SAW can be integrated according to the material, plate thickness, joint design, required weld quality and production efficiency.
If you are manufacturing different sizes or types of workpieces, Haoyu can also develop a customized welding system based on your drawings and production requirements.
Main features
Multiple Welding Processes
Supports TIG, MIG/MAG, Laser and SAW for different materials, thicknesses and weld requirements.
Flexible Machine Configurations
Available for standard external seams, internal longitudinal welding, elevating systems and flat plate welding.
Customized for Different Workpieces
Machine size, fixture, welding length and working range can be customized for tanks, pipes, cylinders and panels.
Stable & Repeatable Automatic Welding
Controlled welding speed and torch movement help improve weld consistency, production efficiency and repeatability.
What Is a Longitudinal Seam Welding Machine?
A longitudinal seam welding machine, also known as a straight seam welding machine or longitudinal seam welder, is an automated welding system used to weld a straight joint along the length of a metal workpiece.
A typical application is a metal sheet that has been rolled into a cylinder. After forming, a longitudinal joint remains along the shell. The workpiece is positioned and clamped while the welding torch travels along the joint at a controlled speed to complete the weld.
The same principle can also be used for straight butt joints on flat sheets, fabricated panels and other components requiring a long linear weld.
Compared with manual welding, an automatic system is especially useful when manufacturers need better repeatability, controlled welding speed and more consistent results across multiple workpieces.
Types of Longitudinal Seam Welding Machines
Types
Depending on the workpiece structure and welding position, we provide the seam welding machine as follows:

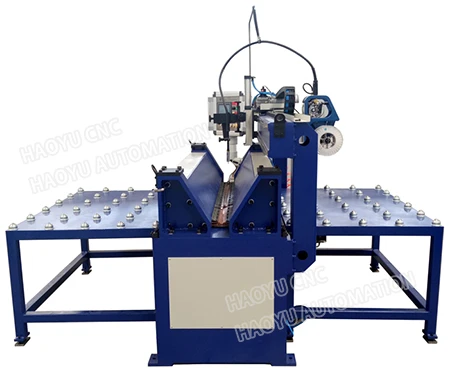

1.Standard External Longitudinal seam welding machine
The standard longitudinal seam welder is mainly used to weld straight seams from the outside of cylindrical or formed workpieces.
Typical workpieces include:
- Tanks
- Cylinders
- Metal pipes
- Pressure vessel shells
- Fuel tank bodies
- Stainless steel containers
- Ducts and fabricated shells
The workpiece is positioned along the welding station while the welding carriage moves along the seam. This configuration is suitable for many common tank and cylinder manufacturing applications.

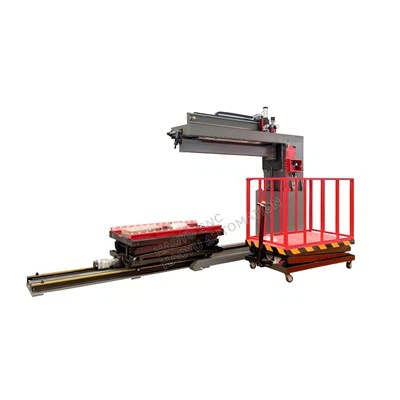

2.Lifting Straight Seam Welding Machine
Lift-type seam welding machines are ideal when manufacturers need to handle workpieces with varying diameters, heights, or load-bearing requirements.
The working position is adjustable, allowing the weld seam to be aligned with the welding system.
This configuration is particularly useful for manufacturers producing large cylindrical workpieces or workpieces that are difficult to position at a fixed height welding station.
Meanwhile, in addition to lifting straight seam welding equipment, we also have vertical straight seam welding equipment. The workpiece is placed vertically and rotated according to customized tooling to complete the external straight seam welding.
3.Flat Plate & Panel Straight Seam Welding Machine
Not every straight seam application involves a cylinder.
For manufacturers joining two sheets or panels along a long straight joint, Haoyu can provide automatic straight seam welding equipment for flat plate and panel butt welding.These systems can be used for fabricated panels, sheet metal components and other applications where consistent straight-line welding is required before further forming or assembly.The fixture and welding system are designed according to the plate dimensions, thickness, joint form and required welding process.
4.Internal Longitudinal Seam Welding Machine
Some cylindrical products require welding from inside the workpiece rather than from the outside.
An internal longitudinal seam welding machine allows the welding torch and travelling mechanism to enter the cylinder or tank and automatically weld along the internal seam.
The available configuration depends on the internal diameter, seam length, access space and welding process.
Welding Processes for Longitudinal Seam Welding
There is no single welding process suitable for every longitudinal seam.
The correct process should be selected according to material, thickness, joint preparation, required penetration, welding appearance and production target.
| Welding Process | Typical Advantages | Typical Applications |
| TIG Welding | Stable arc, good weld appearance andprecise heat control | Stainless steel, aluminum and applicationsrequiring clean, controlled welds |
| MIG/MAG Welding | Higher deposition rate and suitable forefficient production | Carbon steel, stainless steel, aluminum andgeneral fabrication depending on the selectedprocess and shielding gas |
| SAW Welding | High deposition efficiency and deeppenetration for suitable applications | Medium- and heavy-thickness pipes, cylinders,tanks and pressure-vessel components |
| Laser Welding | High welding speed, concentrated heatinput and small heat-affected zone | Thin or precision metal components with goodjoint fit-up |
Haoyu can recommend the welding configuration after evaluating your actual workpiece rather than selecting the process only by material name.
Who Needs an Automatic Longitudinal Seam Welding Machine?
Tank & Cylinder Manufacturers
Manufacturers producing storage tanks, fuel tanks, air tanks, pressure vessels and other cylindrical shells often need to weld the straight seam created after sheet rolling.
- Their main concerns normally include:
- Keeping a long joint accurately positioned
- Reducing welding deformation
- Maintaining stable penetration
- Improving weld consistency
- Increasing batch production efficiency
A customized longitudinal seam welding system can be designed around the tank diameter, shell length, wall thickness and joint structure.
Pipe & Tube Manufacturers
Pipe and tube manufacturers may require automatic external or internal seam welding depending on the pipe size, manufacturing process and weld specification.
For larger or thicker workpieces, the welding system can also be configured with different processes according to the required penetration and productivity.
Pressure Vessel & Industrial Equipment Manufacturers
Pressure vessel, boiler, chemical equipment and industrial tank manufacturers often work with longer seams, thicker materials or stricter welding requirements.
For these projects, machine configuration should be determined according to the actual weld specification, inspection requirements and production process.
Sheet Metal & Fabrication Manufacturers
Manufacturers joining flat plates or formed panels can use a straight seam automatic welding machine to replace repetitive manual welding of long linear joints.
This is suitable for applications where the seam position is repeatable and consistent welding speed is important.
How to Choose a Longitudinal Seam Welding Machine?
The correct machine should not be selected only according to welding length or price.
Start with the actual workpiece.
1. Determine the Workpiece Shape
For cylindrical tanks or pipes, a standard external longitudinal seam welder may be suitable.
If the seam must be welded from inside the workpiece, an internal seam welding machine is required.
If different workpiece diameters or loading heights need to be handled, an elevating configuration may be more suitable.
For flat sheets and panels, a dedicated plate or panel straight seam welding system should be considered.
2. Confirm the Material and Thickness
Carbon steel, stainless steel and aluminum have different welding characteristics.
Material and thickness directly influence welding process selection, power-source configuration, backing design and welding parameters.
3. Select the Welding Process
Choose TIG, MIG/MAG, Laser or SAW according to the required weld quality, penetration, production efficiency and material.
If you are unsure which process is suitable, provide the workpiece drawing and welding requirements rather than selecting the process only from a machine name.
4. Confirm the Welding Position
Determine whether the seam needs:
- External welding
- Internal welding
- Flat plate welding
- Horizontal welding
- Vertical welding
This has a major influence on the final machine structure.
5. Consider Production Requirements
For occasional welding, a simpler configuration may be sufficient.
For continuous batch production, production cycle, loading and unloading, fixture adjustment, parameter storage and integration with upstream or downstream processes should also be considered.
Customized Longitudinal Seam Welding Machine
Most industrial straight seam welding projects cannot be selected only by a standard machine model.
Haoyu designs the equipment according to your actual workpiece and welding requirements.
For an accurate technical proposal, please provide:
- Workpiece drawing or photos
- Material
- Material thickness
- Minimum and maximum diameter
- Workpiece length
- Required welding length
- Joint type
- Internal or external welding
- Preferred welding process, if already specified
- Required production capacity
- Weld quality or inspection requirements
- Local power supply
Based on this information, our engineers can recommend a suitable machine structure, welding process and configuration.
Why Choose Haoyu Longitudinal Seam Welding Solutions?
Core strengths
Choose the plan that suits you best.
Direct Factory Manufacturer
In-house manufacturing and assembly help us control quality, delivery and technical coordination more efficiently.
Factory Testing Before Shipment
Machines can be tested with customer workpieces before delivery to verify welding performance and production suitability.
Rich Project Experience
Experience with different welding workpieces and industries helps us provide more practical solutions for non-standard projects
Reliable Technical & After-Sales Support
From project discussion and machine commissioning to operation guidance and after-sales support, our team provides continuous technical assistance.
Our automatic welding equipment is manufactured under an ISO 9001 quality management system and designed to meet applicable CE requirements. Standardized manufacturing, inspection and factory testing help ensure reliable quality before delivery.
FAQ About Longitudinal Seam Welding Machines
01.What is an automatic longitudinal seam welding machine used for?
It is used to automatically weld long straight joints on cylinders, tanks, pipes, sheets and fabricated metal components. The system controls welding travel and workpiece positioning to improve repeatability during production.
02.Can one machine weld different diameter cylinders?
Yes, depending on the machine structure. The working range, fixture and positioning system can be designed to accommodate several workpiece diameters. For applications with a larger variation in diameter or working height, an elevating longitudinal seam welding machine may be more suitable.
03.Can the machine solve inconsistent weld quality caused by manual welding?
04.What if my seam needs to be welded from inside the tank or pipe?
05.Can the machine help increase production efficiency?
06.What is the typical Applications of automatic seam welding machine?
Haoyu longitudinal seam welding systems can be customized for a wide range of industrial components, including:

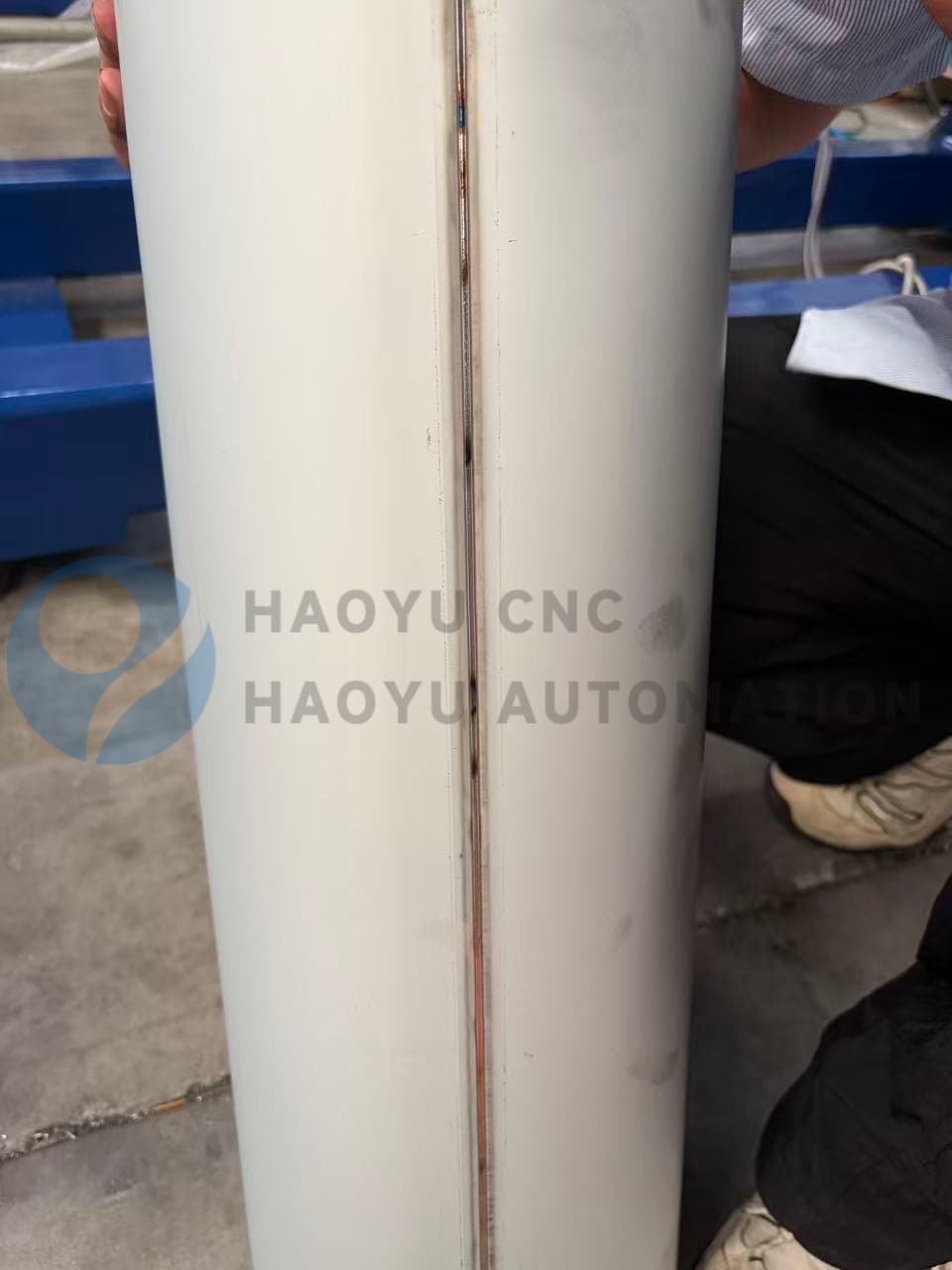

Tank and Cylinder Shells
Longitudinal welding after the metal sheet has been rolled into a cylindrical body.
Pipe and Tube Components
External or internal straight seam welding for tubular workpieces.
Pressure Vessel Shells
Automatic welding of long axial joints on vessel bodies.
Fuel Tank Bodies
Straight seam welding of formed aluminum, stainless steel or steel tank shells before subsequent assembly processes.
Flat Plates and Fabricated Panels
Automatic butt welding of metal sheets or panels before forming or further fabrication.
Custom Industrial Components
Dedicated straight seam welding solutions can also be developed for non-standard workpieces according to customer drawings.
