Precision CNC Laser Beam Welding Machine For Straight Seam

Laser straight seam welding machine is a specialized welding equipment that integrates high-energy laser beams, automated control, and precision mechanics. Its core working principle is to use a high-energy-density laser beam focused on the joint of the workpiece, causing the material to melt instantly and then cool and solidify to form a weld.

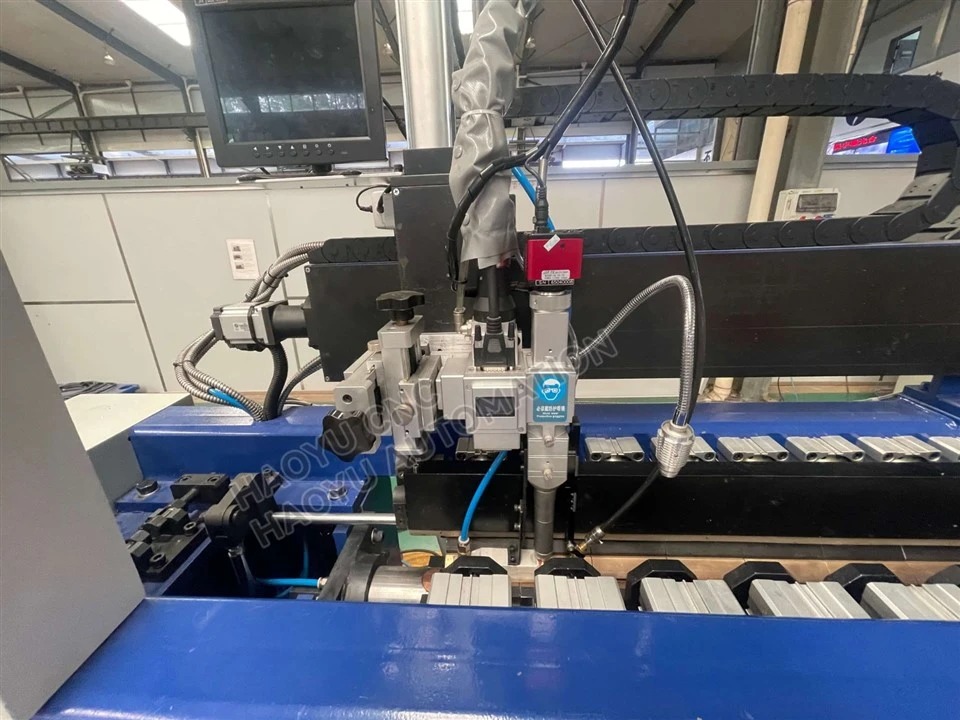

1.The laser head of this laser straight seam welding equipment integrates a high-brightness illumination lamp and a high-definition camera. The former provides a uniform and shadowless lighting environment to ensure that the weld area is clearly visible during the welding process; the latter acquires weld images in real time, tracks the welding trajectory, and monitors quality online.

2.Pneumatic piano key type clamping mechanism: This is the core mechanical structure of the straight seam welding machine. High-density clamping fingers (similar to piano keys) are evenly arranged along both sides of the weld seam. The cylinder provides uniform and powerful pressure to firmly press the workpiece onto the copper backing, effectively suppressing welding thermal deformation.

3.Easy to assemble and lock in place. The tank is centrally located and clamped by a round core shaft and pneumatic pressure plate. The cylinder/tank is centered with a pneumatic pin.

4.Renderings

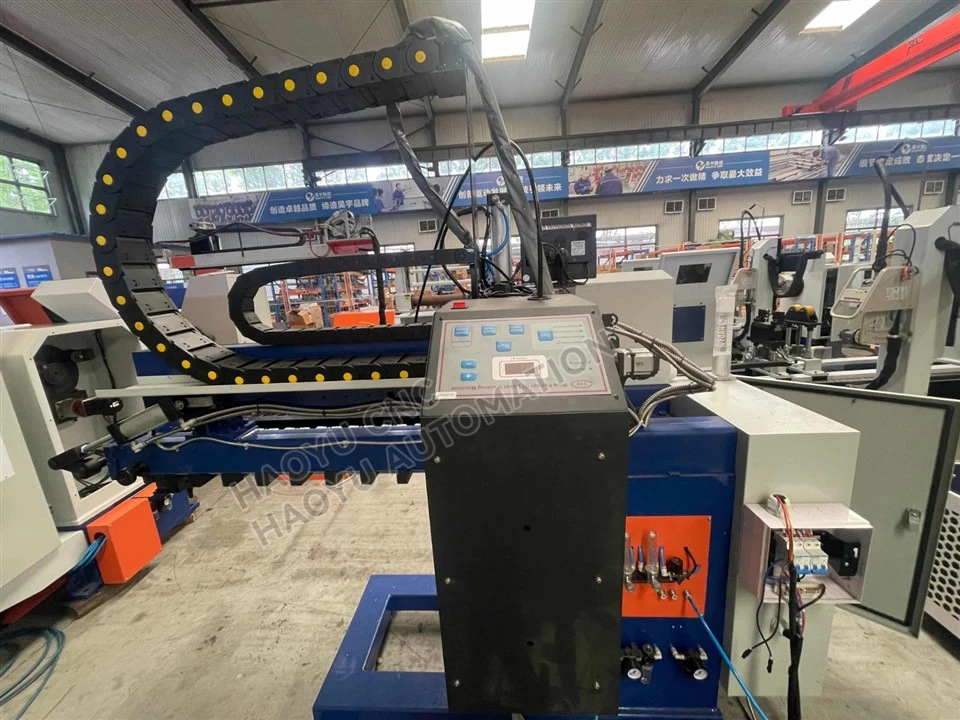

Precision CNC Laser Beam Welding Machine for Straight Seam

1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement.
