Automatic Pipe Flange Welding Machine & Welding Solutions
Haoyu provides automatic pipe flange welding machines and customized pipe-to-flange welding solutions for industrial pipe manufacturers and fabrication companies.
Our solutions range from standalone machines for pipe flange circumferential welding to multi-torch systems and integrated pipe cutting and welding production lines. Depending on the workpiece, the equipment can be configured for inner and outer flange seams, single-end or double-end welding, and different welding processes such as TIG and MAG.
Each pipe flange welding machine can be customized according to your pipe diameter, pipe length, flange dimensions, material, joint design and production requirements.
Features
Inner & Outer Seam Welding
Automatic welding solutions can be configured for the inner and outer circumferential seams between the pipe and flange, helping maintain consistent welding quality around the joint.
TIG & MAG Welding Options
Different welding processes can be selected according to the workpiece material, joint design and welding requirements. TIG and MAG configurations are available for different pipe flange applications.
Single, Dual & Multi-Torch Configurations
From single-torch systems to dual-torch and four-torch pipe flange welding machines, different configurations are available according to production capacity and welding requirements.
Customized for Your Workpiece
Fixtures, welding torch positions, rotation mechanisms and control programs can be customized according to pipe dimensions, flange specifications and production requirements.
What Is a Pipe Flange Welding Machine?
A pipe flange welding machine is an automatic welding system designed to join a pipe or cylindrical component to a flange through circumferential welding.During welding, the workpiece moves along the circular joint while the welding system controls parameters such as welding speed, current, voltage and wire feeding.
Compared with manual welding, an automatic pipe flange welding machine provides more consistent welding conditions and is especially suitable for repeated production of similar pipe and flange assemblies.
Pipe Flange Welding Machine Solutions
Type of Pipe Flange Welding Machine Solutions
Different pipe and flange assemblies require different welding methods, fixtures and automation levels.
Haoyu provides customized pipe flange welding machines, from standalone circumferential welding equipment to multi-torch systems and integrated pipe flange production lines.

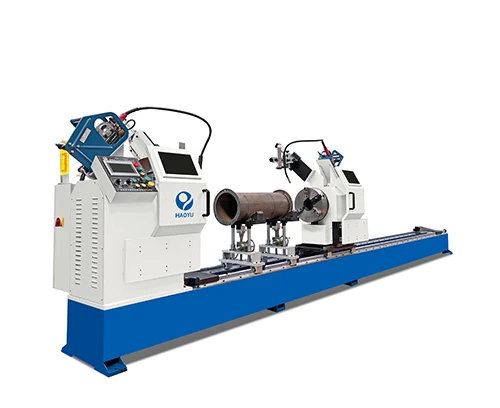

1. Single-Torch Pipe Flange Welding Machine
Designed for automatic circumferential welding of a single pipe-to-flange joint. It is suitable for straight pipes, bent pipes and other pipe assemblies where one flange seam is welded at a time. Fixtures and torch positions can be customized according to the workpiece shape and flange structure.

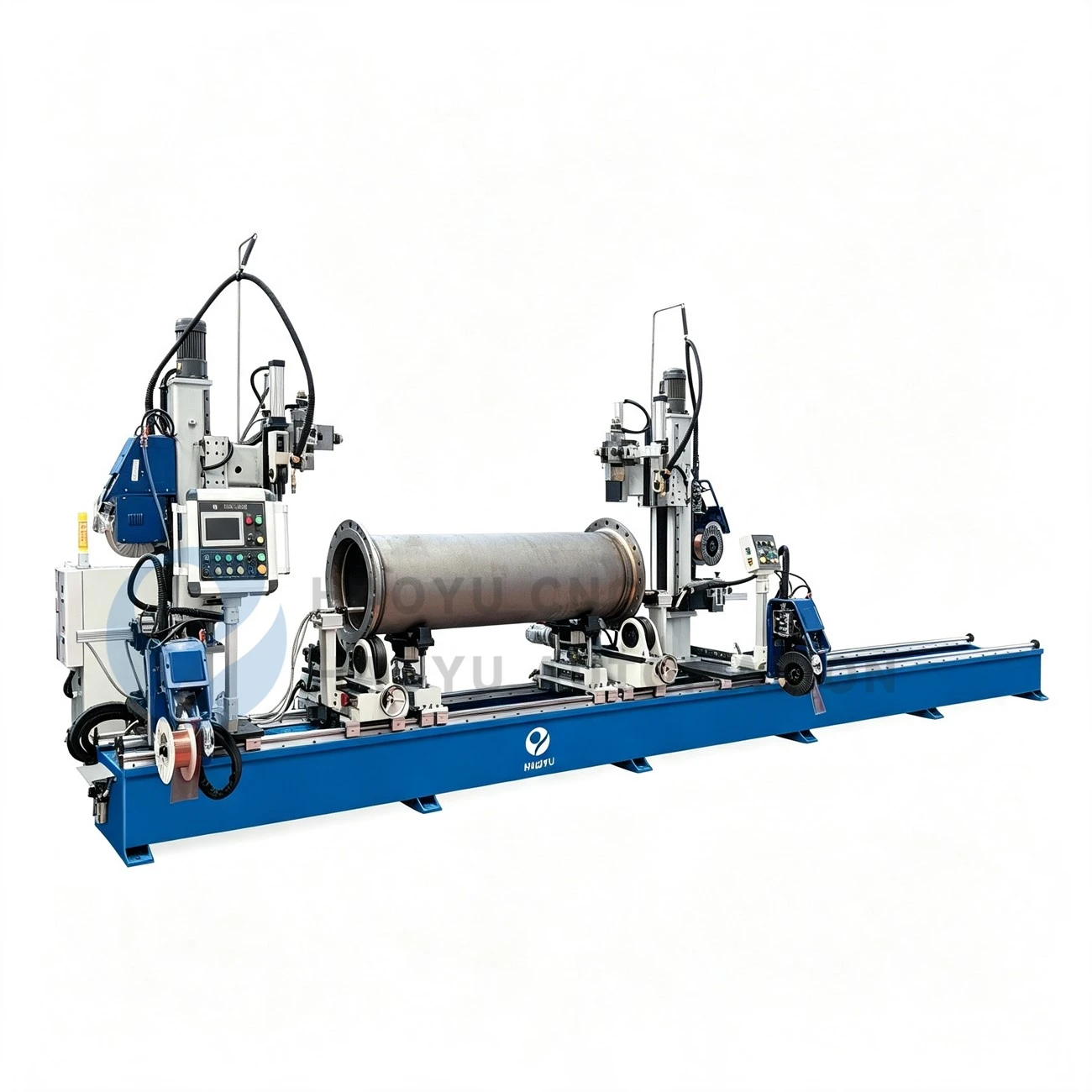

2. Dual-Torch Pipe Flange Welding Machine
This configuration uses two welding torches to weld the outer circumferential seams of the flanges at both ends of the pipe. It is suitable for workpieces requiring simultaneous or sequential welding at both ends, helping improve production efficiency and weld consistency.
3. Four-Torch Inner & Outer Pipe Flange Welding Machine
Designed for pipe assemblies requiring both inner and outer flange seam welding. Four welding torches can be arranged to weld the internal and external circumferential seams on both sides of the workpiece, reducing repeated positioning and handling.

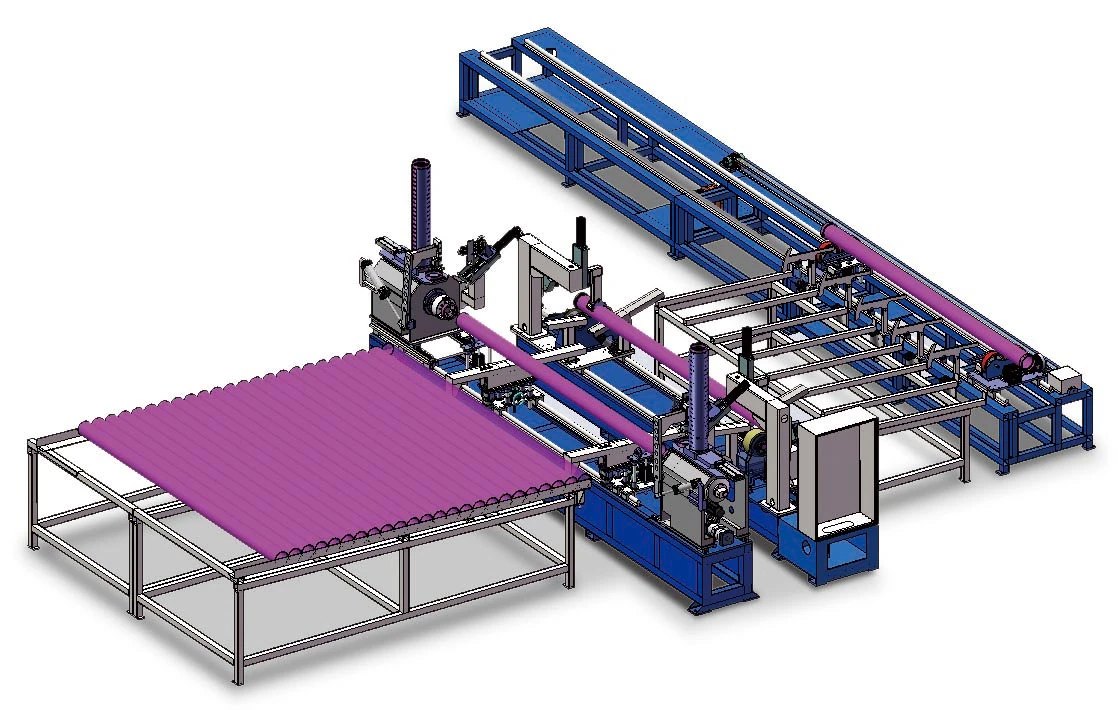

4. Pipe Flange Cutting & Welding Production Line
For higher automation requirements, pipe cutting, positioning, material transfer and flange welding can be integrated into one production line. The system can be customized according to pipe dimensions, flange specifications, production flow and required output.
Applications of Pipe Flange Welding Machines
Oil & Gas Pipeline Fabrication
Automatic pipe-to-flange welding machines can be used for manufacturing pipe and flange assemblies used in industrial pipeline systems.
The equipment helps improve weld consistency for repeated production of similar components.
Chemical & Petrochemical Equipment Manufacturing
Suitable for pipe and flange assemblies used in chemical processing equipment, pipelines and related industrial systems.
Different welding processes can be selected according to workpiece material and welding requirements.
Pressure Vessel & Process Equipment Manufacturing
Pipe flange welding equipment can be used for welding flange connections on cylindrical components, process piping and related fabricated parts.
Power & Industrial Piping Fabrication
Suitable for manufacturers producing industrial pipe assemblies where repeatable flange positioning and circumferential welding are required.
Steel Pipe Fabrication
For manufacturers producing steel pipes with welded flanges, automatic welding equipment can reduce dependence on manual circumferential welding and improve production consistency.
Why Use an Automatic Pipe Flange Welding Machine?
Manual pipe flange welding can be affected by operator experience, welding speed, torch angle and workpiece positioning.
For repeated manufacturing, an automatic pipe flange welding machine provides controlled workpiece rotation and repeatable welding parameters.
This can help manufacturers achieve:
- More Consistent Welds
Stable rotation and controlled welding parameters help maintain uniform circumferential weld formation.
- Higher Production Efficiency
Dual-torch and multi-torch configurations can reduce the welding cycle for applications requiring multiple flange seams.
- Reduced Dependence on Manual Welding
Once the workpiece is positioned and the welding parameters are set, the welding cycle can be completed automatically.
- Better Adaptability to Batch Production
Programs and fixtures can be designed for repeated production of specific pipe and flange assemblies.
How to Choose a Pipe Flange Welding Machine?
The correct pipe flange welding machine should be selected according to your workpiece rather than choosing the machine only by welding process or torch quantity.
Before selecting the equipment, the following information should be considered:
1. Pipe Dimensions
Confirm the pipe outside diameter, inside diameter, wall thickness and total length.
2. Flange Specifications
Provide the flange outside diameter, thickness, type and connection structure.
3. Weld Position
Determine whether you need external seam welding, internal seam welding or both inner and outer circumferential seam welding.
4. Workpiece Material
Carbon steel, stainless steel and other materials may require different welding processes and welding configurations.
5. Welding Process
The system can be configured according to your TIG, MAG or other welding process requirements.
6. Production Capacity
For lower production volumes, a single or dual-torch system may be sufficient. For higher-volume production, multi-torch equipment or an integrated production line may provide better efficiency.
Not Sure Which Pipe Flange Welding Machine You Need?
Send us your workpiece drawing, pipe dimensions, flange dimensions, material, weld position and required production capacity.
Our engineers can evaluate your application and recommend a suitable pipe flange automatic welding solution, including the welding process, torch configuration, fixture design and automation level.
Why Choose Haoyu for Pipe Flange Welding Machines?
Core strengths
Custom Welding Solutions
Machines are designed according to your pipe size, flange structure, welding process and production requirements.
Professional Engineering Team
Experienced engineers support welding process evaluation, equipment design and application development.
Factory Testing & Quality Control
Machines can be tested with customer workpieces before shipment to verify welding performance and operating stability.
Global Project Support
From technical communication and machine manufacturing to testing, delivery and after-sales support, we provide complete project support for overseas customers.
Our automatic welding equipment is manufactured under an ISO 9001 quality management system and designed to meet applicable CE requirements. Standardized manufacturing, inspection and factory testing help ensure reliable quality before delivery：
FAQ – Pipe Flange Welding Machine
FAQ FOR PIPE FLANG WELDING
01.1. What is a pipe flange welding machine used for?
02.Can the machine weld both the inner and outer flange seams?
03.What is the difference between dual-torch and four-torch pipe flange welding machines?
The main difference is the number of welding positions that can be handled during a welding cycle.
A dual-torch system is suitable for many standard pipe flange applications, while a four-torch system can be considered when multiple seams or higher production efficiency are required.
The final configuration depends on your workpiece structure.
04.Can the pipe flange welding machine be customized for different pipe sizes?
05.What information should I provide before requesting a quotation?
For a more accurate welding solution, please provide:
- Workpiece drawings or photos
- Pipe diameter and wall thickness
- Pipe length
- Flange dimensions
- Workpiece material
- Weld joint details
- Welding process requirements
- Required production capacity
With this information, we can recommend a more suitable automatic pipe flange welding machine for your application.
06.Who Needs a Pipe Flange Welding Machine and What Problems Can It Solve?
A pipe flange welding machine is suitable for pipe fabricators, pressure vessel manufacturers, oil & gas equipment manufacturers, chemical equipment manufacturers and other companies that regularly weld pipe-to-flange joints.
It helps reduce dependence on manual welding, improve circumferential weld consistency, increase production efficiency and reduce repeated positioning. Customized fixtures and welding configurations can also be designed for different pipe sizes, flange structures and inner or outer seam welding requirements.
We're one of the leading automatic pipe welding machine manufacturers and suppliers in China. Welcome to buy high quality automatic pipe welding machine for sale here and check the price with our factory.
