Automatic Pipe Welding Machine To Flange

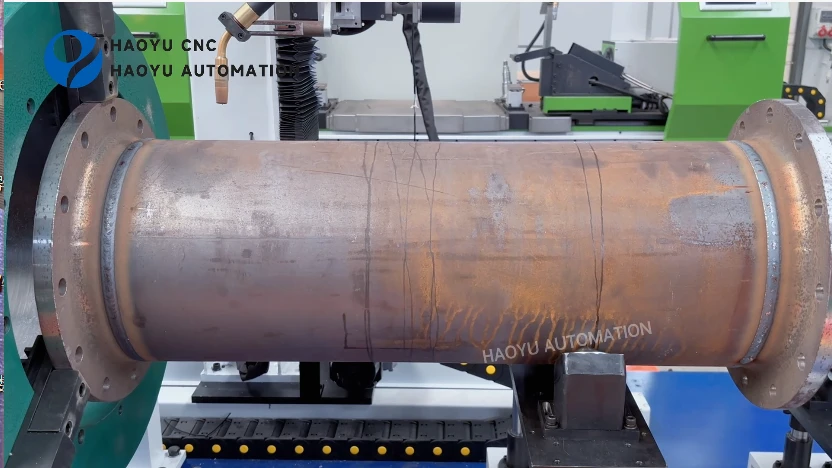

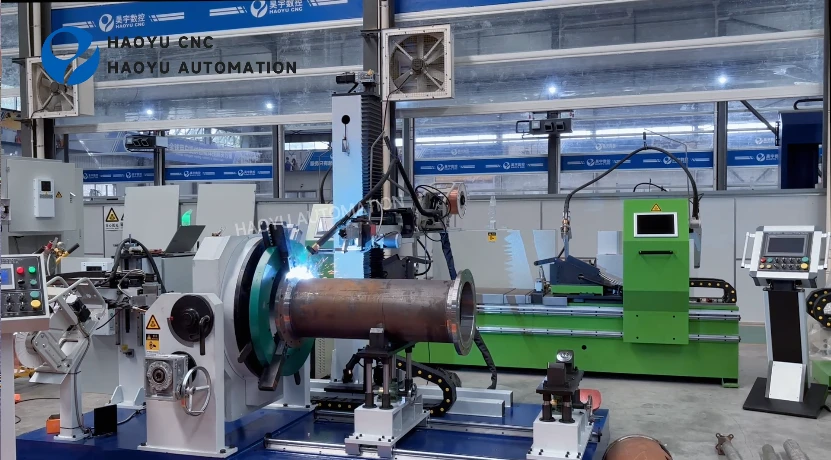

This flange welding machine is mainly used for welding the inner and outer circumferential fillet welds of straight pipe flanges. The inner and outer welds are welded separately, with automatic positioning and an adjustable welding torch angle. The welding torch completes both welds in one pass, resulting in a stable and continuous welding process with uniform and aesthetically pleasing welds, achieving the required weld depth and width.
Description
I.Main Task
1.The flange is rotated by a manual chuck to ensure that the weld position does not shift.
2.The wire feeding method uses a push-and-feed technique, resulting in a short feeding distance and stable wire feeding.
3.Using a PLC to control the entire machine ensures control accuracy and improves equipment reliability.
4.One gas shielded welding torch is used for welding the outer weld seam, and one argon arc welding torch is used for welding the inner weld seam.
4.The touchscreen serves as the input/output interface, allowing for input of parameters such as weld length and arc initiation/out time.It can also trigger alarms and provide instructions for any faults occurring during the welding process.
II. Technical Parameters
| Item | Flange welding machine |
| Welding method |
CO2 welding
|
| Inner diameter |
150-500MM
|
| Welding length range |
80-2000MM
|
| Welding voltage | 16-40V, steplessly adjustable |
| Welding current | 100-350A, 60% duty cycle, steplessly adjustable |
| welding wire diameter |
Φ1.0～Φ1.6mm
|
| Grid voltage | 3 phase 380V±15% |
Due to varying welding process requirements, the parameters on this page are for reference only. We can provide a customized parameter solution based on your workpiece material and weld requirements.
III.Renderings

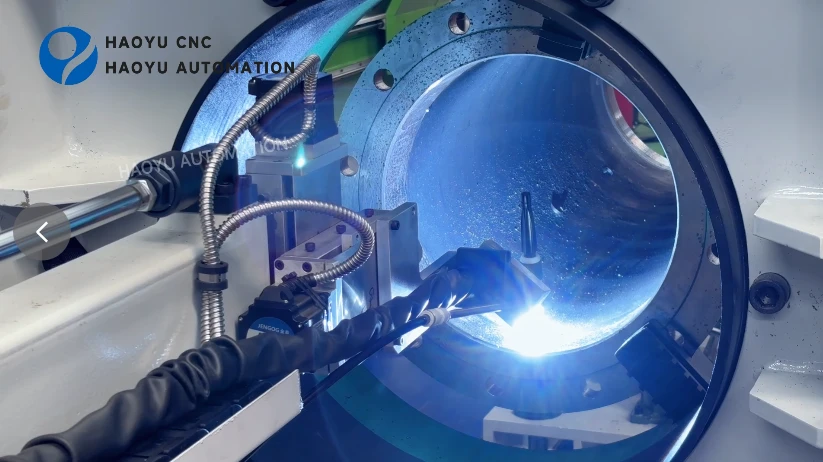

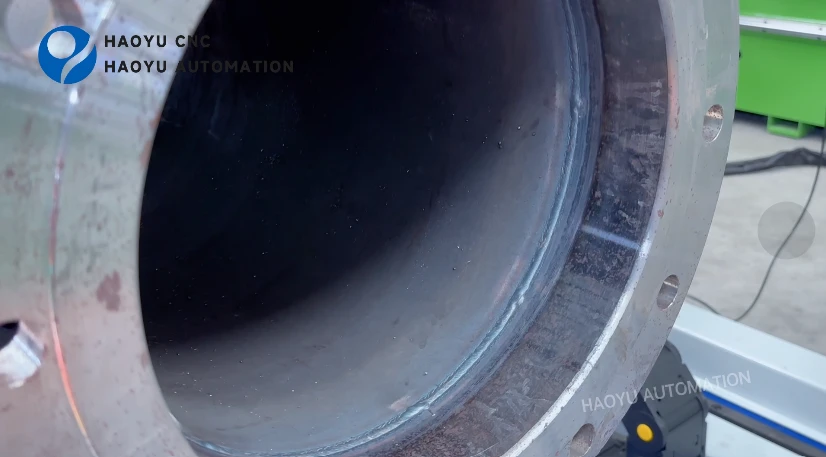

Argon arc welding torch of pipe flange welding equipment for welding the inner circumferential seam of workpiece:

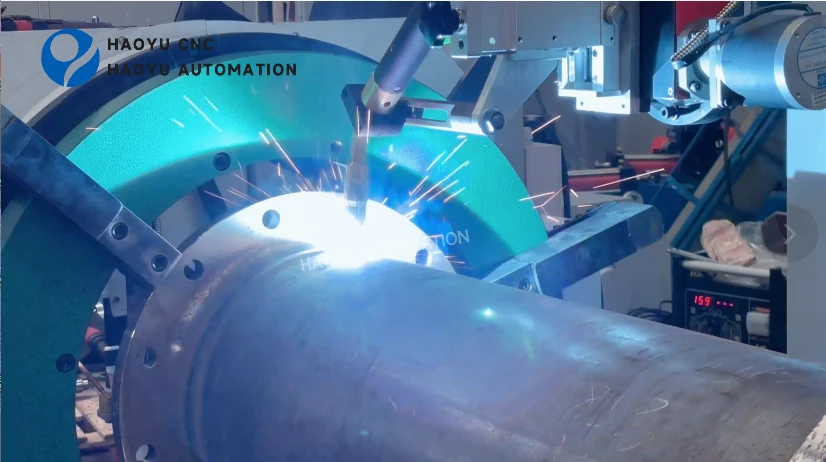

The process of welding the outer flange seam with the gas drum welding gun of the pipe flange welding equipment:
IV.Youtube Vedio For your reference
Dual Torch Tube Flange Welding Machine
V.Working Process
The Pipe Inner and Outer Flange Seam Automatic Welding Machine how to work?
Manual loading → Manual workpiece installation → Inner welding torch feed → Shielding gas supply → High-voltage arc ignition → Workpiece rotation, welding inner weld → Reaching set length → Workpiece stops rotating → Low current, low voltage arc termination → Stop supplying AR gas → Inner welding torch retraction → Outer welding torch feed → Shielding gas supply → High-voltage arc ignition, slow wire feed arc ignition → Workpiece rotation, welding outer weld → Reaching set length → Workpiece stops rotating → Low current, low voltage arc termination → Stop supplying mixed gas → Outer welding torch retraction → Unloading.
VI.Technical Support
After successful equipment acceptance and delivery, we will provide technical documentation support, including:
1. Equipment instruction manual, equipment and component assembly drawings, air circuit diagram, lubrication diagram and lubrication instructions.
2. Equipment electrical schematic diagram, electrical layout diagram, electrical instruction manual, programmable controller instruction manual and programming manual, PC ladder diagram and interface diagram.
3. Fixture drawings, drawings, lists and prices of special parts and consumable parts, and a detailed list of spare parts.
