Automatic Flange Welding Machine

The Automatic Flange Welding Machine is designed for welding pipe-to-flange joints in industrial pipe fabrication and component manufacturing. With an automatic loading system integrated into the welding process, the machine helps manufacturers streamline workpiece handling and improve the consistency of repetitive welding operations.

It is suitable for production applications where pipes and flanges need to be positioned and welded according to defined process requirements. The machine can be customised based on pipe dimensions, flange configurations, workpiece materials, welding processes and production workflow.

Whether you are looking to reduce manual handling, improve production organisation or build a more automated pipe fabrication process, a customised pipe flange welding machine can be configured around your actual workpieces and manufacturing needs.

1. Automatic Loading, Welding and Unloading
This automatic flange welding machine integrates automatic loading, TIG welding and automatic unloading into one production process, reducing manual material handling and improving workflow efficiency for pipe and flange welding.

2. Dual-Torch TIG Welding for Both Pipe Ends
Equipped with two TIG welding torches, the machine can simultaneously weld flanges at both ends of a pipe, helping improve productivity and maintain a consistent welding process for repetitive pipe-to-flange joints.

3. Supports Butt-Joint and Socket-Joint Welding Flange
Designed for versatile pipe flange welding applications, the machine can be customised for both butt-joint and socket-joint connections between pipes and flanges, according to workpiece dimensions and joint requirements.

4. Customised Pipe Flange Welding Solutions
This automatic pipe flange welding machine can be tailored to your pipe diameters, flange sizes, joint configurations and production requirements, providing a customised solution for industrial pipe-to-flange welding automation.

This parameter is not fixed, but is customized according to customer requirements and workpiece specifications.

• Reduce Manual Workpiece Handling

Repetitive loading and positioning can take up a significant part of a pipe flange welding operation. An automatic loading arrangement can reduce manual handling when it is designed to match the workpieces and production process.

• Improve Production Consistency

Dedicated fixtures and a defined positioning process can help maintain the required relationship between the pipe and flange. Actual consistency depends on workpiece tolerances, fixture design, welding parameters and process control.

• Organise Repetitive Welding Operations

For manufacturers producing similar pipe-and-flange assemblies in batches, an automated welding setup can help establish a repeatable workflow and reduce reliance on repeated manual positioning.

• Support a More Efficient Production Layout

Integrating loading and welding functions can help manufacturers organise material flow around the welding station. The practical benefit depends on cycle time, loading method, operator involvement and the layout of the surrounding production line.

The actual operating sequence depends on the machine configuration. A typical process may include the following steps.



The working process

STEP1

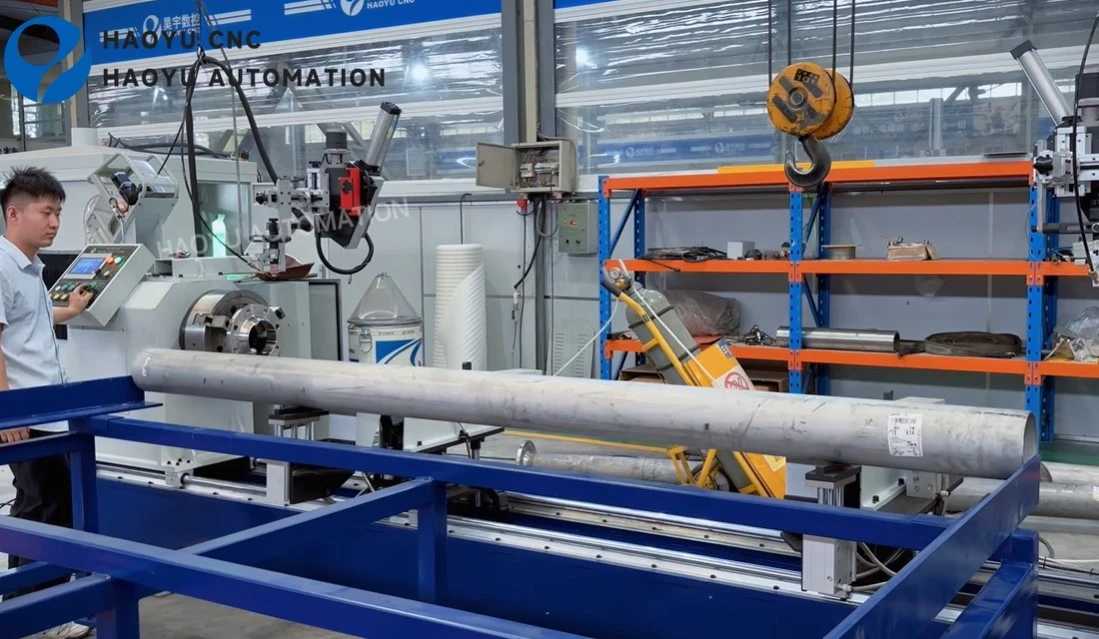

Automatic Pipe Loading

The loading system feeds the pipe into the designated working position according to the configured feeding method.

STEP2

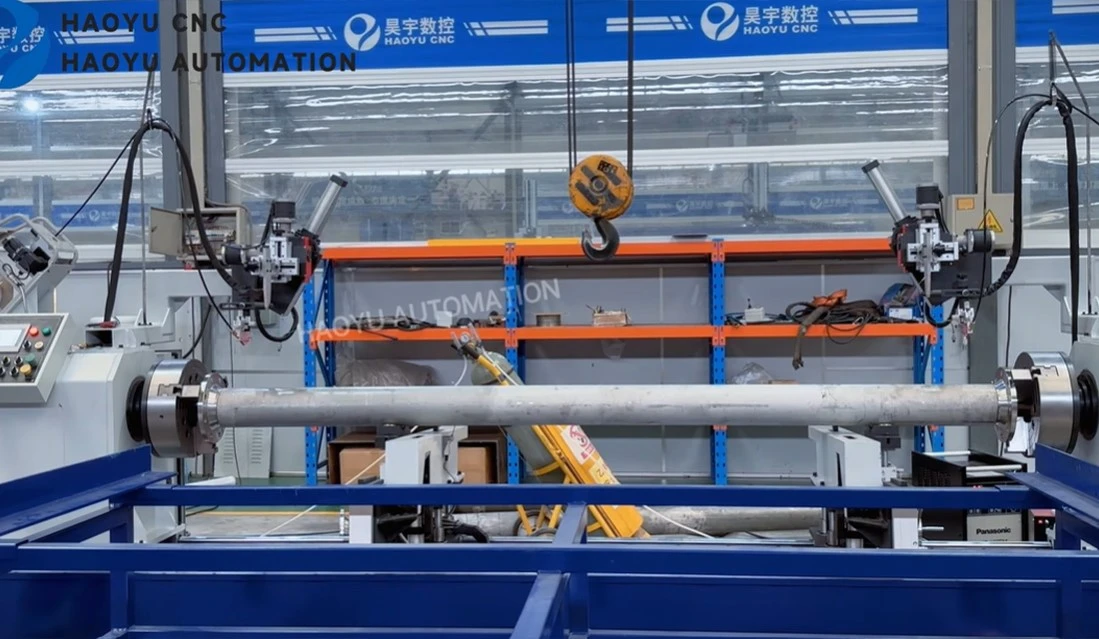

Flange Positioning and Clamping

The pipe and flange are positioned and secured using the appropriate fixture to establish the required joint alignment.

STEP3

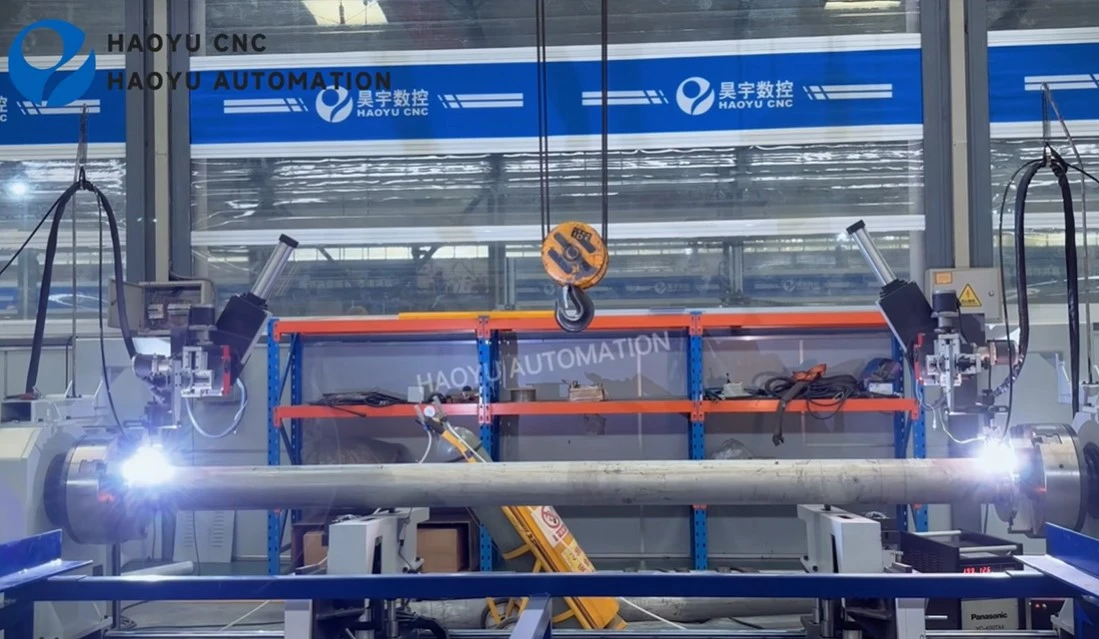

Pipe-to-Flange Welding

The configured welding system completes the specified joint according to the selected welding process and qualified procedure.

STEP4



Unloading and Inspection

After welding, the workpiece is removed manually or through a configured unloading system, then inspected against the applicable quality requirements.

Watch this automatic flange welding machine in action. The system integrates automatic loading, dual-torch TIG welding and automatic unloading to weld flanges to both ends of a pipe simultaneously. It supports customised butt-joint and socket-joint welding configurations to meet different pipe flange welding requirements:

Different manufacturers have different workpiece dimensions, joint designs and production targets. A customised automatic flange welding machine should be selected around these requirements rather than relying on a one-size-fits-all configuration.

The available options depend on the final engineering design. Welding process, loading method and machine configuration should be confirmed before quotation.

• Designed Around Your Actual Workpieces

Machine configuration and fixture design can be planned around your pipe dimensions, flange geometry and joint requirements.

• Automation Matched to Your Production Process

The loading arrangement and welding workflow can be evaluated according to your material handling needs and production layout.

• Welding Process Selected for the Application

The appropriate welding process should be determined by the base material, wall thickness, joint design, quality requirements and applicable welding procedure.

• Configuration Confirmed Before Manufacturing

Workpiece drawings, samples, technical requirements and expected production targets can be reviewed before the final machine configuration is confirmed.

To help evaluate the right solution, provide your pipe and flange drawings, material specifications, required weld details and expected production volume.

FAQ FOR THE FLANGE TO PIPE WELDING MACHINE





01.What is an automatic flange welding machine used for?

It is used to weld flanges to pipes in industrial manufacturing. Depending on the configuration, automatic loading and dedicated fixtures can support more organised and repeatable pipe-to-flange welding operations.

02.Can this machine weld a flange to a pipe automatically?

The machine is intended for pipe-to-flange welding with an automatic loading arrangement. The exact level of automation-including component feeding, flange positioning, clamping, welding and unloading-must be confirmed against the selected configuration.

03.What is the difference between pipe flange welding and pipe-to-flange welding?

Both expressions can describe joining a flange to a pipe. "Pipe-to-flange welding" explicitly describes the joint, while "pipe flange welding" is a broader equipment and process search term.

04.Which welding process is suitable for pipe and flange welding?

The choice depends on the material, pipe wall thickness, flange design, weld position, quality requirements and production target. TIG, MIG/MAG or another suitable process may be considered after reviewing the application.

05.Can the machine handle different pipe diameters and flange sizes?

Different workpiece sizes may require different fixtures, clamping arrangements or machine configurations. Please provide the dimensional range and drawings so the available working range can be evaluated.

06.How can I get a quotation for an automatic flange welding machine?

Send your pipe and flange drawings or sample photos, workpiece dimensions, material details, required weld type and target production volume. These details allow the manufacturer to assess the application and propose a suitable configuration.
