Steel Pipe Flange Production Line

Steel Pipe Flange Production Line Welding Machine Application 1. Cut off the pipe 6m or 12m into 3m length. 2. Weld flange and pipe of various sizes. 3. MIG welding type, weld double-seam at the same time. 4. Machine can work continuously for 24-hour. Working Process 1. The first cutting stage:...

Steel Pipe Flange Production Line


Welding Machine Application

1. Cut off the pipe 6m or 12m into 3m length.

2. Weld flange and pipe of various sizes.

3. MIG welding type, weld double-seam at the same time.

4. Machine can work continuously for 24-hour.

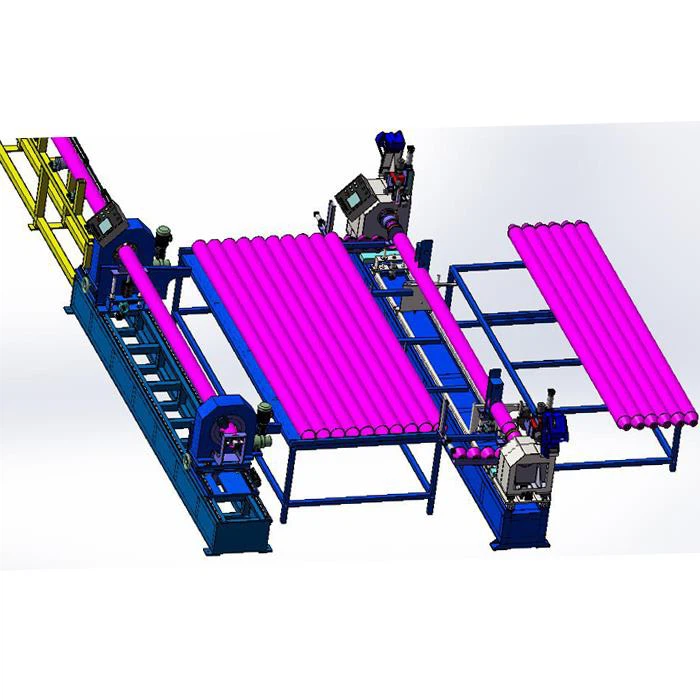

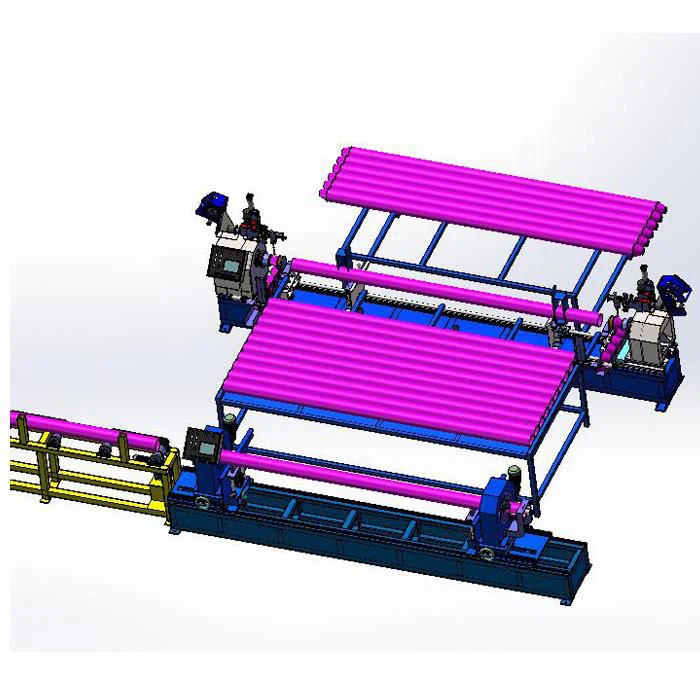

Working Process

1. The first cutting stage: put pipe on motor-driven roller which will push pipe into cutting stage.

2. After that, cylinder device will automatically push pipe to the second transportation stage. Pipe will be loaded and uplifted by air cylinders.

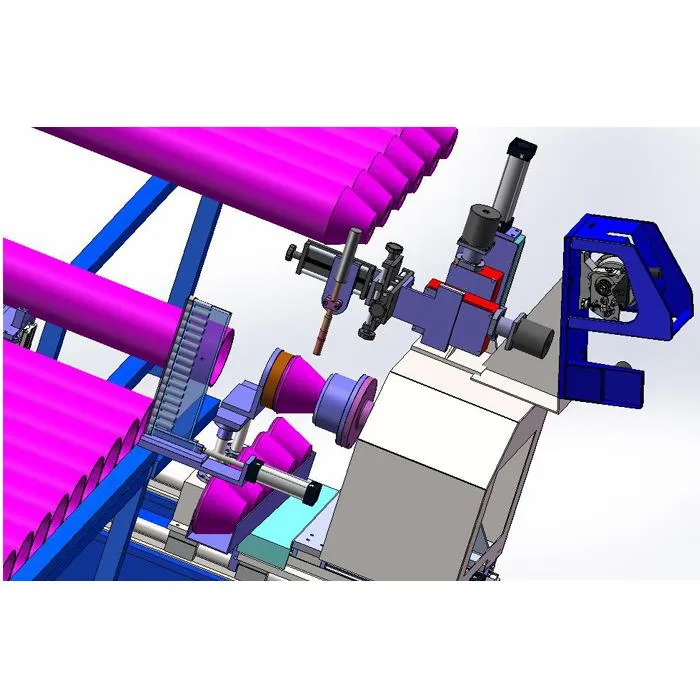

3. pipe will be automatically pushed to the third stage. Pipe will be automatically fixed in welding machine. Machine will weld pipe and flange automatically.

4. The last cylinder device will push pipe and flange, and unload it to the products stand.


Welding Machine Parameters

Pipe diameter

ID125mm×OD134mm

Pipe length

6m & 12m

Pipe thickness

4.5mm

Rotation speed

0.1-1rpm

Cutting machine motor

Panasonic servo 0.4kw

Welding machine motor

Panasonic servo 0.75kw

Air pressure

0.4-0.6MPA

Welding power source

350A, 400A

Shielding gas consumption

15L/min

Machine working voltage

380v 220v
