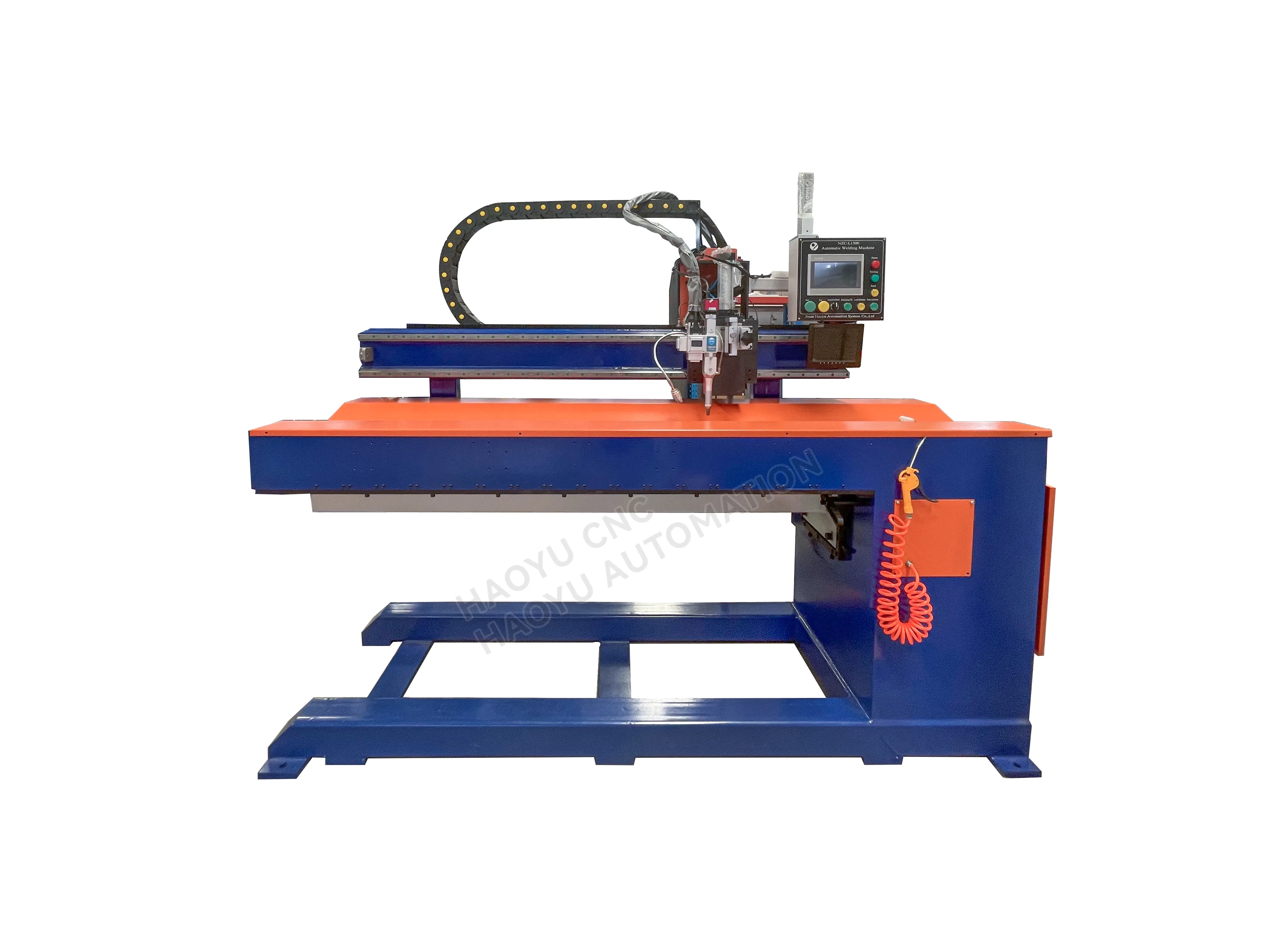

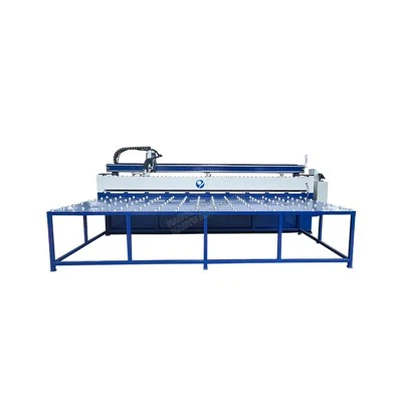

Automatic Laser Longitudinal Seam Welding Machine

Automatic laser linear seam welder

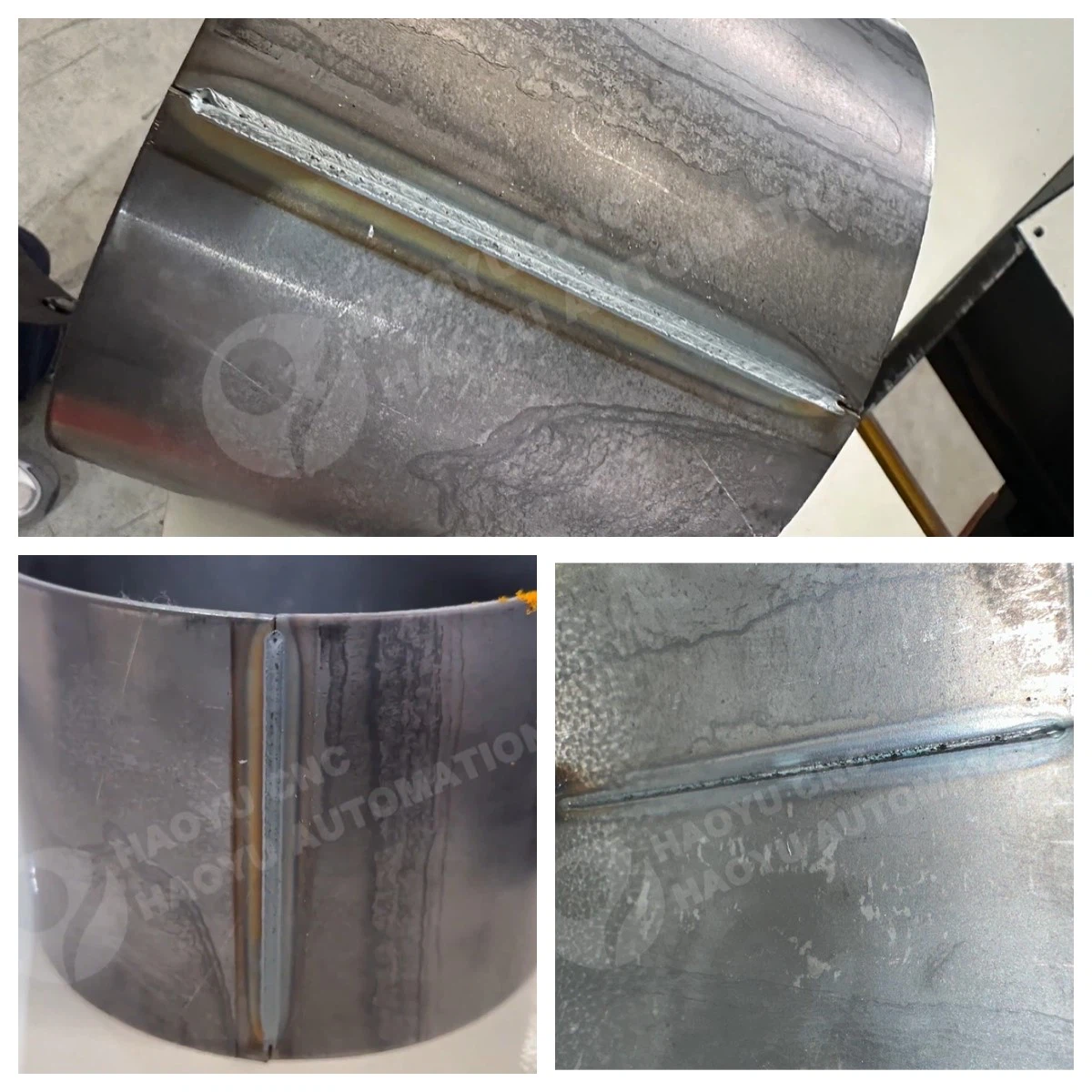

Laser straight seam welding machines are specifically designed for straight butt welds on metal sheets, combining an advanced laser light source with an automated control system. Compared to traditional TIG welding or plasma welding, laser straight seam welding features a smaller heat-affected zone, less welding deformation, a larger depth-to-width ratio, and a more aesthetically pleasing weld. This equipment is widely used in industries with extremely high requirements for sealing, strength, and appearance, making it an ideal choice for achieving efficient and high-quality welding of thin and medium-thick plates.

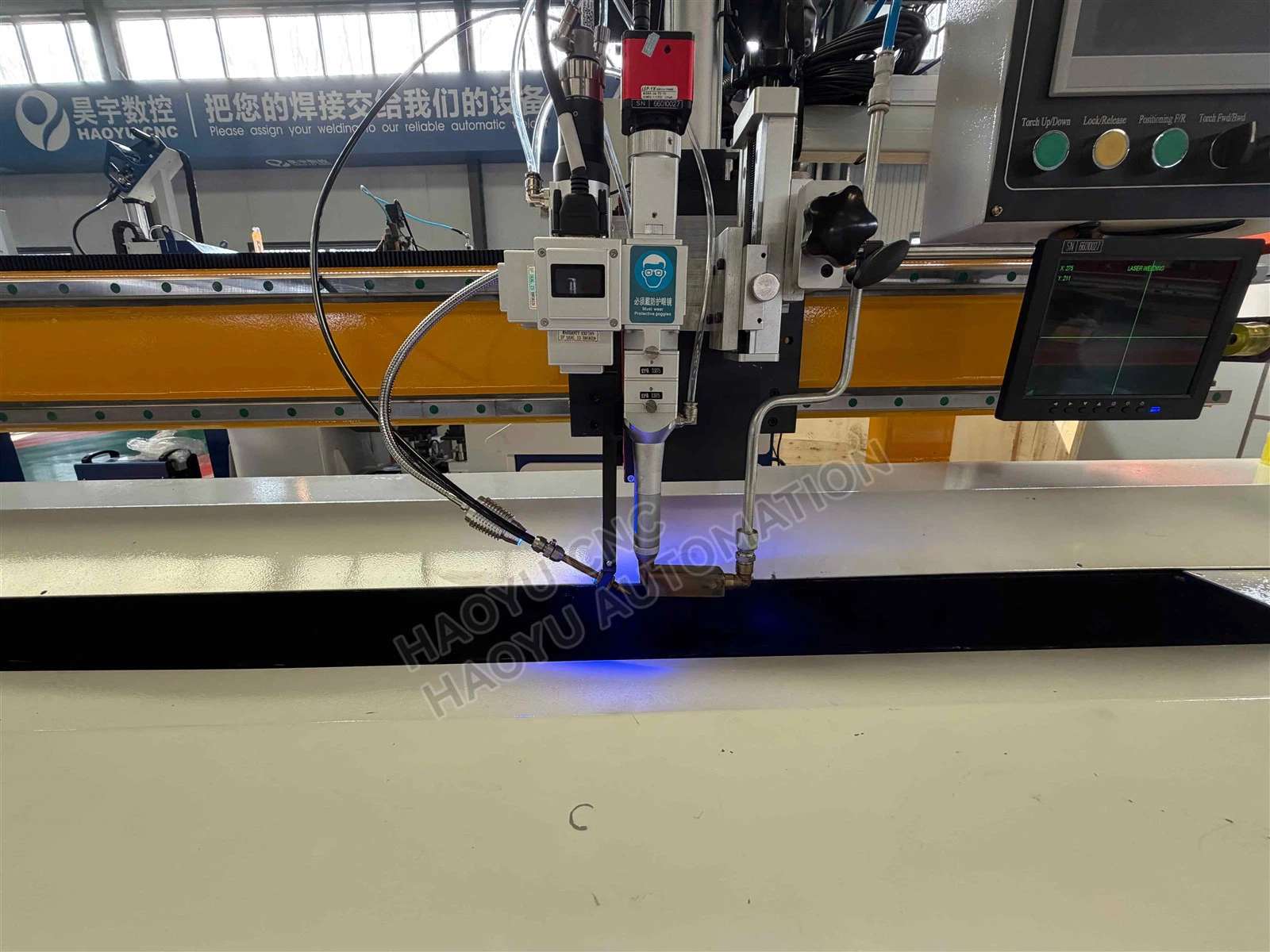

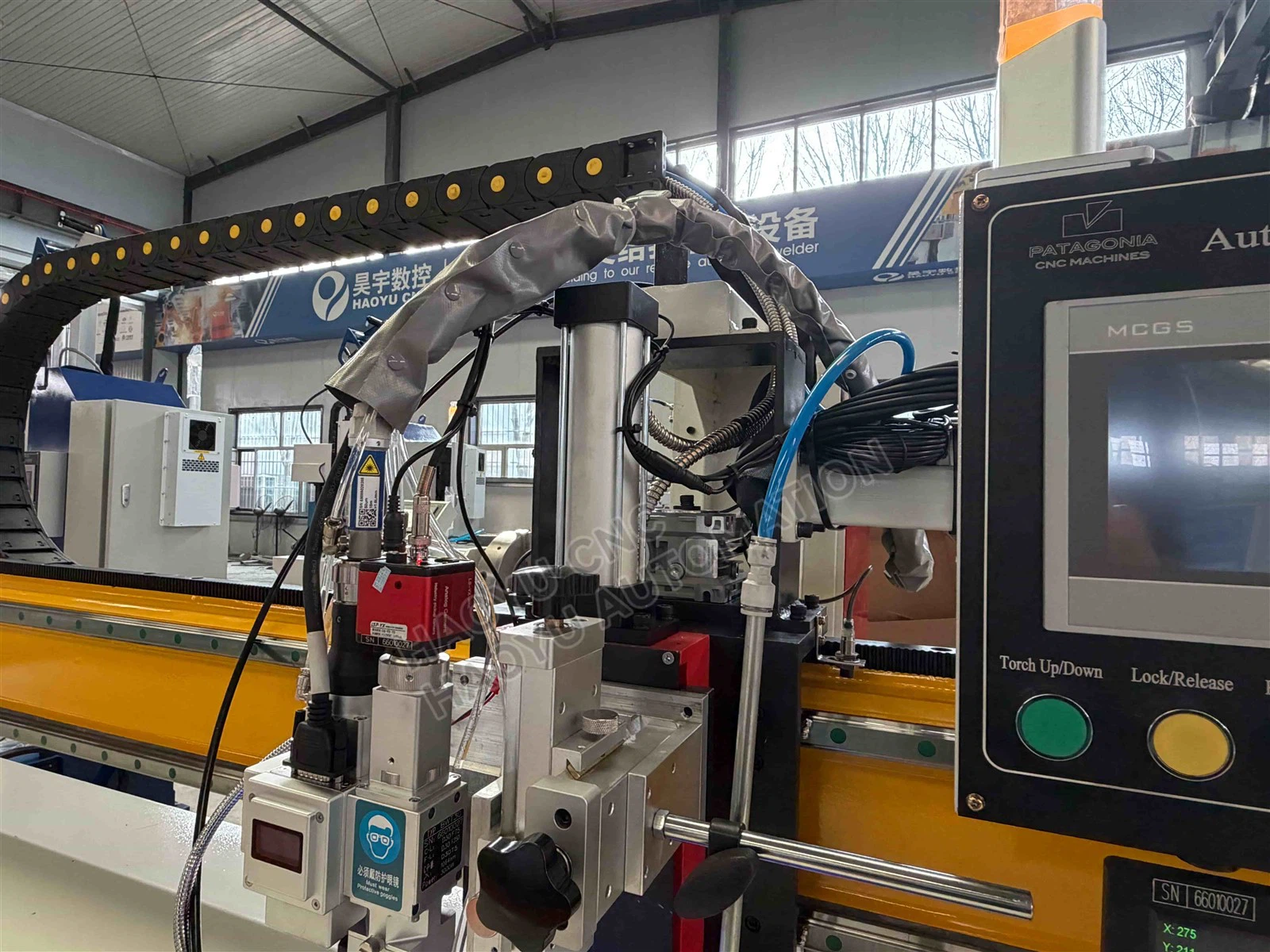

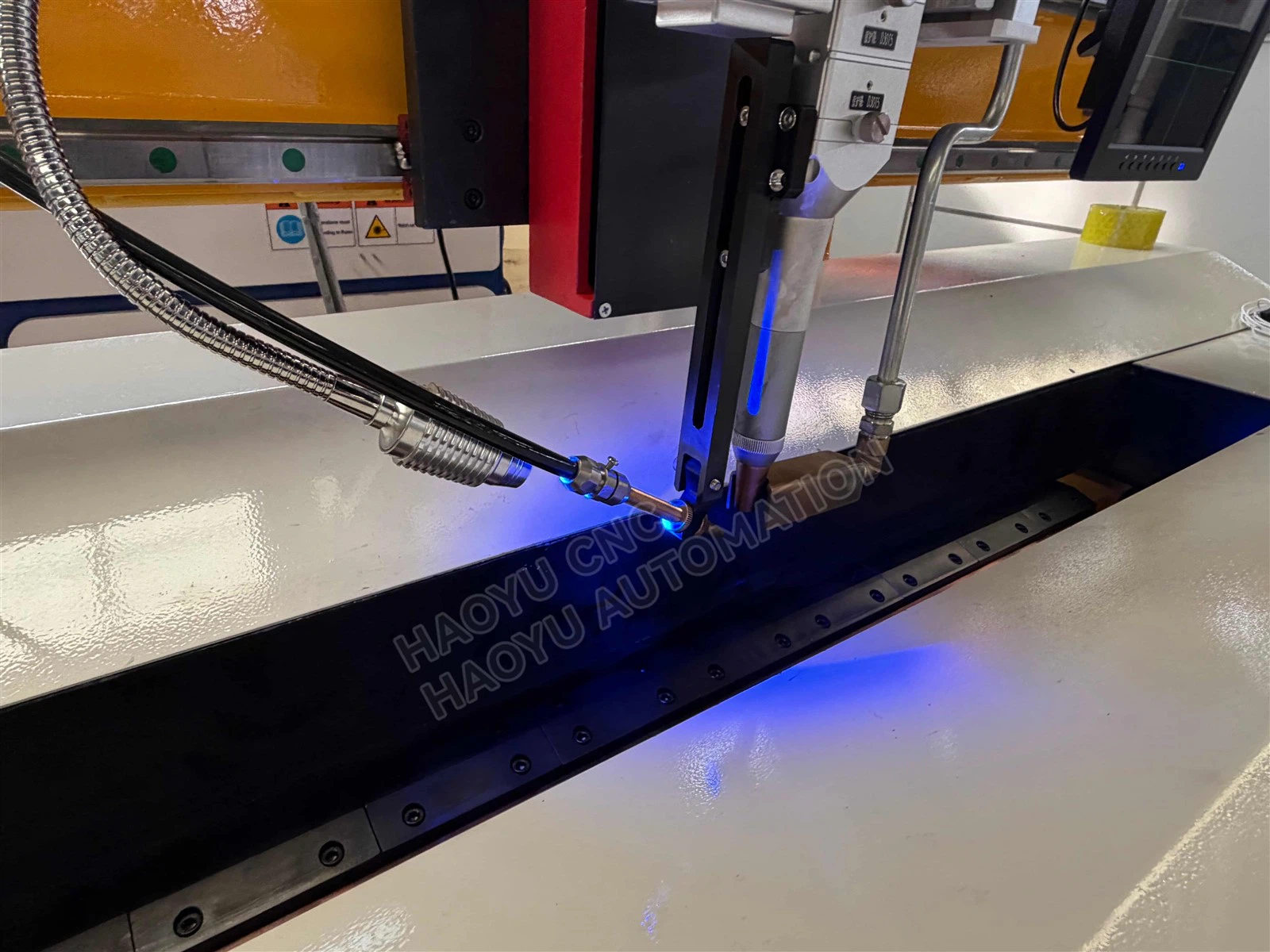

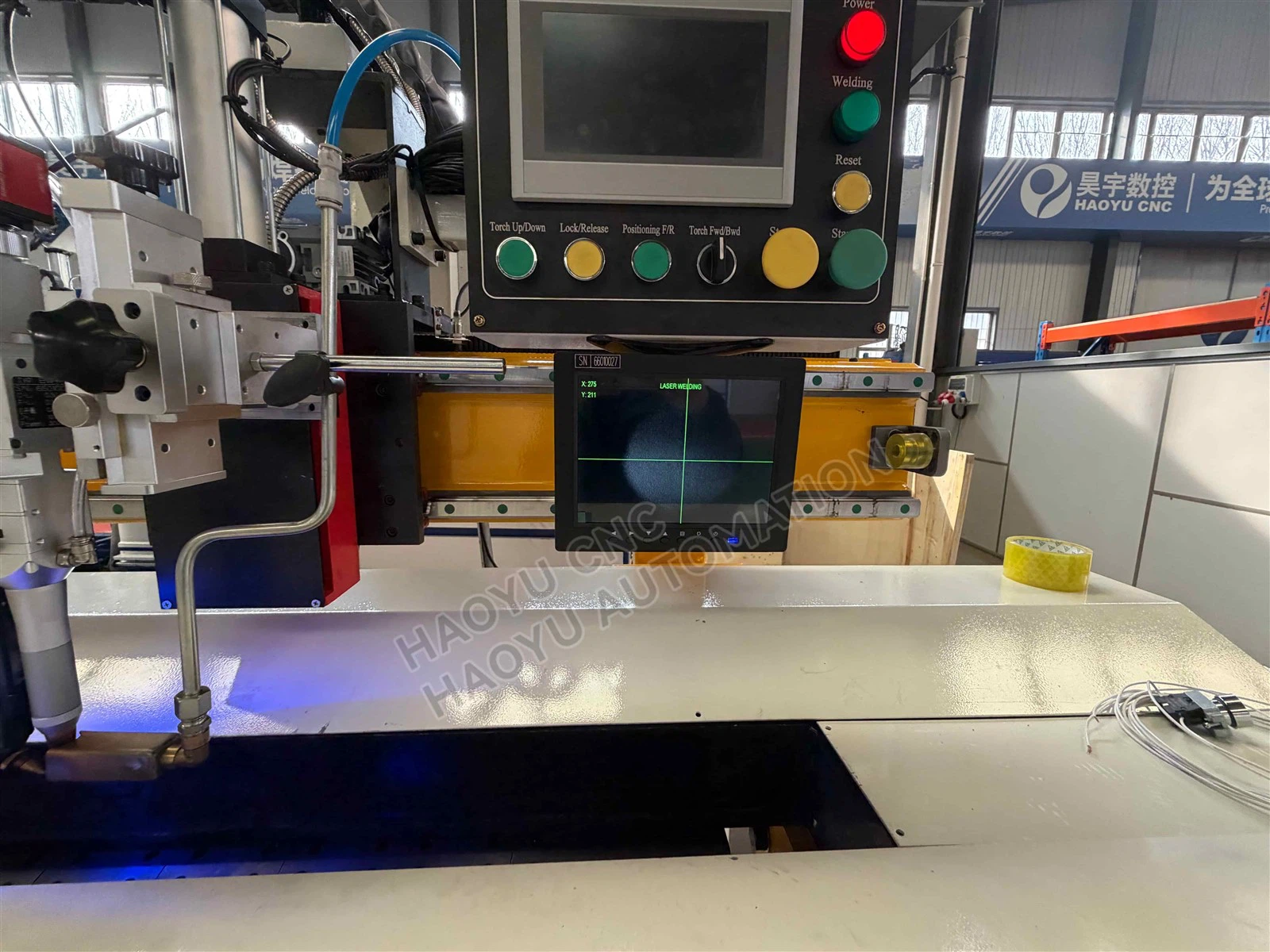

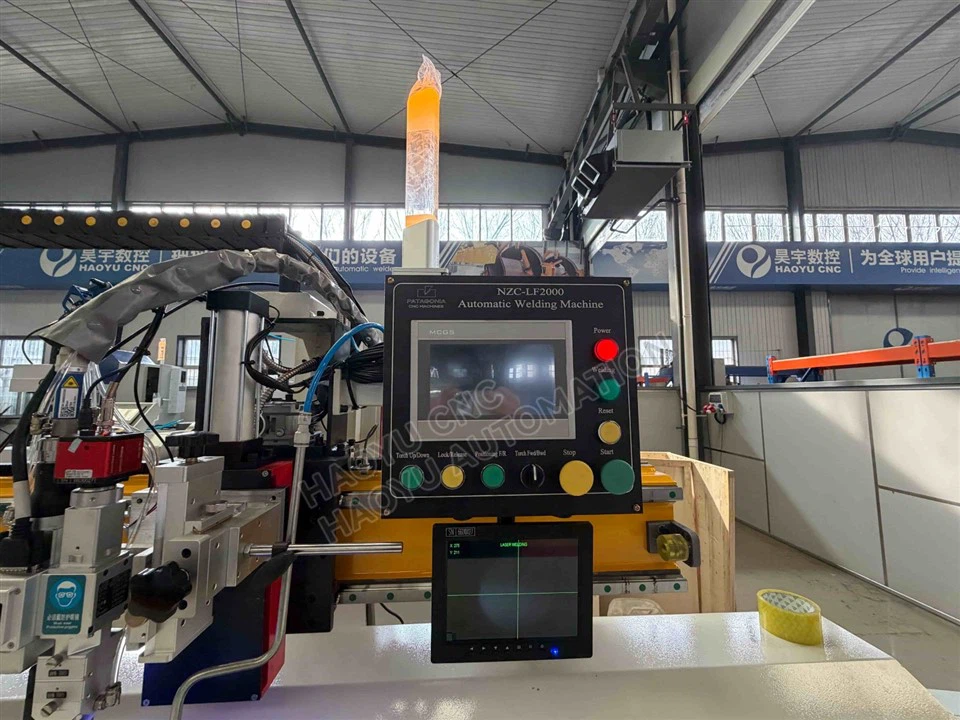

1.This laser straight seam welding machine uses a Rico laser as its core light source. The welding head integrates a camera and lighting system, and the welding process and real-time status can be clearly displayed on a connected screen for precise monitoring of the welding effect. The equipment is equipped with a back gas and water cooling system, which can effectively protect the laser head and key components, ensuring stability and reliability for long-term continuous operation.

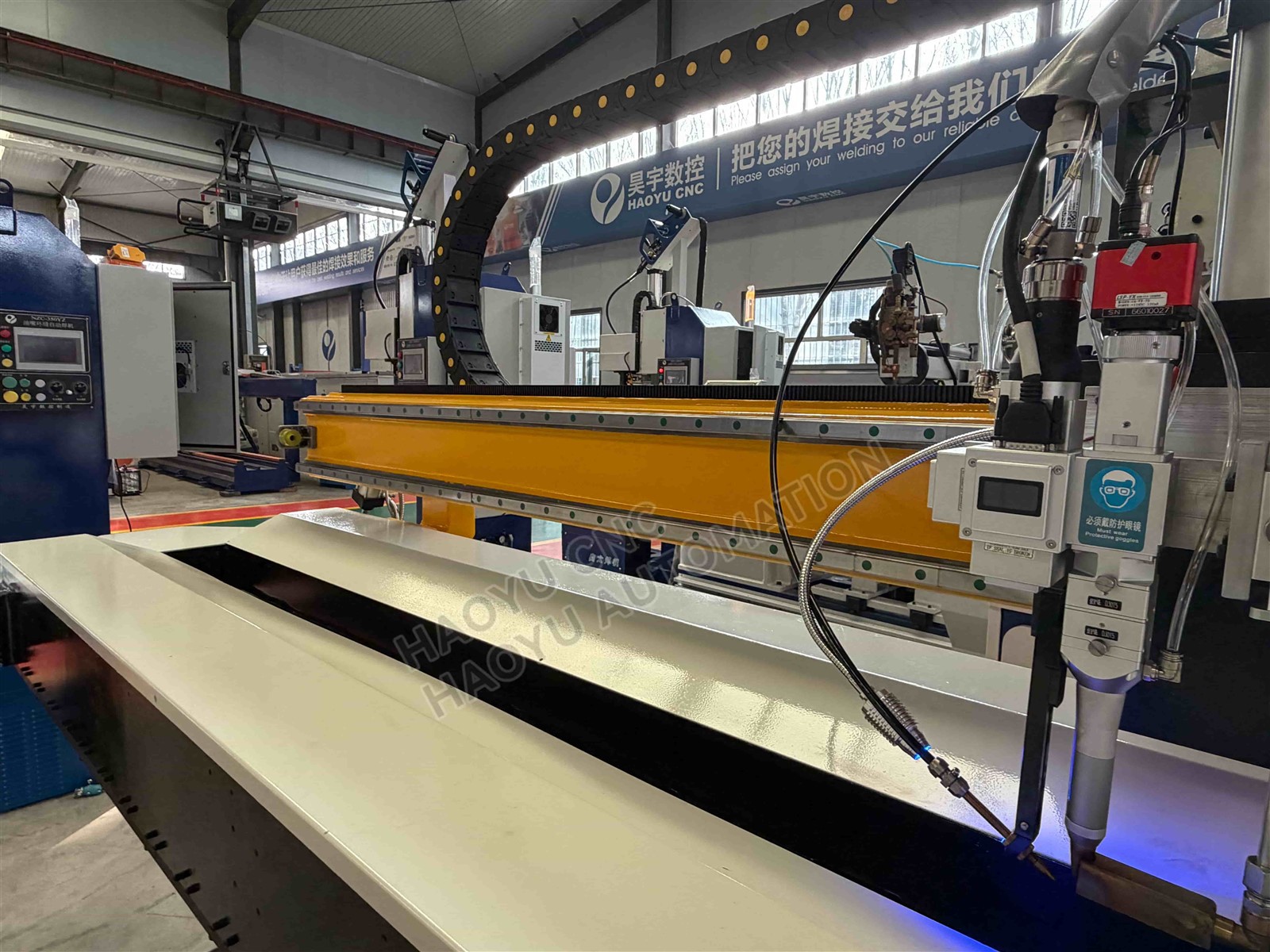

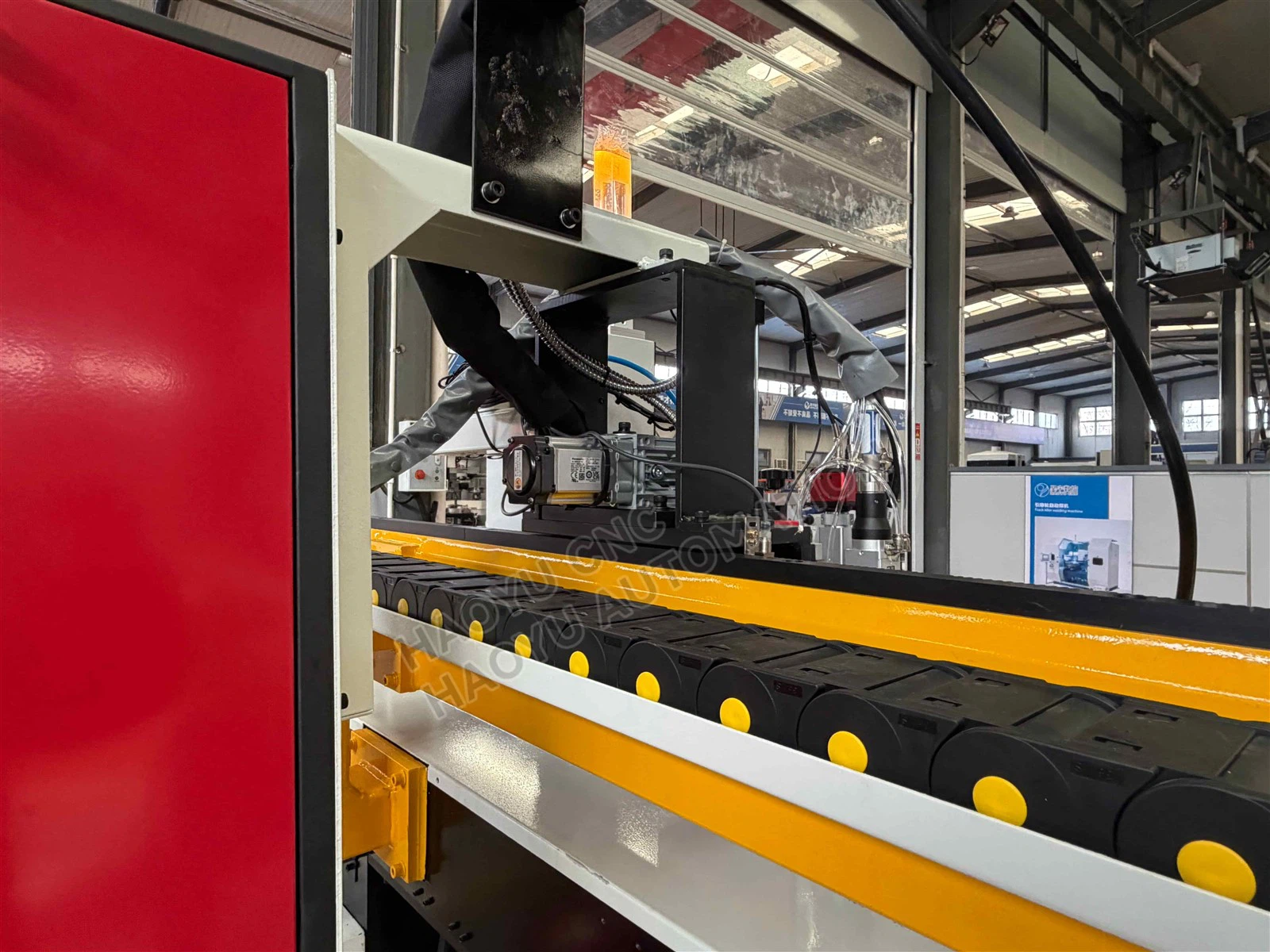

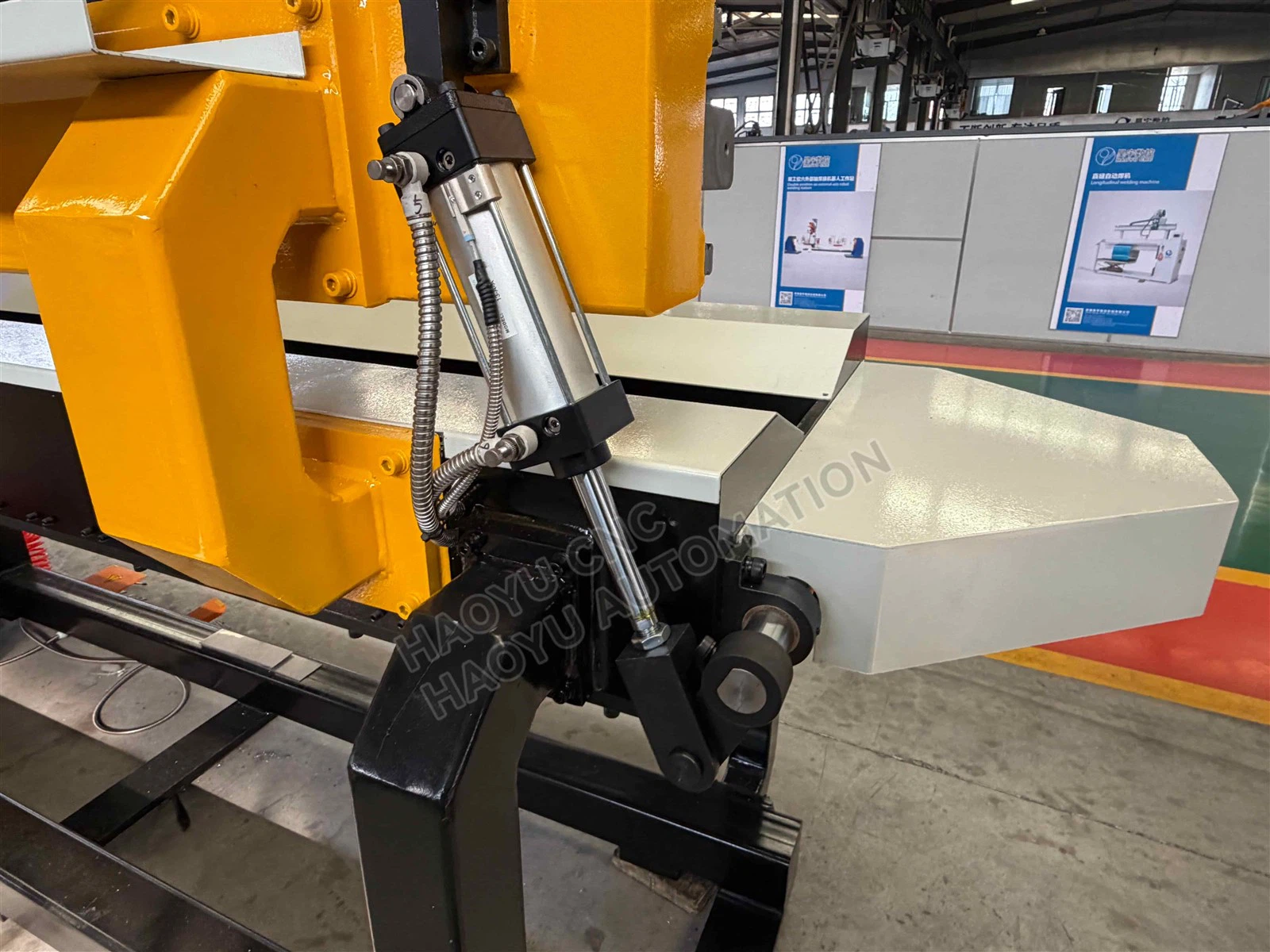

2.The machine head's traveling mechanism is driven by a servo motor, enabling the entire machine head to achieve high-precision linear motion on a precision guide rail. The lifting and lowering of the machine head is controlled by a cylinder, ensuring rapid response and reliable operation. For the adjustment mechanism, the equipment employs a dovetail ball screw structure, which not only provides high positioning accuracy but also features a locking function after adjustment, ensuring long-term positional stability during welding and meeting the requirements of high-precision welding processes.

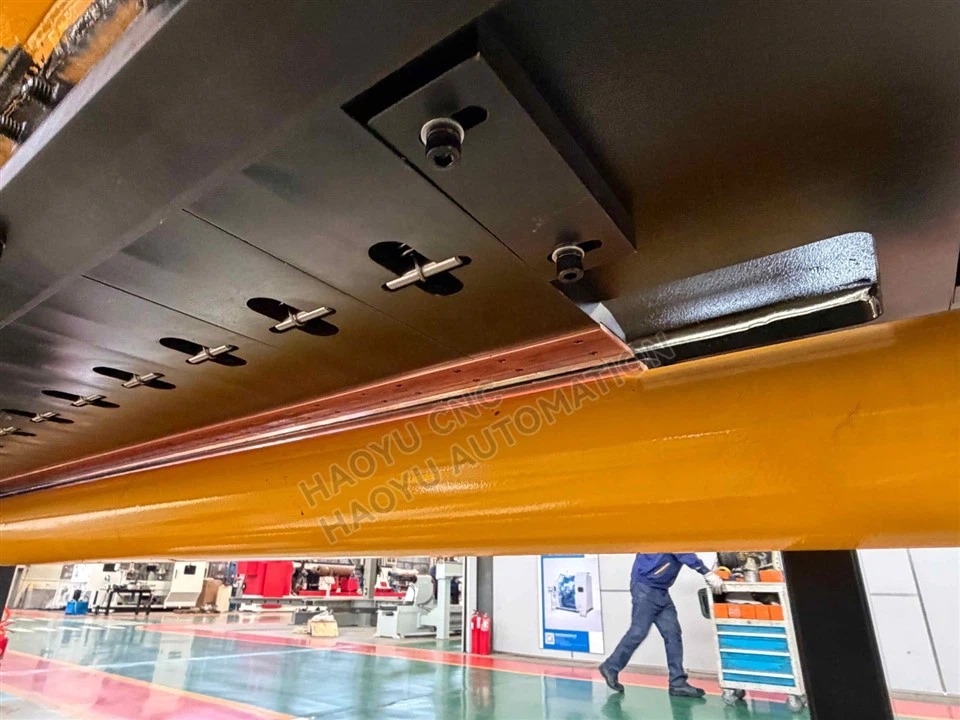

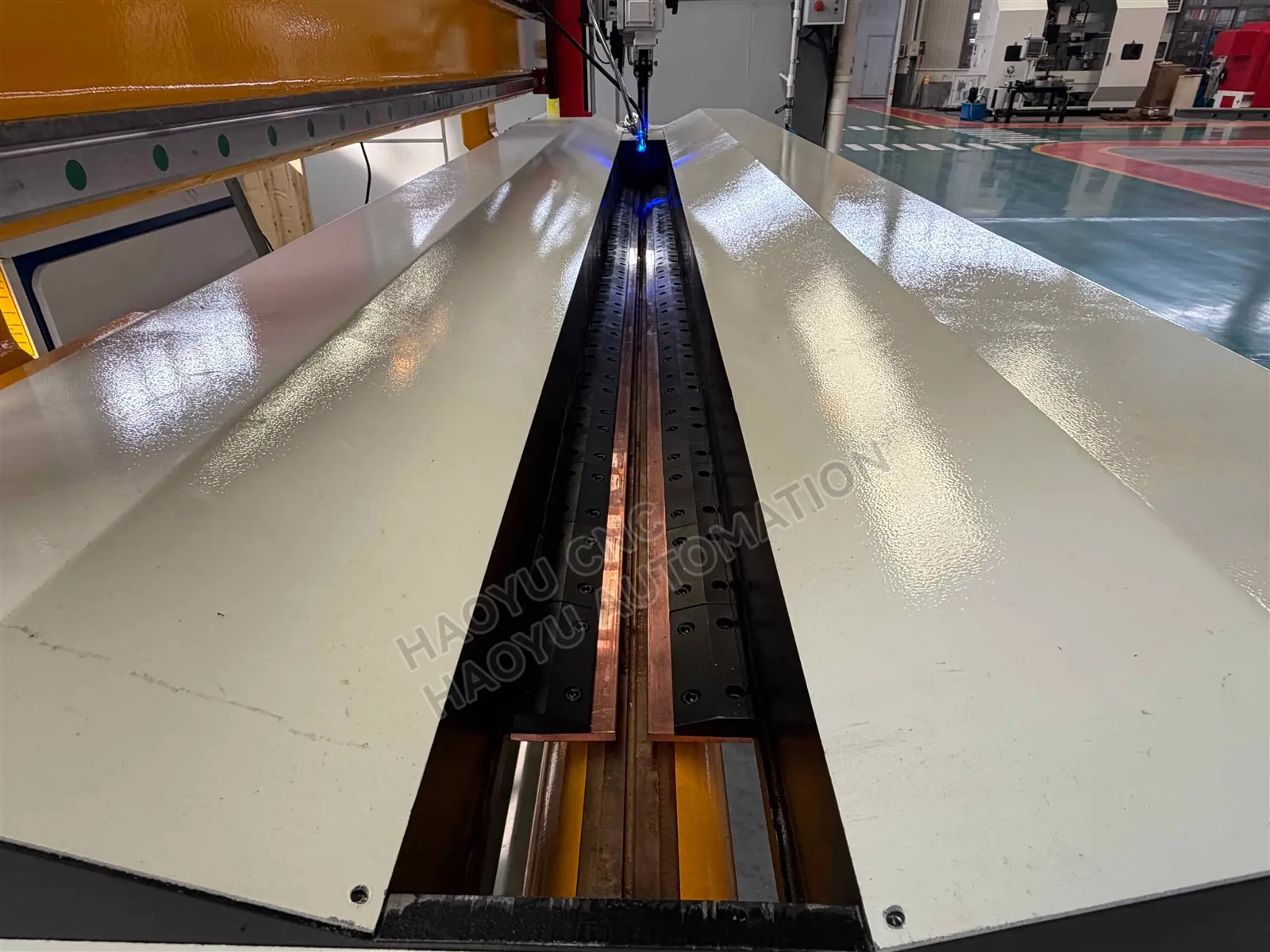

3.We are using copper clamping bar and copper back bar in your machine. They can be for steel, stainless steel and Al. Copper bar is used to conduct both heat and electricity. Firmly clamp work-piece. It is also used to protect steel surface. Surface of the cylinder/tank will not have scratch and mechanical damage.Besides,Easy assembly and fixation. Tank is centrally positioned and clamped by square core axis and pneumatic pressure plate. Cylinder/tank is centrally positioned by pneumatic pin.

4.Renderings

Laser straight seam welder for sale

1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement.
