TOP Hydraulic Cylinder Assembly Machine Supplier

This equipment is used for assembling hydraulic cylinder barrels and piston rods. It is widely used in the construction machinery industry, such as excavators, bulldozers, and cranes. Non-standard assembly machines are available to meet various welding requirements. Currently, we mainly offer vertical single-station cylinder assembly machines, horizontal assembly machines, and vertical double-station hydraulic cylinder assembly machines to improve assembly efficiency.



Assembly machine for Hydraulic cylinder

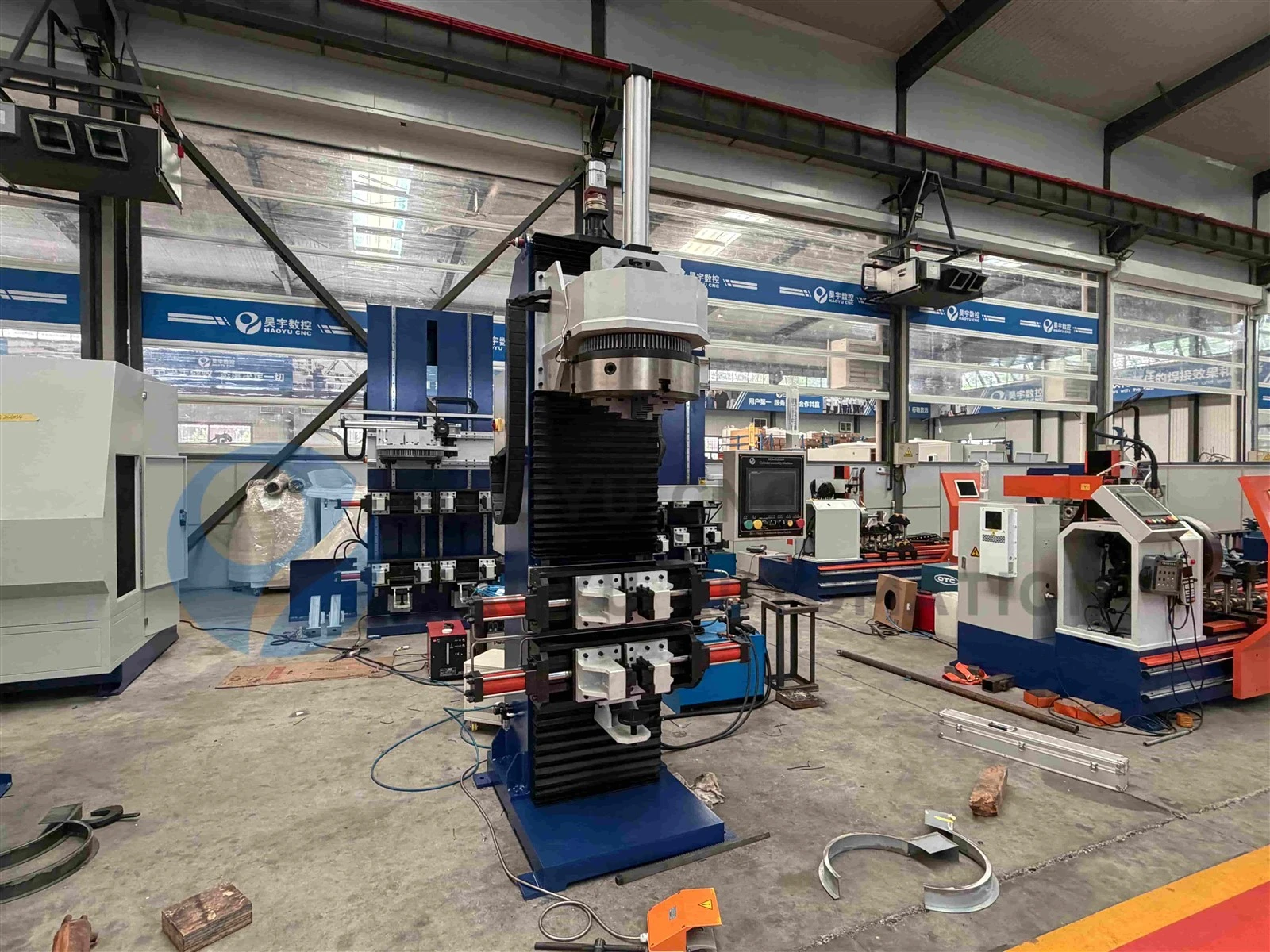

Automatic Vertical Cylinder Assembly Machine

Automatic Assembly Machine For Hydraulic Cylinder

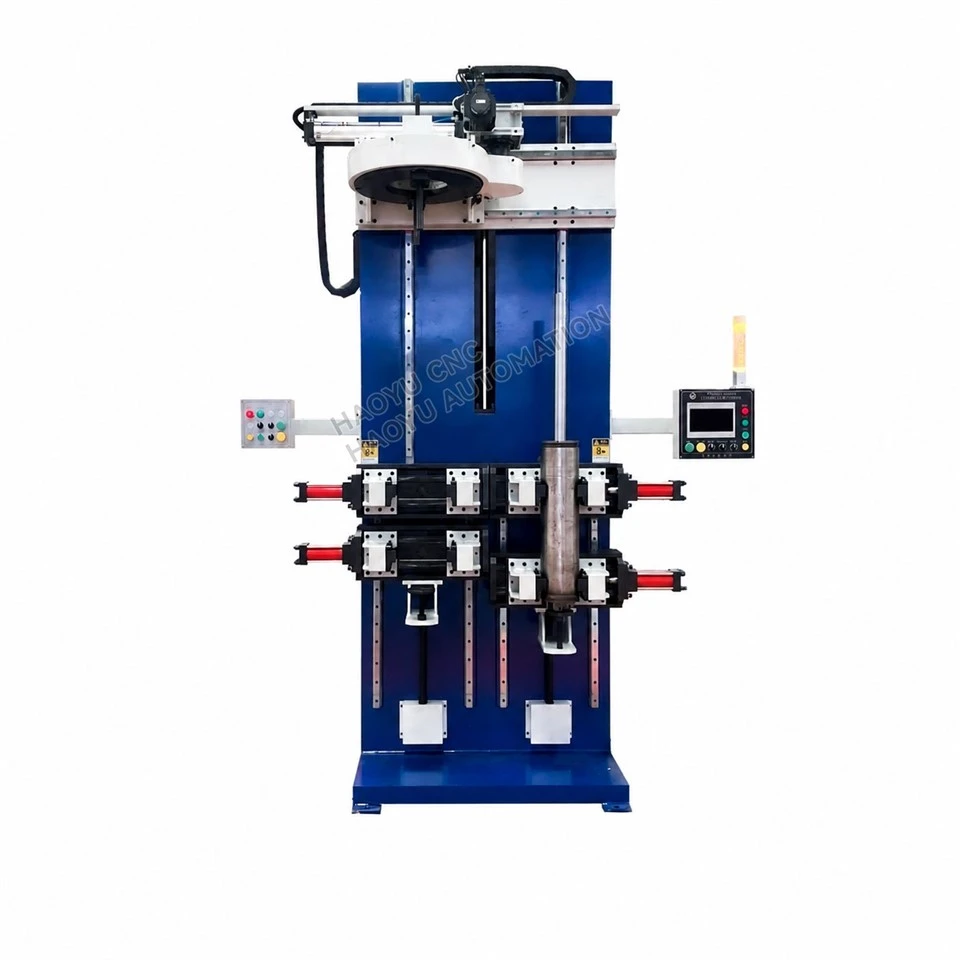

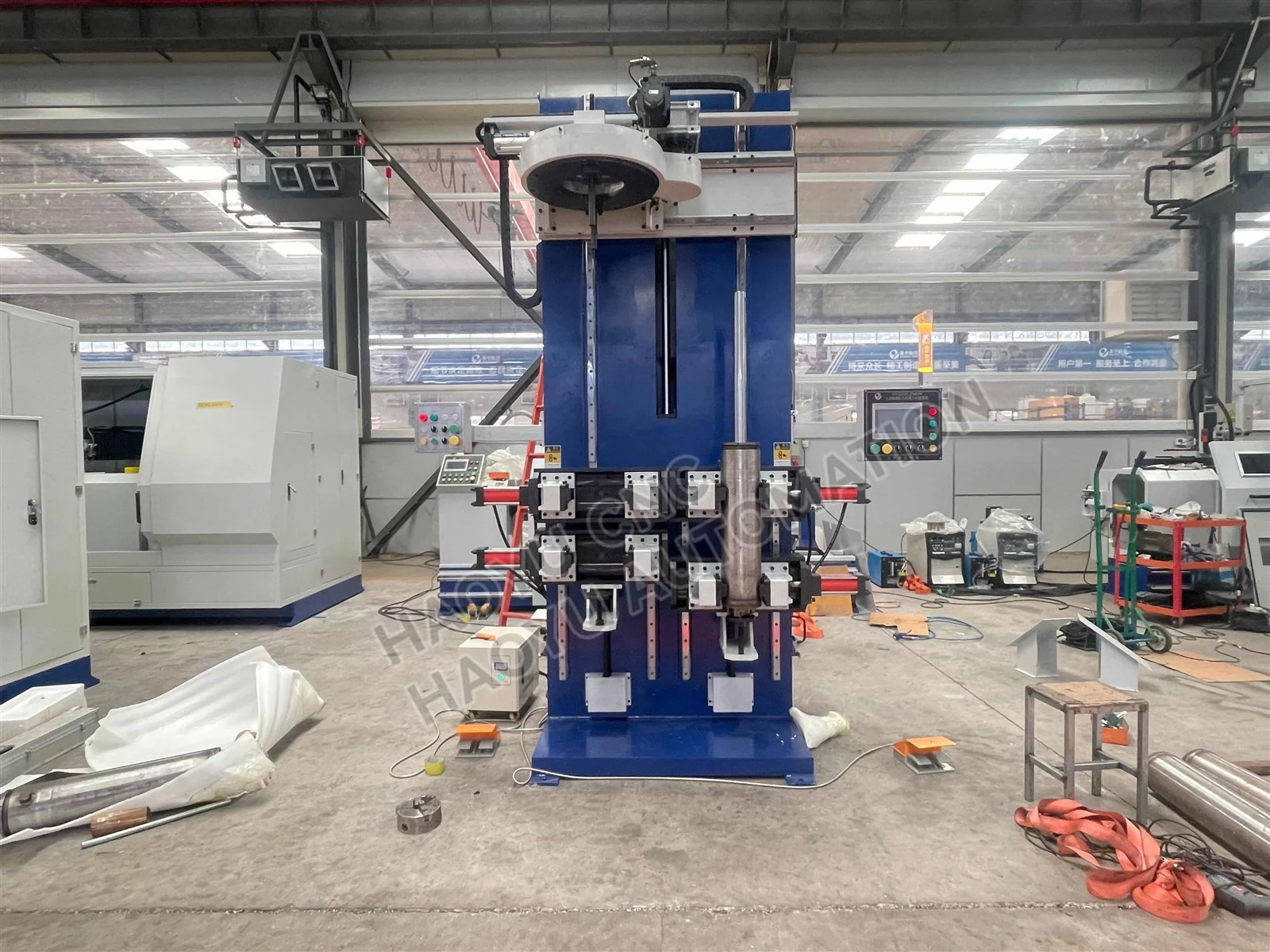

Dual Station Vertical Assembly Machine

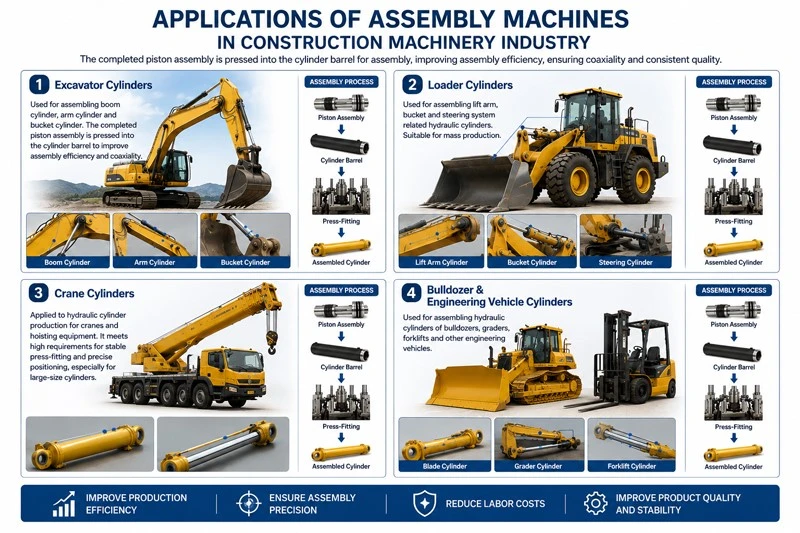

Main Applications

1. Excavator Cylinders: Used for assembling boom cylinders, stick cylinders, bucket cylinders, etc., pressing pre-assembled piston assemblies with cylinder barrels to improve assembly efficiency and coaxiality.

2. Loader Cylinders: Used for assembling hydraulic cylinders related to the boom, bucket, and steering system; suitable for mass production.

3. Lifting Machinery Cylinders: Used in the production of hydraulic cylinders for cranes, hoists, and other equipment; requires high stability and precise positioning for large cylinders.

4. Bulldozer and Construction Vehicle Cylinders: Can be used for assembling hydraulic cylinders for bulldozers, graders, forklifts, and other construction machinery.

The machine is mainly designed to accurately press piston assemblies into cylinder barrels, providing efficient and consistent assembly for hydraulic cylinder manufacturing.



Watching the video can help you better understand the device's workflow:

Dual station vertical hydraulic cylinder assembly machine

Vertical automatic hydraulic cylinder assembling machine

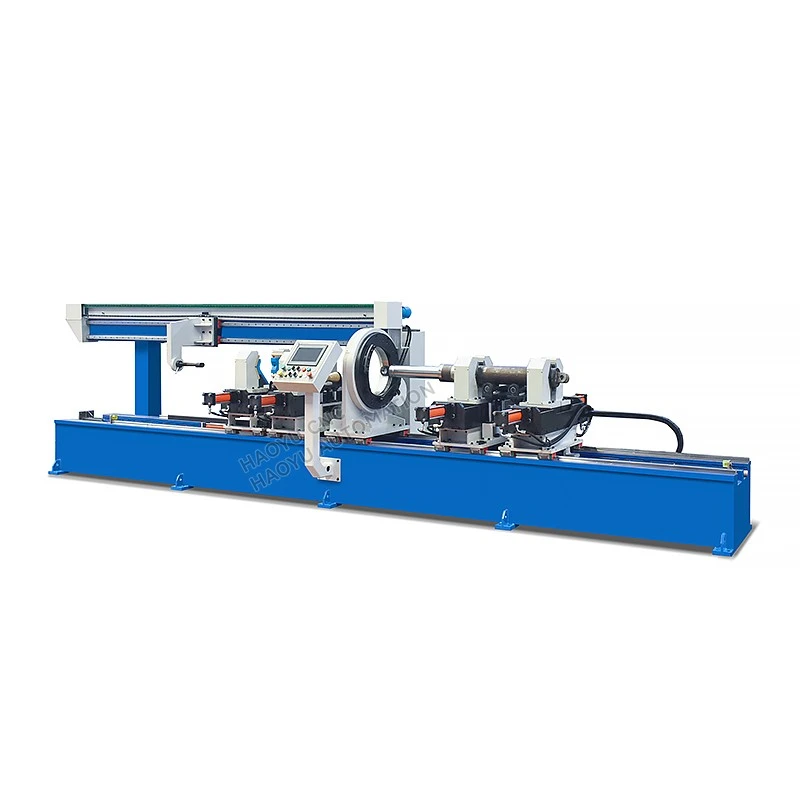

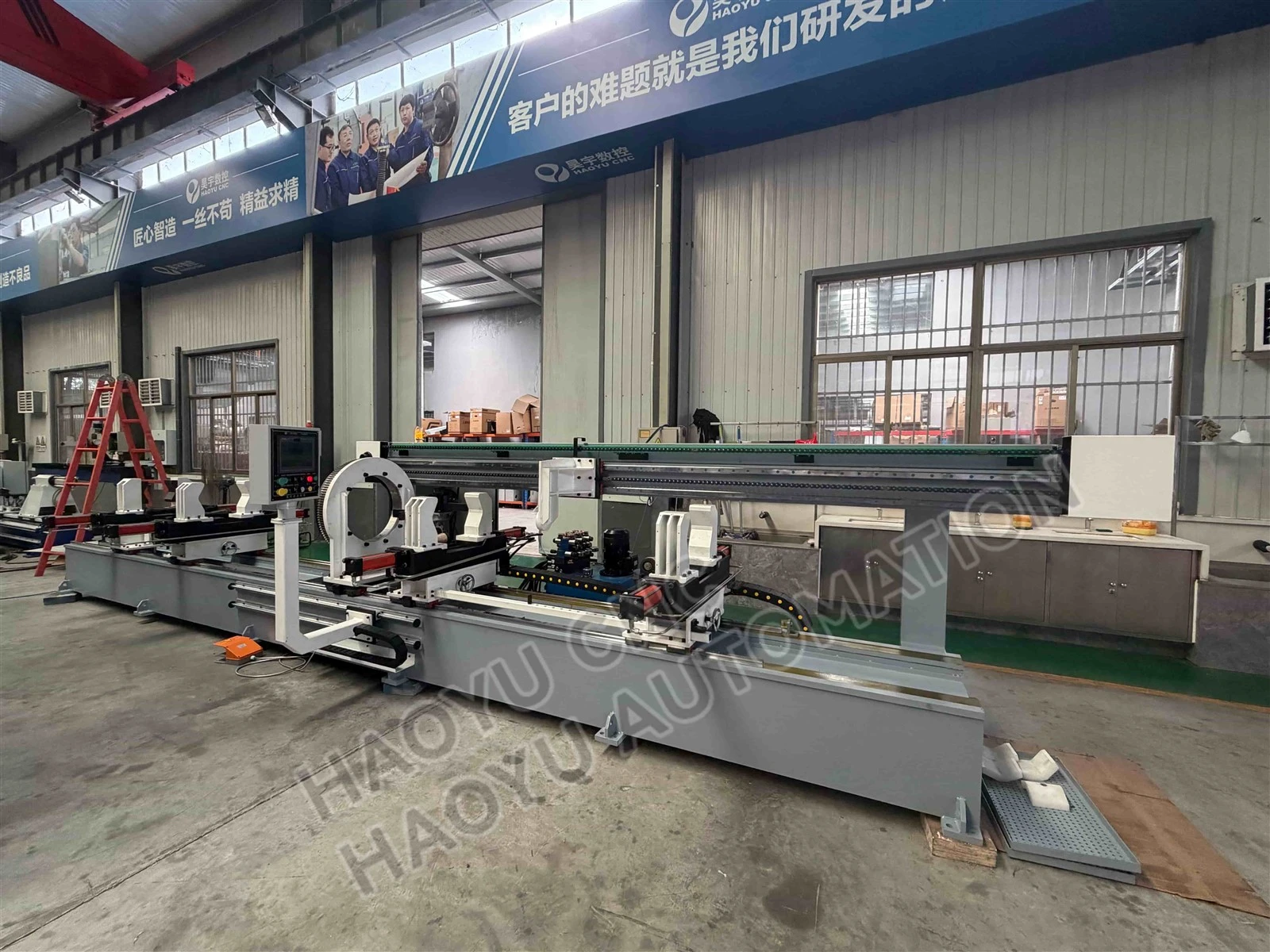

Horizontal hydraulic cylinder assembly machine

1.What is a hydraulic cylinder assembly machine used for?
It is used to assemble hydraulic cylinders by accurately press-fitting a completed piston assembly into a cylinder barrel. It is widely used in hydraulic cylinder manufacturing for construction, agricultural and industrial equipment.

2.How does the cylinder assembly process work?
The typical process is: load the piston assembly → position the cylinder barrel → align the components → press the piston assembly into the cylinder barrel → complete the assembly.

3. Can it be used for mass production?

Yes. This machine is suitable for both regular and mass production of hydraulic cylinders. The level of automation can be configured according to the customer's production needs. For example, our dual-station assembly machine...

4. Can the hydraulic cylinder assembly machine be customized?
Yes. The machine can be customized according to the customer's cylinder specifications, including cylinder diameter, cylinder length, piston assembly dimensions, pressing stroke and required assembly force.

5. What information is needed for a machine quotation?
To recommend a suitable configuration, customers can provide the cylinder barrel diameter, cylinder length, piston assembly dimensions, required pressing force, production quantity and assembly process. Drawings or photos of the hydraulic cylinder are also helpful.
