Customizable Robotic Welding Workstation For Hydraulic Cylinder Welding
We'd like to introduce a robotic welding station system for hydraulic cylinder. Because different industries have different needs, their welding requirements also vary. To meet the needs of multiple industries, our equipment can be customized.
Description

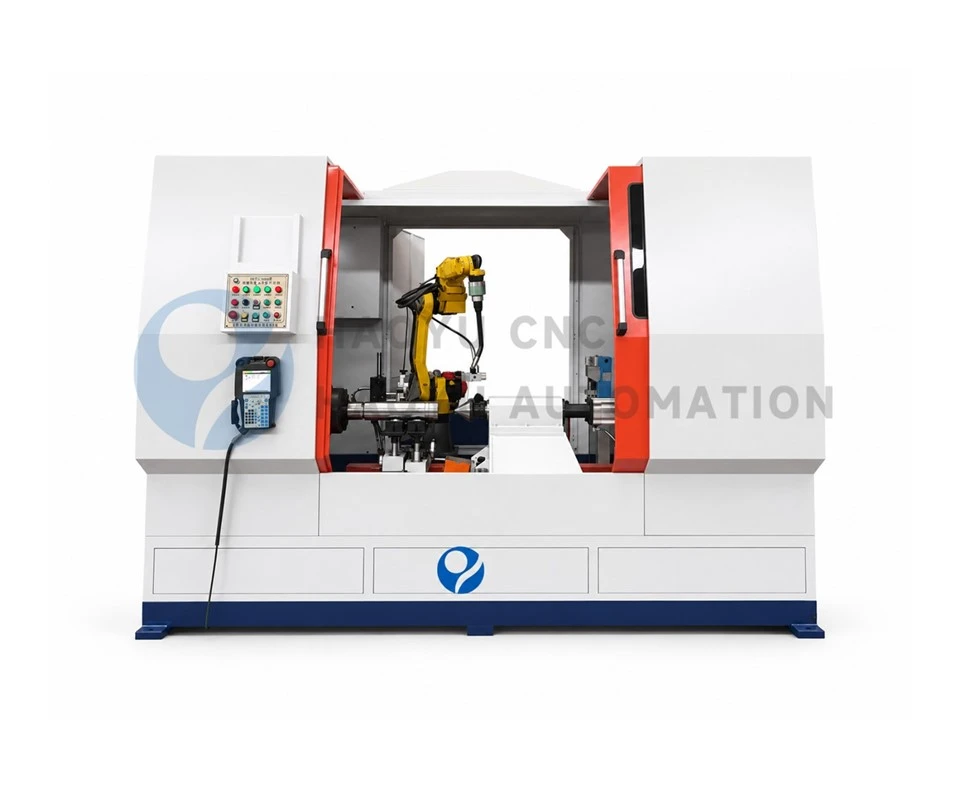

Customizable Robotic Welding Workstation for Hydraulic Cylinder Manufacturing

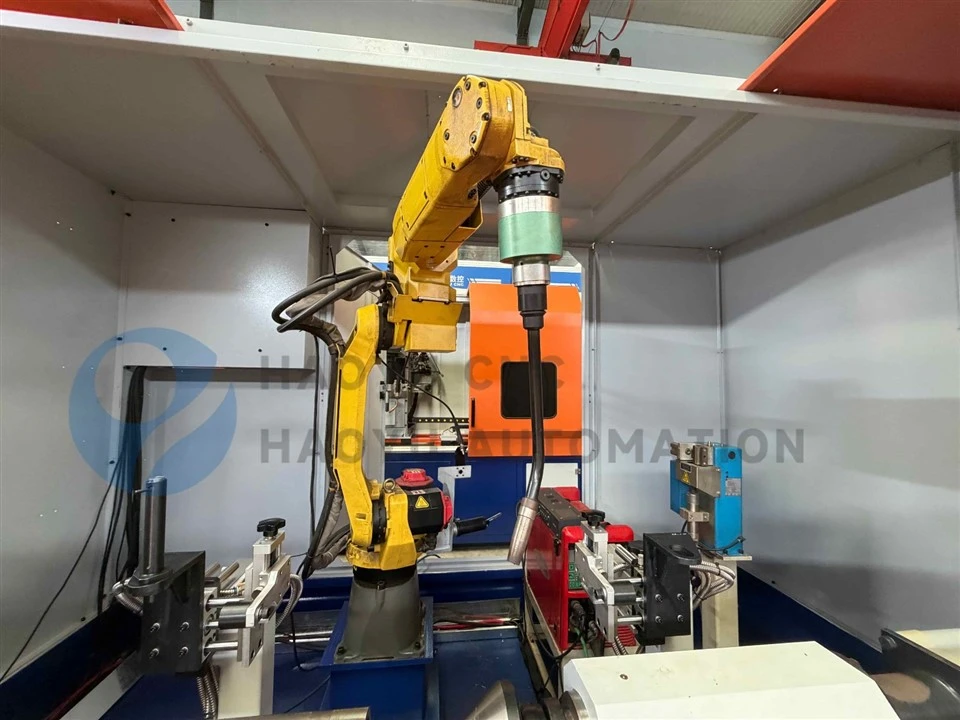

A robotic welding workstation is an automated core unit that integrates industrial robots, welding equipment, control systems, and peripheral auxiliary facilities to efficiently and accurately complete various welding tasks. During operation, the robotic arm automatically moves the welding torch to the precise position of the workpiece according to a preset program and coordinates the control of welding parameters (such as current, voltage, and speed). At the same time, it relies on peripheral equipment such as positioners and fixtures to ensure that the workpiece is in the optimal processing posture.
This customizable robotic welding workstation is designed for automated welding of hydraulic cylinder components, including circumferential seams and oil ports. The system combines robotic welding technology with customized workpiece positioning and welding processes to improve welding consistency, productivity, and repeatability.
While hydraulic cylinder welding is a primary application, the workstation can also be customized for other cylindrical, tubular, or specially shaped metal components according to the customer's workpiece dimensions, joint configuration, and production requirements.
What Can This Robotic Welding Workstation Weld?
- Hydraulic Cylinder Circumferential Welding

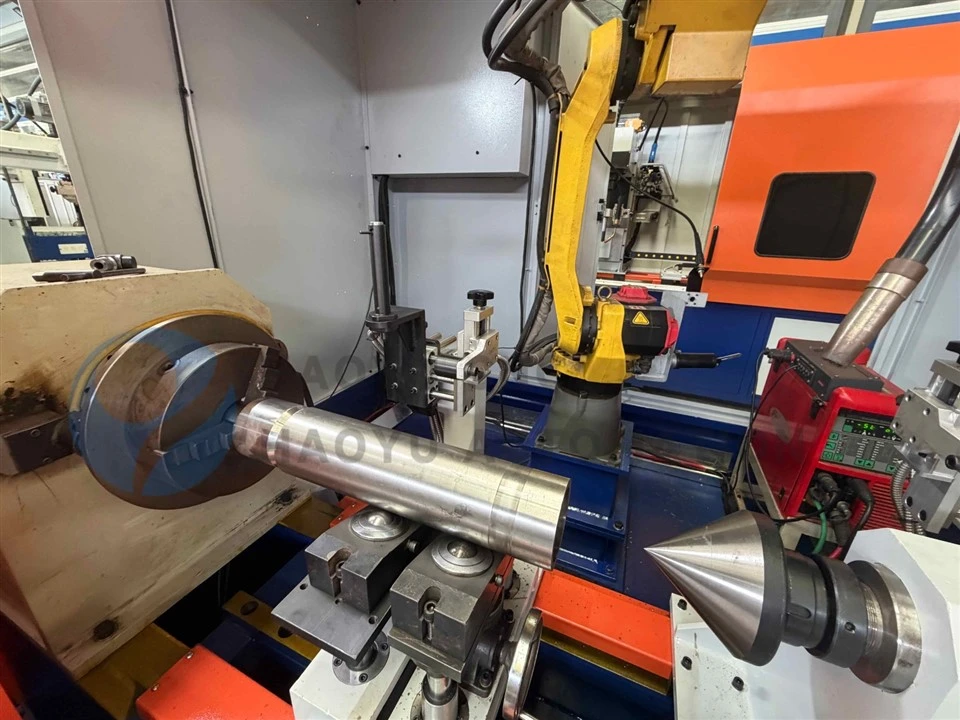

A custom three-jaw chuck is made according to the workpiece's diameter, length, and other specifications. The center clamps the workpiece, and the spindle drives the hydraulic cylinder to rotate, completing the welding of the circumferential seam, mainly the welding of the cylinder end cap.
- Hydraulic Cylinder Oil Port Welding
Customized L-shaped oil port automatic moving and positioning fixtures are available for positioning the L-shaped oil port on the cylinder barrel and for unloading after welding.
- Other Customized Welding Applications
The robotic welding workstation is not limited to hydraulic cylinder production. It can be customized for other workpieces with suitable welding joints and production requirements.Such as Pipes, Flanges,Hydraulic components,Round metal components ect.
How Does a Robotic Welding Workstation Work?
1. Workpiece Loading
The hydraulic cylinder or other workpiece is positioned in the welding area.
↓
2. Workpiece Positioning
The workpiece is accurately positioned according to the welding joint.
↓
3. Welding Program Setup
The welding robot follows the programmed welding path and parameters.
↓
4. Automatic Welding
The system performs circumferential welding, oil port welding, or other programmed welding operations.
↓
5. Inspection and Unloading
The finished workpiece is removed for inspection or the next production process.
What Problems Can This Robotic Welding Workstation Solve?
-
Consistent Welding Quality
Reduce variations caused by manual welding and maintain more consistent weld paths and parameters.
-
Higher Production Efficiency
Automate repetitive welding operations and reduce manual welding time.
-
Repeatable Welding Results
Once the welding program is established, the system can repeatedly perform the same welding operation.
-
Reduced Operator Dependence
The system reduces reliance on highly skilled operators for repetitive welding tasks.
-
Flexible Production
The workstation can be configured for different workpieces and welding applications.
How We Customize the Robotic Welding Workstation for Your Workpiece
Your Workpiece Welding Joint Analysis Robot & Positioner Configuration Welding Process Selection Welding Program Development Testing & Final Solution
FAQ
1.Can this robotic welding workstation weld hydraulic cylinders?
Yes. The workstation is designed for automated welding of hydraulic cylinder components, including circumferential seams, oil ports, and other required welding joints.
2. Can the robotic welding workstation be customized for other workpieces?
Yes. The workstation can be customized for different workpieces, dimensions, welding joints, and production requirements. It is not limited to hydraulic cylinder welding.
3.Can you test our workpiece before production?
Yes. Customers can provide workpiece drawings or samples for welding evaluation. We can develop and test the welding process before finalizing the customized workstation.
4. What information do you need to design a customized robotic welding workstation?
We normally need workpiece drawings or photos, dimensions, material, welding joint details, required welding process, production volume, and other automation requirements.
5. Can the workstation be integrated into an existing production line?
Yes. The robotic welding workstation can be designed for standalone production or customized for integration with an existing manufacturing line, depending on the customer's requirements.
