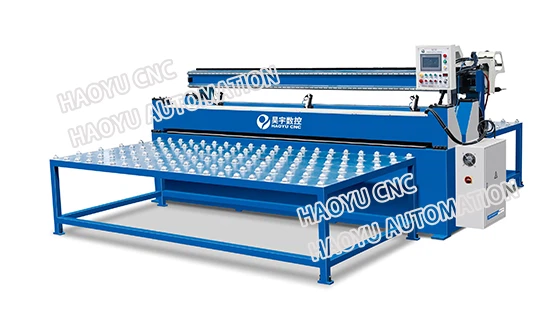

Metal Sheet Automatic Butt Seam Weding Machine

The matal plate linear seam welding machine is an automated welding equipment specifically used to butt weld multiple metal plates at their length edges to form a larger plate.

Send Inquiry

Description

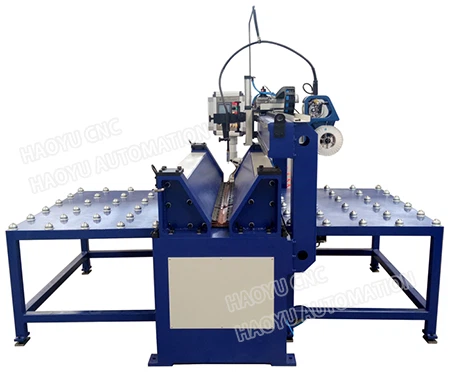

Metal Sheet Linear Seam Welding Machine

product-560-327

I.Description

The matal plate linear seam welding machine is used for external straight seam welding of sheet metal splicing,can weld steel platea,aluminum plates,stainless steel plates,etc.Each side of the device is equipped with an adjustable table with universal wheels for easy adjustment and movement of the plats.

II.Machine features

1.Welding torch moving longitudinally, welding position is horizontal. Butt Welding Machine

2.Metal plate thickness from 0.6-3mm adopts TIG welding mode, thickness from 3mm-10mm adopts MAG welding mode.

3.Using PLC to control the machine to work, AC variable frequency speed regulation, which ensures the equipment reliability.

4.Welding torch can be adjusted up and down, left and right, and by angle.

III.Technical parameter

Walking motor power	0.75KW
Torch up-down adjust	100mm
Torch left-right adjust	100mm
Torch dip angle	25°-60°
Welding length	2000mm-9000mm
Welding thickness	1-3mm,2-8mm
Welding mode	TIG MAG
