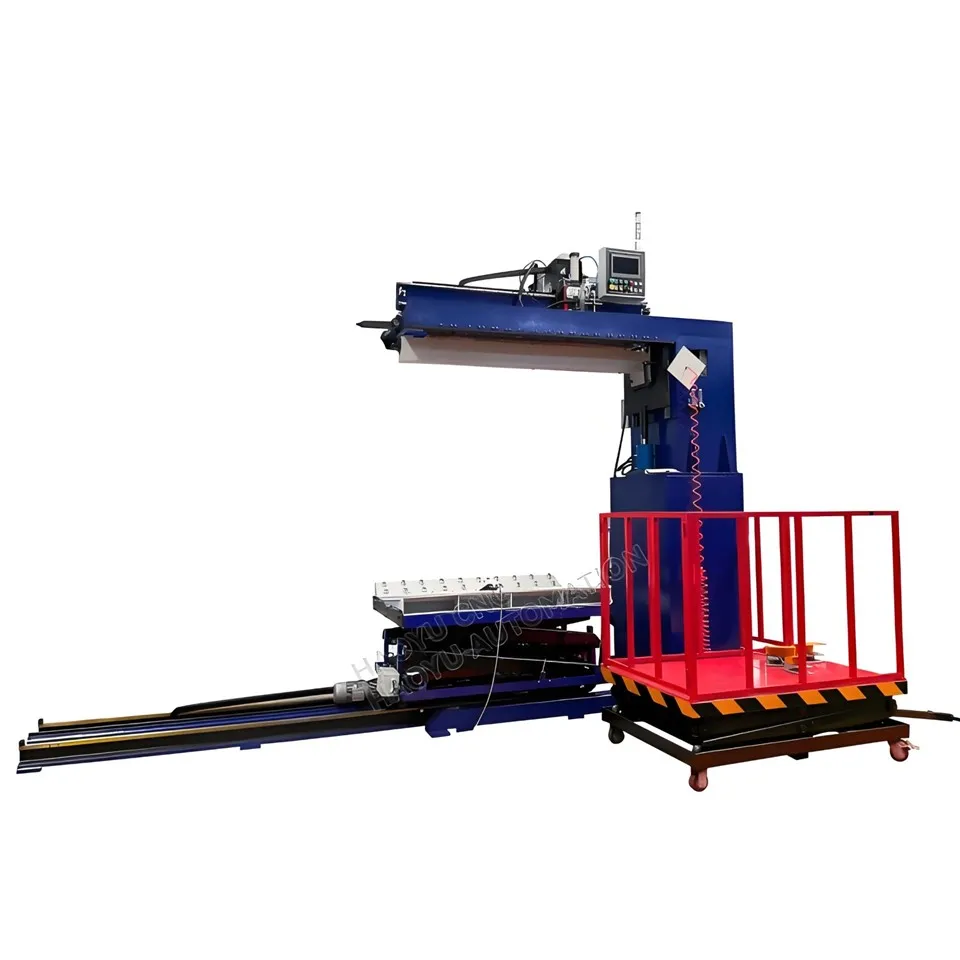

TIG Longitudinal Seam Welding Machine For 2mm Stainless Steel Cylinders And Tubes

• Gas cylinder
• Fire extinguisher cylinder
• Water heater tank
• Air compressor tank ,
• Water tank
• Pressure vessels
• Food containers
• Medicine containers
• Chemical container

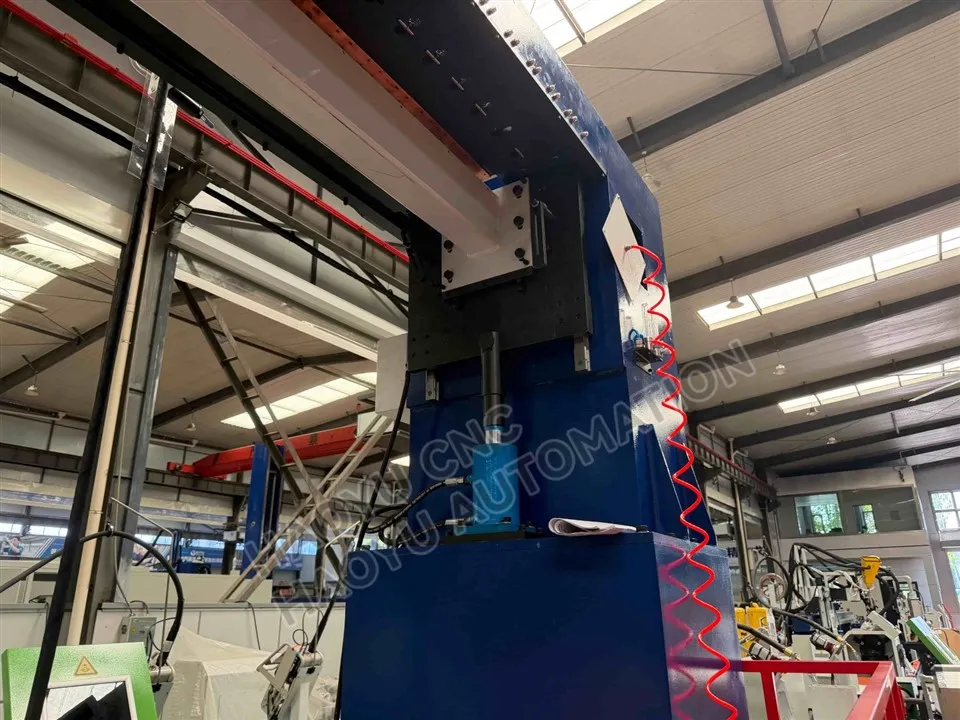

1.TIG water cooled welding torch is pneumatically moved in up-down direction. Welding torch can be adjusted up and down, side to side and angled turn. The body of welding torch is ceramic.

2.Automatic longitudinal welding machine uses copper clamping bars and copper back bars, suitable for steel, stainless steel, and aluminum. The copper bars serve to conduct both heat and electricity, ensuring the workpiece is held firmly in place. They also help protect steel surfaces, so the cylinder or tank surface remains free from scratches and mechanical damage.And equipped with pneumatic cylinders to fix product. Cylinders are used to control copper clamping bar. They will fix longer tank firmly.

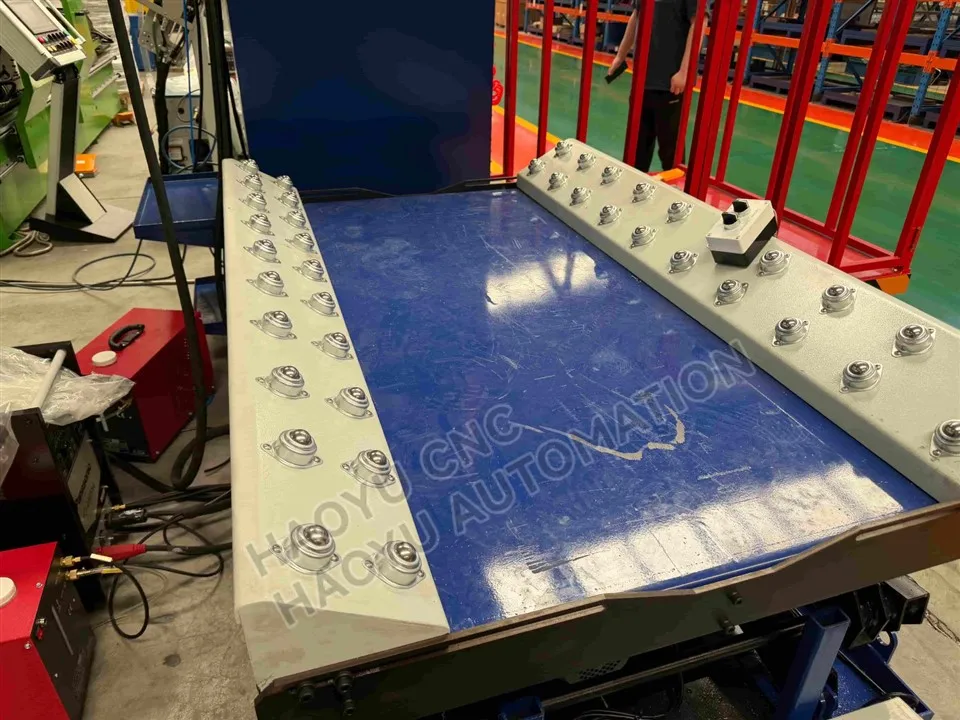

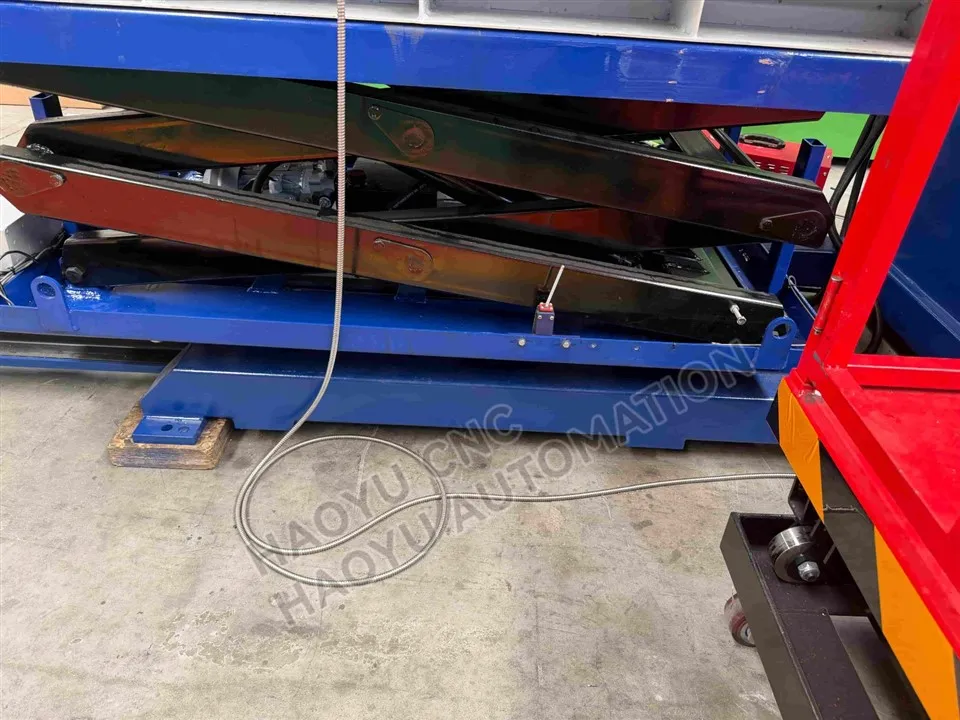

3.This feeding trolley is specifically designed for straight seam welding equipment. Equipped with two independent motors, each controlling the trolley's vertical lifting and horizontal movement, it allows for flexible adjustment of workpiece positions, facilitating precise loading and efficient unloading. The trolley's table surface is densely covered with omnidirectional ball bearings, enabling low-friction sliding and fine-tuning of workpieces in multiple directions. This reduces the burden of manual pushing and pulling, significantly improving the convenience and safety of loading and unloading operations.

4.Renderings

• Superior weld appearance
• High welding precision
• Excellent corrosion resistance
• Minimal distortion
• Consistent weld penetration
• Reduced rework rates
• Suitable for thin stainless steel materials
• Long service life and reliable performance

2mm stainless steel tank straight seam welding machine

1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement

As a professional manufacturer of automatic welding equipment, we provide customized longitudinal seam welding solutions based on customer products and production requirements. Our machines are designed for high efficiency, excellent weld quality, and long-term reliability, helping manufacturers improve productivity while reducing production costs.

Contact us today for customized welding solutions and technical support.
