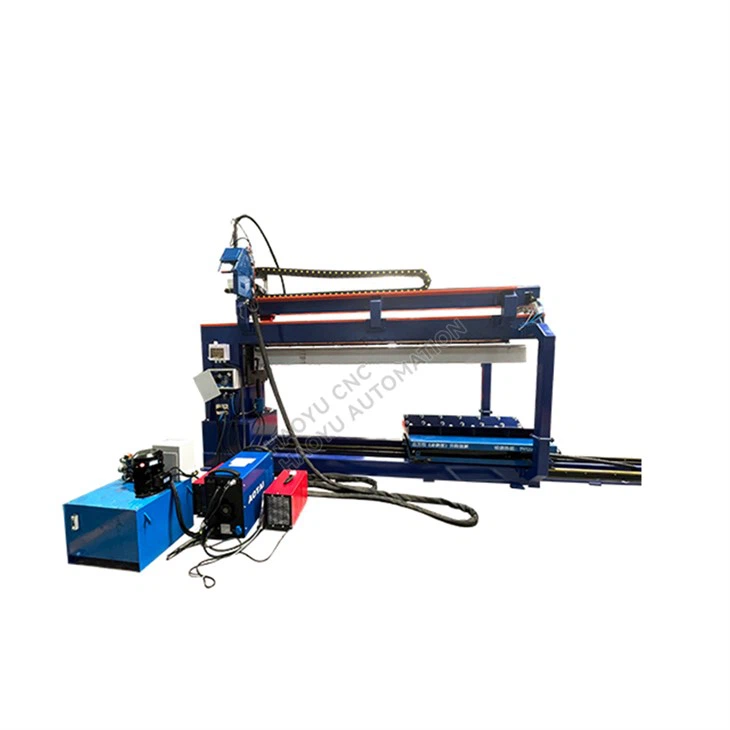

Factory Price Fully Automatic Straight Seam Welding Machine

Factory Price Fully Automatic Straight Seam Welding Machine manufacturers
Factory Price Fully Automatic Straight Seam Welding Machine suppliers
Factory Price Fully Automatic Straight Seam Welding Machine factory
Factory Price Fully Automatic Straight Seam Welding Machine best
Factory Price Fully Automatic Straight Seam Welding Machine high quality
Factory Price Fully Automatic Straight Seam Welding Machine price
Factory Price Fully Automatic Straight Seam Welding Machine factory

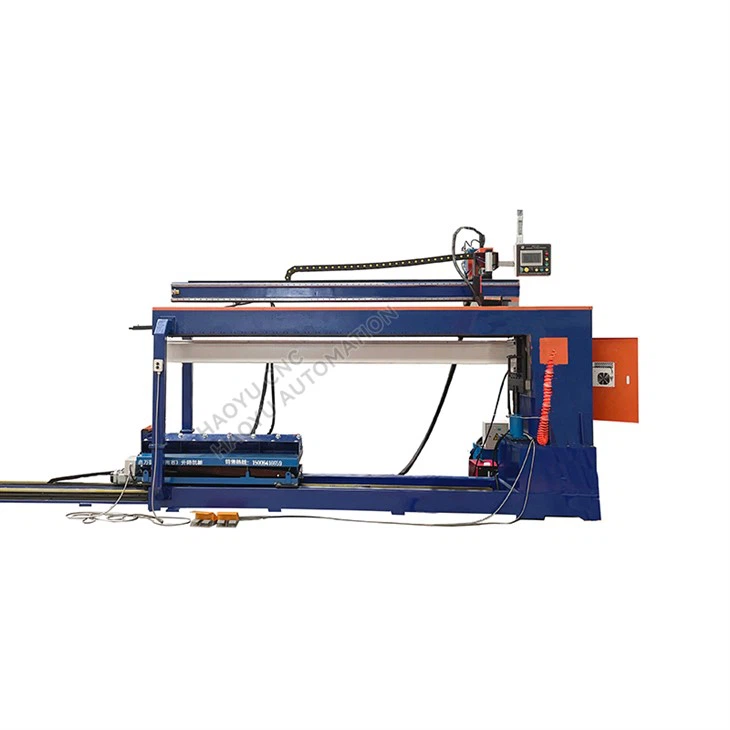

Factory Price Fully Automatic Straight Seam Welding Machine

Straight seam welding machine is an automated welding equipment used for welding straight seams, which is widely used in the splicing or closed welding of metal plates, pipes, profiles, etc. It is characterized by fast welding speed, smooth welds, high degree of automation, and is suitable for mass production.

Send Inquiry

Description

I.Main uses

Plate welding: such as the splicing of stainless steel plates, carbon steel plates, and aluminum alloy plates.
Pipe longitudinal seam welding: such as straight seam welding of round tubes, square tubes, and rectangular tubes.
Profile welding: such as straight seam welding of H-shaped steel, U-shaped channel steel, box beams and other structural parts.

II.Equipment composition

Component	Functional Description
Welding host	It includes welding head, walking mechanism (gantry or cantilever), clamps, etc. to ensure that the welding gun moves stably in a straight line.
Welding power supply	MIG/MAG welding (CO2 shielded welding), TIG welding or laser welding are usually used, and some equipment supports submerged arc welding (SAW).
Wire feeding system	utomatic wire feeding mechanism, suitable for MIG/MAG welding, improves welding efficiency.
Control system	PLC or CNC control, programmable adjustment of welding speed, current, voltage and other parameters.
Cooling system	Water cooling or air cooling to prevent overheating of the welding gun.
Auxiliary device (optional)	Weld seam tracking system, automatic deviation correction device, gun cleaning and wire cutting mechanism, etc.

III.Workflow

Plate/tube positioning: Fix the workpiece by a clamp or clamping device to ensure flat joint.
Torch alignment: Adjust the height and angle of the torch to align the weld starting point.
Automatic welding: The torch moves at a constant speed along a straight line to complete single or multi-pass welding.
Cooling inspection: Check the weld quality after welding is completed (such as X-ray flaw detection, penetration inspection).

IV.Technical features
✅ Efficient automation: 3~10 times faster than manual welding, suitable for mass production.
✅ High weld quality: uniform penetration, reducing defects such as pores and slag inclusions.
✅ Strong adaptability: can weld a variety of materials such as carbon steel, stainless steel, aluminum alloy, titanium alloy, etc.
✅ Customizable: adjust equipment specifications according to workpiece size (such as length, thickness).

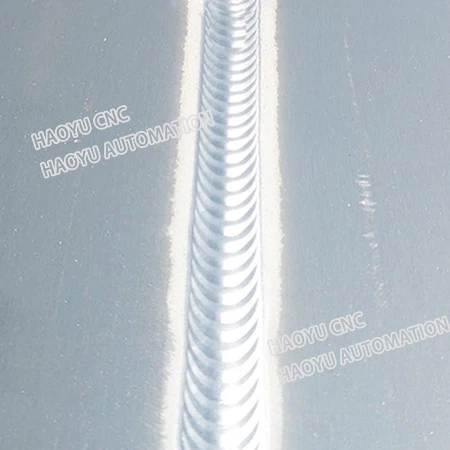

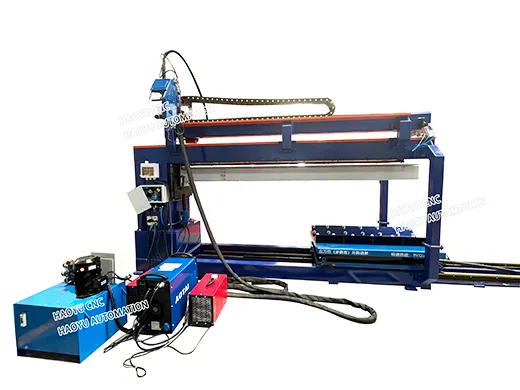

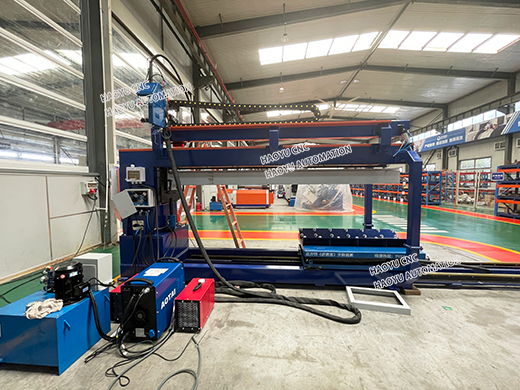

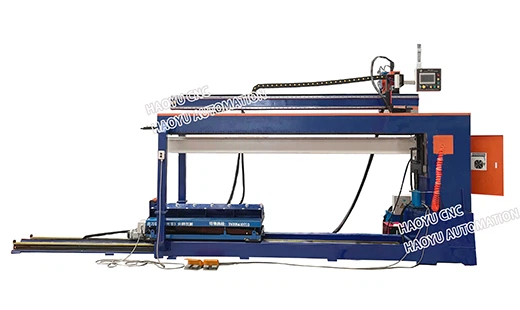

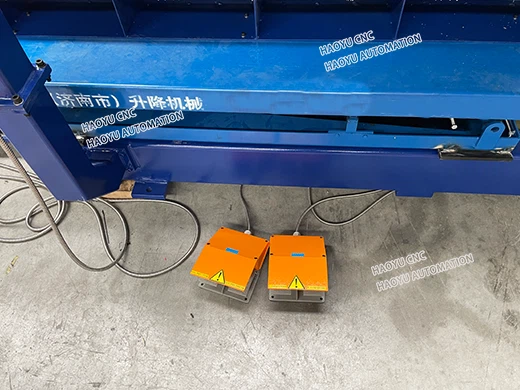

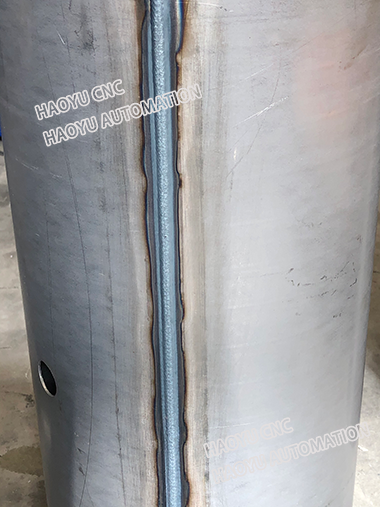

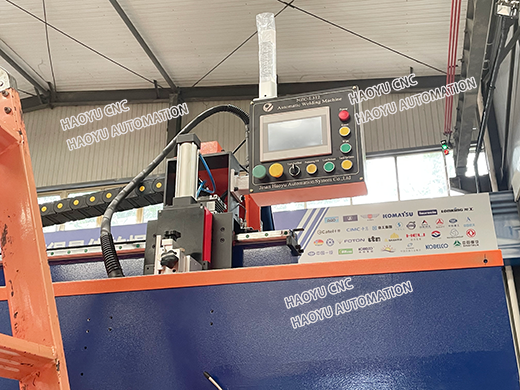

V.Detail iamges
