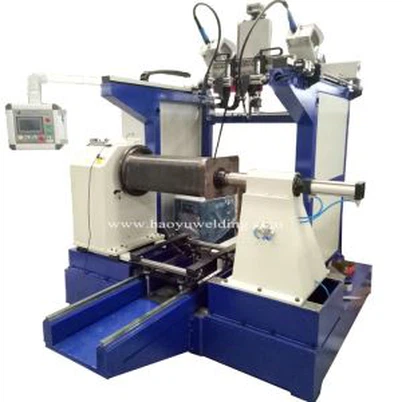

Automatic Roller Welding Machine
I.Application
1.Weld double circular seams on pipe. Welding process will be continual and steady. Machine will stop once the welding is finished.
2.Automatic positioning; Adjustable angle position of welding torch.
3.Melting thickness and width can reach welding requirement. With uniform and smooth welding appearance.
4.MIG welding type.
5.Machine can work continuously for 24-hour.
II.Technique Parameters
Welding pipe diameter | 60mm-150mm |
Welding pipe length | 250-130mm |
Rotation speed | 0.5-8r.p.m |
Motor power | 0.55KW |
Air pressure | 0.4-0.6MPA |
Welding gun lifting range | 50mm |
welding gun moving range in the left-right direction | 100mm |
Shielding gas consumption | 15L/min |
Welding power source | China AOTAI (NBC-350) |
Machine working voltage | 380v 3phase 50hz |
III.Machine Structure
1. Welding torch can be adjusted up and down, side to side and angled turn. They maximize throughout, and welding deformation can be reduced significantly. Machine is equipped with 2pcs welding torch.
2. Japan OMRON PLC is used to control the whole machine. With the help of touch screen, welding mode and specification can be preset,stored and retrieved. There will be fault alarm and indication during welding process, such as stuck wire, blocked wire, etc. Welding original point can be auto-detected. Welding torch will go to mechanical original point after finishing work.
3. We have used for this project the welding source of the China best brand. The arc is stable, which controls heat input for good penetration and reduced spatter and smoke. 2 sets welding power source will go with machine.
4. Push-type wire feeder is installed in machine. Short distance wire of feeding and stable wire feeding.
5. Pipe is supported by bracket of rolling wheels. Universal ball ensures that it is flexible and convenient to load and unload pipe in the process of welding. The supporter will move along round rails. Space between supporters can be adjusted according to pipe length. Thus increases productive capacity and reduces workers' labor intensity.
6. In order to weld different length pipe, the tailstock is movable.
7. Double sliding doors are made of the steel plate, with strong intensity. There is a inspection window on the door. Welding process can be observed in the mirror.
