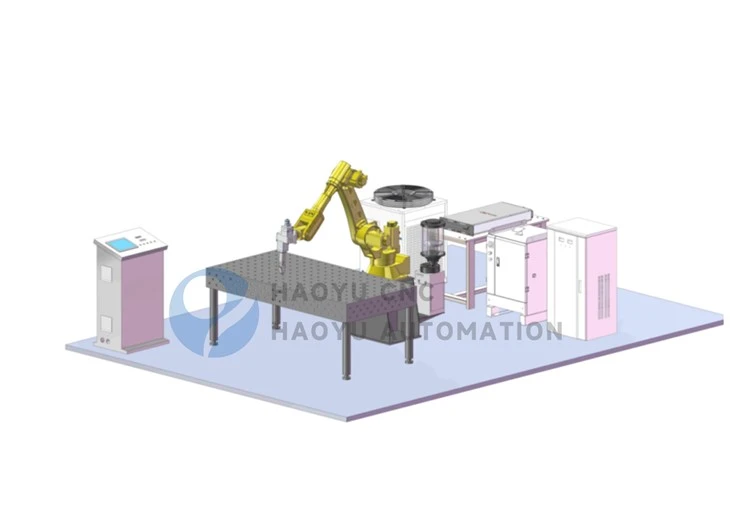

YDGD-6000 Robotic Laser Cladding Cell
The YDGD-6000 is an integrated 6000W robotic laser cladding cell designed for programmable, multi-angle and batch processing of agricultural tools. It combines a six-axis robot, powder-fed laser cladding system and centralized control platform in one customizable workstation.
Description
Robotic Laser Cladding for Agricultural Tools
The YDGD-6000 is designed for agricultural tools with curved edges, inclined surfaces, irregular profiles or multiple cladding positions.
Unlike a dedicated fixed-position machine, the six-axis robot can approach the workpiece from different directions and follow programmed cladding paths. This provides greater flexibility when processing different tool models on the same workstation.
The cell integrates robot motion, laser output, powder feeding, cooling and process monitoring into one control platform.
Key Capabilities
- 6000W powder-fed laser cladding
- Six-axis robotic positioning
- Straight, curved and multi-angle path processing
- Programmable and repeatable cladding paths
- Customized single-part or multi-part fixtures
- Centralized control of the main workstation functions
- Real-time equipment status monitoring
- Automatic alarm and process protection
- Suitable for flexible and batch production
- Custom workstation layout
Main Specifications
| Item | Specification |
|---|---|
| Model | YDGD-6000 |
| Laser source | MAX MFSC-6000 |
| Laser power | 6000W |
| Power adjustment | 5%–100% |
| Robot | FANUC M-20iD/25 |
| Robot payload | 25 kg |
| Robot repeatability | ±0.02 mm |
| Cladding head | Coaxial powder-fed head |
| Focal spot | 3–5 mm adjustable |
| Powder feeder | 9 L split-type feeder |
| Control system | Schneider PLC |
| Operator interface | 10-inch touchscreen |
| Cooling system | Dual-temperature water chiller |
| Process gas | Argon or nitrogen |
Final configuration is confirmed according to the workpiece, powder material and production requirements.
Non-standard welding machines can be customized with various configurations available.

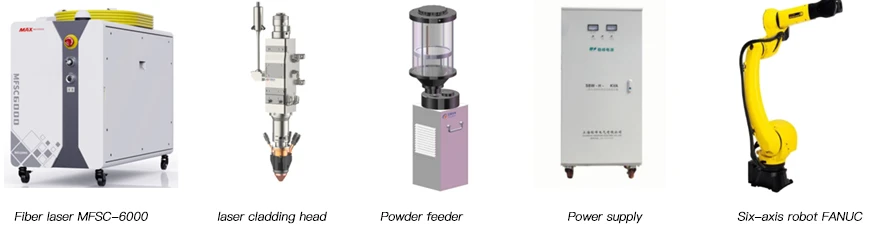

Main configuration:
- Fiber laser
- Laser head
- powder feeder
- power supply
- Six axis robot
Why Choose a Robotic Cladding Cell?
A robotic laser cladding cell is suitable when the application requires:
- Frequent changes in cladding angle
- Curved or irregular processing paths
- Several cladding areas on one workpiece
- Different tool models on one workstation
- Repeat production using stored programs
- Customized batch fixtures
- Connection with an existing production line
For simple straight-line or fixed-position processing, a dedicated non-robotic laser cladding machine may be more economical.
For simple fixed-position applications, view our laser cladding machine for agricultural machinery parts:
Laser Cladding Machine for Agricultural Machinery Parts
