Hydraulic Cylinder Automatic Assembling Machine
Used for automatic assembling of hydraulic cylinder barrels with cylinder bottoms and hydraulic cylinder components (piston rods),with high precision
Description
Product Introduction
The automatic assembly machine of oil cylinder is an automatic assembly equipment specially used for hydraulic cylinders, cylinders and other cylindrical components, which can realize the accurate alignment, press-fitting, detection and locking of cylinder barrels, piston rods, end covers, seals and other components, and greatly improve the assembly efficiency and consistency.
Technological advantages
- High precision: servo-controlled press-fitting, repeated positioning accuracy ± 0.02mm, to avoid seal damage.
- Flexible: Quick-change fixtures can be adapted to a variety of cylinders (such as excavator cylinders and automobile cylinders).
- Fast cycle time: Assembly time can be reduced to 1-3 minutes per piece (10-15 minutes for manual assembly).
- Quality traceability: record data such as pressing force curve and tightening torque, and support QR code binding.
Applicable cylinder type
- Construction machinery cylinders: excavator arm cylinders, crane telescopic cylinders (heavy-duty, large-size).
- Automotive hydraulic cylinders: brake master cylinders, shock absorbers (small size, high cleanliness requirements).
- Industrial cylinders: cylinders for automation equipment (large batches and high cycle requirements)
Industry application cases
- Excavator hydraulic cylinder: automatic assembly of piston rod guide sleeve, closed-loop control of pressing force.
- Automobile shock absorber: robot grasping, visual alignment, assembly of dust cover and oil seal.
- Wind power hydraulic system: intelligent tightening and synchronization test of bolts of large oil cylinders.

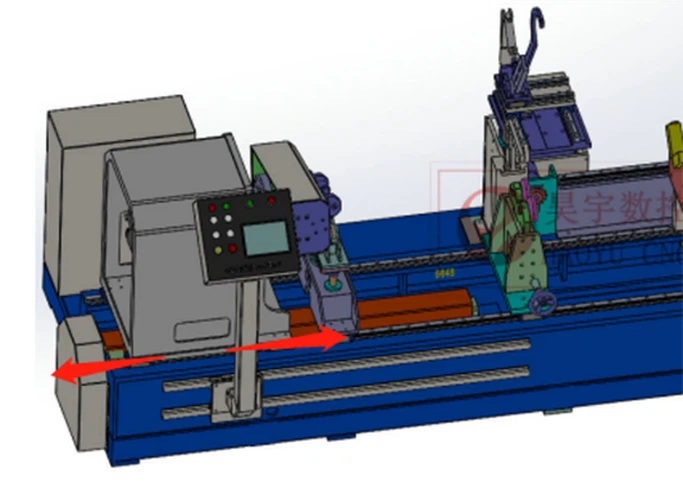

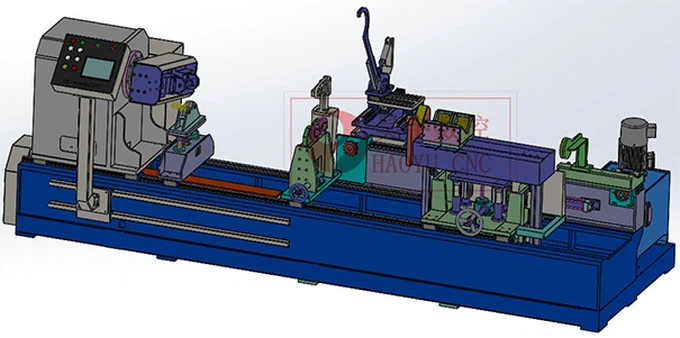

Details Images
