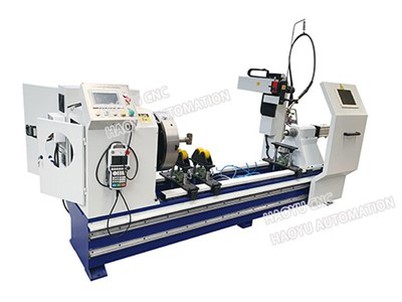

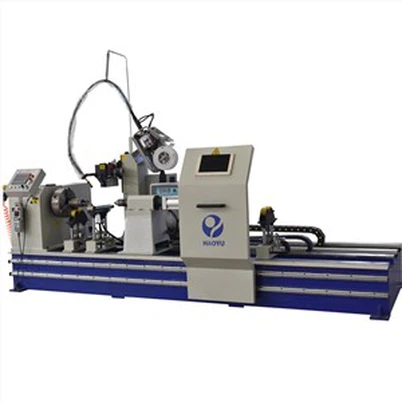

5 Axis Hydraulic Cylinder Girth Seam Welder

Product Introduction

The five-axis welding machine is a high-precision automated welding equipment specially used for welding hydraulic cylinders, cylinders or other cylindrical workpieces. It adopts five-axis linkage control , which can achieve full coverage of complex welds and is suitable for welding needs of different angles and shapes.

Technical Parameter

Main Features

✔ Five-axis linkage welding – supports X/Y/Z linear movement + workpiece rotation (A/C axis), achieving 360° welding without dead angles, suitable for complex welds (such as spiral welding, circular welding).
✔ High-precision control – using CNC or servo system to ensure accurate welding path and reduce deformation.
✔ Multi-process compatibility – supports MIG/MAG welding, TIG welding etc., to adapt to different materials (carbon steel, stainless steel, aluminum alloy, etc.).
✔ High degree of automation – can integrate automatic wire feeding, gas protection, weld tracking and other functions to reduce manual intervention.
✔ Flexible production – suitable for welding of cylinders of different diameters and lengths, convenient for changeover and adjustment.

Effect picture display

• Square valve and plug welding:

• Reinforcement ring welding:

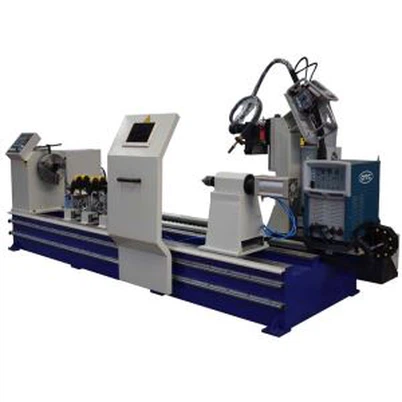

• Piston rod welding:

Reference Vedio

5 Axis Hydraulic Cylinder Girth Seam Welder:

Configuration Pohoto
