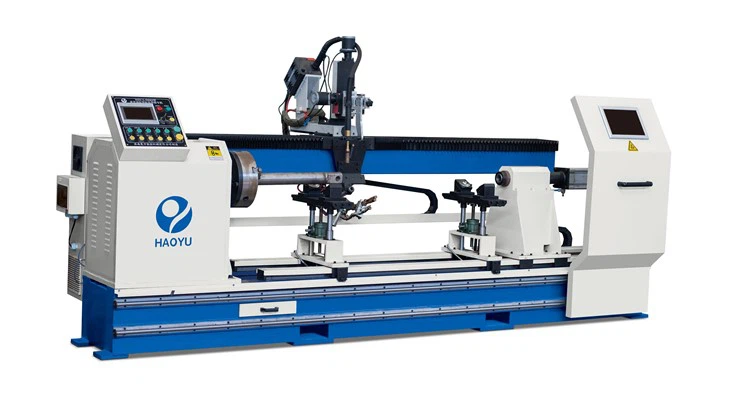

Hydro-cylinder MAG Seam Automatic Welding Machine
Automatic Welding Machine Requirement This machine is mainly used in the production of hydraulic cylinders in the hydraulic industry. Weld the end cover and other parts on the cylinder to complete the 360-degree circumferential seam welding. The welding is stable and the penetration depth can...
Description
Automatic Welding Machine Requirement

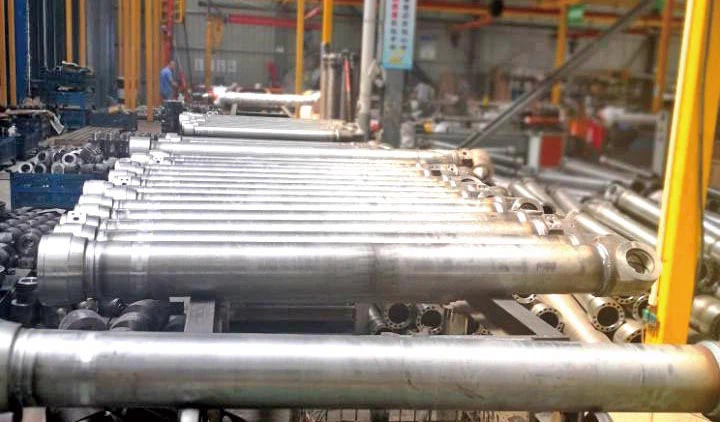

This machine is mainly used in the production of hydraulic cylinders in the hydraulic industry. Weld the end cover and other parts on the cylinder to complete the 360-degree circumferential seam welding. The welding is stable and the penetration depth can meet the quality requirements.

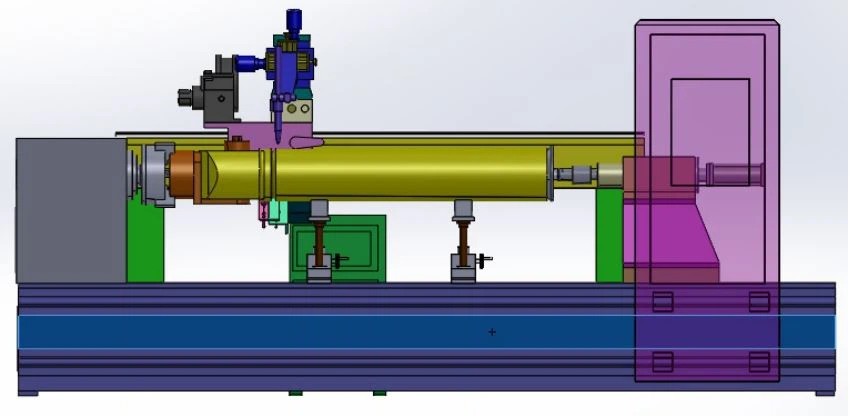

Automatic Machine Structure
It consists of machine body, rotary axis power mechanism, welding torch oscillating&adjustment mechanism, electric control system, welding power source, etc.
Automatic Machine main Feature
Machine with oscillating system can make welding seam more wider.
Machine also with automatic lifting system can weld many layers automatically,the parameter of each layer can be preset Separately.
Automatic Welding Machine Parameters
|
Working voltage |
3phases 380V 50hz |
|
Welding torch oscillating scope adjustment |
0～40mm |
|
Welding torch oscillating frequency range |
0-30 times/min |
|
Welding Torch standing time on both sides |
0-10 seconds |
|
Welding torch standing time in the middle |
0-10 seconds |
|
Welding torch pneumatic feeding value |
200mm |
|
Tail stock welding torch pneumatic feeding value |
150mm |
