External Circle Automatic Cladding Machine

Automatic MIG/MAG cladding the surfacing of users workpiece with push-type wire feeder

Send Inquiry

Description

111

Machine function

1.Automatic MIG/MAG cladding the surfacing of users workpiece with push-type wire feeder

2.There are four type cladding:Straight type surfacing , sector surfacing spiral surfacing, translational surfacing .and the pictures and video shows is translational surfacing:Welding torch is moving from left to right while workpiece is rotating to cladding one circle the move right to weld the second circle , welding position is horizontal.

3.Melts the workpiece and the welding wire through the high heat energy generated by the micro-electric instantaneous discharge, and the workpiece is not deformed or discolored after welding. No deformation after welding, less heat, no undercut, and beautiful solder joints.

4.MCGS Touch screen as the input and output interface.The welding mode and welding specification can be preset, saved and recalled. via MCGS touch screen, it is convenient to modify the parameter and switch the status through the man-machine touch screen.

5.In order to prevent the appearance of welding pores, any rust and oil stains on the welding part must be cleaned up during cladding welding.

6.Use Japan OMRON PLC to control and achieve the welding process, improve reliability.controls the whole machine operation. stable control and stable programming interface.

7.Welding torch can be adjusted forward and backward automatically from preparation position and welding position.and can automatically move from left and right to finish different position welding

8.Welding torch can adjust Three-dimensional direction(up and down,forward and backward,left and right) and angled turn to meet different size workpiece.

9.Adopt heavy duty welded machine body, Workpiece is positioned by chuck and pressed by pneumatic Moths Morse taper,Rotating synchronously.convenient and quick for centering, good concentricity, and small deformation. and supported by universal ball workpiece support

10.Work Process

10.1.Manual load the workpiece on the support workpiece and clamp on chuck and Morse taper

10.2 .Supplying shield gas automatically

10.3 Welding torch go down automatically and Completing the welding as the program,and stop shield gas automatically

10.4.Welding torch return to the original point automatically

10.5 Release the workpiece from the chuck manually

10.6. Then start from the No.1 step

II.Introduction of Equipment Structure

This machine consists of head stock with chuck,conductive mechanism,tail stock,welding torch mechanism,CNC axial moving mechanism,workpiece workpiece support,electric control system,welding power resource and pneumatic system.

Work video link of this machine :welcome to subscribe my Youtube channel to see more video in time

Technical Parameters

No.	Items	Specification
1	workpiece Material	Alloy steel, carbon steel, SS
2	workpiece diameter range	Length range :max 5000mm Diameter range:max 600mm The weight range :20 kg~ 6000kg
	Cladding type and cladding width
3	Workpiece Rotation speed and direction	Step less adjustable Direction: Rotate outward
4	Rotating Motor power	Panasonic 1 KW
5	Welding torch micro Three-dimensional adjustment	Left and right:100mm Up and down:100mm Forward and back ward:50mm
6	Welding torch mechanism moving range on beam	Max 5500
7	Diameter of solid wire	1.2mm
8	Welding current range	50~500A
9	Machine working voltage	380v ±10% 50hz for welding power supply 220V±10% 1phase 50hz for welding machine body
10	Compressed air	0.4-0.8MPA
11	Welding method	MIG/MAG

The main configuration list

No.	Name and Model	Quantity
1	Automatic welding machine lathe base	1 set
2	welding power source (Miller or lincoln or fronius or Japan OTC or China Aotai)	1 set
3	Automatic Push type wire feeder	1 set
4	Head stock with chuck	1set
5	Tailstock with Morse taper	1 set
6	Cable and connector	1set
7	Machine operation control program	1set
8	TIG Welding torch	1 set
9	Welding torch Feeding and Adjusting Mechanism	1 set
10	Control panel with MCGS touch screen	1set
11	Electric cabinet with Japan OMRON PLC	1 set
12	Workpiece support workpieces	2 sets
13	Remote control panel (optional device)	1 set

Machine main configuration

Gantry beam is welded by square tube and steel plate, fixed on base. After plane processing, gantry beam installs guide rail. The gantry beam guide rail is placed with welding torch clamping, adjustment and the lifting mechanism, and the CNC control the place along the full-scale of the guide rail. Adjustable bracket in the middle of the body, with universal ball support. Electrical cabinet is fixed on the back of head stock

Electric System

1 The machine adopts OMRON PLC as the control core to control the execution of welding procedures. the system has good stability, simple structure and easy maintenance.

2 The rotation of the workpiece adopts Panasonic 1KW AC servo driver and AC servo motor. The motor speed can be changed by adjusting the driver. The speed is stepless and smoothly adjusted, and it can be digitally displayed in cm/Min units, with low failure rate and suitable for long-term use.

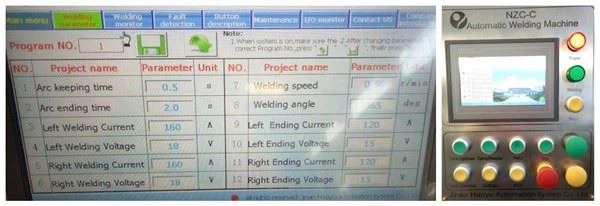

3 Using MCGS touch screen as input and output interface, welding length, arc initiation time, welding current, voltage and welding speed, moving speed, etc.

4 The welding length adopts the closed-loop detection of rotary encoder, and the position detection adopts the imported non-contact switch detection.

5 Integrated control panel box. The control buttons, touch screen, welding specification control, etc. are concentrated on one panel, which is easy to use and operate.
