3 Axis CNC Control Vehicle Aluminum Fuel Tank Welding Machine With TIG MIG

3 Axis CNC Control Vehicle Aluminum Fuel Tank Welding Machine With TIG MIG
3 Axis CNC Control Vehicle Aluminum Fuel Tank Welding Machine With TIG MIG suppliers
3 Axis CNC Control Vehicle Aluminum Fuel Tank Welding Machine With TIG MIG factory
3 Axis CNC Control Vehicle Aluminum Fuel Tank Welding Machine With TIG MIG best
3 Axis CNC Control Vehicle Aluminum Fuel Tank Welding Machine With TIG MIG high quality

3 Axis CNC Control Vehicle Aluminum Fuel Tank Welding Machine With TIG MIG

3 Axis CNC Control Vehicle Aluminum Fuel Tank Welding Machine with TIG MIG is a high-precision automated equipment specially used for welding aluminum alloy automobile fuel tanks. It is mainly used for splicing and welding of fuel tanks.

Send Inquiry

Description

3 Axis CNC Control Vehicle Aluminum Fuel Tank Welding Machine with TIG MIG

Main application

1.Aluminum fuel tank welding: used for longitudinal or circular welds of aluminum alloy fuel tanks for passenger cars and commercial vehicles.

2.Other parts: can also be used for welding aluminum alloy tubular or box parts of similar structures.

Product Parameter

Applicable diameter	max 1500mm
Applicable length	max 3000mm
Material	stainless steel;Steel,Al,copper and iron and other materials
Thickness	more than 0.8mm
Rotation speed	0.2-2rpm
Motor power	0.55KW
Welding torch moving range in left-right direction	100mm
Welding torch lifting range	100mm
welding torch moving range in front-rear direction	50mm
Machine working voltage	220V single phase 50hz for machine 380v 3phase 50hz for welding power source

Core process

1.Tungsten inert gas welding (TIG): Commonly used non-melting electrode (tungsten electrode) welding under the protection of inert gas (such as argon), suitable for high-quality welding of aluminum alloys.

2.Laser welding or MIG welding: Some equipment uses laser welding or pulse MIG welding to improve efficiency and reduce thermal deformation.

3.Automated control: Control welding parameters (current, speed, gas flow) through PLC or CNC system to ensure weld consistency.

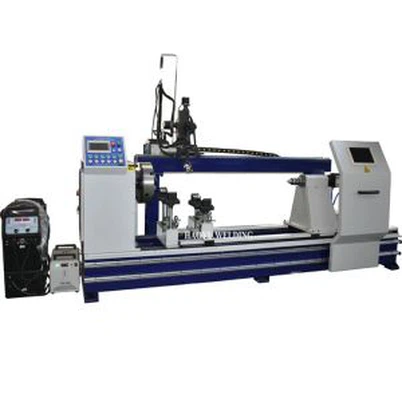

Details pictures
