Gas Tank Nut Circumferential Seam Welding Machine
This machine is specially designed for circumferential seam welding of gas tank nuts, ensuring high welding accuracy, stable quality, and efficient mass production.
Description
I.Gas Tank Nut Circumferential Seam Welding Machine Overview

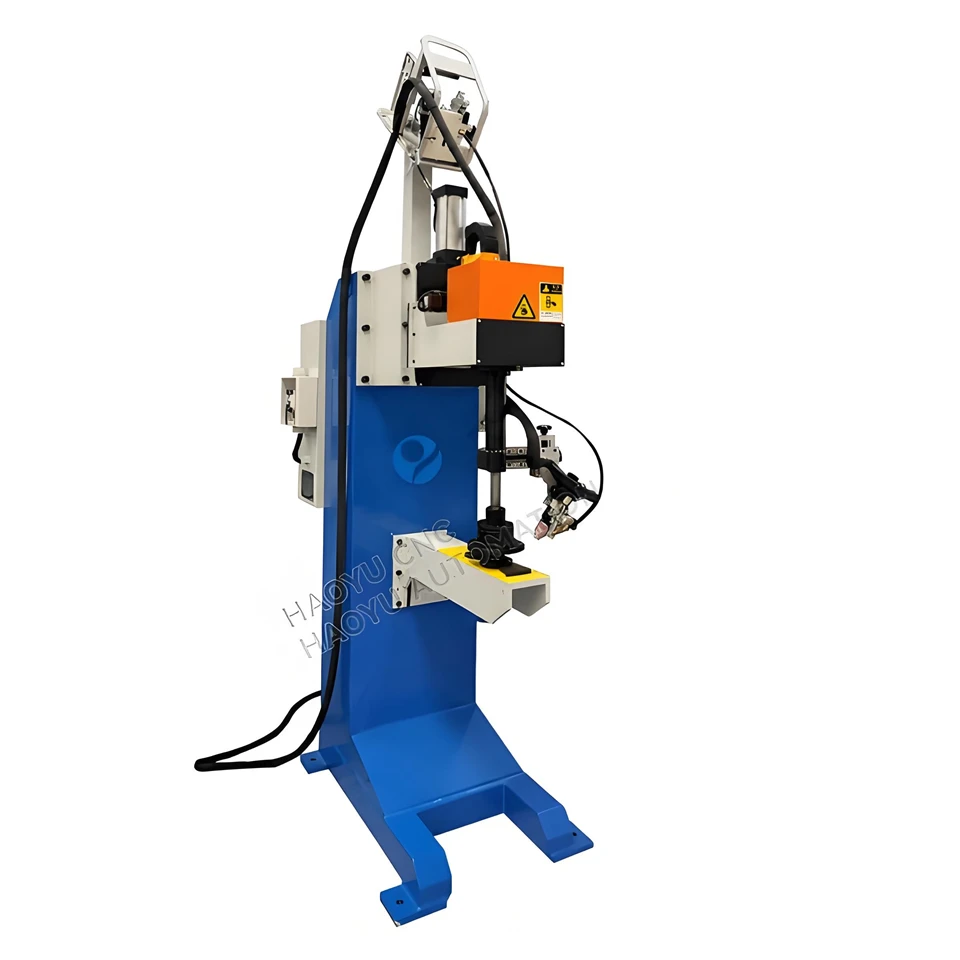

The Gas Tank Nut Circumferential Seam Welding Machine is a high-efficiency automatic welding system designed for welding nuts on storage tanks and gas cylinders.
This equipment is mainly used for ring welding of gas cylinder nuts. It adopts TIG gas shielded welding method. The workpiece is fixed and the welding gun rotates to achieve welding of the workpiece. The workpiece is clamped vertically.
II.Gas Tank Nut Circumferential Seam Welding Machine Key Features
1. High Precision Positioning System
Equipped with precision fixtures and centering structures to ensure perfect alignment between nut and tank body.
2. Stable Welding Quality
Controlled welding speed and path ensure smooth, uniform weld seams with minimal defects such as porosity or misalignment.
3. Heavy-Duty Industrial Structure
Built with a rigid machine frame suitable for long-term continuous operation in industrial environments.
4. Customizable Design
Supports customization for different tank diameters, lengths, and nut specifications.
5. Easy Operation System
User-friendly control interface allows operators to quickly set parameters and start production.
III.Gas Tank Nut Circumferential Seam Welding Machine Technical Parameters
| Workpiece Name | Gas cylinder nut |
| Workpiece material | Aluminum alloy |
| Weld type | Lap weld |
| Applicable welding wire diameter | 1.0-1.2mm |
| Pre-welding state of the workpiece | Assembly welding on equipment |
| Applicable workpiece length | ≤1000mm |
| Applicable workpiece diameter | ≤60mm |
| Applicable workpiece weight | ≤20Kg |
| Spindle speed | 0.5～5rpm |
IV.Gas Tank Nut Circumferential Seam Welding Machine Structures

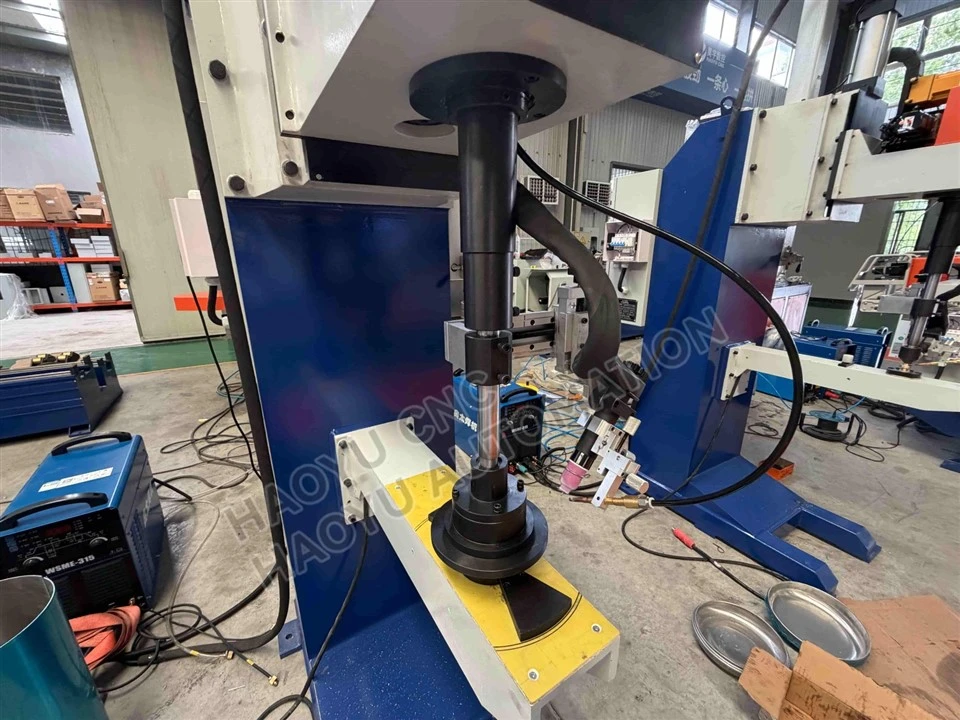

- Welding torch and workpiece centering mechanism

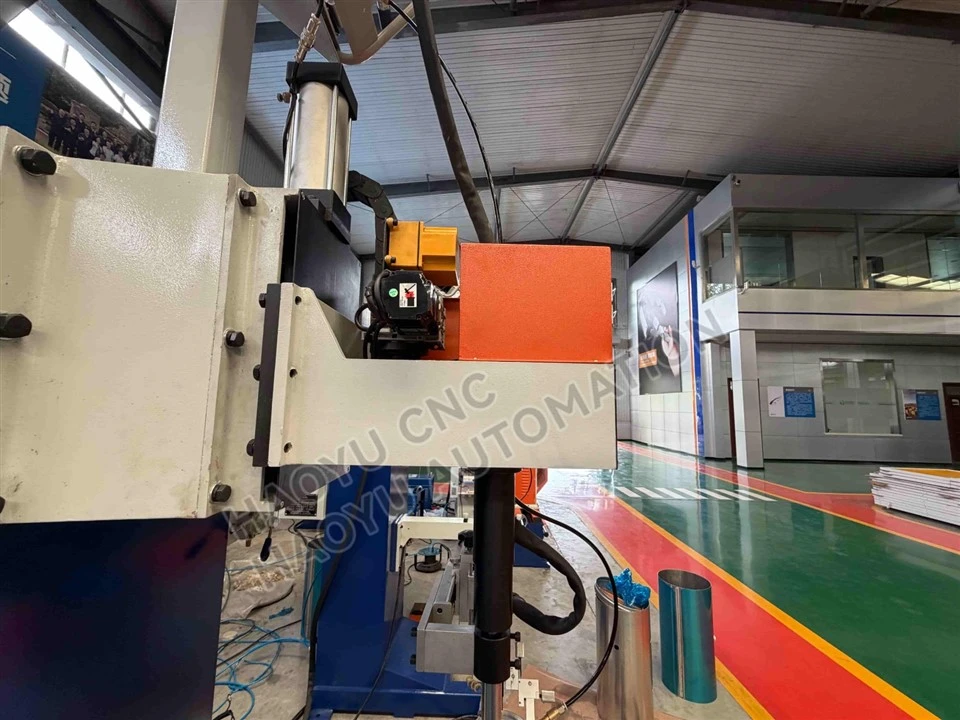

The welding torch is equipped with a three-dimensional adjustment mechanism for manual adjustment of its initial welding position. A pneumatic lifting mechanism enables automatic lifting of the torch; the adjustment mechanism has a tight clearance, eliminating any wobble due to its own fit. During rotation, the angle between the welding torch and the workpiece remains consistent, and the torch must not vibrate.(fixture can be customized)
Workpiece centering mechanism: This mechanism is mainly used to center the gas tank body and the nut, ensuring that the workpiece is basically concentric with the center of rotation.

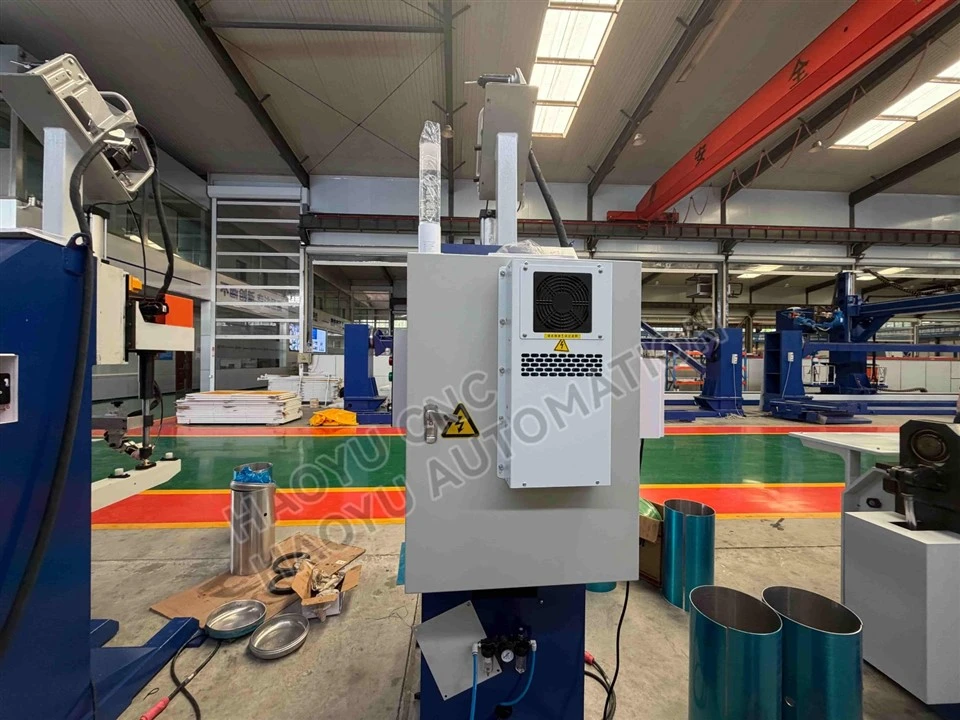

- Electrical control cabinet
This electrical control cabinet uses a PLC as its core, coupled with a touch screen and servo drives, to achieve digital setting and precise control of welding parameters. The main control circuit within the cabinet is separated and equipped with multiple protections including short circuit, overload, and emergency stop, ensuring stable and reliable operation. The operation panel supports one-click recall and parameter storage for programs of various nut specifications, facilitating quick production changes. The cabinet is robustly protected and features external quick-connect interfaces for easy connection and maintenance, providing safe and intelligent electrical protection for the equipment.
V.Gas Tank Nut Circumferential Seam Welding Machine Applications
Storage Tank Nut Ring Seam Welding Machine is widely used in:
- Gas storage tank manufacturing
- Pressure vessel production
- Industrial welding automation lines
- Automotive air tank production
- Hydraulic / pneumatic storage systems
- Metal container fabrication industries
VI. FAQ
Q1: What materials can this machine weld?
It can weld carbon steel, stainless steel, aluminum alloy and other common industrial metals used in tank manufacturing.
Q2: Can the machine be customized?
Yes, we provide full customization based on tank size, nut specification, and production requirements.
Q3: Is it suitable for mass production?
Yes, it is designed for continuous industrial production with high stability.
Q4: Does it support automation integration?
Yes, it can be integrated into automatic production lines with robots or feeding systems.
Q5: How difficult is the operation?
The system is PLC-controlled and easy to operate after simple training.
VI.Package
1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement.
