Aluminum Storage Cylinder TIG Longitudinal Seam Welding Machine

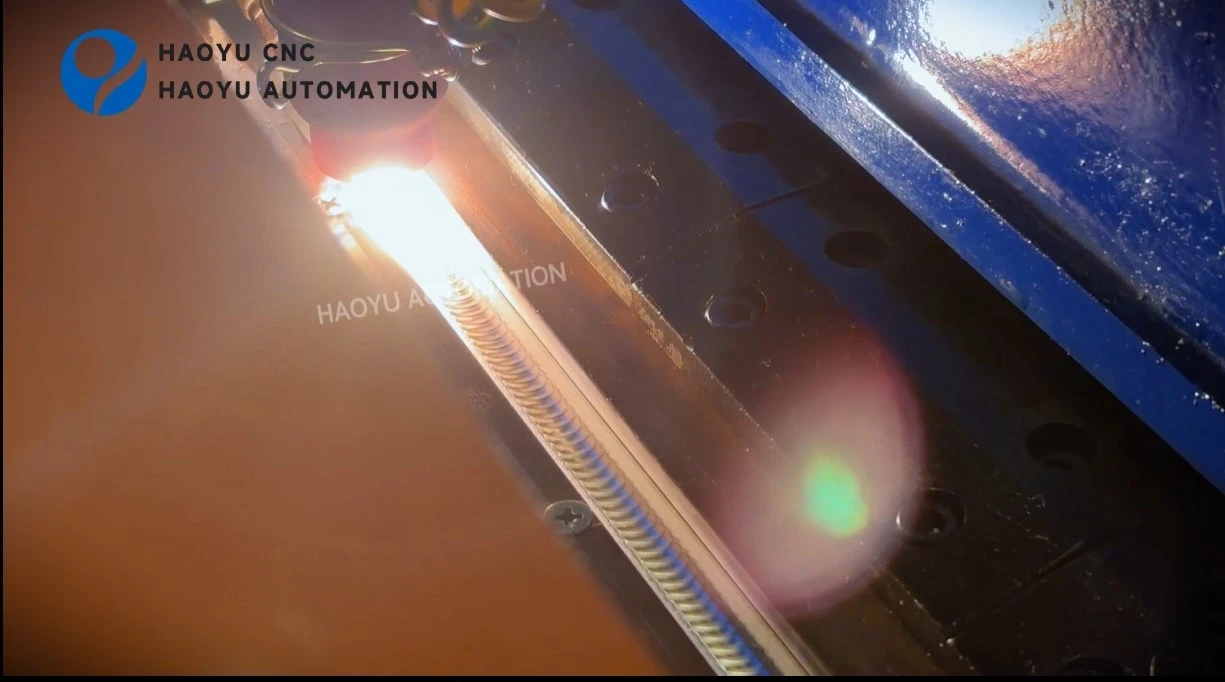

The TIG straight seam welding machine for aluminum gas cylinders is an automated welding device specifically designed for straight seam welding of aluminum gas tanks, aluminum alloy pressure vessels, and cylindrical workpieces. Utilizing high-precision TIG welding technology, and equipped with an automatic walking system and clamping structure, the machine achieves stable, continuous, and high-quality straight seam welding.



This equipment is suitable for mass production of aluminum gas cylinders, significantly improving welding efficiency and consistency, reducing labor costs, and enhancing product appearance and airtightness.





Aluminum air tank welding machine

Welding process	TIG
Applicable materials	Aluminum alloy
Application workpiece	Aluminum gas cylinders, aluminum pressure tanks, cylindrical workpieces
Workpiece diameter range	200-1500mm (customizable)
Workpiece length range	300-3000mm(customizable)
Output current range	20-300A (higher configurations available)
Plate thickness range	1-3mm
Welding method	Automatic straight seam continuous welding
Welding torch cooling method	Water Cooling
Welding torch adjustment method	X/Y/Z three-dimensional precision adjustment





1. High-precision TIG welding system

• Utilizes stable TIG arc welding technology
• Produces uniform and aesthetically pleasing weld formation
• Effectively reduces the risk of porosity and cracking (key issues in aluminum welding)



2.Specialized aluminum alloy welding optimization design

• Optimized current control for the heat sensitivity of aluminum
• Reduces thermal deformation
• Improves weld strength and sealing performance



3. High-rigidity clamping and positioning structure

• Automatic workpiece centering and clamping;
• Prevents displacement during welding;
• Ensures weld straightness.

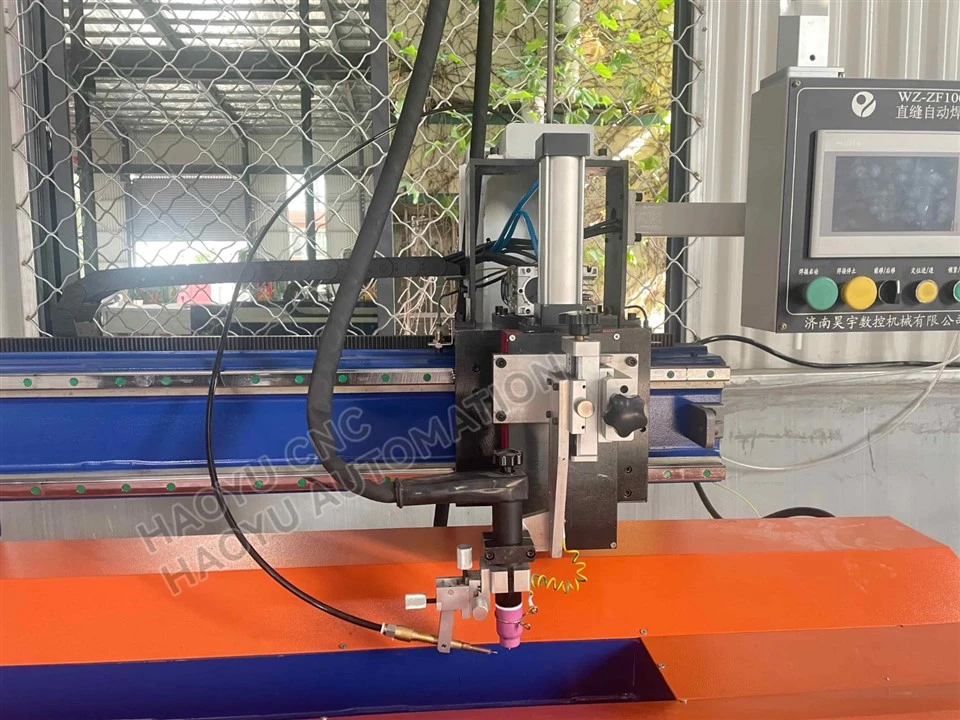

1.Welding head:

This TIG welding torch features a water-cooled design and is equipped with pneumatic vertical actuation for precise up-and-down movement. The torch head offers multi-axis adjustability, including vertical elevation, horizontal lateral shifting, and full angular rotation. Its torch body is constructed from high-grade ceramic material for superior thermal insulation and durability.

2.Wire feeder

This system employs a precision drive structure, enabling accurate control of the wire feeding speed and synchronous linkage with the TIG welding current to ensure a continuous and stable welding process. The wire feeder operates smoothly and is less prone to wire jamming, making it particularly suitable for aluminum alloy welding applications requiring high wire feeding uniformity.



3.This welding equipment features an iron lining design, primarily used for back support and heat dissipation during the TIG straight seam welding process of aluminum gas cylinders. Due to the rapid thermal conductivity of aluminum and the high requirements for molten pool control, the iron lining possesses excellent thermal conductivity and thermal stability, effectively absorbing and dispersing welding heat to prevent localized overheating and deformation.







Aluminum Air Tank Production Line: Welding Process





Q1: Is this equipment only suitable for aluminum materials?

Primarily optimized for aluminum alloys, it can also support welding of some stainless steel materials upon request.

Q2: What is the welding thickness range?

Depending on the power configuration, it is generally suitable for straight seam welding of aluminum plates ranging from 1mm to 3mm.

Q3: Can different diameter air tanks be customized?

Yes, the equipment fixtures and track system can be customized.

Q4: Is operation complicated?

Not complicated. It uses a PLC touch control system, and ordinary workers can operate it after simple training.





1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement
