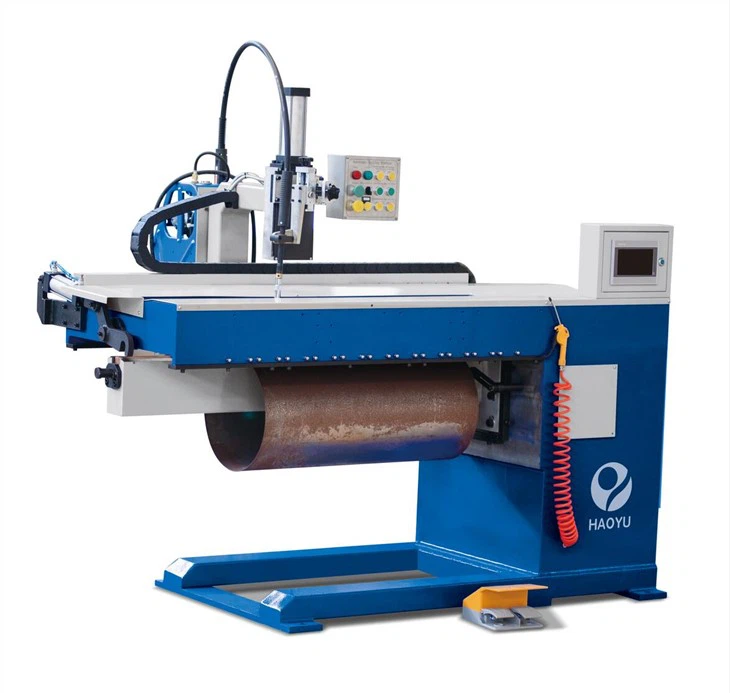

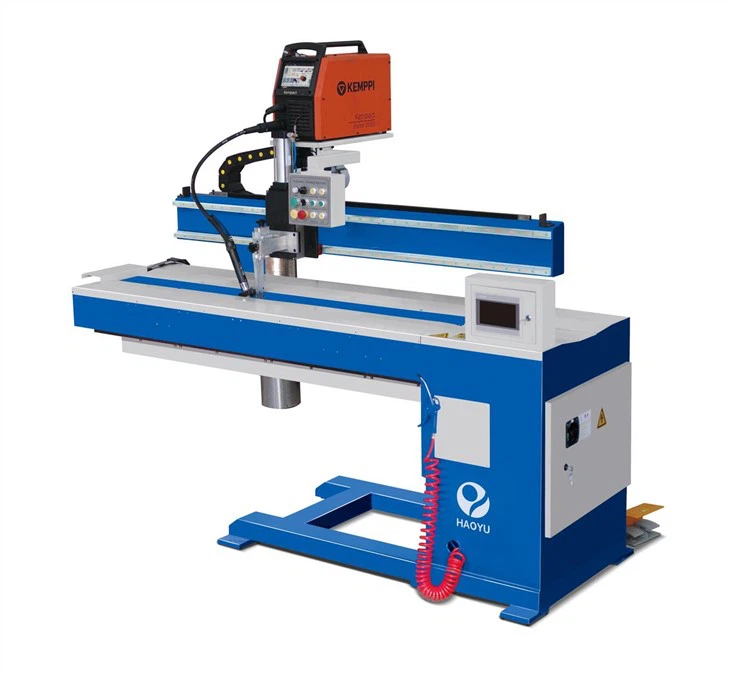

Custom Longitudinal Seam Welder for Sale



Looking for a longitudinal seam welder that matches a non-standard tank or cylinder?

HAOYU provides build-to-order longitudinal seam welding systems based on the workpiece dimensions, joint design, welding requirements and production target. A reference configuration can accommodate workpieces up to 2,000 mm in diameter and longitudinal seams up to 2,500 mm long.

Send us your workpiece drawing and welding requirements to receive a recommended machine configuration and quotation.





The following values describe the current reference configuration. Final specifications will be confirmed for each project：

Item	Reference Specification
Maximum workpiece diameter	Up to 2,000 mm
Maximum longitudinal weld length	Up to 2,500 mm
Welding travel speed	Up to 700 mm/min
Rapid travel speed	Up to 2 m/min
Reference welding power source	400 A
Available working voltage	220 V / 380 V / 415 V / 480 V
Control method	PLC-controlled automatic welding cycle
Machine configuration	Customized according to the workpiece





Please see the video of the seam welding equipment in operation:



Important: Maximum diameter and maximum welding length may not be available simultaneously for every workpiece. The usable range depends on the tank structure, loading method, fixture design, joint position and welding process.





• Tank and cylinder manufacturers with different workpiece diameters, lengths, materials or thicknesses. Their main concern is whether the machine can accommodate the actual part, keep the long joint aligned and control welding distortion. The machine is therefore designed around the customer's workpiece and joint requirements.
• Factories upgrading from manual welding to batch production. They need consistent weld penetration and appearance, repeatable parameters, shorter setup time and less dependence on individual welders. Controlled torch travel, workpiece clamping and PLC operation help make the welding process more stable and repeatable.
• Overseas equipment buyers and welding integrators purchasing a customized machine remotely. Their main concerns are whether the machine will work as specified after delivery and whether the technical scope is clear. Workpiece drawings, sample-weld requirements, acceptance standards, local voltage, installation, training and spare-parts support should therefore be confirmed before production.



This machine is intended for buyers who need a project-specific longitudinal seam welding solution, rather than a standard machine selected only by model number.





Instead of offering one fixed machine for every application, HAOYU engineers the welding system around the actual part.

The project-specific scope may include:



Workpiece Clamping

The key clamping mechanism's clamping effect is not determined by a single factor, but rather by the combined effects of workpiece characteristics, equipment parameters, and process requirements.



Welding Carriage

The welding carriage moves along the longitudinal joint at a controlled speed. Travel length, speed range and welding-torch adjustment are configured according to the required weld.

Welding Power Source Integration

The welding package is selected or integrated according to the material, thickness, joint preparation and required weld quality. Customers may provide a preferred power-source brand or request a recommendation from HAOYU.Welding brands available (Panasonic, Autotech, OTC, Fornix, Kelda, Megmeet ,ect).



Welding System

Depending on the specifications of your workpiece and the welding requirements of your customers, different welding processes such as MAG/MIG, TIG, and Laser are used, and therefore different welding torches are employed.





1. Provide Workpiece Information

Please provide drawings, photos, or samples, indicating the dimensions and location of the longitudinal seam welder.



2. Technical Assessment

HAOYU will assess the workpiece, joint design, required processes, production targets, and load conditions.



3. Configuration and Quotation

We will prepare a longitudinal seam welder structural plan, reference specifications, project scope, and commercial quotation.



4. Solution Discussion

HAOYU will discuss configuration, design, and other issues with the client. Our welding engineers and designers will answer any welding questions and finalize the welding solution.



5. Production and Delivery

The customized longitudinal seam welder will be manufactured according to the approved technical agreement and ready for delivery after inspection and acceptance.





Please include the following information in your inquiry for a longitudinal seam welder for sale:

• Workpiece drawing or clear photographs
• Minimum and maximum diameter
• Total workpiece length
• Required longitudinal weld length
• Workpiece weight
• Material and wall thickness
• Butt joint, lap joint or other joint design
• Required welding process, if already specified
• Required welding speed or production cycle
• Loading and unloading method
• Power supply at the installation site
• Weld-quality or inspection requirements
• Sample workpieces available for testing

Providing these details helps us recommend the correct machine structure and avoid quoting unnecessary equipment.The final price of the equipment depends on its configuration.





1.Is this longitudinal seam welder kept in stock?

This is primarily a build-to-order longitudinal seam welder. The final machine dimensions, fixture, welding package and control functions are determined according to the workpiece.

2.Can the machine weld a 2,000 mm diameter tank with a 2,500 mm seam?

These are the maximum values of the reference configuration. HAOYU must review the complete workpiece dimensions, weight, joint location and loading method before confirming that both limits can be achieved together.

3.Which welding process should I choose?

The suitable process depends on the material, thickness, joint preparation, penetration requirement, appearance standard and production speed. If the process has already been specified, include it with your inquiry. Otherwise, HAOYU can recommend a configuration after reviewing the workpiece.

4.What factors determine the price of a longitudinal seam welding machine?

The price of a longitudinal seam welding machine depends on the size and weight of the workpiece, the weld length, the welding process, the power supply, clamping and support requirements, the loading system, the control functions, the weld tracking requirements, and the inspection standards.

5.Can I send a sample for welding tests?

Yes. Sample testing can be discussed when the joint design or weld-quality requirement needs to be verified before the final machine configuration is approved.
