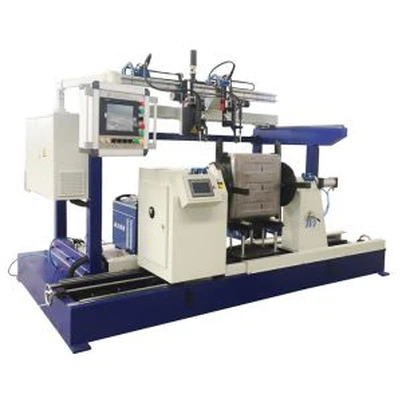

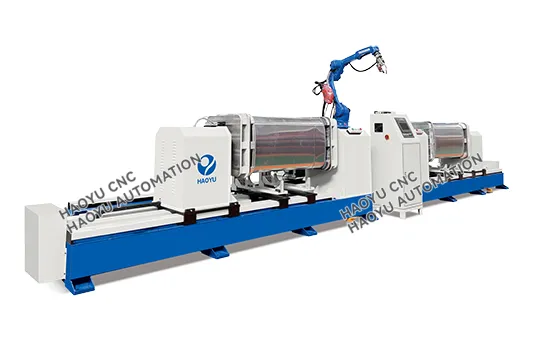

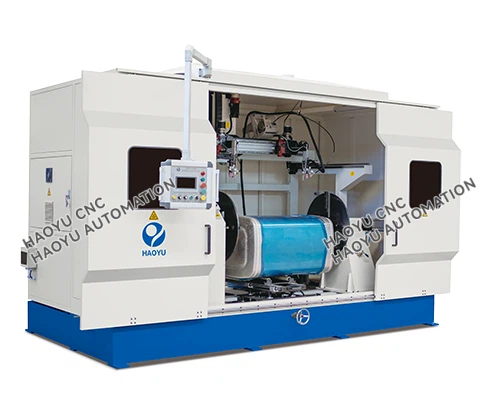

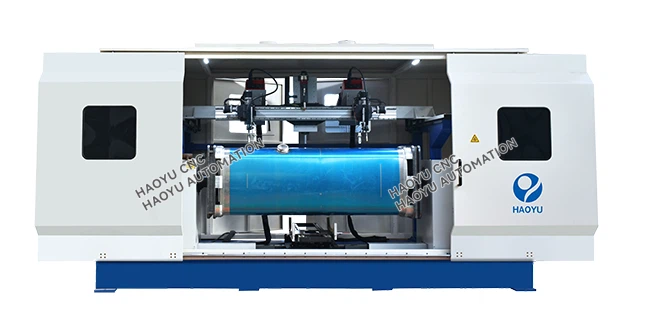

Automatic MIG MAG Fuel Tank Seam Welding Machine
The fuel tank welder is a device specially used for welding fuel tanks, oil tanks and other containers. It is necessary to ensure the welding sealing, leak-proof and pressure-resistant performance.
Description
Automatic MIG MAG Fuel Tank Seam Welding Machine
I.Types of Automatic MIG MAG Fuel Tank Seam Welding Machine
- MIG/MAG Welder (Gas Shielded Welding)
Principle: Uses inert/active gas to shield the weld pool between the welding wire and the base material.
Applications: Medium- and thick-plate fuel tanks (such as those for construction machinery), suitable for a variety of materials (steel, stainless steel, etc.).
Features: High efficiency, but requires protection against pores and requires post-weld leak testing.
- TIG Welder (Argon Arc Welding)
Principle: Welding with a non-consumable tungsten electrode under inert gas.
Applications: High-quality fuel tanks (such as aviation fuel tanks) or stainless steel tanks, requiring aesthetically pleasing welds and excellent sealing.
Features: Suitable for precision welding.
II.Technical parameter
|
Rotation speed of rotary axis |
0-5r/m, stepless adjustment |
|
Welding torch vertical moving distance |
200mm |
|
Welding torch lifting speed |
0.1-10m/min, stepless adjustment |
|
Welding torch forward-backward moving distance |
500mm |
|
Welding wire diameter |
1.0mm & 1.2mm |
|
Argon consumption |
15L/MIN |
|
Compressed air |
0.4-0.6MPA |
|
Machine working voltage |
380v 3phase 50hz for welding power source |
III.Features

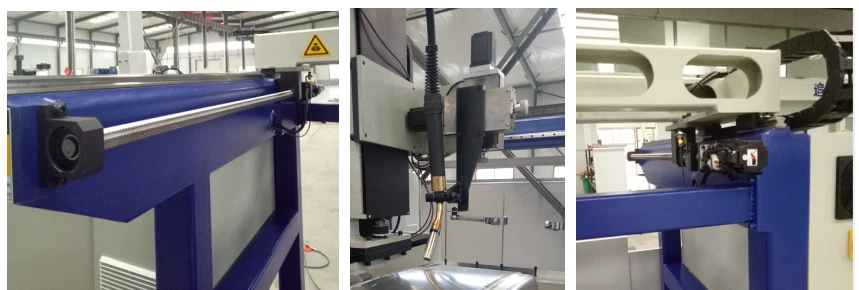

1.1. The welding gun moves up and down, forward and backward in coordination with the workpiece rotation. A short-distance push-type wire feeding mechanism is used to ensure the stability of wire feeding.

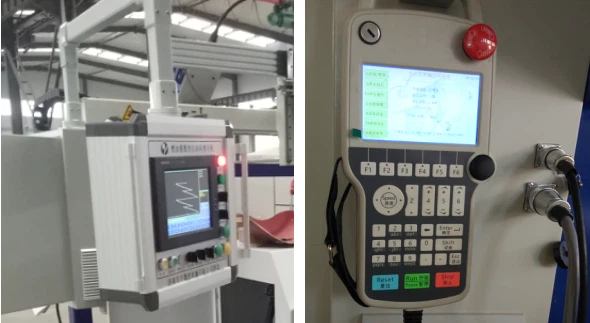

2.Adopt CNC system to control 3-dimension actions of tank rotation and welding torch movement in up-down and forward-backward direction.
3.Welding torch walks out of welding seam path when the arc is burning continuously, to realize the normal welding of fuel tank square seam.
4.Using PLC and CNC system to control the above process, and improve the reliability.

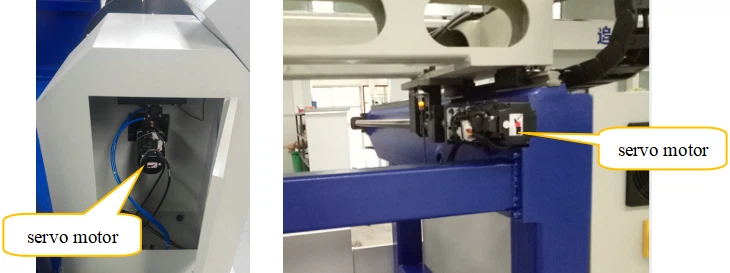

5.High power AC servo motor and driver control the rotation of rotary axis and welding torch forward-backward&up-down movement.

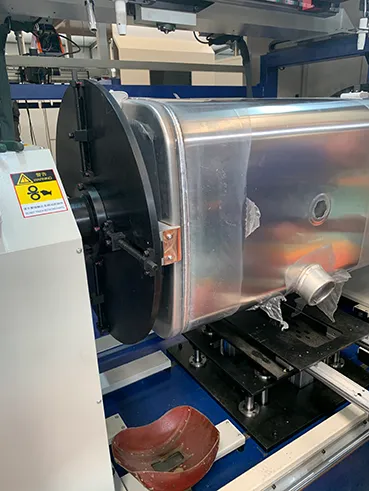

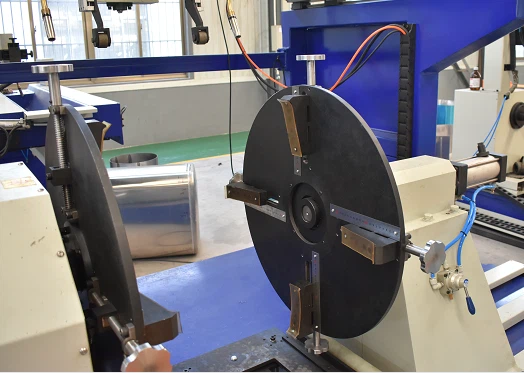

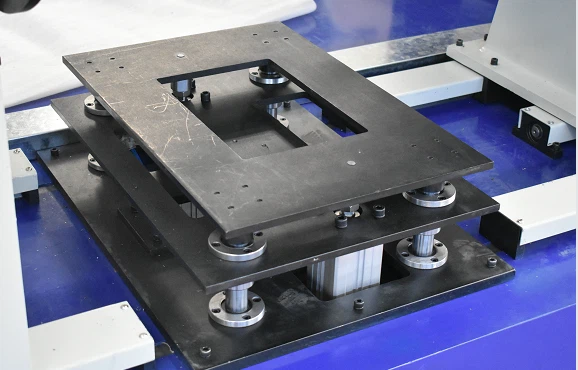

6.The chuck of the fuel tank welding machine is a key component used to fix and clamp the fuel tank or other welding workpieces to ensure precise positioning and stability during the welding process.
7.The support frame of the fuel tank welding machine adopts an adjustable design to firmly support the welding material and ensure convenient and safe operation.

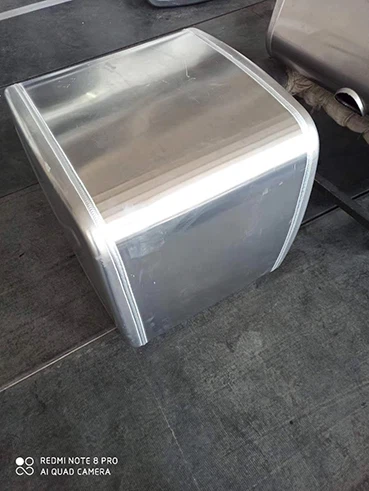

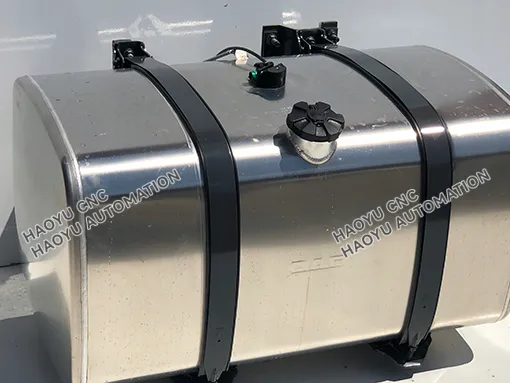

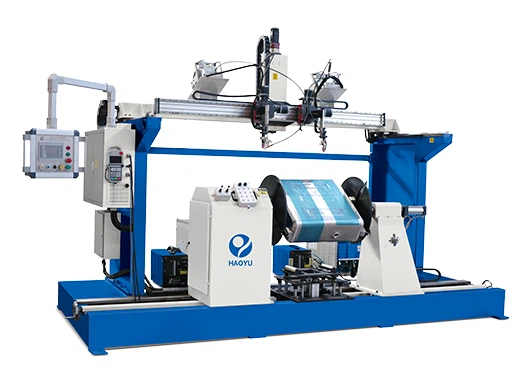

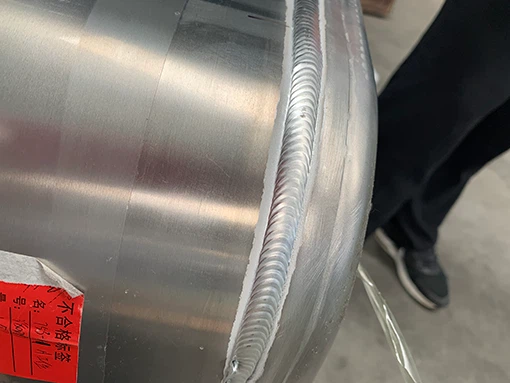

IV.Effect picture display
Automatic MIG MAG Fuel Tank Seam Welding Machine
V.Vedio for your reference
Automatic MIG MAG Fuel Tank Seam Welding Machine
