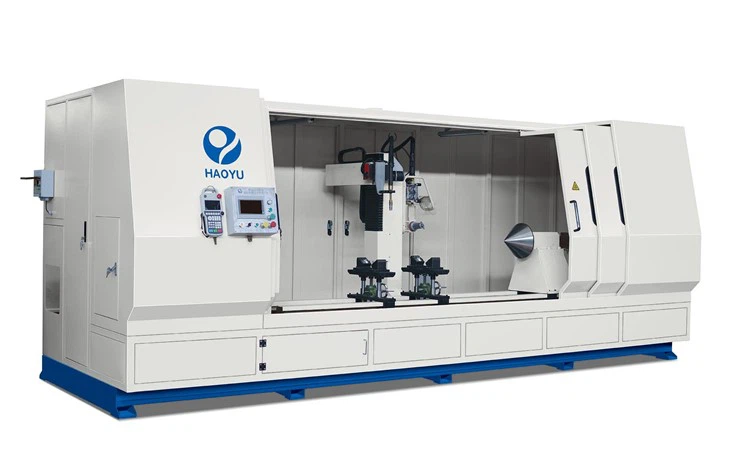

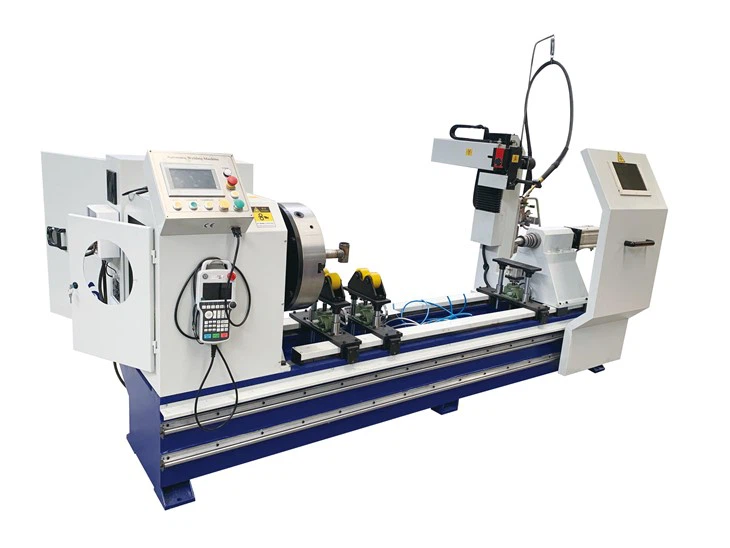

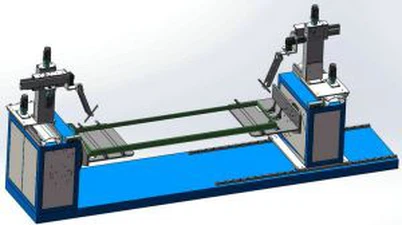

5axis Hydraulic Cylinder Automatic Welding Machine

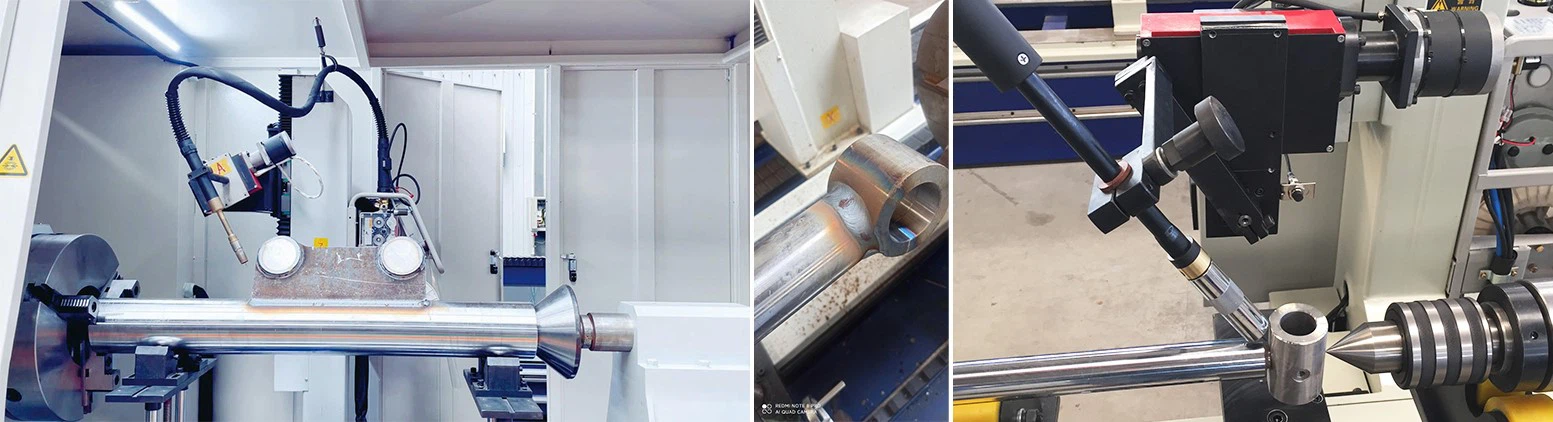

Hydraulic cylinder automatic welding machine should meet the automatic welding of cylinder-tubes, piston rod with eye and end caps.

Description

I. Design Mission

1. Hydraulic cylinder automatic welding machine should meet the automatic welding of cylinder-tubes, piston rod with eye and end caps.

2. Hydraulic cylinder length: max 3000mm

3. Hydraulic cylinder diameter: max Ф330 mm

4. Make sure that welding specification is uniform, with good and smooth seam appearance.

Convenient and reliable to operate.

5. MIG welding with wire feeder.

6. Welding process will be continual and steady.

II.Technical Parameter

X axis moving distance	1500mm
Applicable cylinder length	Max 3000mm
Applicable diameter	330mm
Cylinder fixture	1set
Rotation speed	5rpm, stepless adjustment
Program control	5 axis teach pendant
Welding power source	Japan OTC EP500
machine working voltage	380v 3phase 50hz for welding power source 220v single phase 50hz for main machine
