4 Axis Automatic Welding Machine

4 axis automatic welding machine Welding Machine Application 1. The machine is used for welding relatively complex seams. It has the features of accurate positioning, simple operation, uniform seam tracks and beautiful welding appearance, so that it can displace robot. 2. Meet the requirement of...

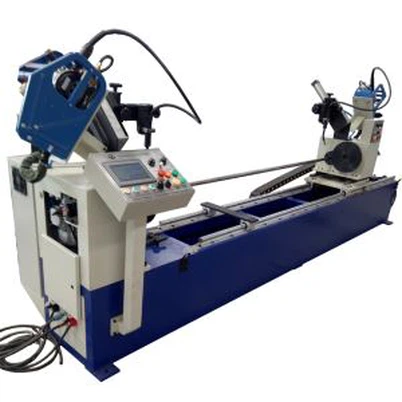

4 axis automatic welding machine
Welding Machine Application

1. The machine is used for welding relatively complex seams. It has the features of accurate positioning, simple operation, uniform seam tracks and beautiful welding appearance, so that it can displace robot.

2. Meet the requirement of U type seam welding.

3. Welding torch moves, workpiece will be fixed.

4. Workpiece is held and positioned by jig and fixture.

5. 4axis CNC system controls whole machine operation.Welding parameters and mode switch can be setup in one integrated control panel. System can save at least 100pcs welding programs.Programs can be directly called by inputting corresponding serial number.Programs can be locked with password.



Welding Machine Parameters

1. 4axis cnc: 4sets servo motor (Taiwan TECO 0.4kw)

2. Guide way: Hiwin linear rails

3. Electrical components: Taiwan Tiande

4. Pneumatic components: Taiwan AIRTAC

5. Welding power source: 400A

6. Relay contactor: Siemens

7. limit switch: Korea AUTONICS
8. Ball screw: Taiwan LINEAR
9. Input voltage: 3phse 380V 50HZ
10. Right&left moving range of welding torch:1500mm
11. Up&down moving range of welding torch:400mm
13. Welding torch rotation:0~360°
14. Up&down adjusting range of working station:300mm
15. Welding speed:100~1000mm/min
