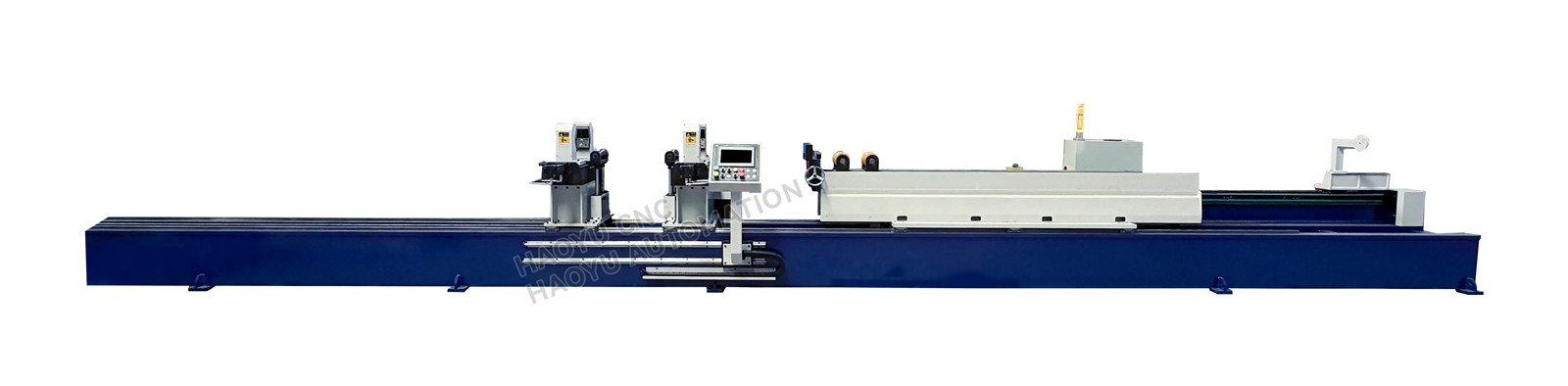

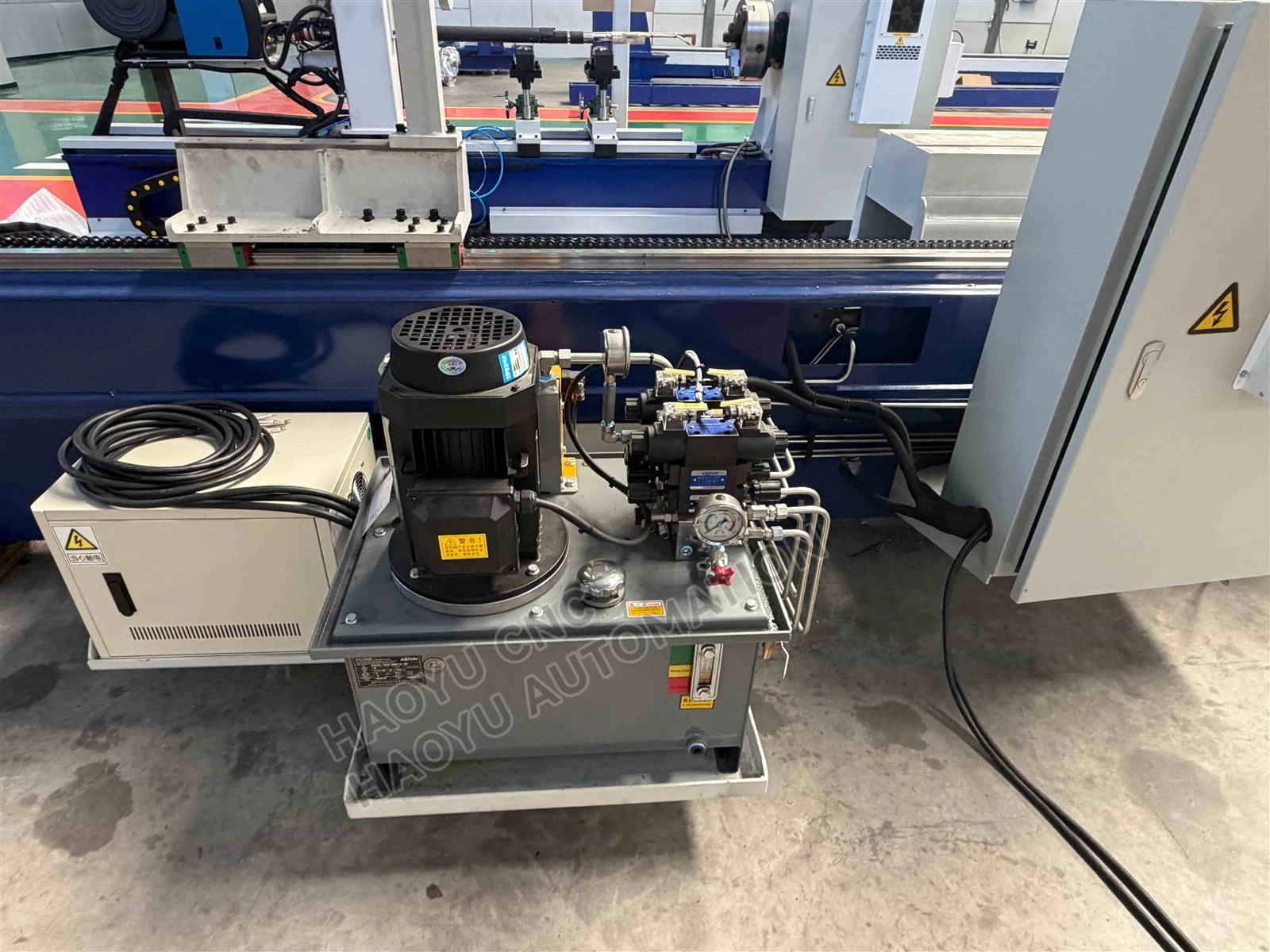

Hydraulic Cylinder Assembling Equipment
A hydraulic cylinder assembly machine is an automated device specifically designed for the precision assembly of hydraulic cylinders. Its core function is to efficiently and accurately assemble components such as pistons, guide sleeves, seals, and cylinder barrels.
Description
Hydraulic Cylinder Assembling Equipment
I.Hydraulic Cylinder Assembling Equipment technical parameters
| The length of the workpiece | 500-3000mm |
|
Outer diameter of cylinder |
Φ50-300mm |
| Welding speed |
10rpm |
| Welding speed setting range |
1-40rpm |
|
The longest cylinder extended state size |
4500mm |
|
Bolt torque requirements for bolt-type cylinders |
1500 Nm, which can be set |
|
Voltage |
AC380V±10%, 50/60Hz |
| Main unit power | 7.5KW |
|
Air pressure |
0.5~0.7MPa; |
II. Hydraulic Cylinder Assembling Equipment Structures
1.The clamping mechanism

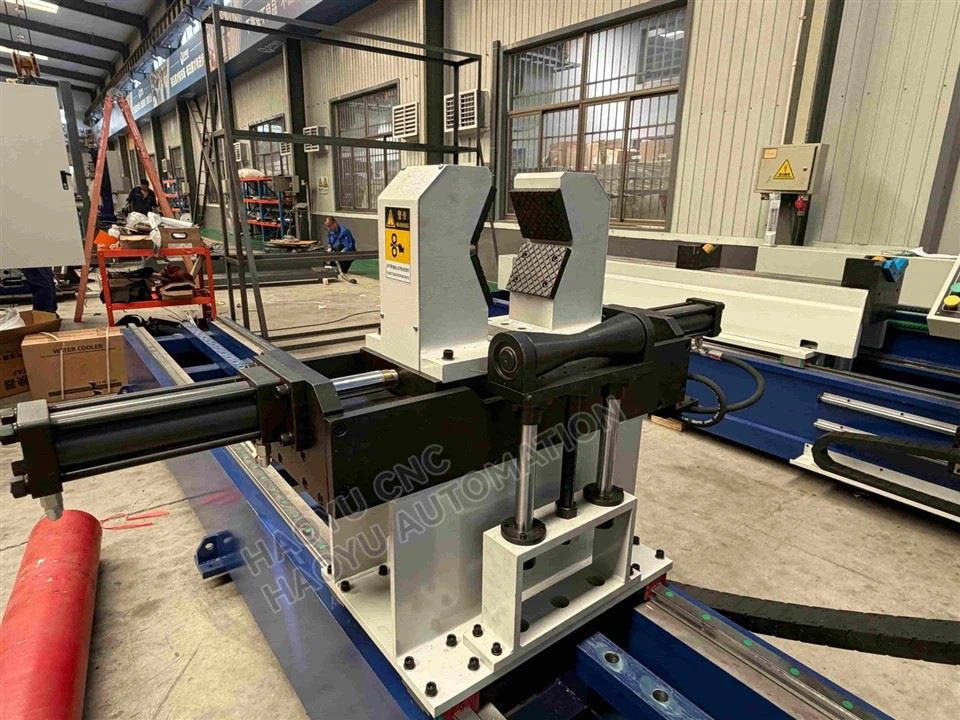

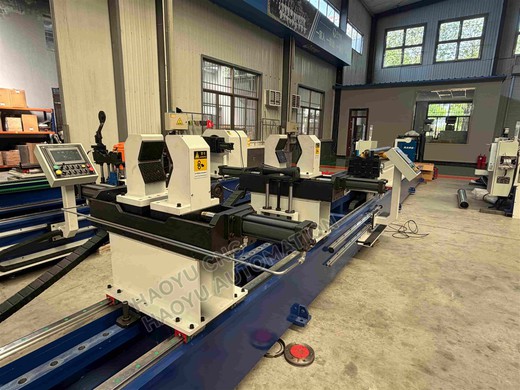

The clamping mechanism of this hydraulic cylinder assembly machine uses hydraulic cylinders as a power source to reliably clamp the workpiece. The equipment is equipped with two independent clamping mechanisms, both of which can slide along the guide rail to flexibly adjust the distance between them according to the workpiece length. The distance adjustment can be done manually or optionally with a motor drive to improve adjustment efficiency. After the position is determined, the clamping mechanism is locked onto the guide rail by locating pins to ensure stability during operation.

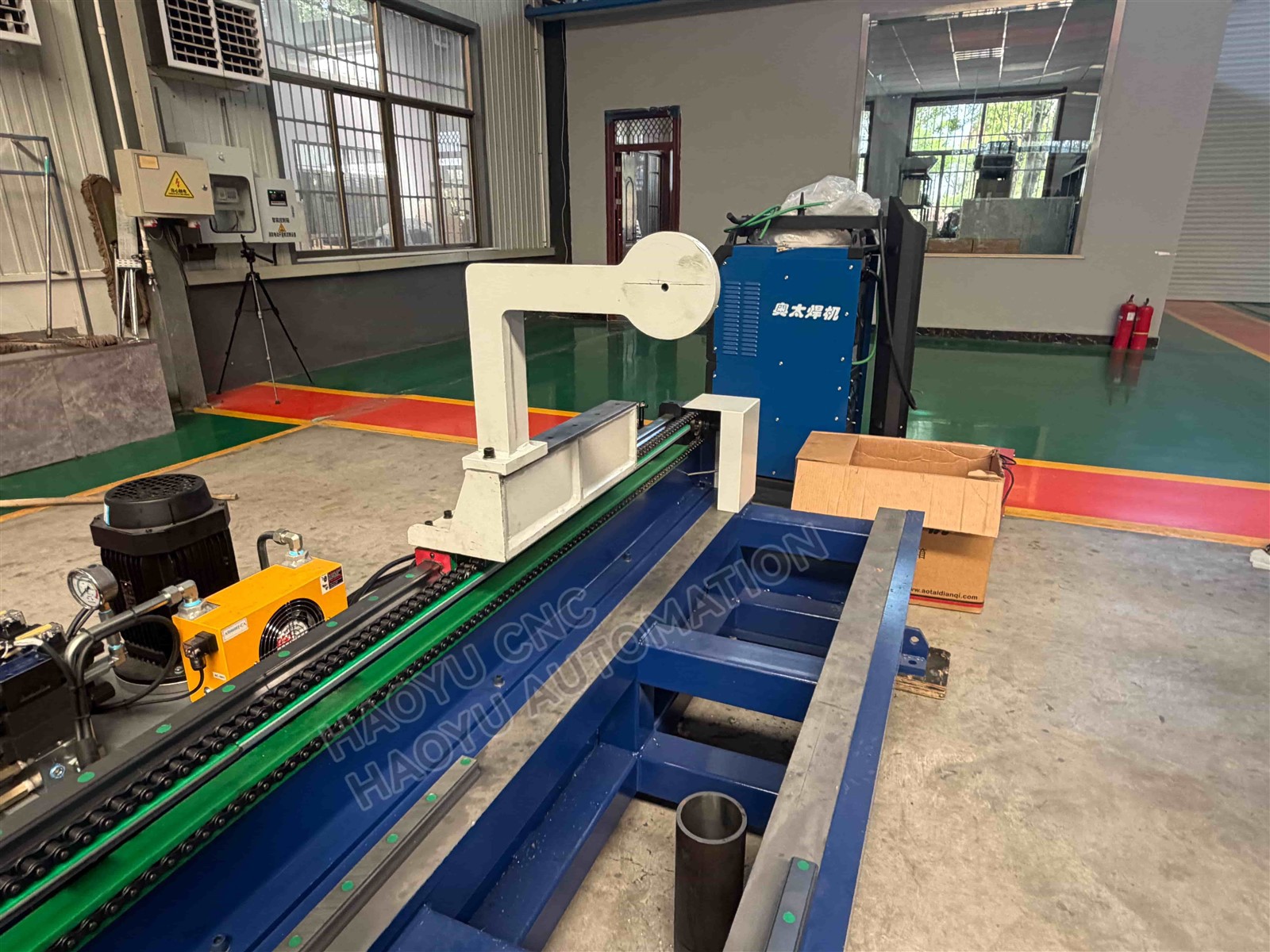

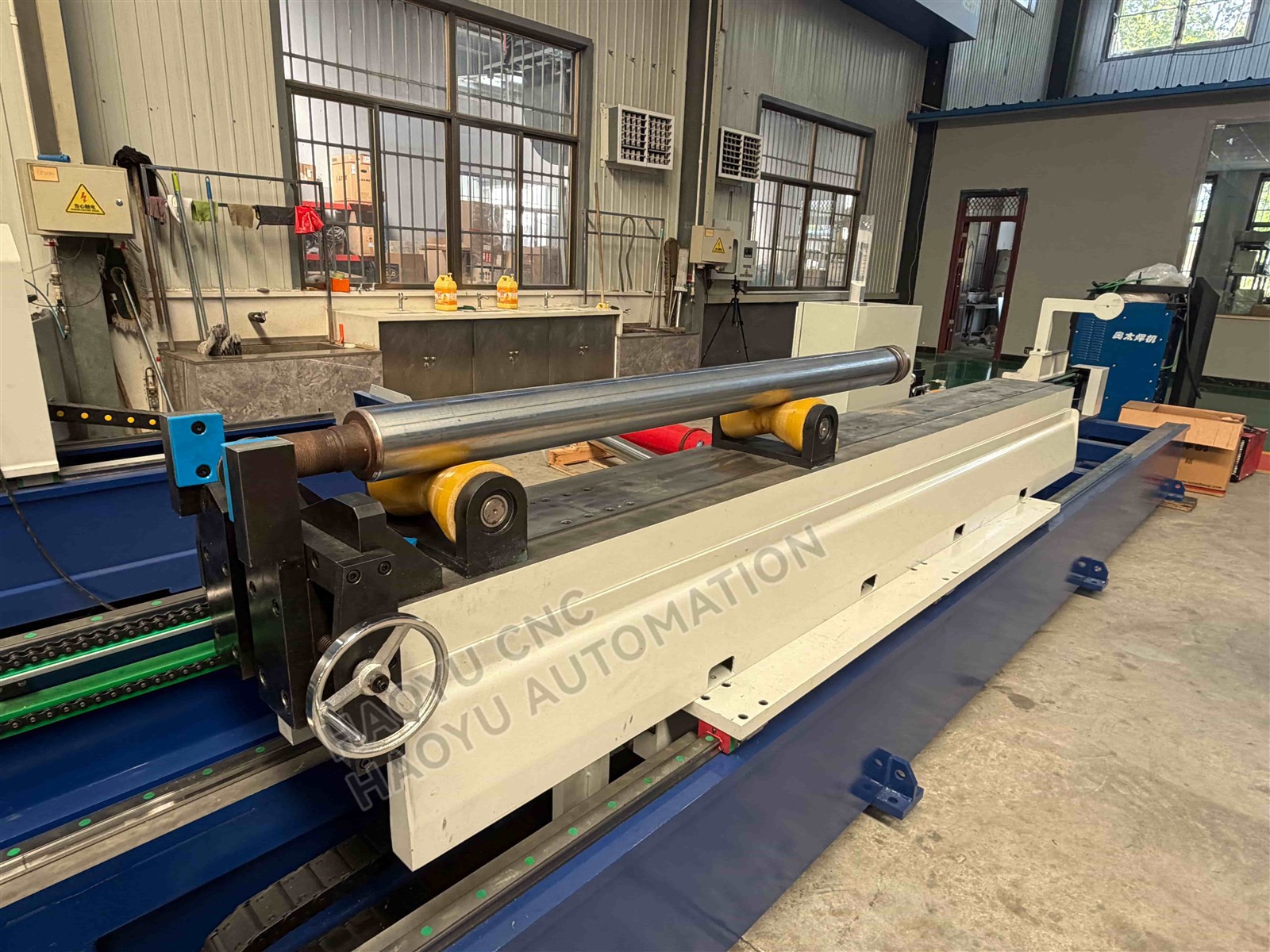

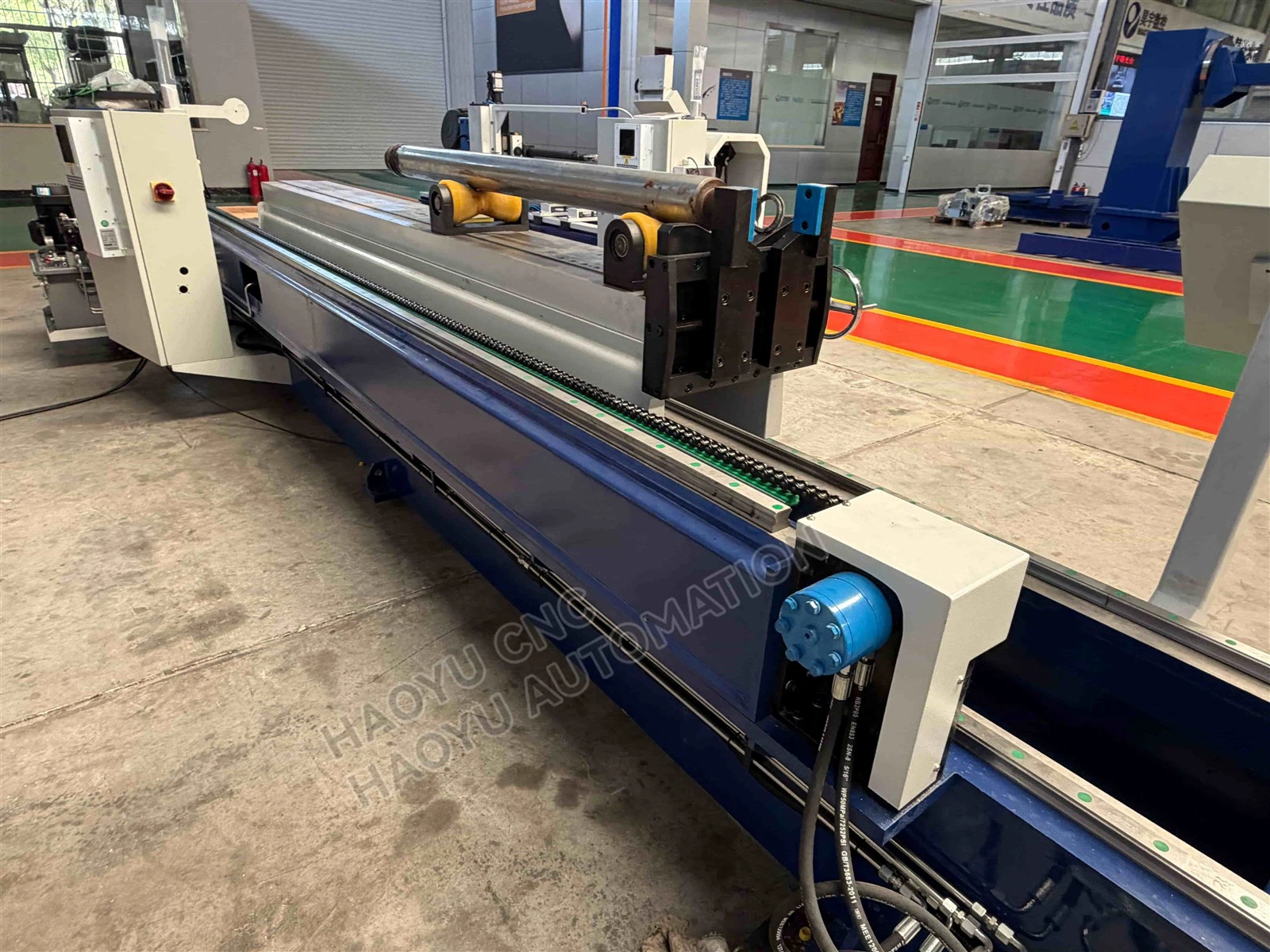

2.The piston rod propulsion fixture of this hydraulic cylinder assembly machine uses a hydraulic motor as its power source, which drives the piston rod to smoothly push it into the cylinder. During the assembly process, the roller device plays a crucial supporting role. The piston rod slides along the roller surface, which reduces frictional resistance and ensures smooth propulsion, facilitating rapid assembly. Simultaneously, the equipment is also equipped with a positioning fixture, which can be flexibly adjusted according to the actual size of the piston rod workpiece, ensuring that piston rods of different specifications can be accurately aligned and stably installed, thereby improving the adaptability and assembly accuracy of the assembly.

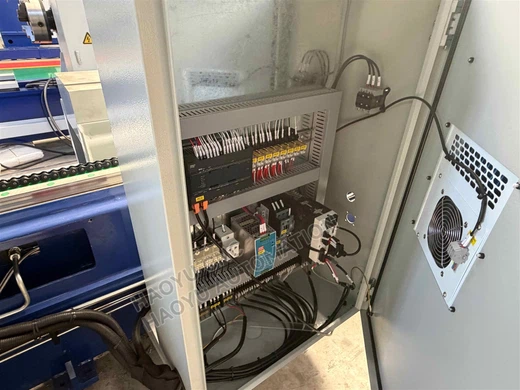

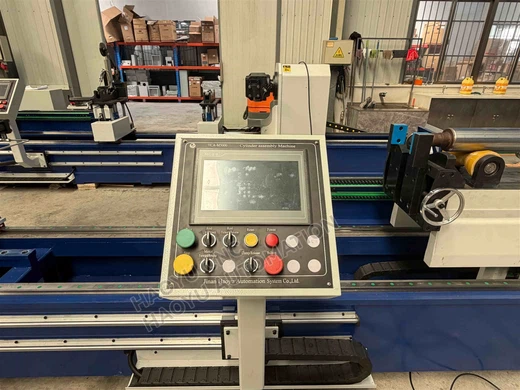

3. The PLC controls the pressing, displacement, and other action logic of the hydraulic cylinder assembly machine, ensuring precise and reliable operation; the HMI touchscreen provides an intuitive operating interface for real-time monitoring of pressure curves, setting parameters, and switching modes. Working together, they achieve a high degree of automation and visualization in the hydraulic cylinder assembly process.

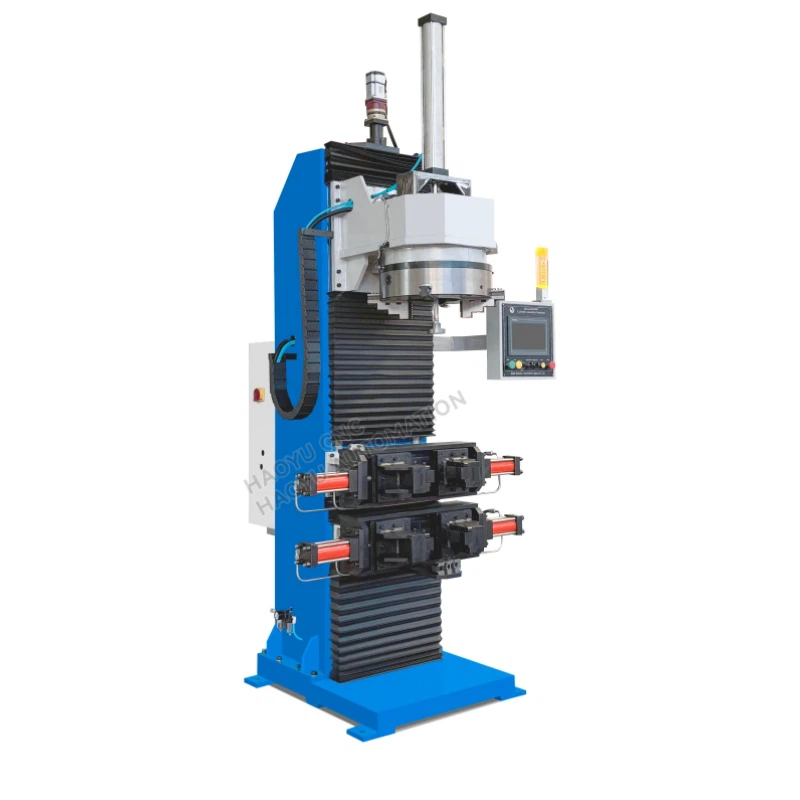

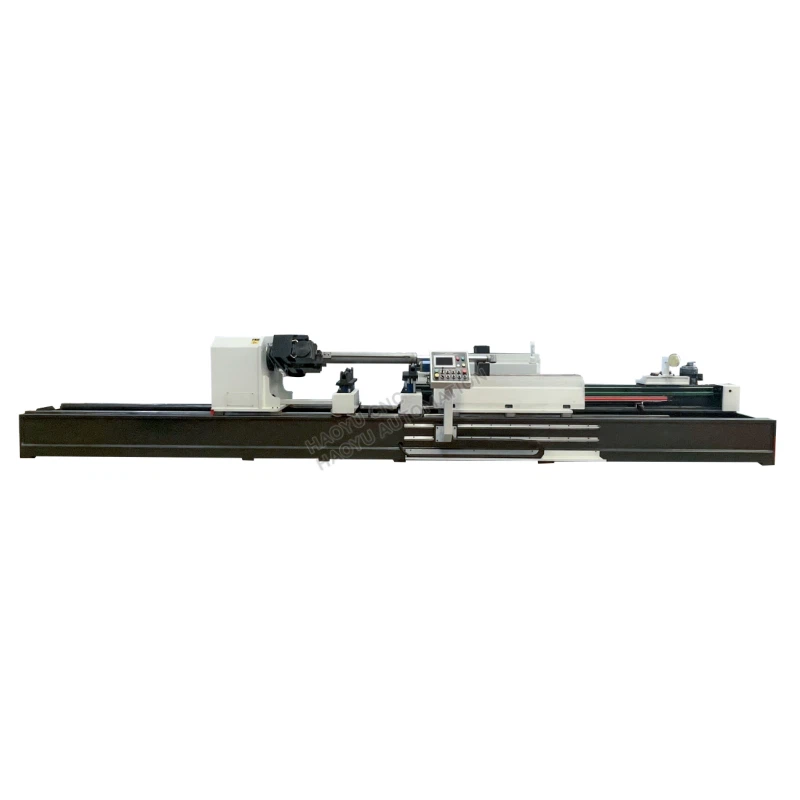

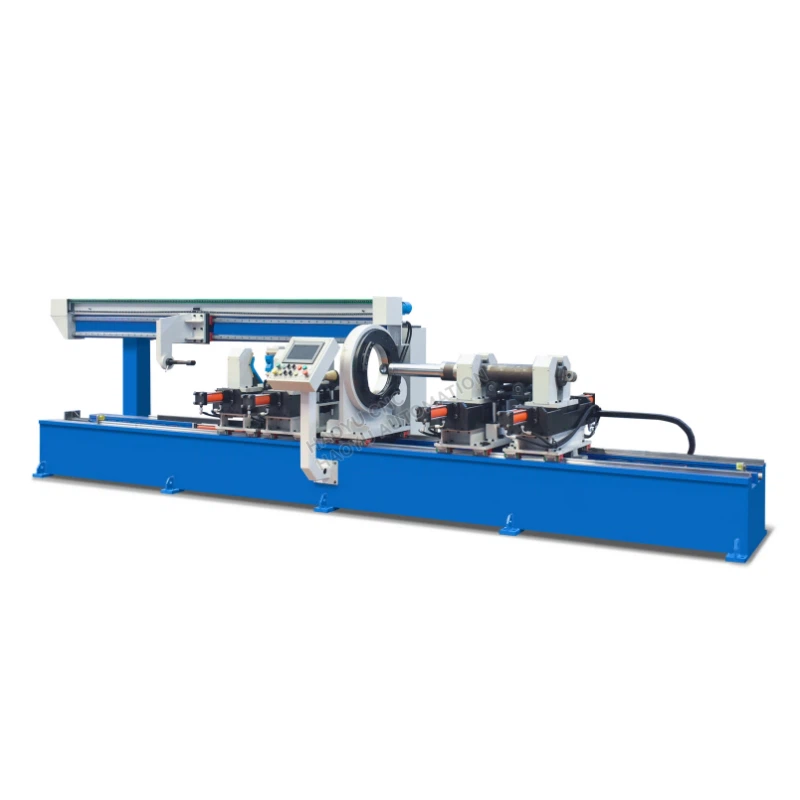

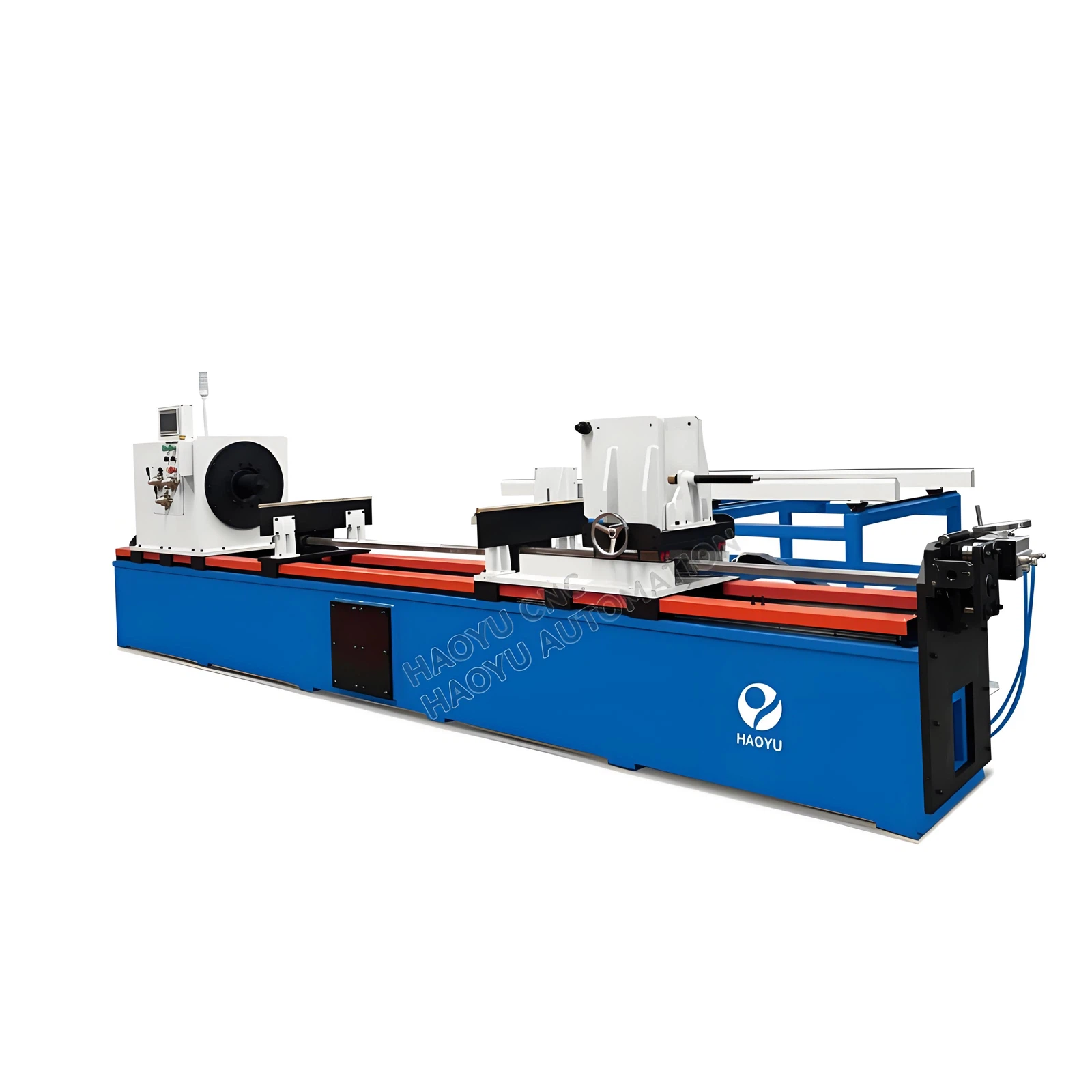

III.Others Products for your reference
We can also customize suitable welding solutions based on the customer's welding requirements.
IV.Vedio for your reference
Automatic hydraulic cylinder assembling machine
V.Package
1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement.
