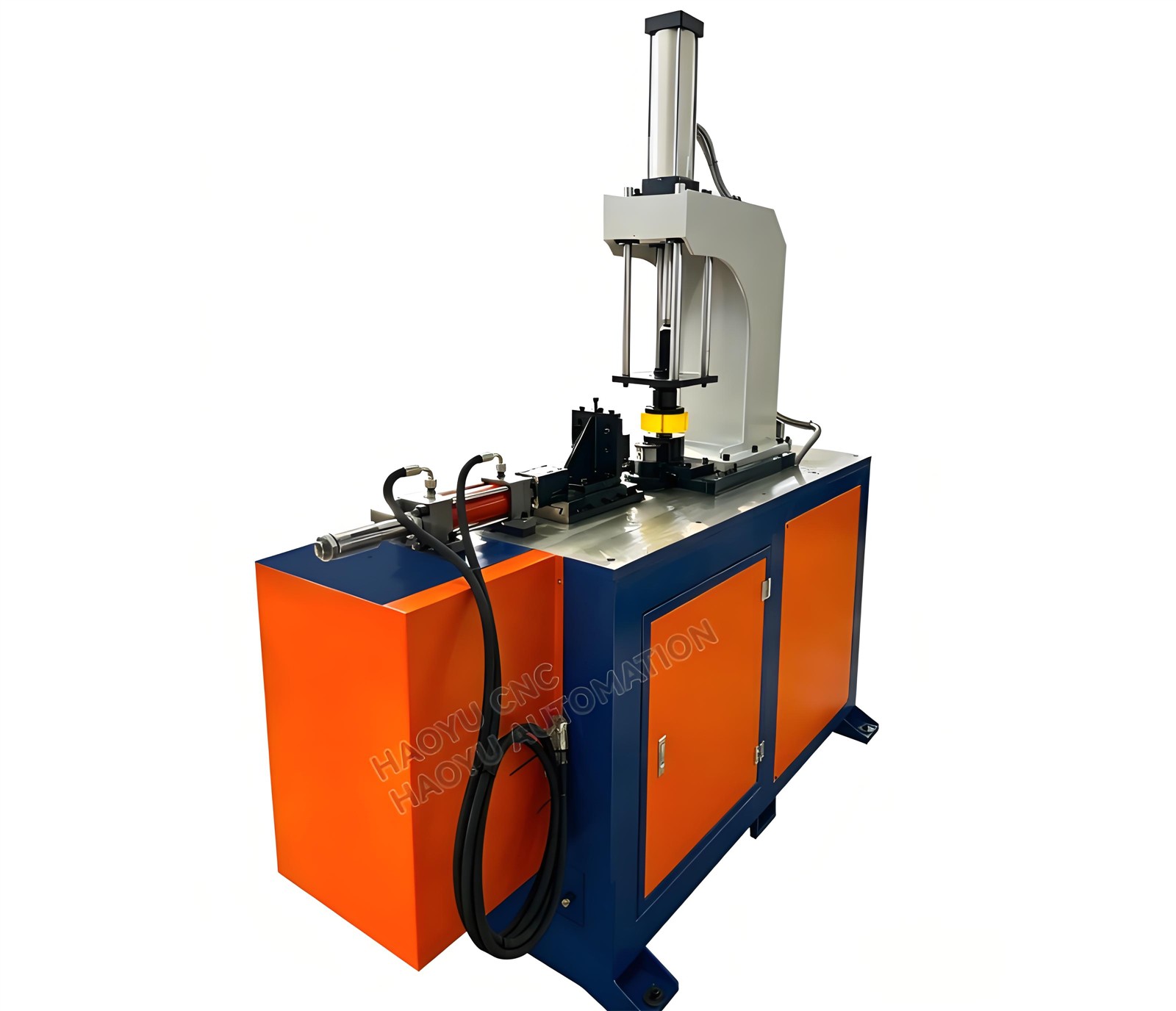

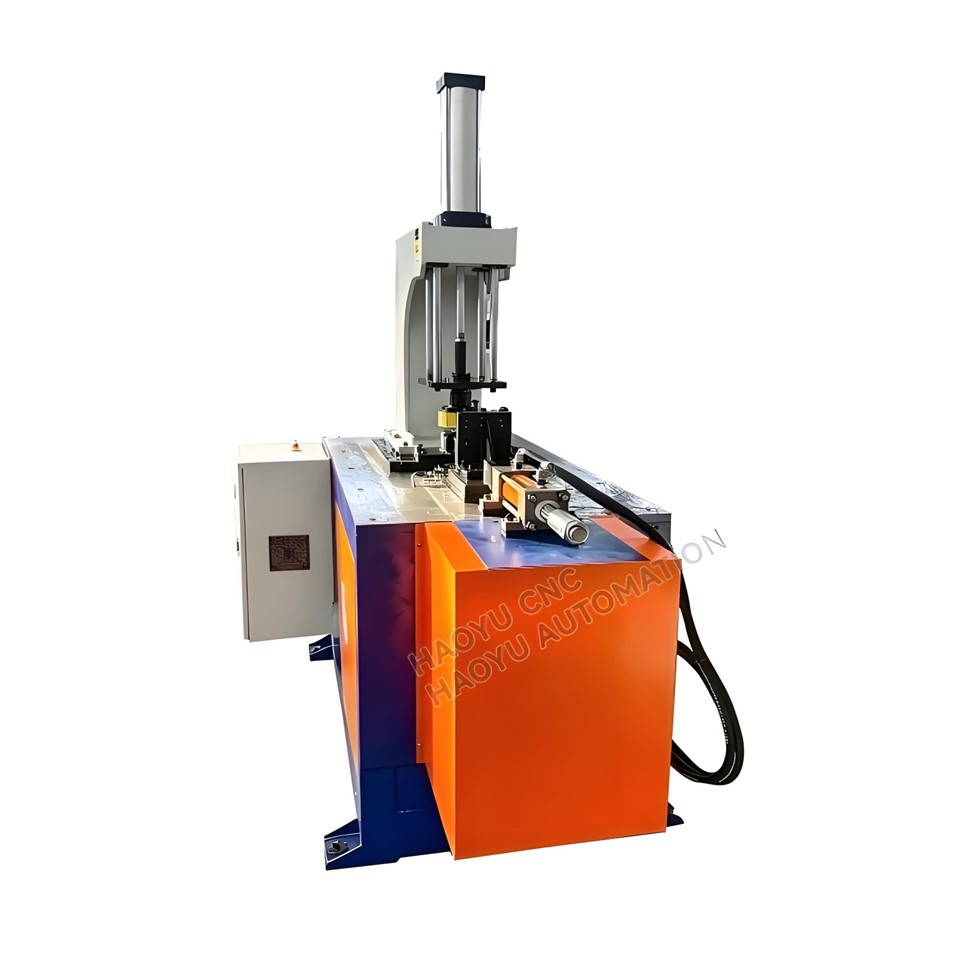

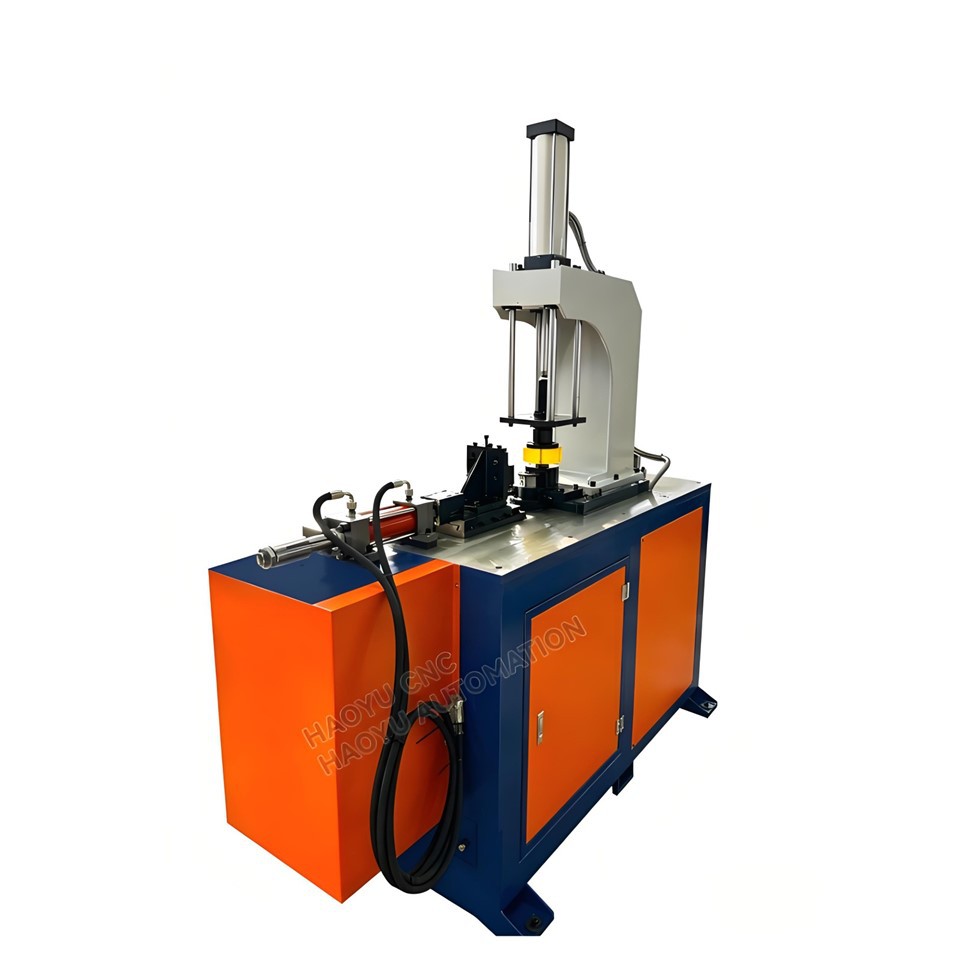

Automatic Tank End Cap Necking Machine

• The frame and main body are welded with high-quality steel and aging treatment, with high strength and good rigidity. The sliding part adopts dovetail sliding table, which ensures the required strength during operation, and the operation gap size can be adjusted, so as to improve the processing accuracy and operation stability.
• The main shaft is driven by high-power motor, and the auxiliary action is driven by hydraulic pressure. The pressure of each hydraulic part feed speed are adjustable.
• All kinds of electrical control are concentrated in the electric control cabinet. The Reasonable layout of electrical circuit ensure the reliable and automatic operation of the equipment. There is an emergency stop button on the equipment. In case of emergency, the equipment can be shut down in time.
• The necking wheel is made of high quality die steel with heat treatment hardness of HRC55-60.
• Mechanical positioning is adopted for accurate positioning.
• Improve the work efficiency and reduce the labor intensity of workers.

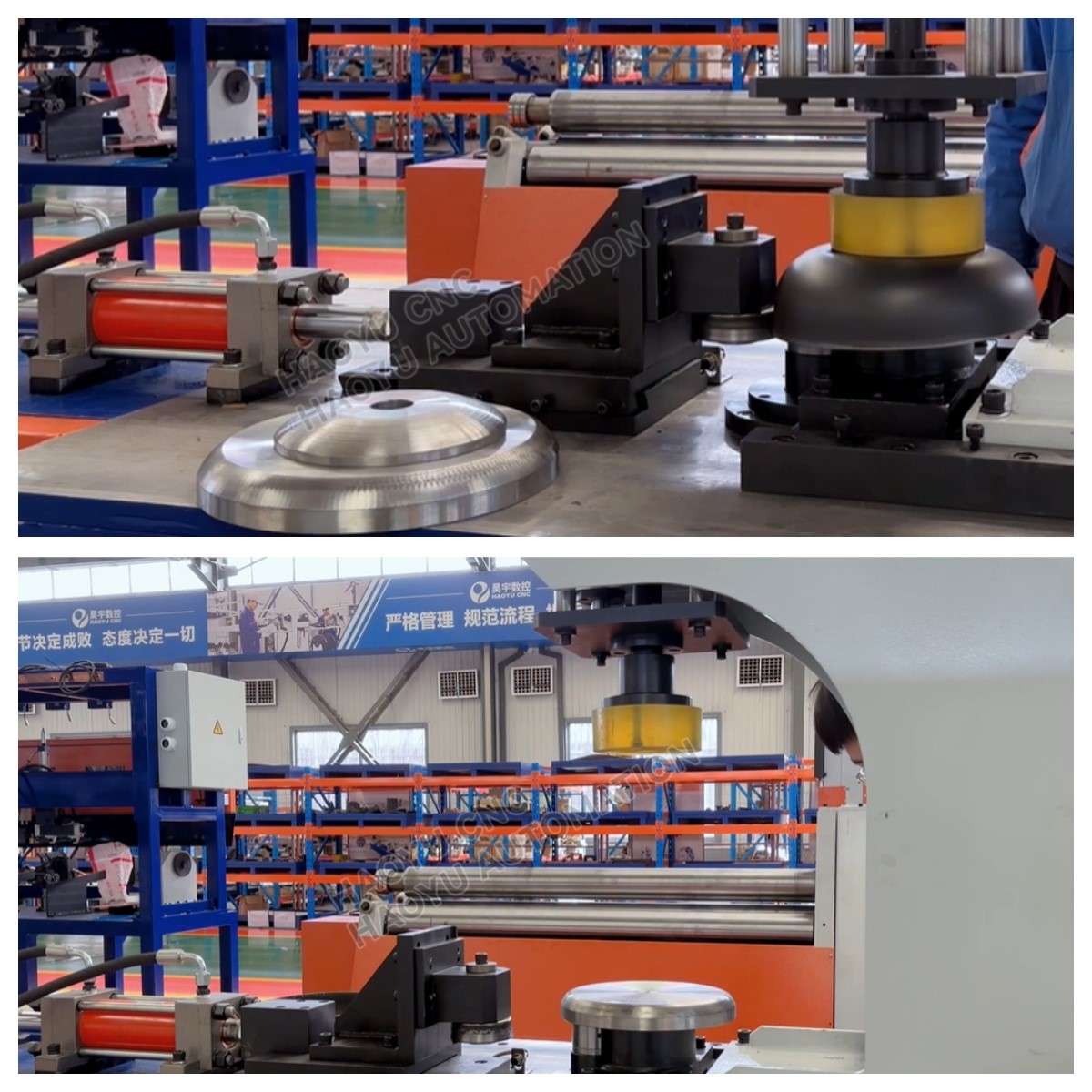

1.The neck shrinking wheel

The neck shrink wheel achieves clamping and releasing of the workpiece through the lateral forward and backward movement driven by the cylinder: when the cylinder pushes the shrink wheel forward laterally, the wheel surface gradually presses against the neck of the workpiece to complete the neck shrinking; after processing, the cylinder drives the shrink wheel to move backward laterally, quickly detaching from the workpiece, releasing the clamp, and facilitating the removal or relocation of the workpiece.

2.The clamping mechanism of this shrinking machine uses a cylinder as a power source. The lateral extension and retraction of its piston rod drive the clamping die to clamp and release the workpiece.

3.Working process:Automatic working cycle

The machine tool is ready for adjustment, manual feeding → step the foot switch → press the upper cylinder in place → spindle rotation → →horizontal cylinder feeding (necking wheel in place) → horizontal cylinder backward → spindle stop → → upper cylinder rising → manual unloading.

Automatic Tank End Cap Neck Shrinking Machine

1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement.
