Automatic Pressure Vessel Nozzle & Flange Welding Machine

The Automatic Pressure Vessel Nozzle & Flange Welding Machine is designed for pressure vessel,  chemical and petrochemical equipment manufacturers that need to weld nozzle neck and flange assemblies. It helps solve common challenges in manual nozzle welding, such as repeated positioning, manual torch operation and inconsistent welding movement. With customized fixtures, clamping and automatic welding control, the machine provides more stable and repeatable welding for different nozzle diameters, flange sizes, materials and workpiece weights, helping manufacturers improve welding consistency and reduce manual operations. The system can be customized according to your workpiece drawing, joint design and production requirements.

Stable Workpiece Positioning

The nozzle and flange assembly is securely positioned before welding to reduce movement and misalignment during the welding cycle.

The clamping and positioning system can be customized according to the nozzle diameter, flange dimensions and workpiece structure.

Controlled Welding Movement

The welding system maintains a controlled welding path around the joint, helping provide consistent travel speed and torch positioning.

This is particularly important for circumferential nozzle-to-flange welding, where changes in welding speed or torch position can affect bead formation.

Customized Welding Configuration

Different pressure vessel manufacturers may use different nozzle sizes, flange standards, materials and joint designs.

The machine can therefore be engineered according to the customer's actual workpiece rather than using a one-size-fits-all configuration.

The typical welding process consists of several controlled steps:

1. Workpiece Loading

The pressure nozzle neck and flange are positioned in the customized fixture.

2. Alignment

The nozzle and flange are aligned according to the required joint position before welding.

3. Clamping

The workpiece is securely clamped to minimize movement during welding.

4. Welding Parameter Setup

Welding parameters are selected according to the material, joint design, thickness and welding procedure.

5. Automatic Welding

The welding torch follows the programmed welding path while the workpiece or welding head performs the required movement.

6. Welding Completion

After the programmed welding cycle is completed, the workpiece can be removed for subsequent inspection and fabrication operations.

The actual welding sequence and equipment configuration should be determined from the customer's workpiece drawing and welding procedure requirements.

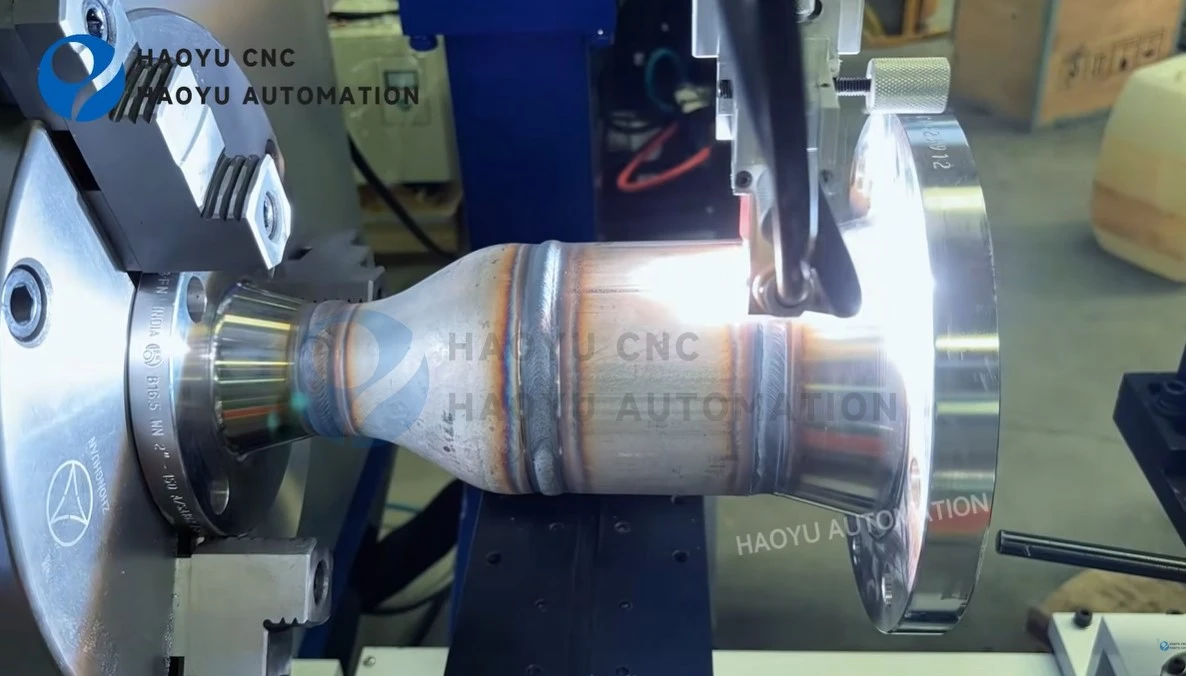

This video shows our automatic pressure vessel nozzle and flange welding machine in operation. The system is designed for nozzle-to-flange welding and can be customized for different nozzle diameters, flange sizes, materials and workpiece requirements:

For manufacturers producing a large number of similar nozzle assemblies, manual welding can require significant operator involvement in positioning, torch manipulation and welding movement.

An automatic nozzle welding machine can help manufacturers achieve:

More Consistent Welding Movement

Programmed movement reduces variations caused by manual torch manipulation.

Repeatable Production

Once the welding parameters and movement sequence have been qualified for a specific workpiece, the same setup can be repeatedly used for similar assemblies.

Reduced Manual Positioning

Dedicated fixtures and positioning systems reduce the amount of manual adjustment required during production.

Better Production Management

Automatic welding makes it easier to standardize welding procedures across repeated workpieces.

Easier Customization for Different Nozzle Sizes

A customized machine can be designed around the customer's actual range of nozzle and flange dimensions.

To design the correct pressure vessel nozzle welding machine, we recommend providing:

1. Workpiece Drawing

A 2D drawing is preferred because it allows our engineers to understand the joint configuration accurately.

2. Nozzle Dimensions

Please provide the nozzle OD, ID and length.

3. Flange Dimensions

Provide flange OD, ID and thickness.
4. Material Information

Different materials may require different welding processes and parameters.

5. Welding Joint Details

The joint configuration and required weld profile are important for determining the welding head and movement system.

6. Production Requirements

Please provide your expected quantity or target production capacity.

With this information, the machine can be designed around your actual pressure vessel nozzle and flange assembly instead of using a standard configuration that may not match your workpiece.

FAQ for Pressure Vessel Nozzle & Flange Welding Machine





01.What is a pressure vessel nozzle?

A pressure vessel nozzle is a connection component used to provide an opening or connection point on a pressure vessel for piping, instruments, process connections or other equipment. Depending on the design, the nozzle may include a nozzle neck and a flange.

02.What does a nozzle flange assembly consist of?

A typical nozzle flange assembly consists of a nozzle neck and flange joined by welding. The exact design varies according to the pressure vessel drawing and connection requirements.

03.Can the machine weld different nozzle diameters?

Yes, the machine can be customized for a specified range of nozzle and flange dimensions. The required range should be provided before machine design.

04.Can the machine be customized for different flange sizes?

Yes. The fixture, clamping system and welding movement can be designed according to the customer's flange dimensions and workpiece weight.

05.Can you design the machine according to our pressure vessel nozzle drawing?

Yes. Workpiece drawing-based customization is recommended because nozzle diameter, flange dimensions, joint geometry and workpiece weight directly affect the machine configuration.

06.How Much Does a Pressure Vessel Nozzle & Flange Welding Machine Cost?

The price depends on the nozzle and flange dimensions, workpiece weight, welding process, automation level, clamping system and customization requirements. Since each machine is configured according to the customer's workpiece and production needs, we provide a customized quotation rather than a fixed standard price.

Send us your workpiece drawing and requirements to receive a suitable machine configuration and quotation.

Every pressure vessel nozzle assembly is not necessarily the same.

Nozzle diameter, flange dimensions, wall thickness, material, joint configuration and production requirements can all affect the design of the welding system.

If you are looking for an automatic pressure vessel nozzle welding machine for nozzle and flange assembly production, send us:

① Nozzle drawing
② Flange drawing
③ Material and thickness
④ Workpiece weight
⑤ Required welding process
⑥ Expected production quantity

Our engineering team can evaluate your workpiece and recommend a suitable nozzle & flange welding machine configuration.

Contact us for a customized welding solution.
