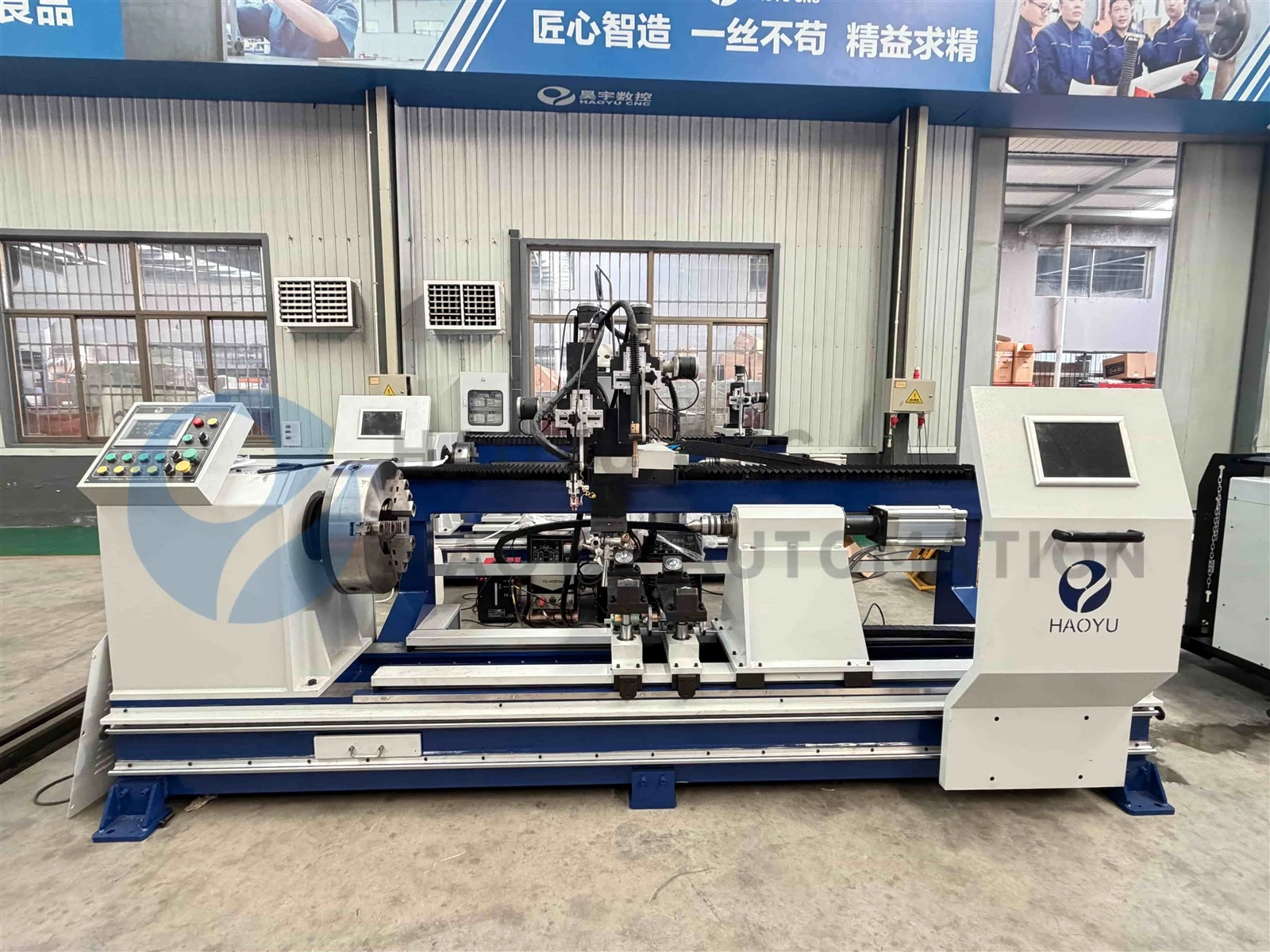

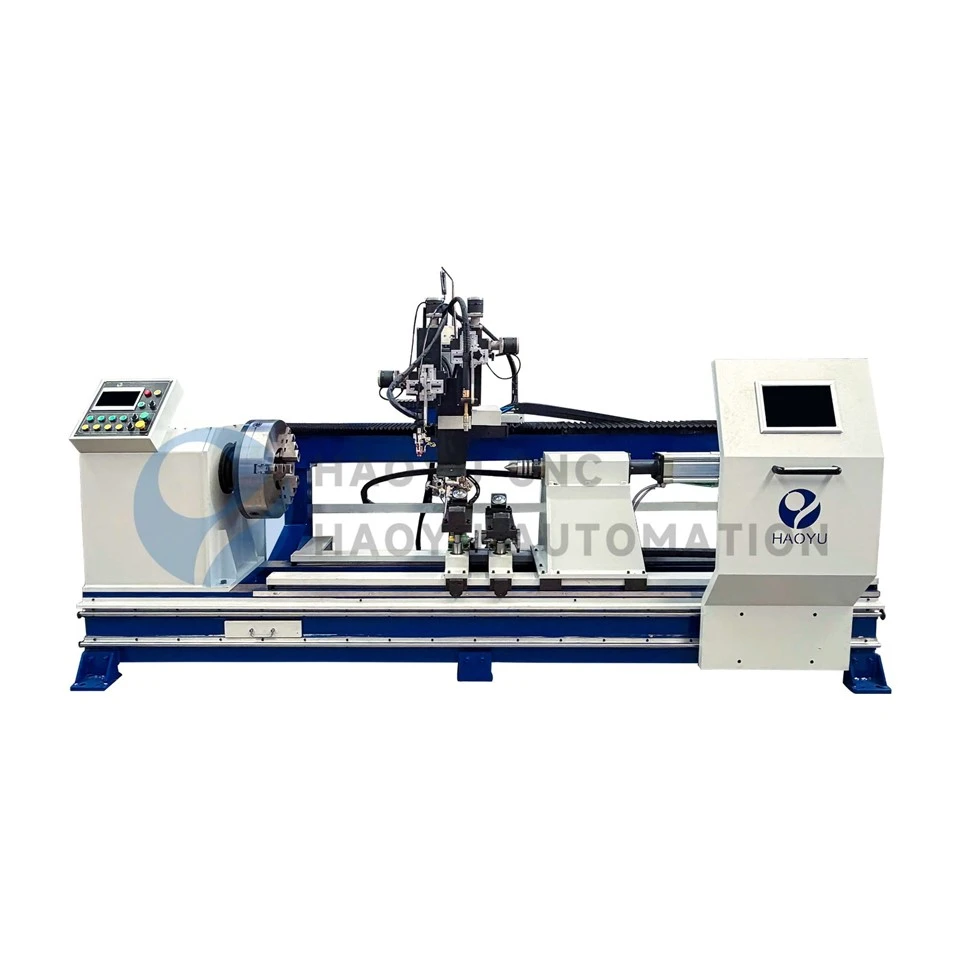

Dual-Torch Hydraulic Cylinder Circumferential Welding & Overlay Welding Machine



The machine is equipped with two welding torches: one TIG welding torch and one MAG gas-shielded welding torch. Different welding processes can be selected according to the material, joint structure and welding requirements of the workpiece.



By combining two welding processes on one welding system, the equipment provides a flexible solution for cylinder circumferential seam welding, repair welding and wear-resistant overlay welding.



This equipment is mainly used for welding pipes, hydraulic cylinders, flanges, and other workpieces.





1. Dual-Torch Welding Configuration

The machine integrates TIG and MAG welding torches, providing two different welding process options within one equipment platform.

2. Automatic Circumferential Welding

The workpiece rotation and welding movement can be coordinated to achieve stable and continuous circumferential welds.

3. Suitable for Welding & Overlay

The machine can be used for both circumferential seam welding and surface overlay welding, making it suitable for different hydraulic cylinder production and repair requirements.

4. Flexible Production

Operators can select the appropriate TIG or MAG welding process according to the workpiece material, welding position and production requirements.





Workpiece length	MAX 2000mm
Workpiece diameter	40-500mm
Drive motor	Panasonic Servo
Welding torch fine-tuning	50mm in all directions
Control system	PLC& HMI

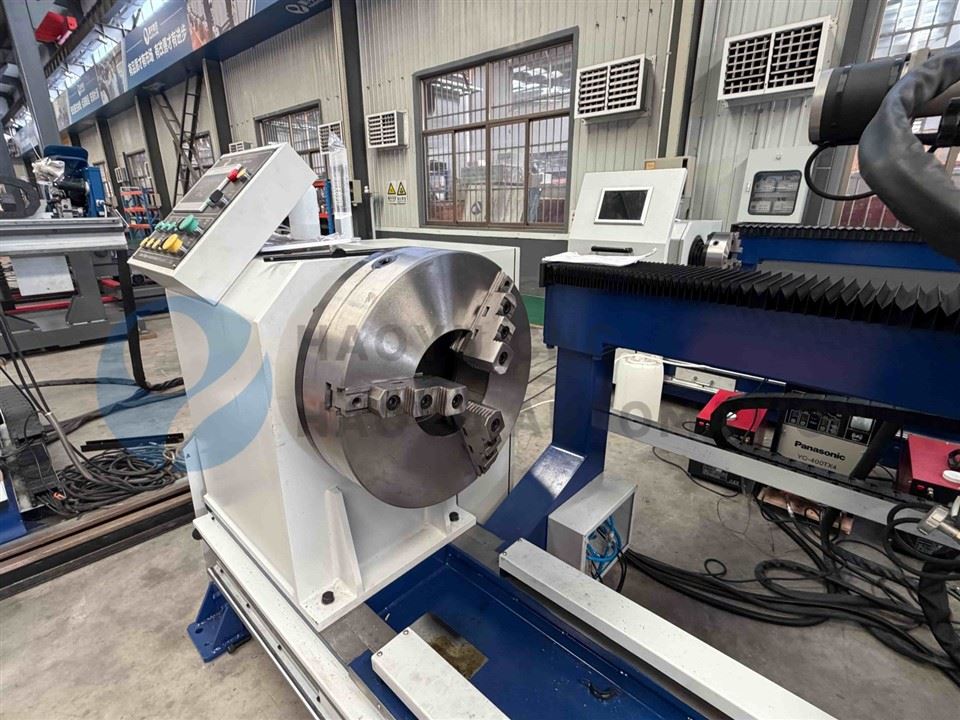

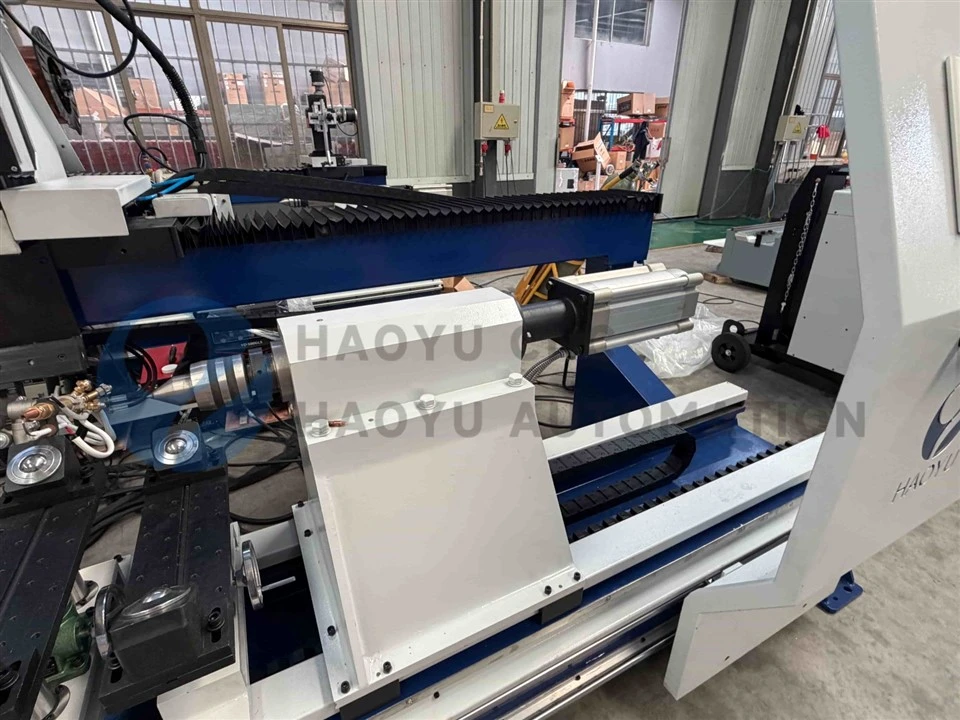

• Customized tooling is provided according to workpiece specifications (diameter, length, material). A three-jaw chuck clamps the hydraulic cylinder-driven workpiece and rotates it. A pneumatic tailstock, propelled by a cylinder, holds the workpiece in place, ensuring concentricity during rotation.

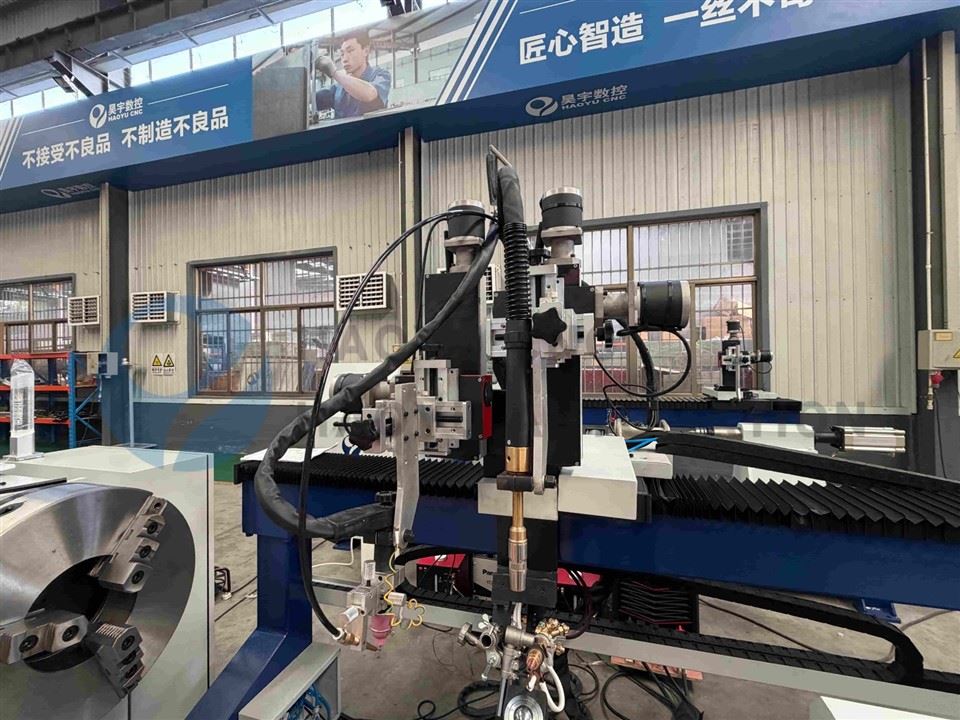

• Two welding torches, one TIG welding torch and one MAG welding torch, can be selected according to the needs of welding.



• The adjustable and movable V-shaped material support frame allows for flexible adaptation to hydraulic cylinders of different pipe diameters and lengths.







Hydraulic cylinder rings seam welding mahcine:



Hydraulic Cylinder Circumferential Welding Machine



Hydraulic cylinder angle changing welding machine:







1.What welding processes does this machine support?

The machine is equipped with two welding torches: TIG and MAG. The appropriate torch can be selected according to the welding application.

2.Can it perform hydraulic cylinder circumferential welding?

Yes. The machine is designed for automated circumferential welding of hydraulic cylinders and other cylindrical components.

3.Can this machine perform overlay welding?

Yes. The equipment can be configured for surface overlay welding and repair applications, particularly for cylindrical components.

4.Can the machine be customized?

Yes. The equipment can be designed according to the workpiece diameter, length, weight, material and required welding process.







We have always been committed with the service idea of customer-centric, supply Installation, adjustment, training and maintenance in pre-sales and after-sales service.

1. Pre-sales Service

Before signing contract, customers can get production plan, technical consultant and equipment suggestion and etc.

2. Training

Customers can get free technical training in supplier factory. Mainly training are as follow:

• Training for machine and controller operation
• Basic daily cleaning and maintenance for the machine
• Solutions for common hardware problems

3. Equipment Maintenance

• One year free maintenance, lifelong caring
• Free technical consultant and software updating (if any)
• Customer service responding in 2 hours

Hot Tags: dual-torch hydraulic cylinder circumferential welding & overlay welding machine, China, manufacturers, suppliers, factory
