TIG Double Ring Welding Machine For Hydraulic Rod End Welding
TIG Double Ring Welding Machine designed for hydraulic rod end and ring joint welding. High precision TIG circumferential welding solution for industrial components.
Description
I.Products Overview
The TIG Double Ring Welding Machine is specially designed for precision welding of rod end components, eye joints, and cylindrical shaft assemblies. It adopts TIG welding technology to achieve high-quality circumferential welds with excellent appearance, penetration control, and welding consistency.
Designed for components requiring double-side ring welding, this machine enables efficient welding of both ring joints on a single workpiece, improving production efficiency while ensuring stable welding quality.
It is widely used in hydraulic cylinders, construction machinery components, agricultural machinery parts, and industrial connecting rods.
II.Technical Parameters
| Item | Parameter |
|---|---|
| Welding Method | TIG Welding |
| Welding Position | Circumferential Welding |
| Workpiece Type | Rod End / Ring Joint Assembly |
| Rotation Mode | Servo |
| Welding Material | Carbon Steel / Stainless Steel / Alloy Steel |
| Control Mode | PLC + HMI |
(Actual parameters depend on workpiece material, diameter, and welding requirements.)

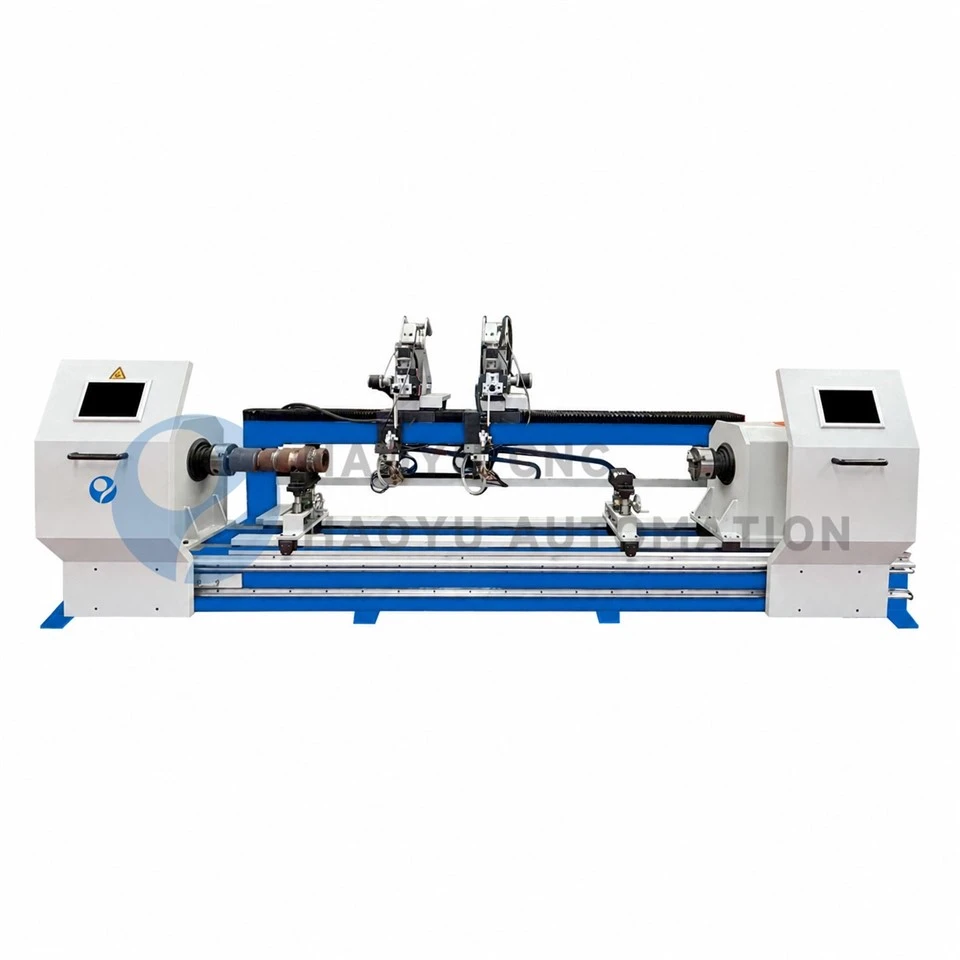

III.Equipment Structure
The TIG Double Ring Welding Machine is composed of a compact welding system designed for industrial production.
Main components include:

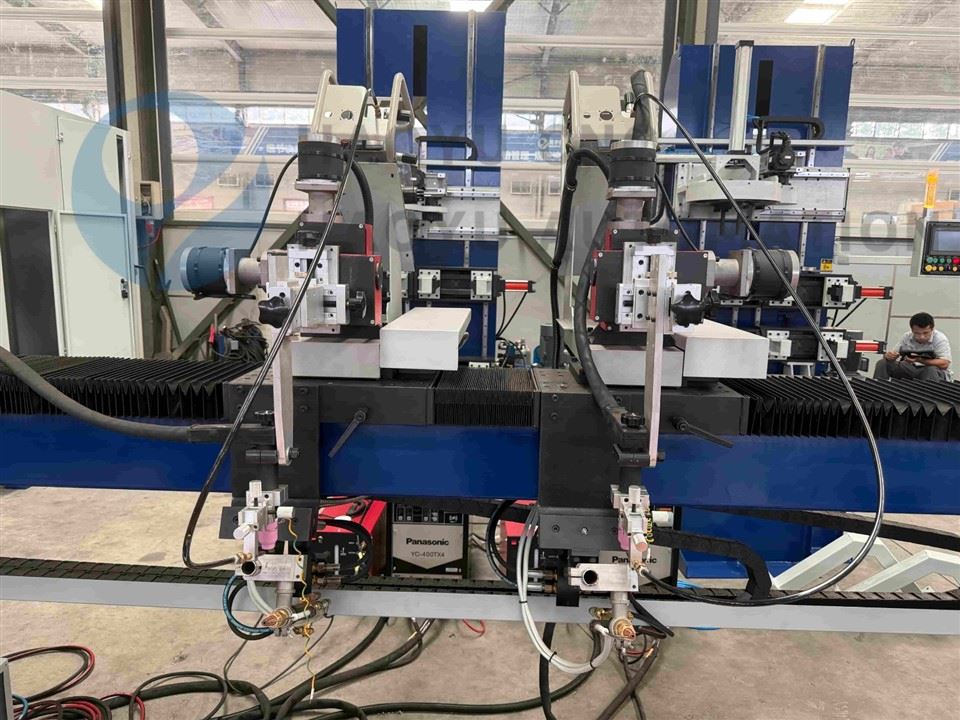

1.TIG Welding Torch System and Adjustable Torch Mounting Mechanism:
The welding torch provides stable arc output and accurate positioning for ring joint welding. The torch position can be adjusted according to different workpiece sizes and welding positions.

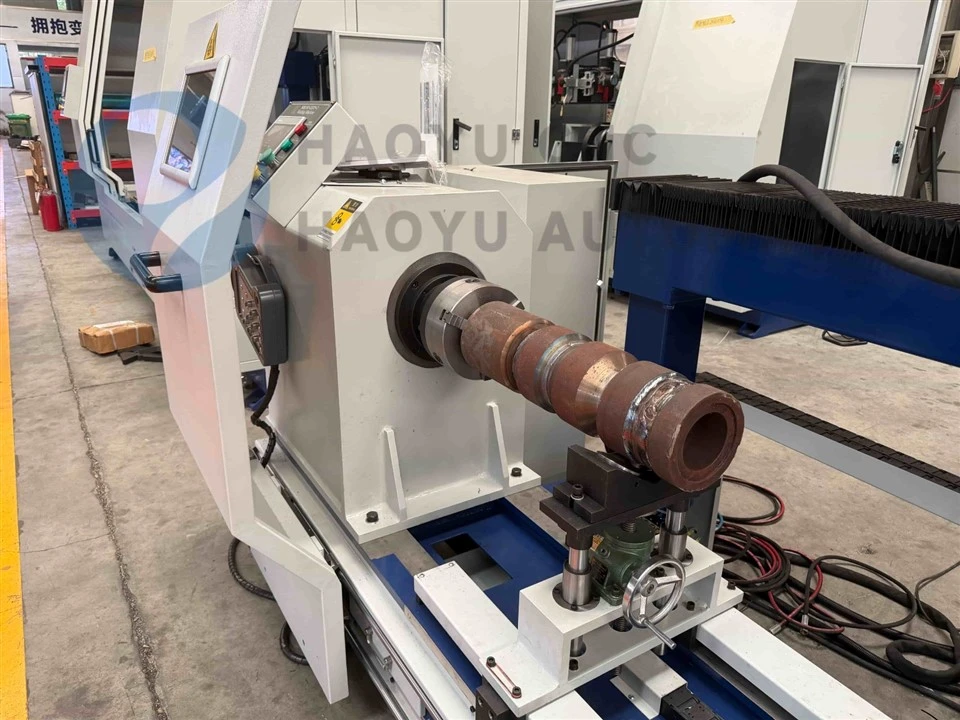

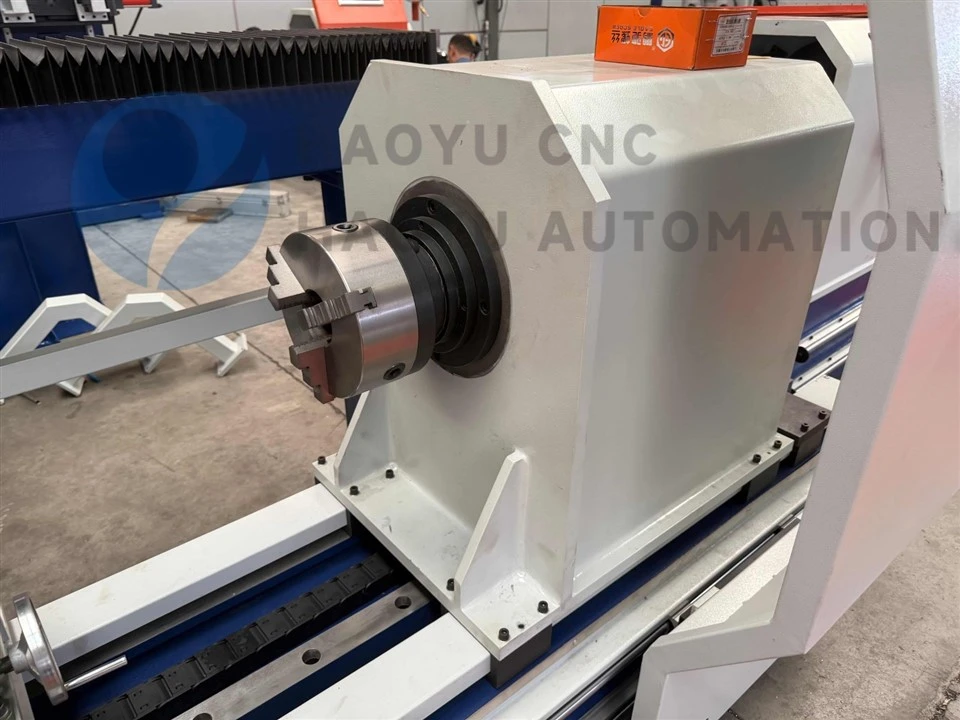

2. Rotating Workpiece Positioning System
The rotating mechanism holds and drives the workpiece during welding, ensuring stable movement and uniform welding speed.
3.Welding Control System
The control system allows operators to set and monitor welding parameters for repeatable production.
IV.Welding Advantages
- High Welding Accuracy
The TIG process provides precise control of welding heat and arc stability, ensuring reliable weld quality for critical components.
- Excellent Weld Appearance
The finished weld has a smooth surface and consistent appearance, reducing the need for post-welding finishing.
- Improved Production Efficiency
The double ring welding design reduces workpiece repositioning and improves welding cycle efficiency.
- Suitable for Batch Manufacturing
Stable welding parameters and repeatable operation make it suitable for continuous industrial production.
V.More Other information for your reference
TIG double torches circular seam welding machine
VI.Our Service
We have always been committed with the service idea of customer-centric, supply Installation, adjustment, training and maintenance in pre-sales and after-sales service.
1.Pre-sales Service
Before signing contract, customers can get production plan, technical consultant and equipment suggestion and etc.
2. Training
Customers can get free technical training in China factory. Mainly training are as follow:
Training for machine
Basic daily cleaning and maintenance for the machine
Solutions for common hardware problems
3. Equipment Maintenance
One year free maintenance, lifelong caring
Free technical consultant
Customer service responding in 2 hours
VII.FAQ
Q1: What kind of workpieces can be welded by this machine?
This machine is mainly used for welding rod ends, ring joints, clevis components, hydraulic cylinder parts, and other circular connection components.
Q2: Why use TIG welding for this application?
TIG welding provides better control of welding heat and produces clean, strong weld seams, making it suitable for components requiring high welding quality.
Q3: Can the machine weld different sizes of rod assemblies?
Yes. The welding position, rotation speed, and torch angle can be adjusted according to different workpiece dimensions.
Q4: Is this machine suitable for mass production?
Yes. The equipment is designed for repeatable industrial production with stable welding quality and efficient operation.
Q5: Can the machine be customized?
Yes. The equipment can be customized according to workpiece dimensions, welding requirements, production capacity, and automation level.
