5 Axis Welding Machine For Complex Multi-Angle Welding Applications

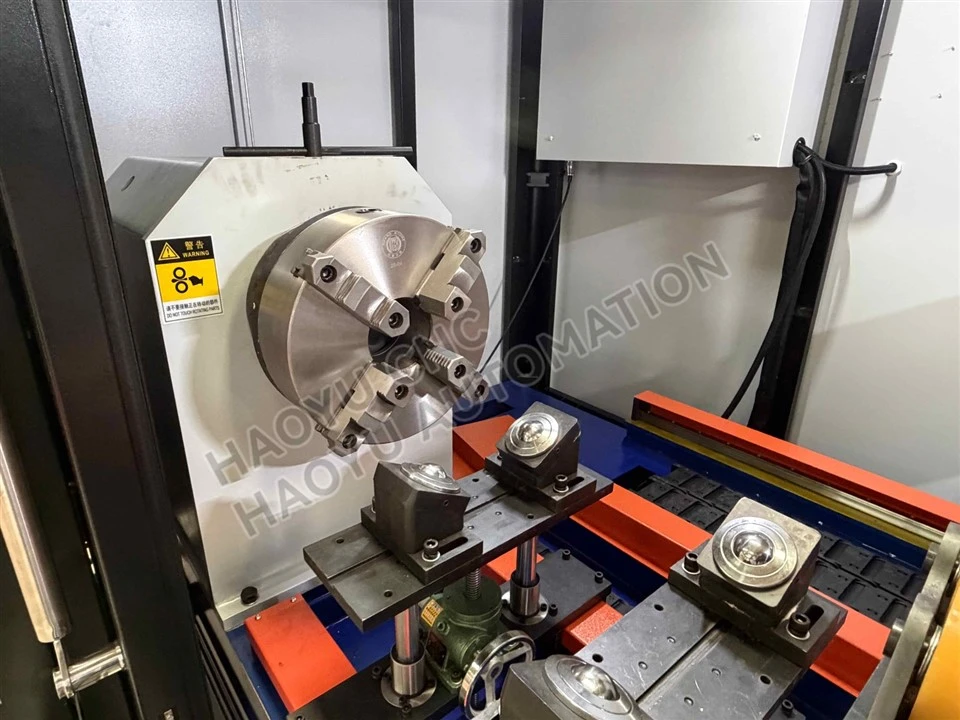

The automatic five-axis welding equipment is called five-axis because the welding torch can move up, down, left, right, forward, backward, and tilt according to the welding position. In addition, the chuck drives the workpiece to rotate, which is called five-axis.

Send Inquiry

Description

I.Products Description

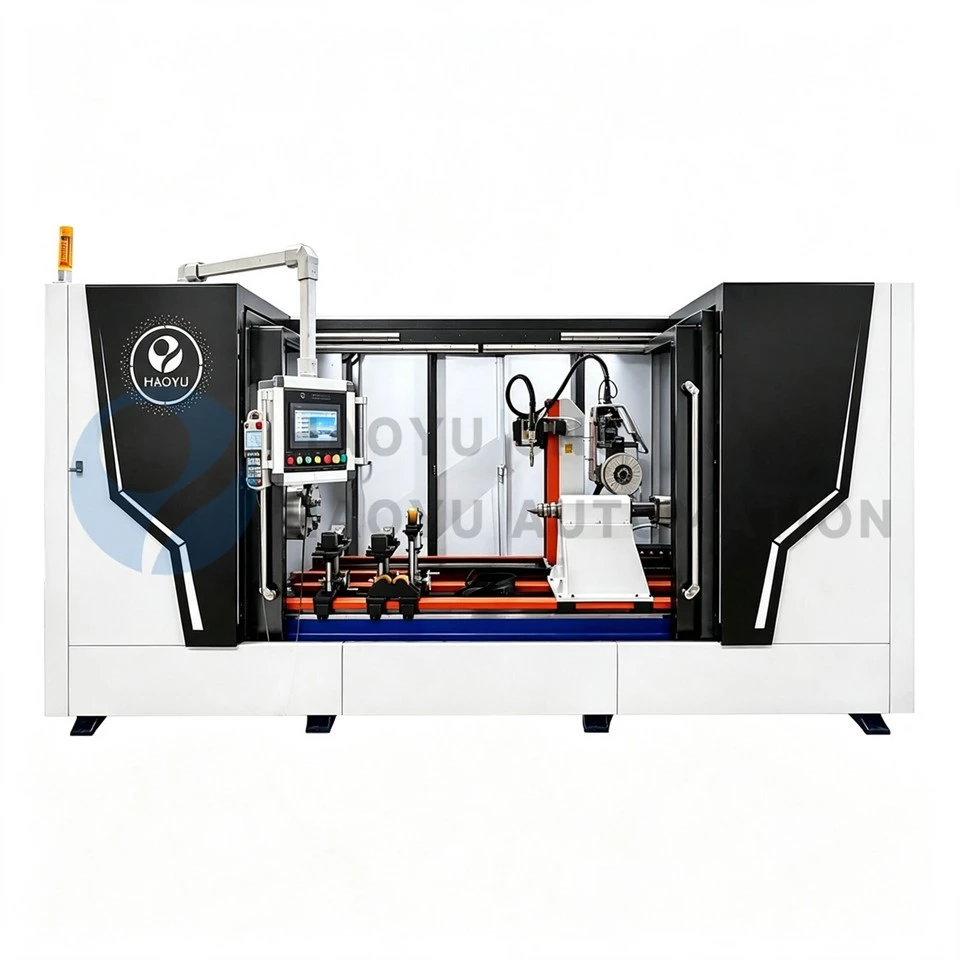

The five-axis welding machine is designed for manufacturers requiring flexible welding of complex-shaped parts.

This equipment combines multi-axis motion control and precise welding positioning technology, enabling continuous welding along different angles, curves, and spatial trajectories. It is particularly suitable for workpieces with irregular shapes or complex welding positions that are difficult to process using traditional welding equipment.

II.Technical parameters

Item	Specification
Workpiece	Hydraulic Cylinder Piston Rod
Application	Rod end welding / component joining
Material	Carbon Steel
Welding Process	MAG Welding
Welding Position	Rotary circumferential welding
Workpiece Diameter	Ø50–300mm
Workpiece Length	500–2000 mm
Base Material	Carbon Steel
Welding Method	MAG Automatic Welding
Welding Wire	ER70S-6
Wire Diameter	1.2 mm
Shielding Gas	80% Ar + 20% CO₂
Welding Layers	1–3 layers

III.Machine Structure Introduction

The five-axis welding system consists of several functional modules designed for stable automatic welding operation:

Multi-Axis Motion Platform

Provides coordinated movement for welding operations, allowing the system to follow complex welding trajectories.

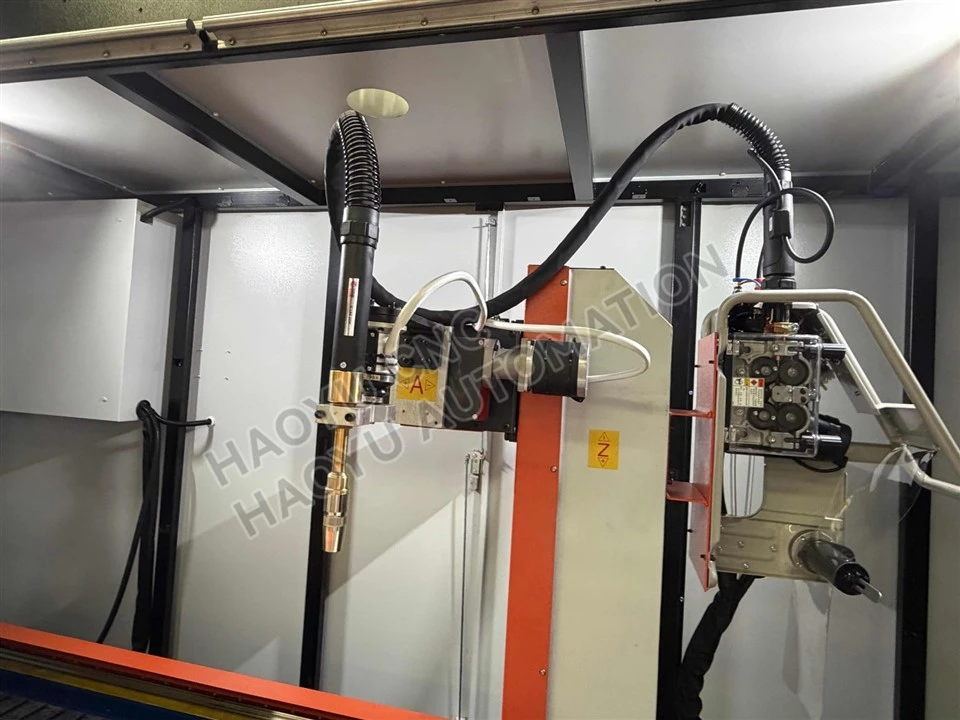

Welding Torch Adjustment Unit

Allows flexible adjustment of welding position and welding angle to meet different workpiece requirements.

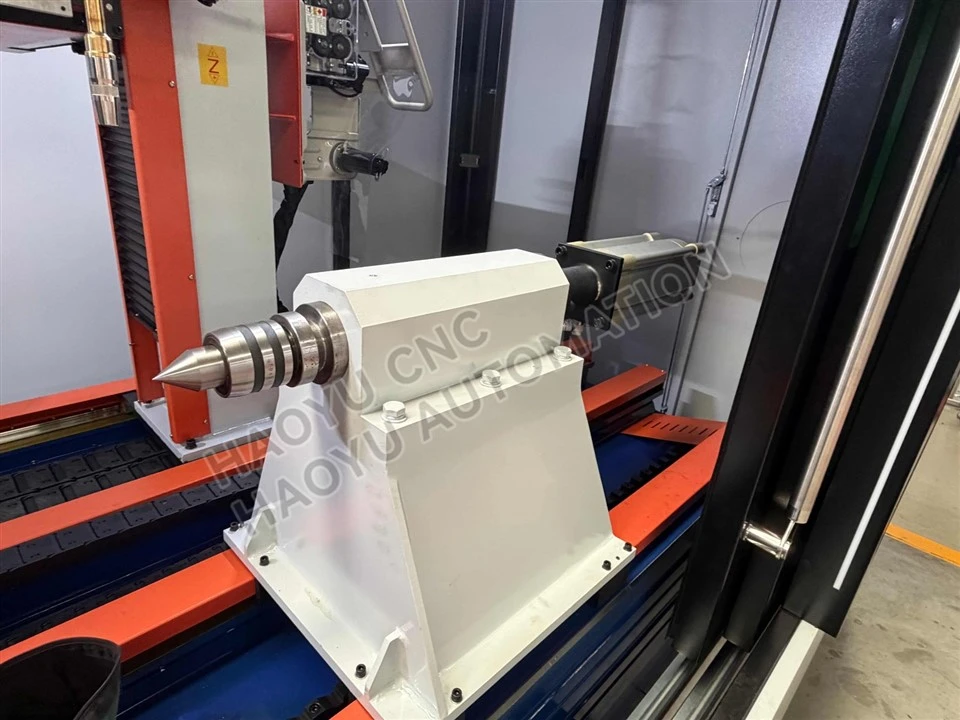

Movable Tailstock with Pneumatic Drive

The movable tailstock is driven by a pneumatic cylinder, allowing quick positioning and flexible adjustment according to different workpiece lengths.

CNC Control System

The intelligent control system manages movement coordination and welding process parameters for convenient operation.

IV.Advantages Compared with Conventional Welding Equipment

Traditional Welding Equipment	5 Axis Welding Machine
Limited welding direction	Multi-directional welding capability
Frequent manual adjustment	Automated position control
Difficult for complex shapes	Suitable for complex components
Higher operator dependency	Improved production consistency
Limited welding flexibility	Programmable welding paths

V.5 Axis Welding Machine Video Demonstration

Five-axis welding machine

Automatic five-axis welding machine

VI.Technical Highlights

Five-axis coordinated movement system
Programmable welding trajectory control
Precision positioning technology
Industrial-grade machine structure
Suitable for customized welding solutions

VII.FAQ

Q1: What materials can be welded by the five-axis welding machine?

The machine can be configured for welding different metal materials including carbon steel, stainless steel, aluminum alloy, and other industrial metals depending on the welding process.

Q2: What is the advantage of five-axis welding compared with traditional welding machines?

Five-axis welding provides greater movement flexibility, allowing the welding torch to reach complicated positions and maintain an optimized welding angle during the process.

Q3: Is programming required for operation?

The machine uses a digital control system. Welding paths and parameters can be programmed according to different workpieces, making operation convenient for production personnel.
