1.Precise welding control system ensures consistent weld quality and reduces welding defects; 2.The machine automatically controls rotation speed, welding current and welding movement to improve production efficiency. 3.Customized hydraulic cylinder welding machines are available according to different cylinder sizes and production requirements.
Description
I.Hydaulic cylinder welding machine Product overview

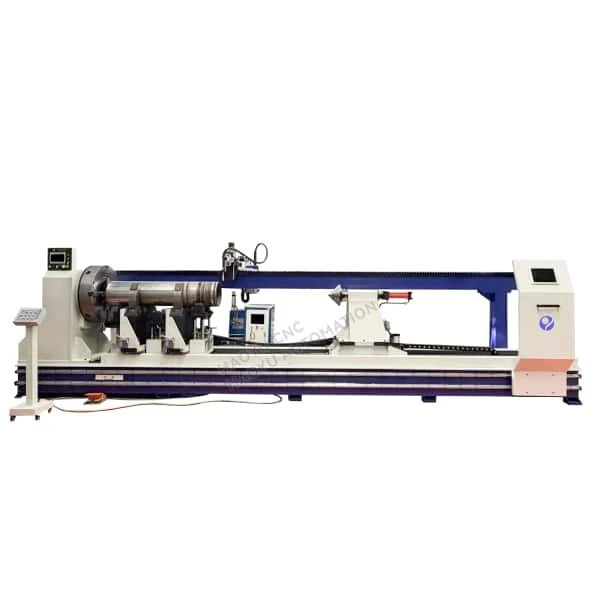

Hydraulic cylinder seam welding machine is an automatic welding solution developed for hydraulic cylinder manufacturers.
It is mainly used for circumferential seam welding between cylinder tubes, cylinder heads, flange parts and other circular components.
The machine can be equipped with TIG welding, MIG welding or MAG welding systems according to different material requirements.
II.Hydraulic cylinder welding mahcine Features
1. Automatic Circumferential Welding System
The equipment adopts automatic rotation and welding control technology.
During operation, the workpiece rotates at a stable speed while the welding torch maintains accurate positioning, ensuring uniform welding seams.
2. Precision Welding Control
The welding speed, rotation speed and welding parameters can be adjusted according to different cylinder diameters and materials.
This improves welding quality and reduces operator dependence.
3. Heavy-duty Machine Structure
The machine adopts a rigid welded steel frame structure.
It provides excellent stability during high-speed rotation welding and ensures long-term operation reliability.
4. Professional Hydraulic Cylinder Welding Fixture
The customized fixture can accurately position hydraulic cylinder components.
It improves welding repeatability and prevents welding deformation.
III.Hydaulic cylinder welding machine Technical Parameters
| Welding Type | Circumferential Seam Welding |
| Welding Method | MAG |
| Application | Hydraulic Cylinder Welding |
| Cylinder Diameter | 300-800mm |
| Cylinder Length | 300-5000mm |
| Welding Speed | 0.1-8rpm |
| Control System | PLC Control |
| Welding power source | 380V+N 3phase |
| Cooling System | Water Cooling |
IV.Hydaulic cylinder welding machine Structure

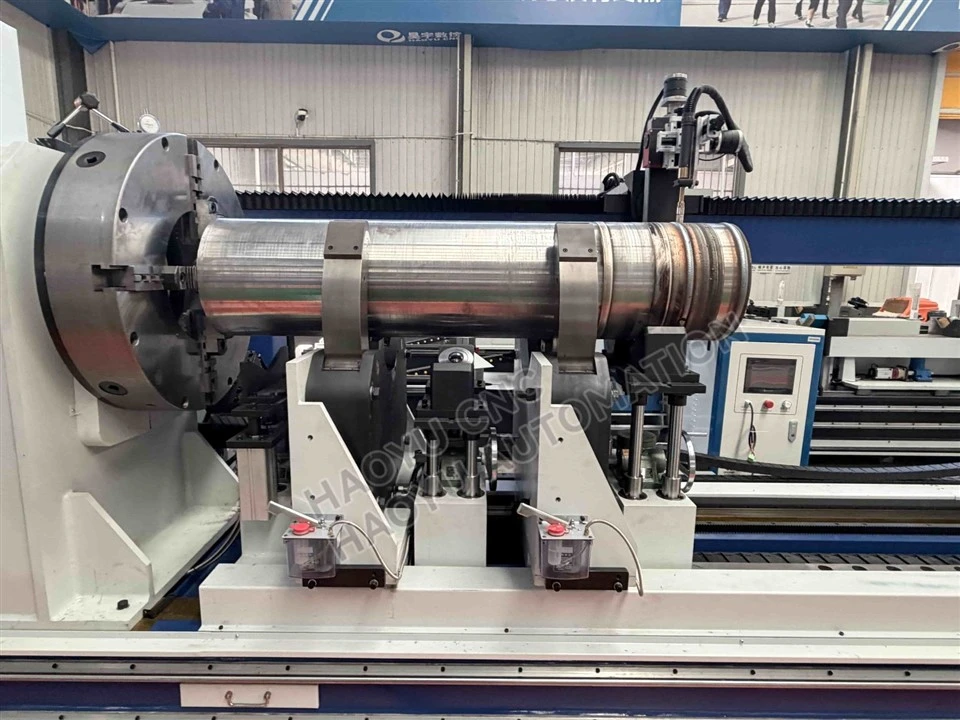

1.Clamping Mechanism

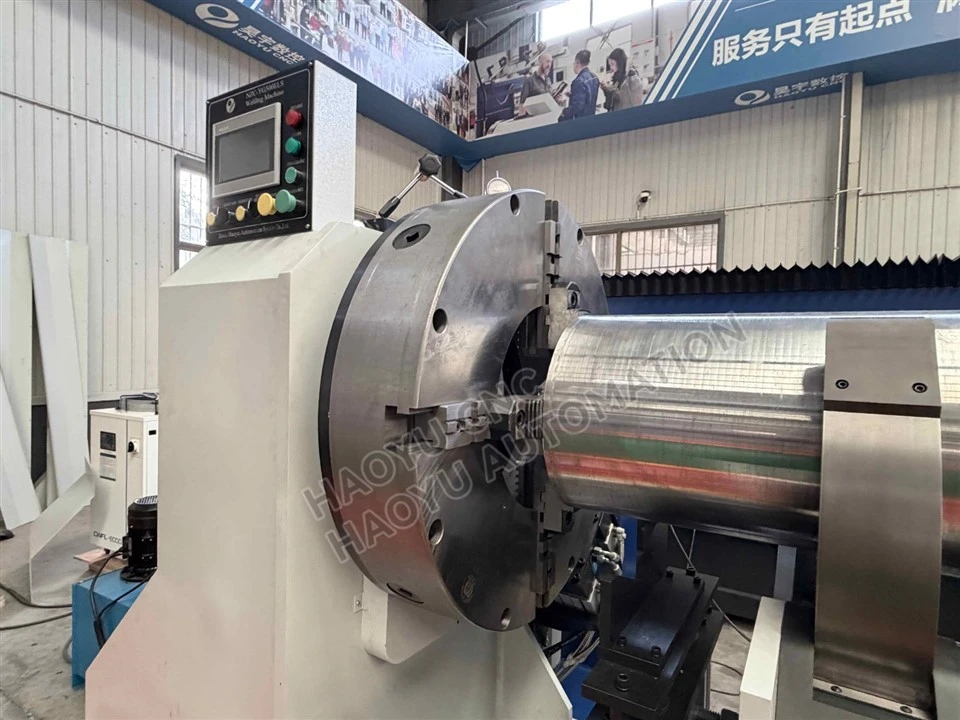

- Spindle Box: Drives the chuck to rotate using a servo motor and reducer.

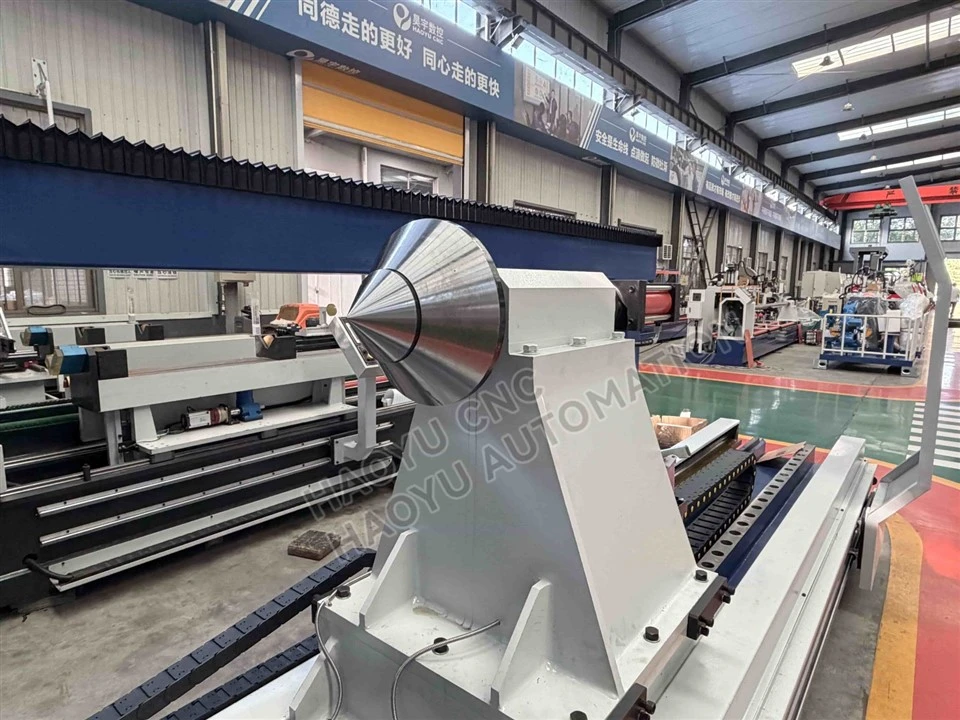

- Tailstock: Secures and releases the workpiece using a hydraulic cylinder, while the servo motor drives the tailstock forward and backward. It is also equipped with a positioning cylinder; when it reaches the designated welding position, the positioning pin inserts into the positioning hole, thereby locking the tailstock.

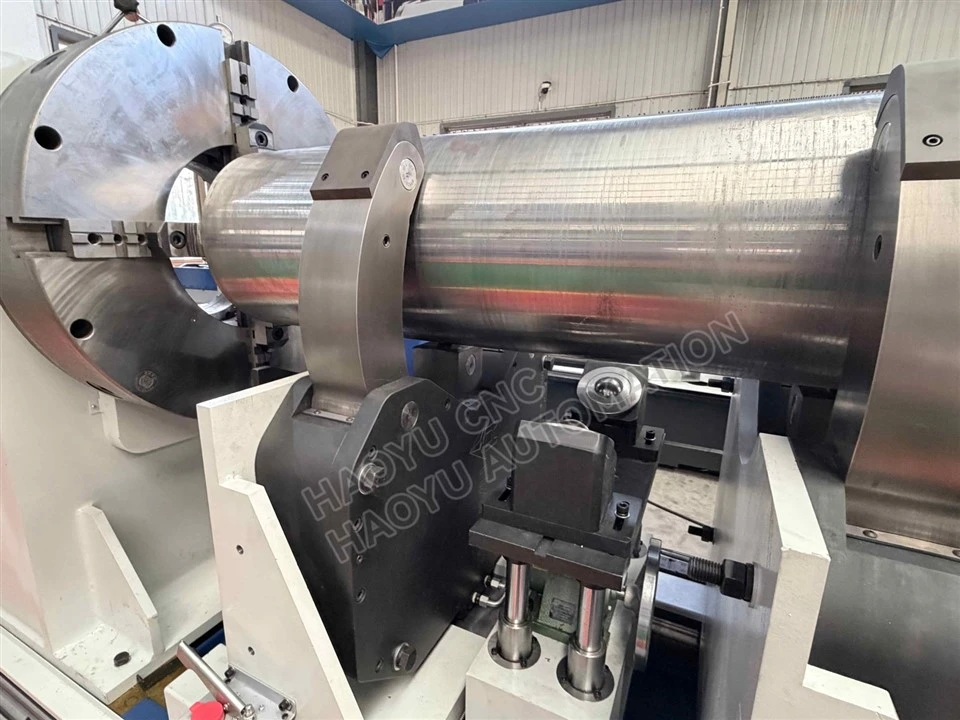

2.The suppoter
The central support is responsible for clamping and fixing the central axis of the cylinder body, ensuring that the workpiece will not run radially or deviate during rotary welding; while the material support with cylinders uses pneumatic lifting function to actively support long or heavy cylinders during loading and unloading, which not only reduces the labor intensity of workers, but also can counteract the sagging deformation of the workpiece by adjusting the support height.

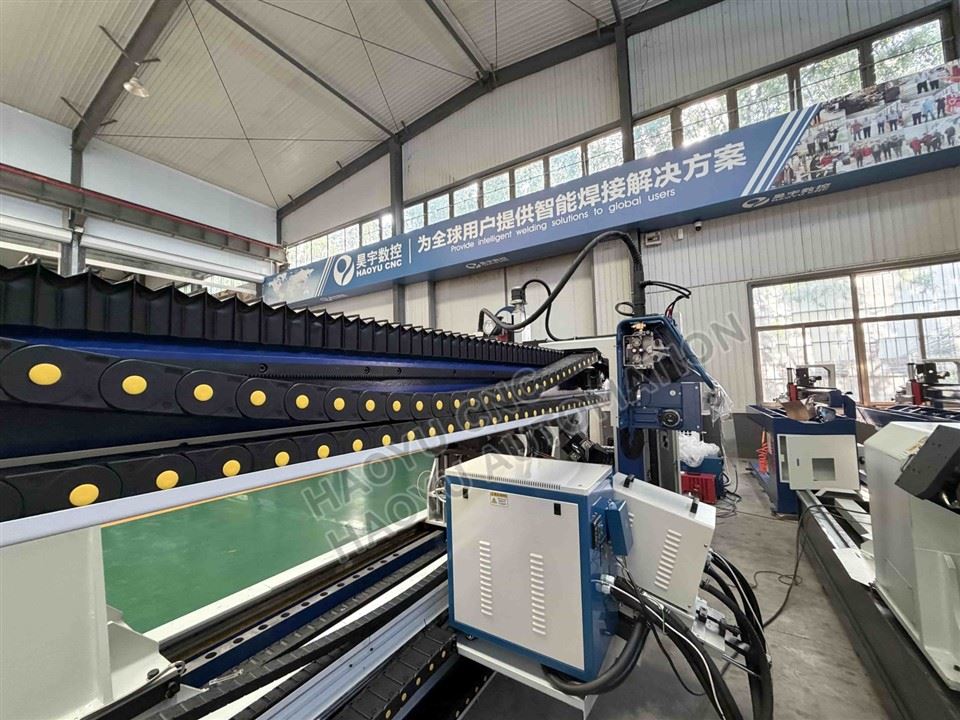

3.Welding Head System
The welding head provides accurate torch positioning and stable welding movement.
It ensures consistent welding penetration and appearance.
4.Preheating Function
The preheating coil is responsible for directly heating the weld area, slowing down the post-weld cooling rate by increasing the temperature of the base material, thereby preventing cracks and hardened structures. The preheating control cabinet monitors and adjusts the heating power in real time through temperature controllers and sensors to ensure that the temperature is accurate and stable within the set range. It also has over-temperature alarm and interlock protection functions with the welding machine.
V.Vedio for your reference
Hydraulic Cylinder Seam Welding Machine
V.Hydaulic cylinder welding machine Applications
- Hydraulic Cylinder Manufacturing
Used for welding cylinder barrels, cylinder heads and flange connections.
- Construction Machinery Industry
Suitable for hydraulic cylinders used in excavators, loaders and cranes.
- Machinery
Used for hydraulic components requiring high-strength welding.
- Industrial Equipment
Applied in automation equipment, machinery manufacturing and hydraulic systems.
VI.Why Choose Our Hydraulic Cylinder Welding Machine
Why Choose Our Hydraulic Cylinder Welding Machine
Professional automatic welding manufacturers and traders
why choose our products
Experienced Welding Equipment Manufacturer
We specialize in designing and manufacturing automatic welding machines for industrial applications.
Customized Welding Solutions
Different hydraulic cylinder sizes and production requirements can be customized.
Reliable Machine Performance
Our welding equipment focuses on stability, precision and long service life.
VII.FAQ
Q1: What is a hydraulic cylinder seam welding machine?
A hydraulic cylinder seam welding machine is an automatic welding system used for circumferential welding of hydraulic cylinders and cylindrical components.
Q2: What welding process can be used?
The machine supports TIG, MIG and MAG welding processes according to different materials and welding requirements.
Q3: Can the machine weld different cylinder sizes?
Yes. The machine can be customized according to cylinder diameter, length and production requirements.
Q4: Is the welding process automatic?
Yes. The equipment automatically controls rotation, welding movement and welding parameters.
Q5: What industries use this machine?
It is widely used in hydraulic cylinder manufacturing, construction machinery, agricultural machinery and industrial equipment.
