High Pressure Hydraulic Pipe Welding Machine

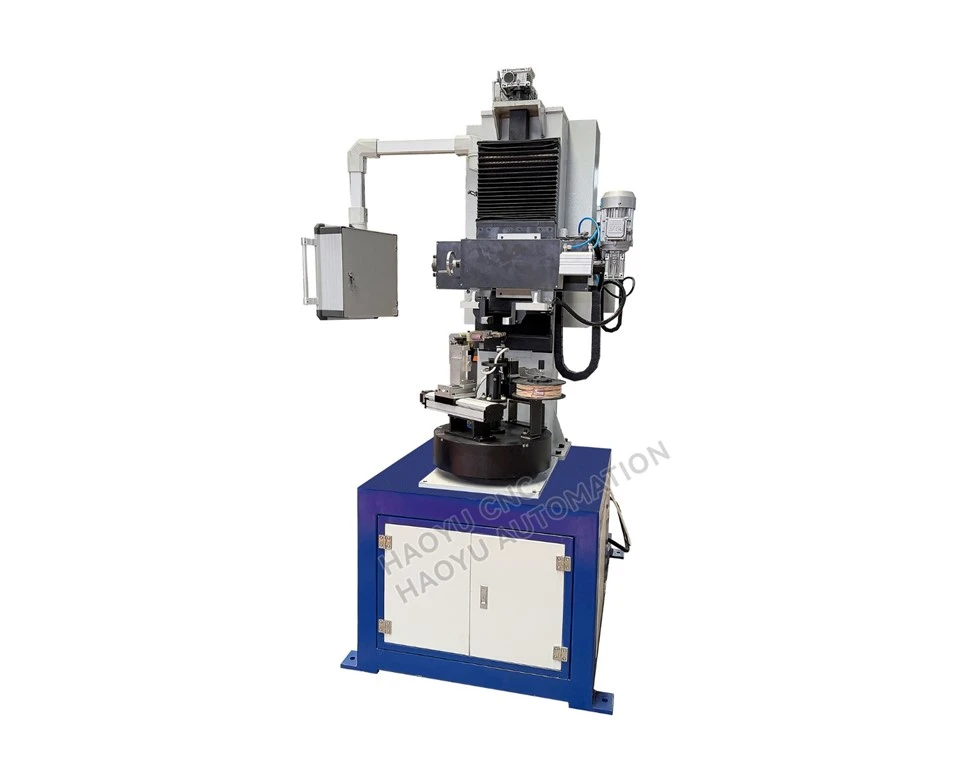

The High Pressure Hydraulic Pipe Welding Machine is specially designed for welding high-pressure rigid oil pipes used on hydraulic cylinders. Unlike traditional hydraulic hose welding equipment, this machine is developed for metal hydraulic tubes and steel oil pipes, ensuring high-strength welding performance, excellent sealing reliability, and long service life.



This automatic welding system is widely applied in the manufacturing of hydraulic cylinders, construction machinery, agricultural machinery, mining equipment, and industrial hydraulic systems.





Welding Method	TIG
Application	High pressure oil pipe welding machine
Pipe Material	Carbon steel / Stainless steel
Pipe Diameter	10-30mm
Welding Position	Circumferential welding
Control System	PLC
Welding Accuracy	High precision
Power	220V







1.Welding head

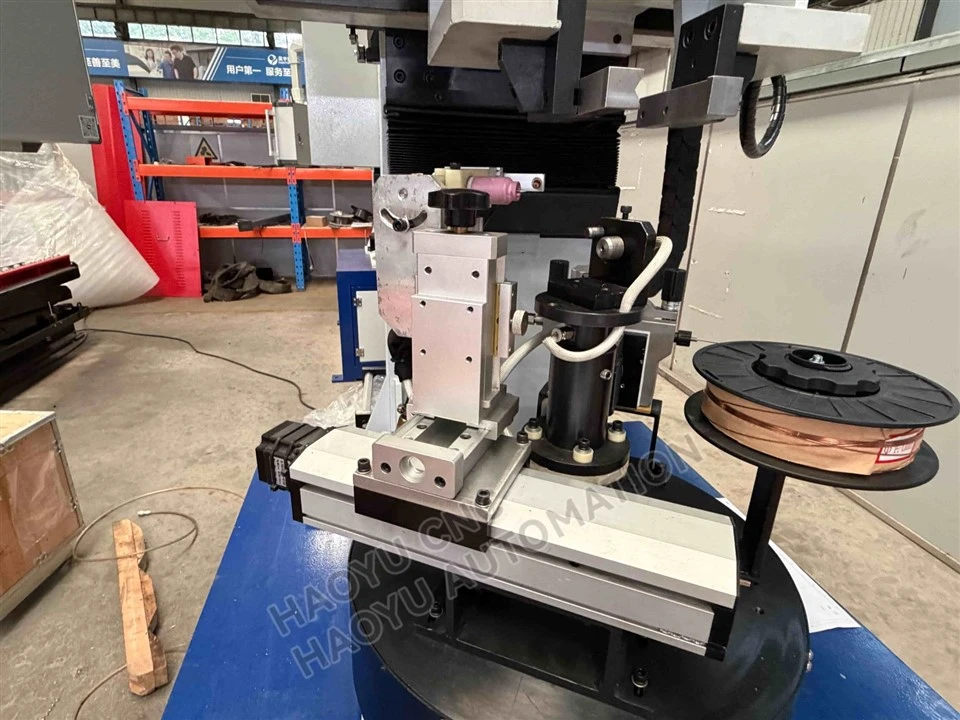

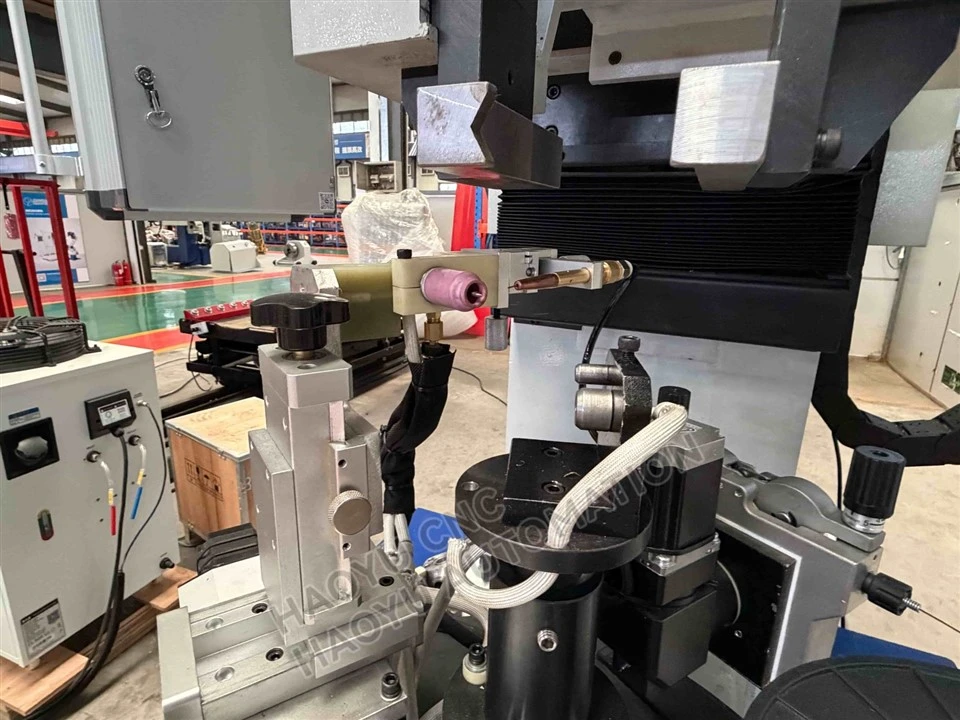

This is a high-pressure oil pipe TIG argon arc welding head: the variable frequency rotary base drives 360° circumferential welding, the cross slide table finely adjusts the welding gun position; the water-cooled welding gun is equipped with argon gas protection to avoid oxidation and leakage, the welding wire mechanism has step-by-step wire feeding, the top lifting frame is compatible with various specifications, the weld seam has excellent airtightness and meets the high pressure anti-seepage requirements.

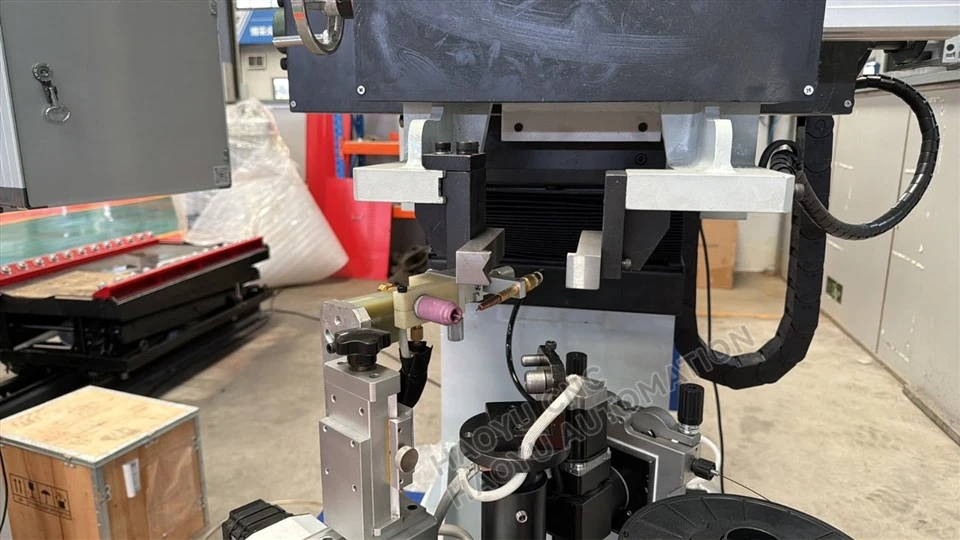

2.The AC motor controls the position of the clamping oil pipe of the fixture to be concentric with the workpiece. The upper AC motor controls the vertical position of the clamping oil pipe, allowing the fixture to move up and down.

3.The control panel is equipped with an HMI touch screen, which allows for intuitive setting and monitoring of core parameters such as rotation speed, slide table coordinates, and welding wire replenishment. It supports the storage and one-click recall of multiple program specifications and has a self-diagnostic function for faults. It is easy to operate and ensures precise and controllable welding.





High pressure TIG oil pipe welding machine





The High Pressure Hydraulic Pipe Welding Machine is mainly used for manufacturing hydraulic cylinders and hydraulic components.

Typical applications include:

1.Hydraulic Cylinder Manufacturing

Used for welding oil pipes connected to hydraulic cylinders, ensuring reliable hydraulic transmission and pressure resistance.

2.Construction Machinery

Suitable for hydraulic cylinders used in:

• Excavators
• Loaders
• Cranes
• Bulldozers
• Mining machinery

3.Agricultural Machinery

Applied in hydraulic systems of:

• Tractors
• Harvesters
• Agricultural equipment

4.Industrial Hydraulic Equipment

Used for hydraulic systems requiring high-pressure and leak-free pipe connections.





Q1: Is this machine designed for hydraulic hose welding?

No. This machine is not designed for flexible hydraulic hoses. It is specially designed for rigid metal high-pressure oil pipes used on hydraulic cylinders.

Q2: What materials can be welded?

The machine can weld carbon steel pipes, stainless steel tubes, and other metal hydraulic pipes.

Q3: Can the machine weld different pipe sizes?

Yes. The fixture and welding system can be customized according to different pipe diameters and production requirements.

Q4: Which welding process is recommended?

TIG welding is commonly used for hydraulic pipes requiring high sealing performance and excellent welding appearance. MAG welding can be selected for higher production efficiency.

Q5: Can you provide a complete hydraulic cylinder welding solution?



Yes. We provide customized welding solutions including:

• Hydraulic cylinder circumferential welding machine
• Hydraulic pipe welding machine
• Oil port welding machine
• Robotic welding system
• Automatic welding production line
