Automatic Oil Nozzle Welding Machine With Three Welding Heads
High precision oil nozzle welding machine with 3 TIG welding heads for oil pipe brackets and fittings. Improve welding efficiency and quality. Request a quote today.
Description
I.Product Overview
Solve Welding Challenges of Oil Nozzles and Pipe Brackets with One Integrated System
In hydraulic components manufacturing, welding small oil nozzles and pipe brackets requires high accuracy, stable welding quality, and efficient production. Traditional manual welding often causes problems such as inconsistent weld appearance, low production efficiency, and higher dependence on skilled operators.
Our Oil Nozzle Welding Machine is specially designed for automatic TIG welding of oil nozzle components and oil pipe brackets. Equipped with three independent welding heads, this system can complete multiple welding operations in one cycle, helping manufacturers improve productivity while maintaining consistent welding quality.
The machine is widely used for hydraulic cylinders, hydraulic components, automotive parts, and precision metal fabrication industries.
II.Technical Parameters
Product Specifications:
| Equipment Type | 3 Head TIG Oil Nozzle Welding Machine |
| Welding Method | TIG Welding |
| Number of Welding Heads | 3 |
| Main Welding Head | Dual TIG Torch |
| Oil Nozzle Welding Heads | 2 |
| Application | Oil Nozzle, Oil Pipe Bracket, Hydraulic Components |
| Welding Material | Carbon Steel, Stainless Steel, Other Metal Components |
Workpiece Range:
| Maximum Workpiece Weight | 50–10000 kg (customizable) |
| Workpiece Diameter | Φ50–Φ300 mm(customizable) |
| Welding Thickness | 1–5 mm |
| Positioning Accuracy | ±0.1 mm |
| Welding Method | TIG Argon Arc Welding |
III.Machine structures
1.Three Welding Heads Configuration Improves Production Efficiency
The machine adopts a three-head TIG welding structure, allowing different components to be welded simultaneously or sequentially according to production requirements.
2.Dual Torch Welding Head for Oil Pipe Bracket Welding
The welding head close to the spindle box is equipped with two TIG welding torches, specially designed for welding oil pipe brackets.
3.Magnetic Oil Nozzle Fixture for Fast and Accurate Positioning
Flexible Fixture Design Improves Loading Efficiency
The middle and right welding heads are equipped with magnetic oil nozzle fixtures, which are designed for quick positioning and stable clamping of oil nozzle workpieces.
4.Chuck wrench and hydraulic clamping mechanism
A chuck wrench has a built-in hydraulic cylinder and a pneumatic cylinder. The hydraulic cylinder controls the forward or reverse rotation of the wrench, thereby clamping or releasing the workpiece; the pneumatic cylinder controls the up and down movement of the wrench.And the tailstock is held in place by a hydraulic cylinder to eliminate the mating clearance.
5.These three independent yet coordinated welding heads, each equipped with their own dedicated power distribution cabinet, glide smoothly on sturdy guide rails under the precise drive of servo motors, working in sync.

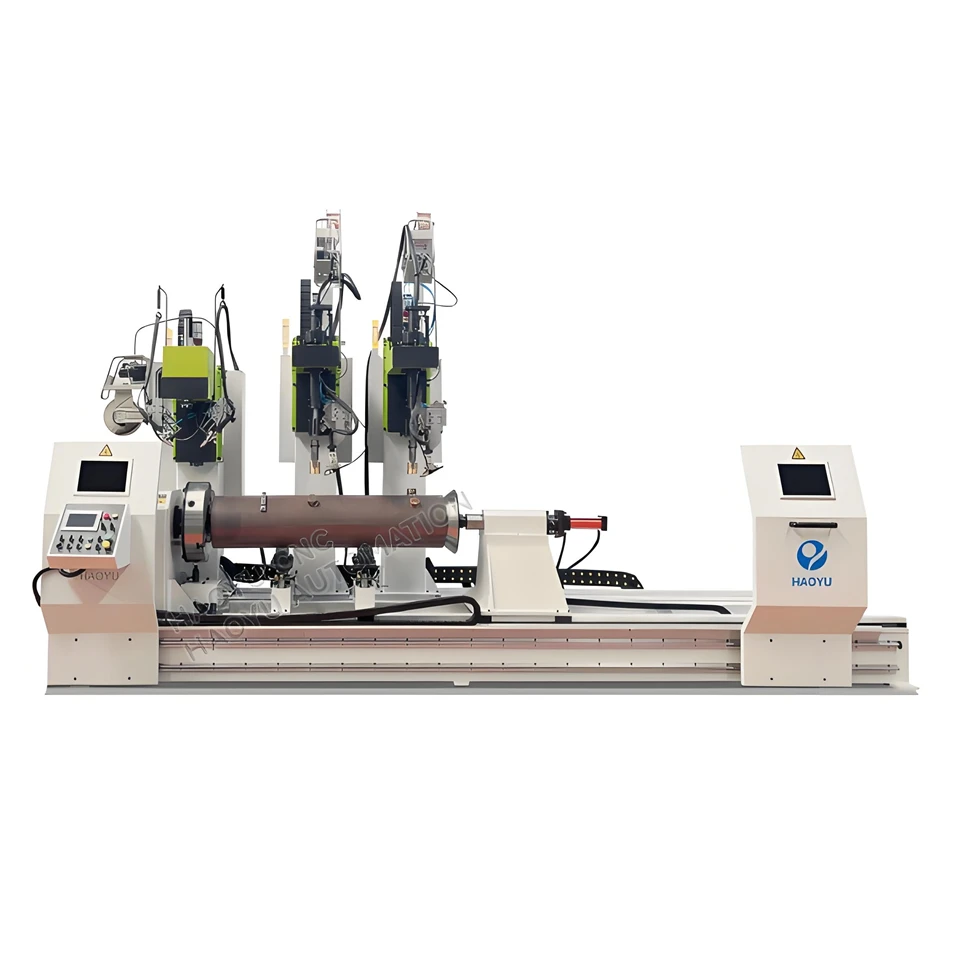

6.Renderings
IV.Application Areas
Suitable for Various Hydraulic and Automotive Component Manufacturing
This TIG Oil Nozzle Welding Machine is mainly applied in industries requiring high-quality precision welding.
Typical Applications:
Hydraulic Cylinder Manufacturing

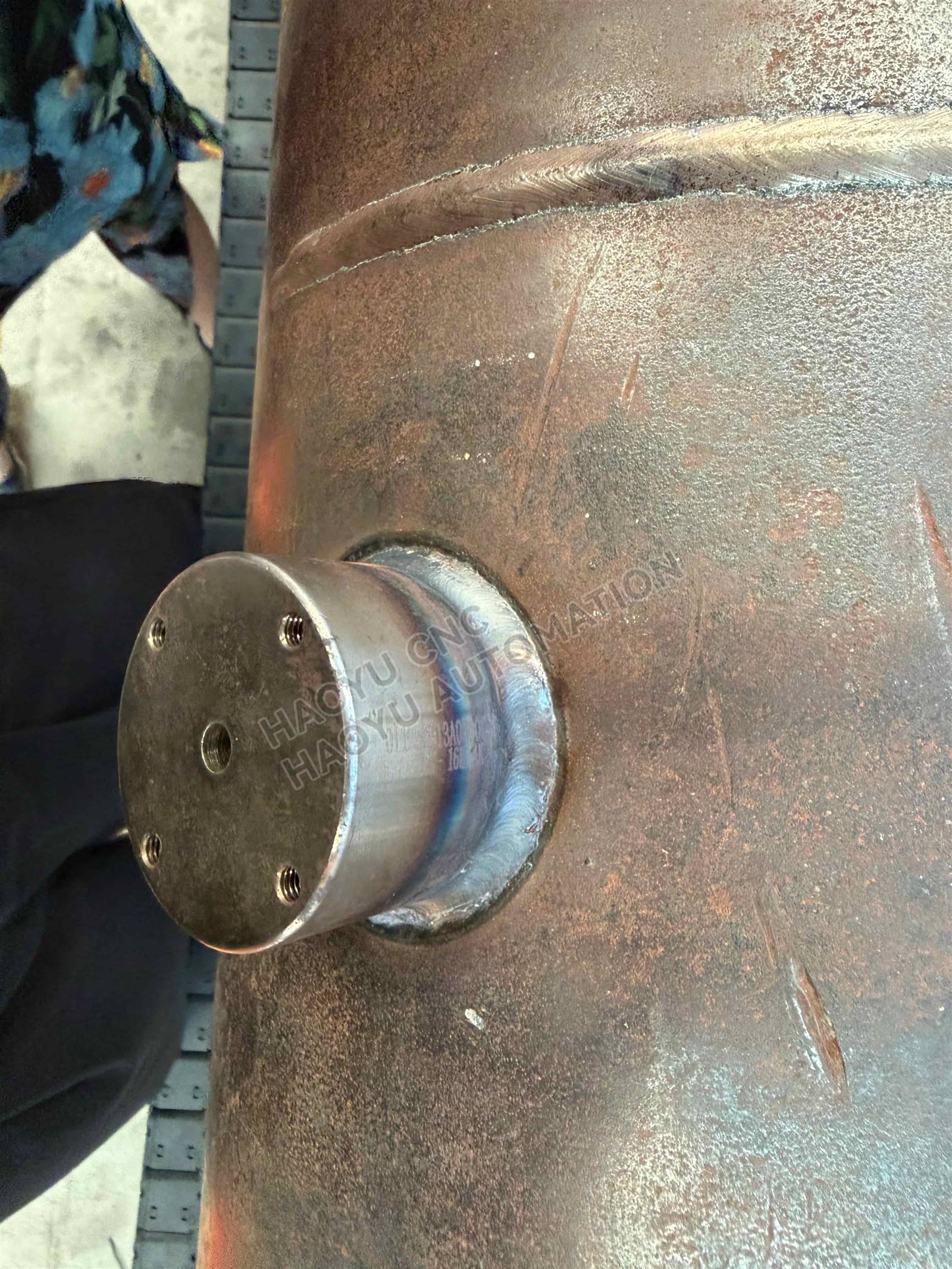

- Oil port welding

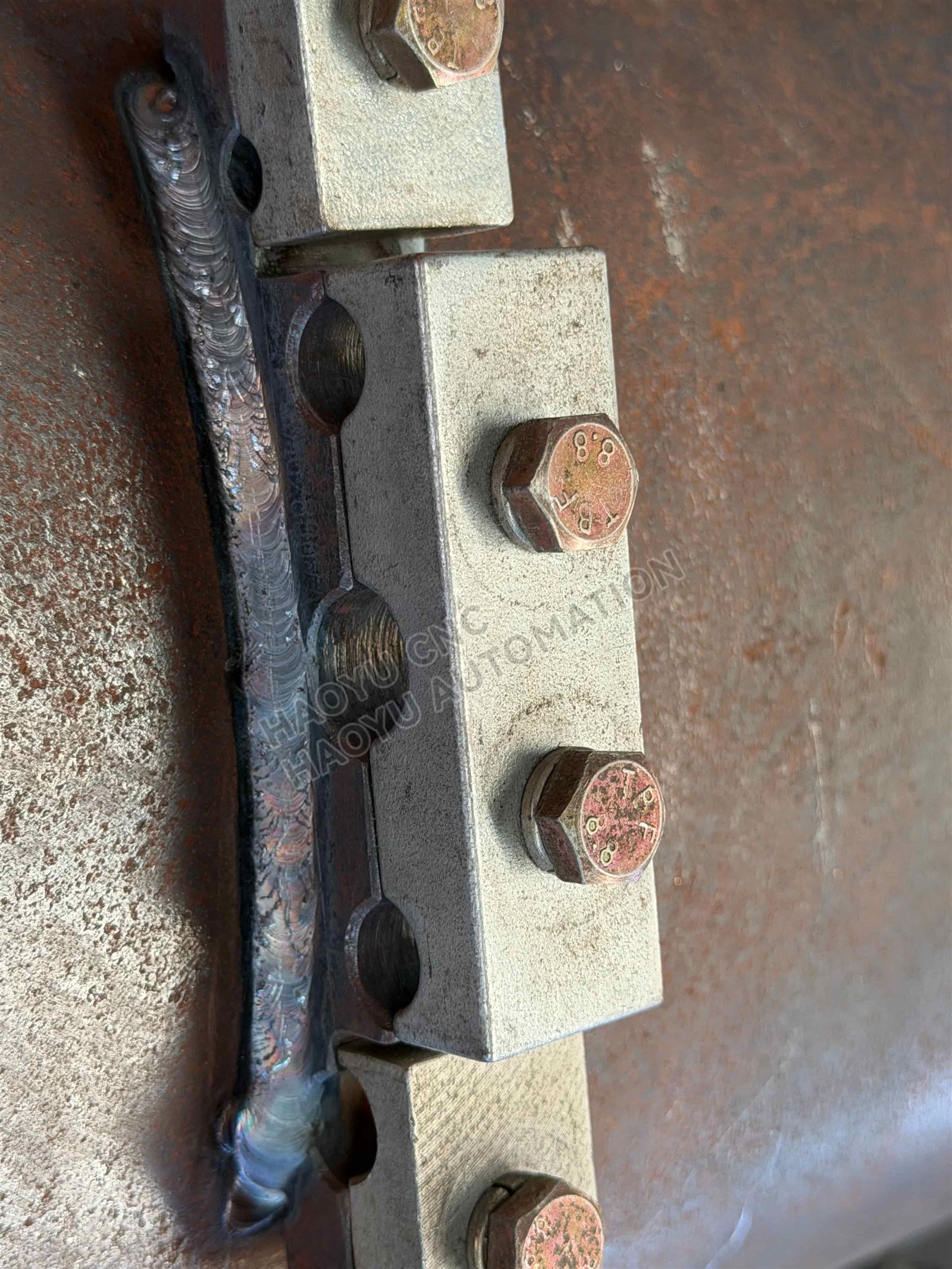

- Hydraulic pipe bracket welding
- Cylinder accessory welding
Automotive Components
- Oil pipe components
- Precision metal fittings
- Structural welding parts
Machinery Manufacturing
- Small precision components
- Customized welded assemblies
V.Why choose us?
Why Choose Our 3 Head TIG Oil Nozzle Welding Machine?
Choosing the right welding equipment directly affects production efficiency and product quality.
Our machine provides:
- Three welding heads for flexible production arrangements
- Dual torch design for efficient bracket welding
- Magnetic fixtures for quick and accurate positioning
- TIG welding process for high-quality weld appearance
- Automatic control system for stable operation
It is an ideal solution for manufacturers looking to improve hydraulic component welding efficiency.
