Automatic Wire & Powder Overlay Welding Machine



• Dual-process design: supports wire + powder overlay welding
• High wear resistance coating for industrial components
• Stable arc control with precise deposition rate
• Suitable for hydraulic cylinder, roller, shaft surface repair
• PLC intelligent control system, easy operation
• 24 industrial continuous working capability





The fused wire and fused powder surfacing machine is an automated welding device used for strengthening and repairing metal surfaces. It forms a high-wear-resistant alloy layer on the workpiece surface through a combination of fused wire and fused powder welding. It is widely used for the repair and strengthening of hydraulic cylinders, shafts in engineering machinery, rollers, and other workpieces.





Input voltage	380V/50HZ
Control system	PLC+HMI
Welding method	Wire +Powder overlay
Workpiece diameter range	100-400mm
Itinerary range	1-4000mm
Welding precision	±0.5mm
Cold method	Water cooling





1. Main Frame System

✔ Components: High-strength steel base
Horizontal guide rails
Horizontal mounting support structure

✔ Function: The main frame is the foundational support for the entire equipment, used to secure all moving and welding systems, ensuring the equipment remains stable and undeformed during high-speed operation and high-temperature welding.



2.Workpiece Clamping and Rotating System

✔ Components:

• Three-jaw chuck
• Servo Motor / AC Motor
• Rotary bearing and transmission mechanism

✔ Function: Used to fix workpieces (such as hydraulic cylinders, shaft parts) and drive them to rotate at a uniform speed, enabling the welding torch to achieve uniform circular or spiral welding.



3. Wire Feeding System

✔ Components: Wire feed motor, wire feed roller assembly, wire guide tube, wire spool support

✔ Function:

Stably feeds the welding wire into the welding area at a set speed, ensuring a continuous and uniform wire surfacing process without wire breakage or slippage.

4. Welding Torch System

✔ Components:

• Dedicated surfacing welding torch
• Torch lifting mechanism
• Water cooling system
• Torch angle adjustment device

✔ Function:

This is the core working component, used to generate an electric arc and complete the fusion surfacing of molten wire and powder, while controlling the welding angle and position.



5.Motion Control System

✔ Components:

• PLC controller
• Servo driver
• HMI (Human Machine Interface)
• Programming system

✔ Functions:

Controls all motion parameters of the equipment, including rotational speed, welding speed, wire feed speed, powder ratio, etc., to achieve automated welding processes.

6.Powder Feeding System

✔ Components:

Powder hopper

Metering and conveying device

Pneumatic conveying pipeline

Control valve system

✔ Function:

Precisely and stably delivers alloy powder into the weld pool, where it forms a high-wear-resistant alloy layer with the molten wire, improving surface properties.

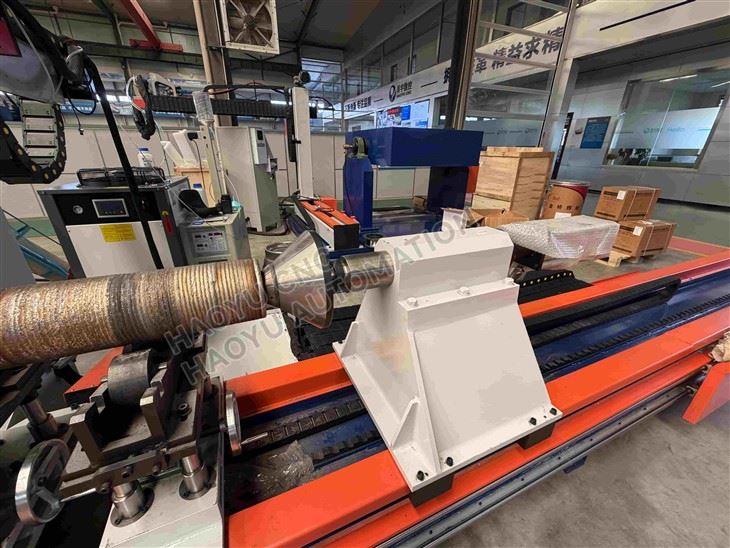

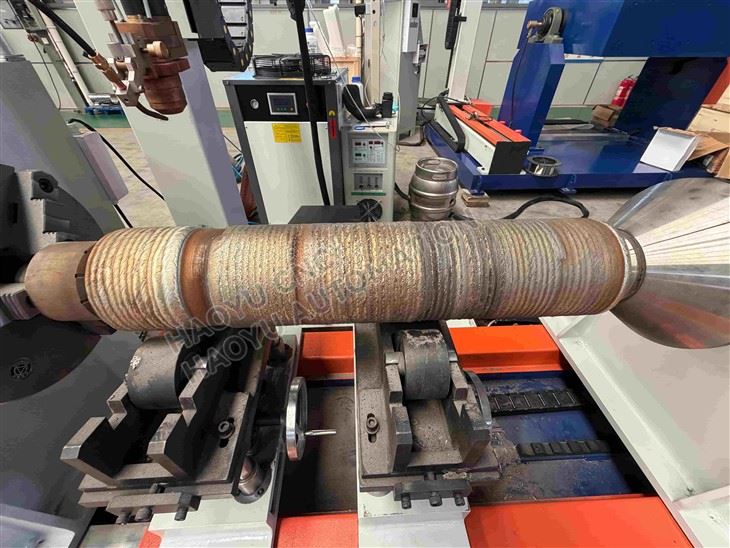

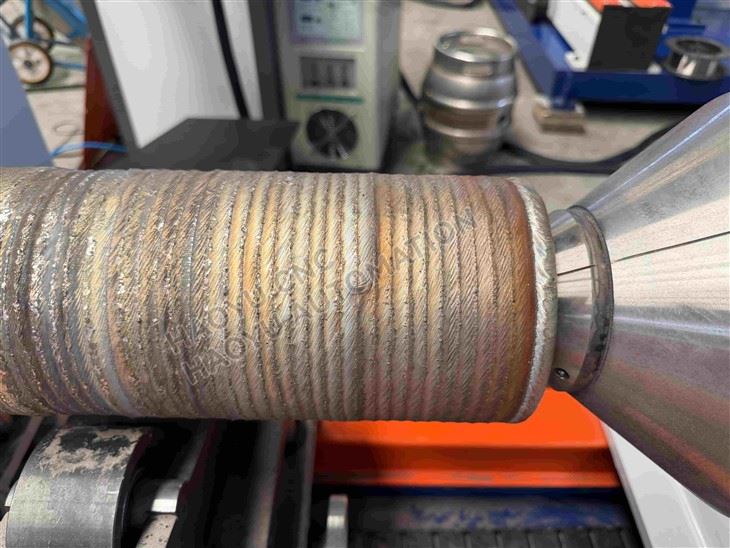

7.Renderings









• Hydraulic cylinder repair
• Mining machinery parts hardfacing
• Construction machinery shaft overlay
• Steel roller surface strengthening
• Agricultural machinery repair
• Metallurgy equipment maintenance





Q1: What are the main applications of the fused wire and powder surfacing welding machine?

A: This equipment is mainly used for metal surface strengthening and repair. It can be widely used for wear-resistant layer surfacing welding of workpieces such as hydraulic cylinders, shaft parts, rolls, and engineering machinery components, improving the service life of parts and reducing maintenance costs.

Q2: What materials can the equipment process?

A: The equipment is suitable for various metal materials such as carbon steel, alloy steel, and stainless steel. By combining fused wire and alloy powder, different wear-resistant surfacing layers can be achieved.

Q3: Is professional experience required to operate the equipment?

A: No highly complex experience is required. The equipment adopts a PLC automatic control system and is equipped with a touch screen operating interface. Parameters can be preset and saved, and ordinary operators can learn to operate it after simple training.

Q4: Does the equipment support customization?

A: Yes. We support customization based on workpiece size, welding process, production needs, including stroke range, fixture type, wire feeding system, and powder system configuration.

Q5: What is the production efficiency of the equipment? A: Compared to traditional manual welding, the fused wire welding machine has a higher degree of automation, enabling continuous and stable production, significantly improving processing efficiency, and ensuring weld layer consistency.

Q6: What is the typical delivery time?

A: The standard equipment delivery time is usually 30–45 days. The specific time depends on the equipment configuration and customization requirements. We will provide an accurate delivery date after confirming the technical solution.
