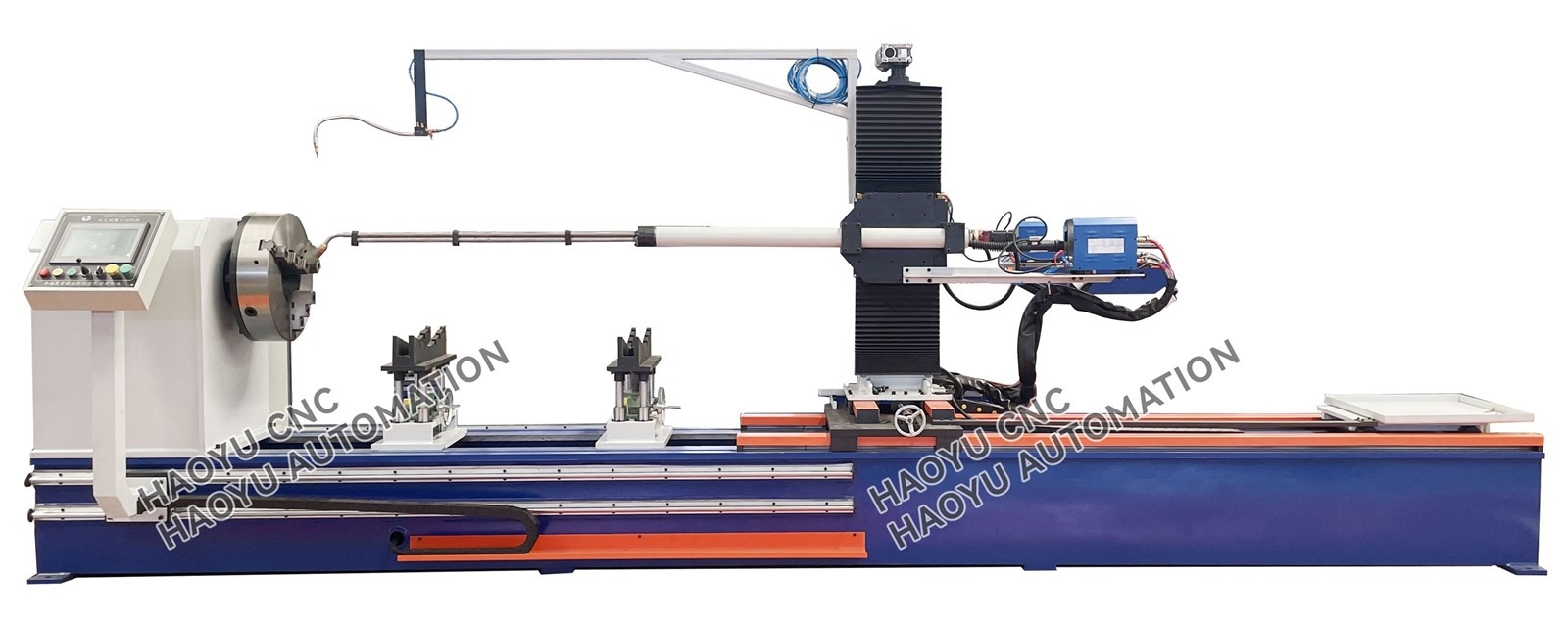

Automatic MIG TIG Inner Hole Hadrfacing Welding Machine
The core purpose of the internal hole cladding welding machine is to repair internal hole components that have failed due to wear or corrosion through cladding, or to pre-place a high-performance alloy layer on the internal hole when manufacturing new products, thereby significantly extending the service life of the workpiece and reducing replacement costs.
Description
Automatic MIG TIG Inner Hole Hadrfacing Welding Machine
I.Equipment Feature
- Welding torch moves forward-backward along with axis and welds workpiece. Workpiece is rotating, the welding position is horizontal.
- Workpiece rotation is driven by power head, end face positioning, rotary welding.
- Machine has high voltage and slow wire feeding function, which guarantees reliable arc igniting. It also has low welding voltage and low current for filling crater.
- It adopts push type wire feeding mode to guarantee the stability of wire feeding.
- Welding torch can be adjusted longitudinal to suit for various welding type.
- PLC to control the whole operation. The rotation speed of workpiece is adjusted by A/C inverter, stepless adjustment, to improve the reliability of equipment.
II.Technique Parameters
|
Applicable welding length |
Max 1000mm |
|
Applicable welding diameter |
50.8-300mm |
|
Pipe type |
Hollow |
|
Rotation speed |
0.2-2r.p.m |
|
Motor power |
0.75KW |
|
Welding torch lifting range |
According to the max diameter of workpiece |
|
Diameter of wire |
1.2mm-2.4mm |
|
Machine working voltage |
380V 3phase 50hz for welding power 220V single phase for main machine |
III.Detail iamges
Automatic MIG TIG Inner Hole Hadrfacing Welding Machine
1.Pipe is clamped by rotary chuck and supported by bracket of rolling wheels. Distance between brackets can be adjusted according to pipe length.
2.Welding Torch Clamping&Adjustment Forward-Backward Mechanism: The welding torch is moved forward-backward, driven by the servo motor, to realize the switch between preparation and welding station. The welding torch adopts push wire type to ensure stable wire feeding. The welding torch can be adjusted up and down, left and right and angled turn. The fine adjustment of the welding torch adopts motor-driven up and down fine adjustment mode and screw adjustment, accurate adjustment, high positioning accuracy.
3.TIG welding torch and MIG welding torch:
4.OMRON PLC as control core, control the implementation of the welding program. Stable system, simple structure and easy maintenance.
5.Effect picture display
IV.Vedio for your reference
Automatic MIG TIG Inner Hole Hadrfacing Welding Machine
