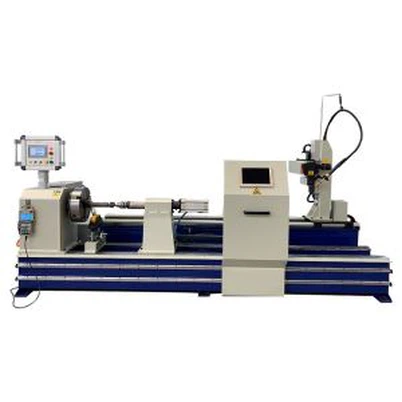

Automatic Wire-Fed Laser Cladding Welding Machine

A wire-fed laser cladding machine is an automatic laser welding system designed for metal surface repair, build-up and cladding using continuous wire feeding.

It is mainly used by hydraulic cylinder manufacturers, shaft and piston rod manufacturers, repair companies and industrial component producers.

The machine helps repair worn surfaces, restore part dimensions, improve wear or corrosion resistance, and reduce the cost of replacing expensive components. It can be customized for hydraulic cylinders, shafts, rollers and other metal workpieces.

This automatic laser welding machine is mainly used for industrial surface treatment rather than conventional joint welding.

Typical processes include:

• Repairing worn or damaged metal surfaces
• Restoring the original diameter of shafts and rods
• Building up material on worn working areas
• Applying wear-resistant cladding layers
• Applying corrosion-resistant surface layers
• Repairing expensive components instead of replacing them
• Customized surface cladding for different industrial workpieces

The main users of this machine are hydraulic cylinder manufacturers, piston rod and shaft manufacturers, industrial repair companies, and metal surface restoration service providers.

• Hydraulic Cylinder Components

The machine can be customized for laser cladding of hydraulic cylinder components where worn, corroded or damaged surfaces need to be restored.

Typical applications include piston rods, cylinder-related shafts and other cylindrical hydraulic components.

• Shaft and Piston Rod Repair

Wire-fed laser cladding can rebuild worn shaft surfaces and restore dimensional allowance before subsequent machining or grinding.

It is suitable for piston rods, transmission shafts and other cylindrical components requiring surface restoration.

• Roller Surface Cladding

For industrial rollers subject to wear or corrosion, laser cladding can apply a functional metal layer to selected working surfaces.

Machine dimensions, rotary fixtures and processing travel can be customized according to roller diameter and length.

• Customized Metal Component Cladding

The system is not limited to hydraulic cylinders and shafts.

Haoyu can customize the laser cladding welding equipment according to the workpiece geometry, material, cladding position, filler wire and required processing path.

Such as.for applications specifically designed for agricultural equipment, see our Laser Cladding Machine for Agricultural Machinery.

The typical working process includes:

Workpiece Loading → Positioning → Laser Parameter Setting → Automatic Wire Feeding → Laser Cladding → Controlled Rotation/Linear Movement → Layer Formation → Inspection

For cylindrical components, the workpiece can rotate while the laser cladding head moves along the axial direction to create a continuous cladding layer.

Processing paths and machine motions can be customized according to the actual workpiece.

And please check the following:

This video documents the deployment and production operation of our wire-feed laser cladding equipment at the customer's factory. The equipment is currently in actual production, performing laser wire cladding (LMD-W) in a real manufacturing environment. This video provides a clear overview of the equipment's performance and practical application at the customer's site.

Choosing the right laser cladding welding machine depends on your workpiece, material and cladding requirements.

Before selecting a machine, consider:

• Workpiece type and size – such as hydraulic cylinders, piston rods, shafts or rollers
• Base material – carbon steel, stainless steel or other alloys
• Filler material – wire type and diameter
• Cladding position and area – full surface or local repair
• Required cladding thickness
• Production volume and automation level
• Required laser power and processing speed

For customized applications, send us your workpiece drawing, dimensions, material and cladding requirements. We can recommend a suitable wire-fed laser cladding welding machine configuration for your application.

FAQ Of Automatic Laser Cladding Welding Machine





01.What is a laser cladding welding machine?

A laser cladding welding machine uses a focused laser beam to melt filler material and a controlled surface layer of the base metal, forming a metallurgically bonded layer. It is commonly used for metal surface repair, dimensional restoration and functional surface cladding.

02.Is this the same as a normal laser welding machine?

No. A conventional laser welding machine is mainly used to join two or more metal parts. This wire-fed laser cladding welding machine is primarily designed to add material onto the surface of a workpiece for repair, restoration or surface enhancement.

03.What is the Core components of laser cladding machine with wire feeder?

• Laser System: Typically uses a 500W-6000W fiber laser, offering high stability and excellent beam quality.
• Wire Feed System: Precision wire feed mechanism (e.g., servo motor drive) supporting solid or flux-cored wire (0.8-1.6mm diameter).
• Cooling System: Water or air cooling to ensure long-term operation.
• Control System: CNC or PLC control with integrated human-machine interface (HMI), programmable paths .
• Shielding Gas: Argon/Nitrogen to prevent oxidation and improve cladding quality.

04.What workpieces can be processed?

Typical applications include hydraulic cylinder components, piston rods, shafts, rollers and other metal components. The machine can also be customized for other workpieces after evaluating their dimensions, material and cladding requirements.

05.Can the machine be customized for my workpiece?

Yes. Workpiece fixtures, rotary systems, machine travel, laser configuration, wire feeding system and control functions can be customized according to your workpiece and production process.

06.How do I choose between wire-fed and powder-fed laser cladding?

The selection depends on the workpiece material, filler material, required layer properties, geometry and production requirements. Send us your workpiece drawing, material and cladding requirements, and we can recommend a suitable process.

Haoyu specializes in the design and manufacture of automatic welding and laser cladding equipment for industrial applications. Our automatic welding equipment is supported by CE-related conformity documentation, and our quality management system is certified to ISO 9001:2015.
From machine design and assembly to testing before shipment, we focus on stable performance, manufacturing quality and reliable customized welding solutions for overseas customers.
Each laser cladding welding machine is customized and tested according to the customer's workpiece, material and processing requirements before.

We have always been committed with the service idea of customer-centric, supply Installation, adjustment, training and maintenance in pre-sales and after-sales service.

1. Pre-sales Service

Before signing contract, customers can get production plan, technical consultant and equipment suggestion and etc.

2. Training

Customers can get free technical training in supplier factory. Mainly training are as follow:

• Training for machine and controller operation
• Basic daily cleaning and maintenance for the machine
• Solutions for common hardware problems

3. Equipment Maintenance

• One year free maintenance, lifelong caring
• Free technical consultant and software updating (if any)
• Customer service responding in 2 hours
