Automaitc Cuplock Scaffold Welding Machine

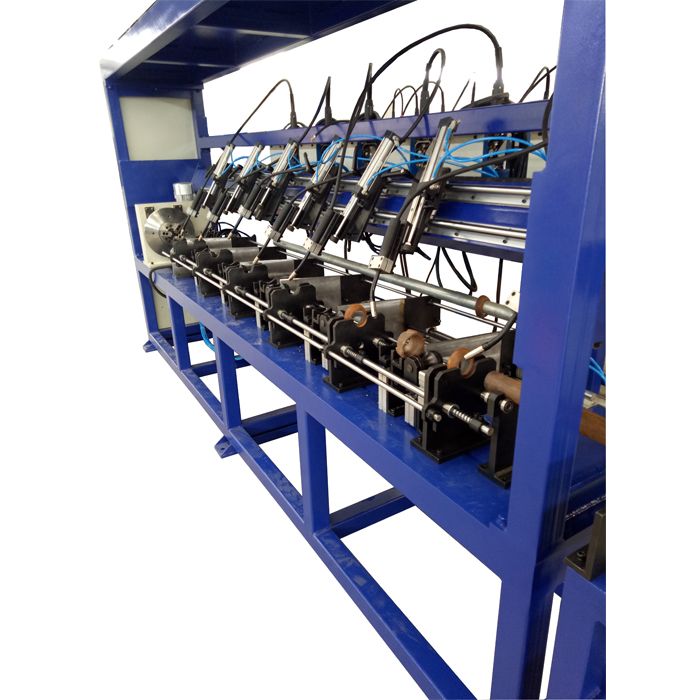

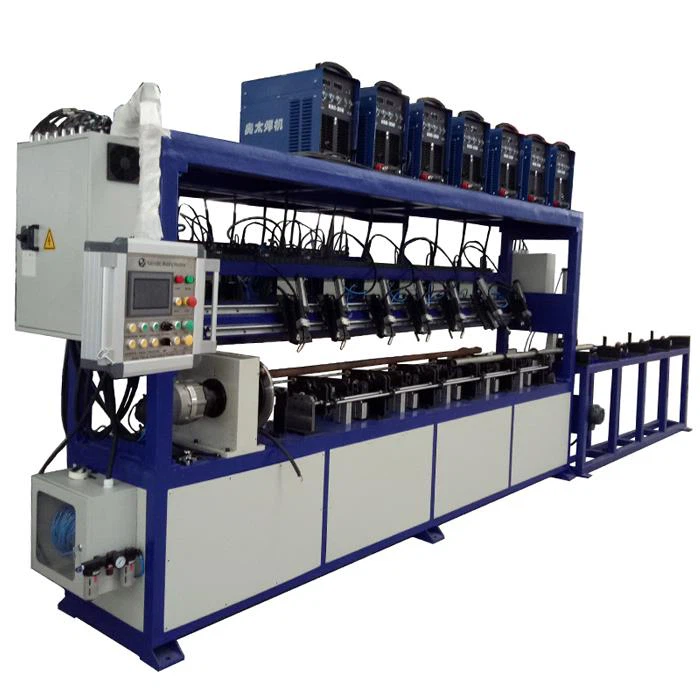

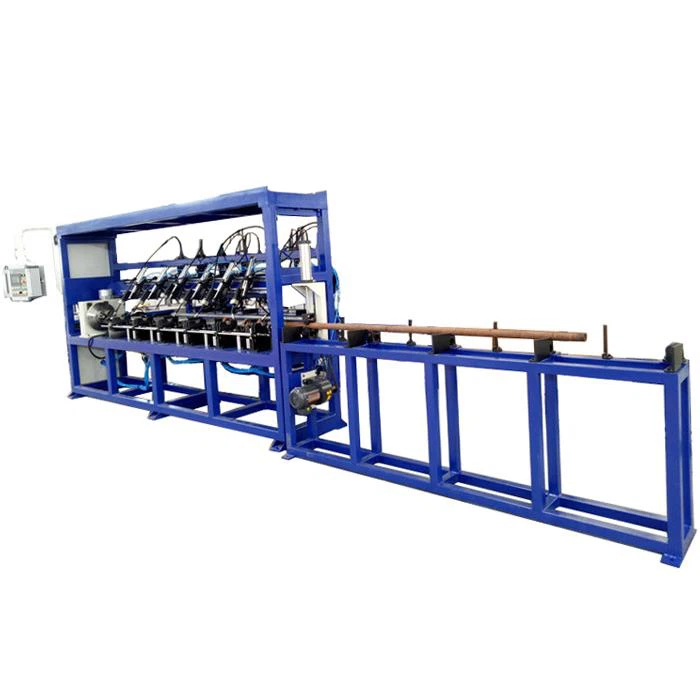

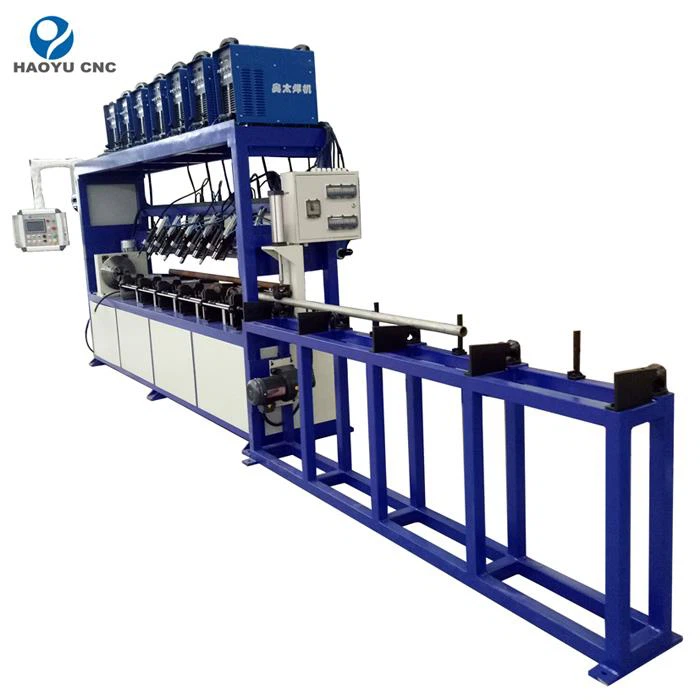

automatic cuplock scaffold welding machine Welding Machine Application 1. Welding machine for vertical standards and pins. 2. There are 18pcs welding torch: 6pcs for cups and 12pcs for pins. 3. MIG welding with wire feeder.. 4. Automatically loading and unloading. 5. The assembly and cup welding...

automatic cuplock scaffold welding machine
Welding Machine Application

1. Welding machine for vertical standards and pins.

2. There are 18pcs welding torch: 6pcs for cups and 12pcs for pins.

3. MIG welding with wire feeder..

4. Automatically loading and unloading.

5. The assembly and cup welding stage--Fix the components in located jig and fixture. Automatically load the pipe through cup.

6. The pin welding stage: pipe and cup will be automatically moved to the pin welding stage. Pipe will be loaded and uplifted by adjustable support, and held by pneumatic thimble. 30pcs pins can be stored in pin holder in advance.

7. The last cylinder device will push pipe and unload it to the storage stand.


Welding Machine Parameters

Pipe diameter

48.3mm, 60.3mm

Pipe length

4m

Pin diameter

made according to drawing

Pin length

made according to drawing

Welding speed

450-600mm/min

Control system

Japan OMRON PLC

Loading capacity

800KG

Air pressure

0.6MPA

Welding power source

350A, 400A

working voltage

380v, 220v
