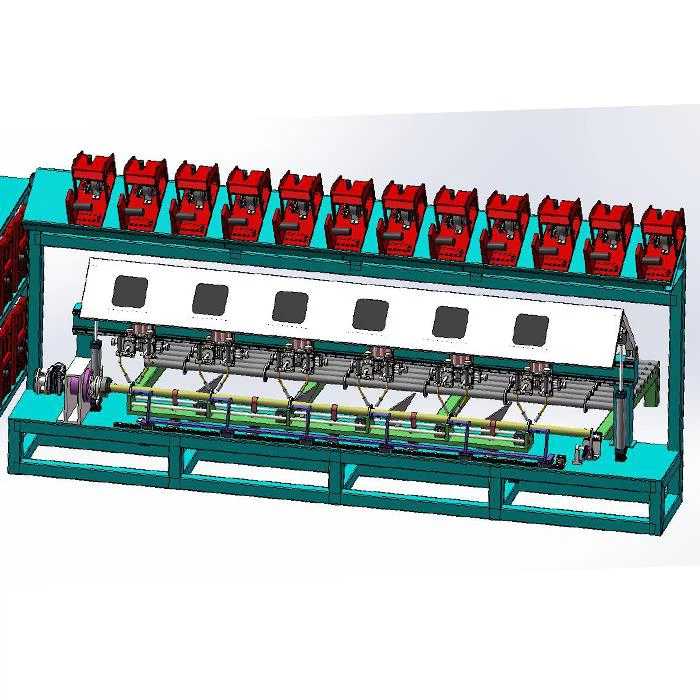

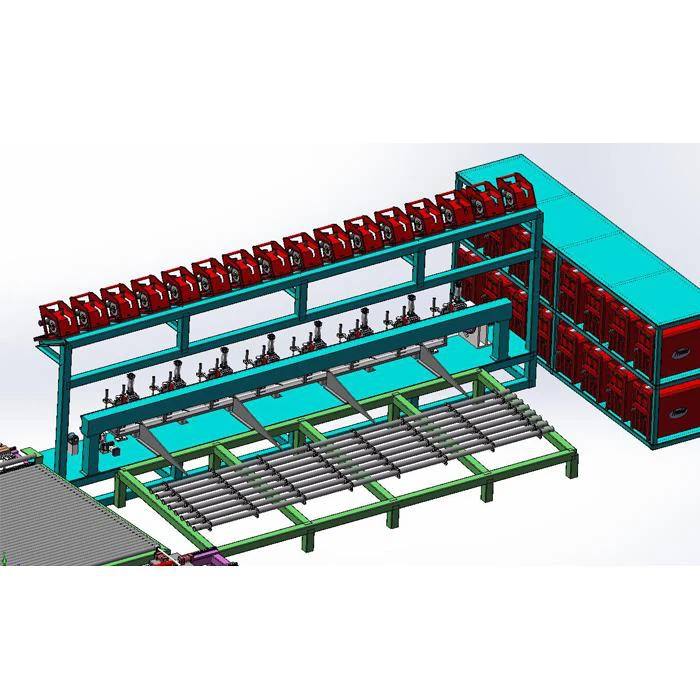

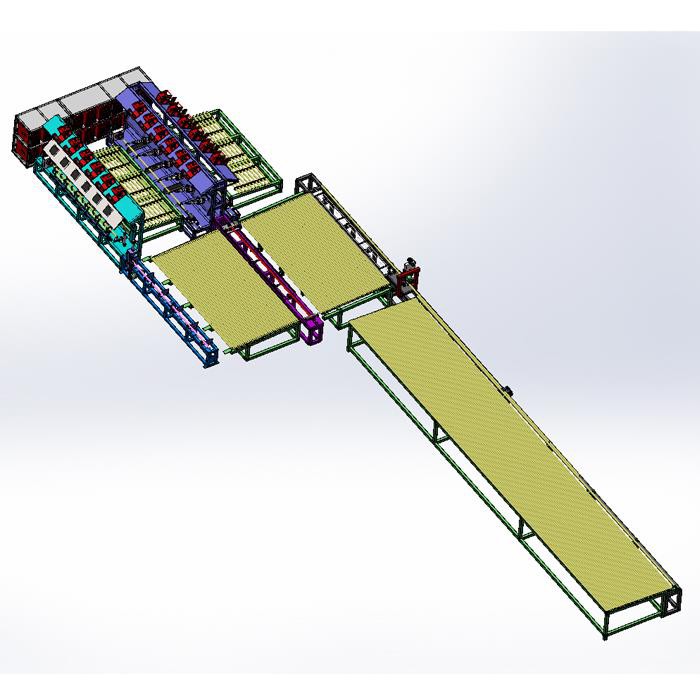

Automaitc Ringlock Scaffolding Welding Machine

automatic ringlock scaffolding welding machine Welding Machine Application 1. Welding machine for 2pcs-8pcs ringlock. 2. It includes 8sets movable torch mechanism, 16pcs welding torch, 16sets wire feeder, 16sets welding power source, 8pcs movable jig and fixture, 1 set automatically unloading...

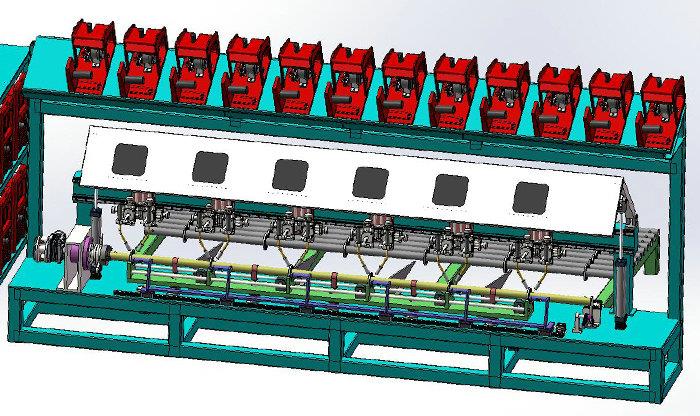

automatic ringlock scaffolding welding machine


Welding Machine Application

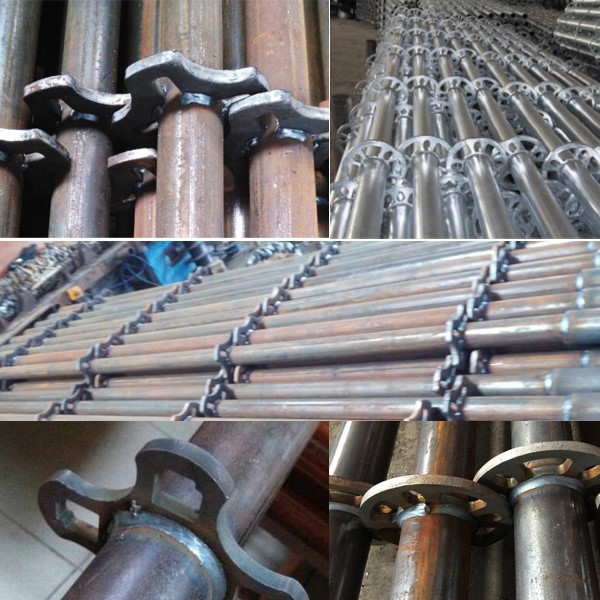

1. Welding machine for 2pcs-8pcs ringlock.

2. It includes 8sets movable torch mechanism, 16pcs welding torch, 16sets wire feeder, 16sets welding power source, 8pcs movable jig and fixture, 1 set automatically unloading device.

3. MIG welding type.

4. Fixing the ringlock components in the fixtures by hand.

5. Pipe will be fed into welding stage manually.

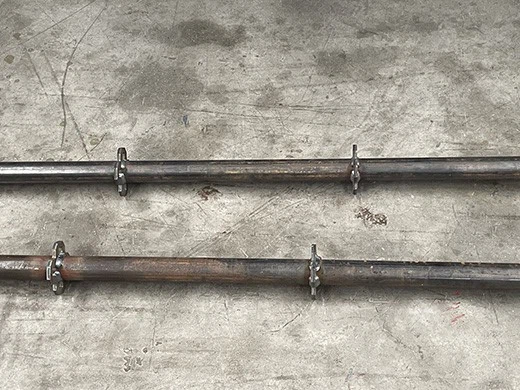

6. Spot welding pipe and lock automatically. Machine will continue to finish full welding automatically.


Welding Machine Parameters

Pipe diameter

48.3mm & 60.3mm

Welding length

4m

Welding speed

450-600mm/min

Control system

Japan OMRON PLC and torch screen

Loading capacity

800KG

Air pressure

0.4-0.6MPA

Welding power source

350A

Machine working voltage

380v 220v
