laser cladding equipment is a special equipment for laser cladding additive designed and developed by our company in accordance with the requirements of the buyer. The whole set of equipment has the characteristics of high power, high anti-reflection, high precision, compact overall structure, high stability and flexible operation.
Description
Laser cladding machine Overview
Agricultural machinery parts operate continuously under abrasive soil, sand, stones, moisture, impact and corrosive conditions. Components such as plowshares, tiller blades, cultivator points and harvester parts are therefore subject to rapid surface wear and dimensional loss.

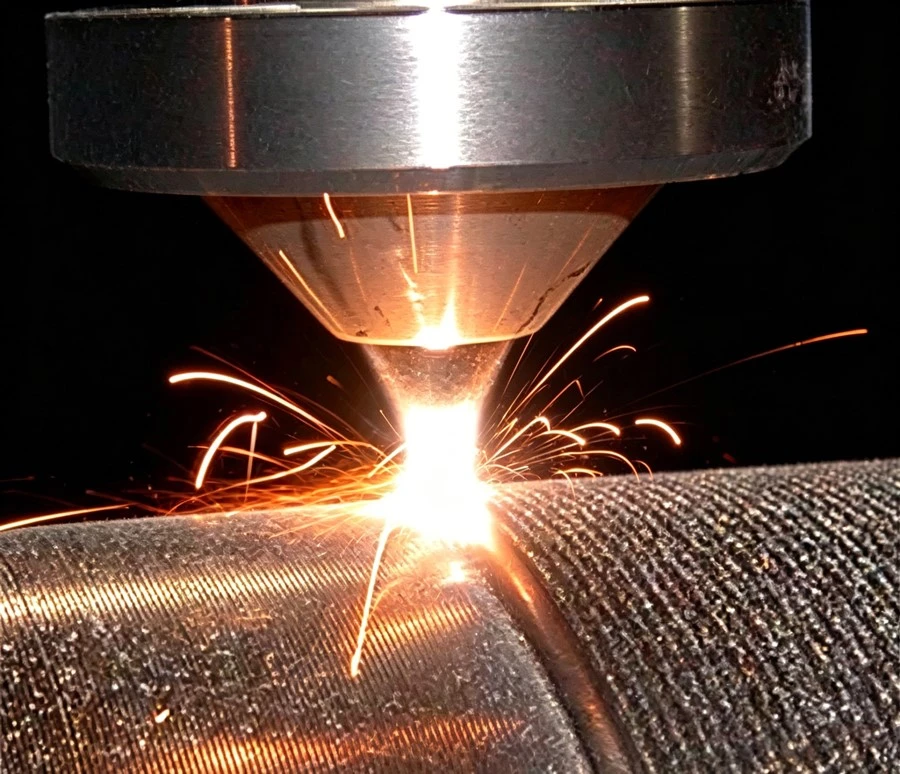

This laser cladding machine applies a wear-resistant or corrosion-resistant alloy layer to selected working surfaces. A high-energy laser beam creates a controlled molten pool, while alloy powder is accurately delivered through the coaxial cladding head.
The powder and a thin layer of the base material melt and rapidly solidify to form a metallurgically bonded coating. The process can be used to strengthen new agricultural machinery parts or restore worn components to the required dimensions.
The equipment can be customized according to the workpiece material, dimensions, coating position, required layer thickness and production capacity.
The overlay welding machine Key selling points
• 6000W fiber laser for industrial cladding applications
• Precision powder feeding for stable alloy deposition
• Coaxial laser cladding head with an adjustable focal spot
• Concentrated heat input and a relatively small heat-affected zone
• Strong metallurgical bonding between the coating and base material
• Suitable for surface strengthening and dimensional restoration
• PLC control with a 10-inch touchscreen
• Customizable fixtures and processing systems for different agricultural machinery parts
• Compatible with selected Fe-based, Ni-based, Co-based and carbide-composite powders
Applications for Agricultural Machinery Parts
The laser cladding equipment can be used for the wear-resistant coating, surface strengthening and repair of various agricultural machinery components.
| Agricultural machinery part | Typical problem | Laser cladding purpose |
|---|---|---|
| Rotary tiller blades | Edge wear and impact | Improve wear resistance |
| Cultivator points | Sand and stone abrasion | Protect the working edge |
| Subsoiler teeth | Rapid material loss | Extend the maintenance interval |
| Harvester knives | Cutting-edge wear | Restore and strengthen the edge |
| Auger blades | Surface and edge wear | Apply a localized wear-resistant layer |
| Feed mixer blades | Abrasion and corrosion | Improve surface durability |
The actual cladding process and equipment configuration depend on the component material, geometry, wear mechanism, coating requirements and required production efficiency.
Display of welding workpieces for agricultural implements:
How the Laser Cladding Process Works
1. The agricultural machinery part is cleaned and installed in the appropriate fixture.
2. The laser power, scanning speed, powder feed rate and cladding path are set according to the workpiece and coating material.
3. The laser beam creates a controlled molten pool on the selected surface.
4. Alloy powder is delivered through the coaxial cladding nozzle.
5. The powder melts together with a thin layer of the base material.
6. The molten material rapidly solidifies to form a continuous metallurgically bonded coating.
7. The cladded part is inspected and can be ground, turned or polished when the final application requires a specific dimension or surface finish.
Please watch our YouTube video to better understand the working process of laser welding equipment:
Technical parameters
| Item | Laser cladding machine |
|---|---|
| Laser power | 6000W |
| Laser source | Fiber laser |
| Powder feeder | 9 L pneumatic precision powder feeder |
| Cladding head | Coaxial annular powder-fed laser cladding head |
| Focal spot | 3–5 mm adjustable |
| Control system | PLC with 10-inch touchscreen |
| Cooling system | Industrial water chiller |
| Shielding/process gas | Argon or nitrogen |
| Workpiece fixture | Customized according to the component |
Information Required for a Technical Proposal
Information Required for a Technical Proposal
Please provide:
• Component drawing or clear photos
• Workpiece dimensions and weight
• Base material or material grade
• Location and type of wear
• Required coating material, if specified
• Target coating thickness and hardness
• Required production capacity
• Available power supply and factory conditions
Our engineers will recommend a suitable laser source, powder material, fixture, processing mechanism and cladding process.
FAQ
FAQ
01.What agricultural machinery parts can this machine process?
02.Can it process parts with different shapes?
03.Can the machine repair worn agricultural machinery parts?
04.Which cladding powder should be used?
05.What determines the machine price?
