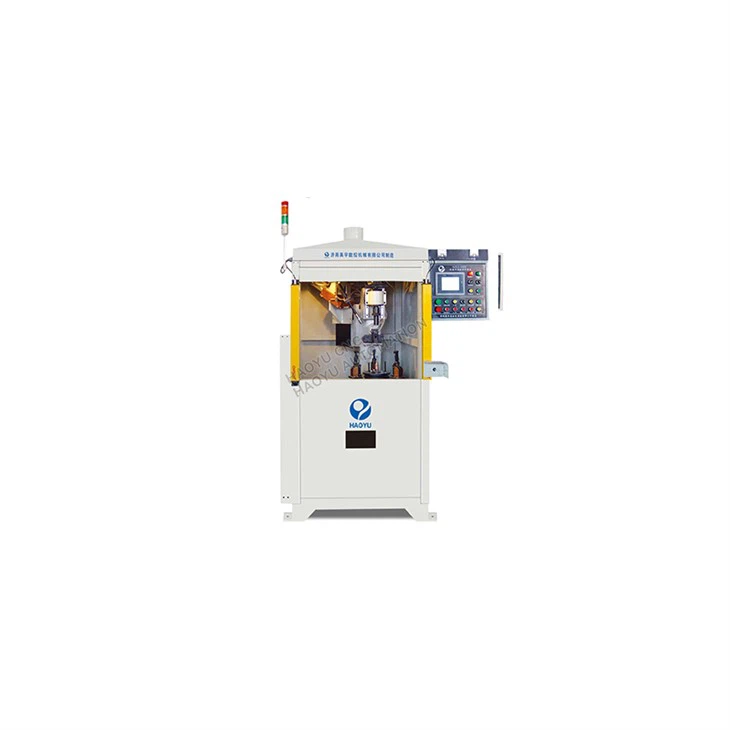

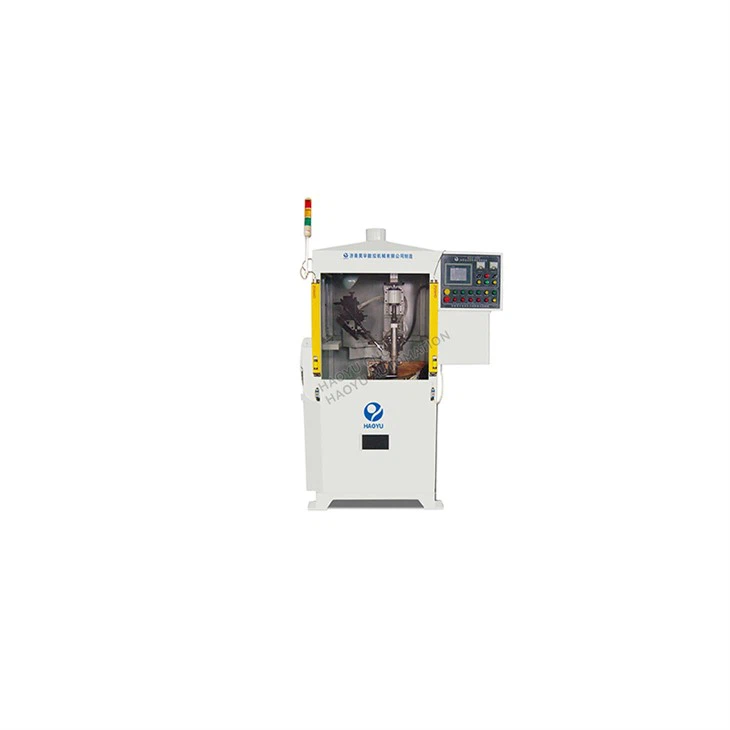

Automatic Car Shock Absorber Automatic Welding Machine
The automotive shock absorber welding machine is a specialized automated welding machine used specifically for welding automotive shock absorber assemblies. It integrates mechanics, electrical control, and welding processes, making it an essential piece of core equipment on the shock absorber production line.
Description
Automatic Car Shock Absorber Automatic Welding Machine
I.Welding Machine Application

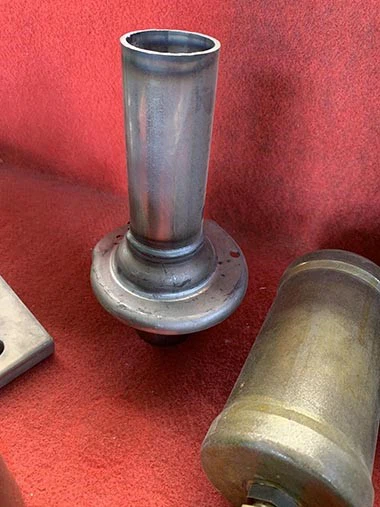

1. Used to weld shock absorber up strut mount, try and shock absorber axle board.
2. Machine will fix valve on base, then weld valve and pipe together
3. Loading valves & Unloading valve by hand
4. MIG welding type
II.Welding Machine Parameters
| Diameter |
30-110mm |
|
Length |
400mm |
|
Rotation speed |
1-8rpm |
|
Motor power |
0.37KW |
|
Air pressure |
0.4-0.6MPA |
|
Welding voltage |
15-36V |
|
Welding current range |
50-350A, |
|
Diameter of welding wire |
0.8mm-1.2mm |
III.Equipment composition
A typical automated shock absorber welding machine typically includes the following systems:
- Mechanical System:

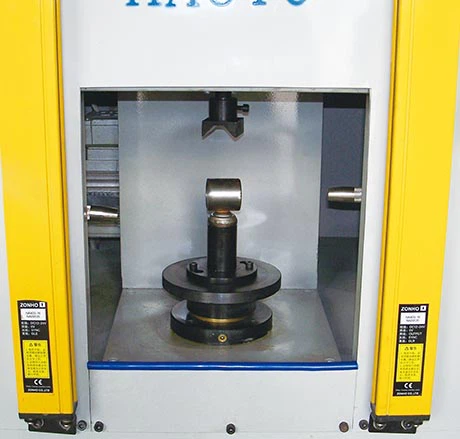

Bed frame: Provides stable and rigid support.
Rotation mechanism: Typically uses a servo motor or precision variable frequency motor to drive the spindle (chuck), which rotates the workpiece (shock absorber outer cylinder) at a constant speed.
Torch mechanism: A high-precision two-dimensional or three-dimensional adjustment mechanism is used to precisely position the welding gun angle and position.
Clamp: Provides for rapid positioning and clamping of the workpiece to ensure consistency.
- Electrical Control System:
PLC (Programmable Logic Controller): The brains of the machine, automatically controlling the entire welding process (loading and unloading, clamping, rotation, wire feeding, arc starting/extinguishing, etc.).
Human-Machine Interface (HMI touch screen): Used to set and store welding parameters (current, voltage, rotational speed, wire feed speed, etc.), and display equipment status and fault information.
Servo Drive/Inverter: Precisely controls the spindle rotational speed.
- Welding System:
Welding Power Supply: Provides stable and reliable energy for welding, and its performance directly determines weld quality. Modern welding machines all use digital inverter power supplies for precise control.
Wire Feeder: Stably feeds the wire into the welding area.
Welding Gun: MIG.
Gas System: Provides and shields gas.
- Auxiliary Systems:
Circulating Cooling System: Provides cooling for the welding power supply and welding gun.
Fume Exhaust System: Extracts fumes generated by welding
