CNC-Controlled Axle Shaft End Welding Machine
Axle shaft head automatic welding machine is a kind of efficient automation equipment dedicated to the welding of axle shaft heads such as automobiles and construction machinery, which is controlled by robots or CNC systems to achieve high-precision and high-strength welding processes, which is suitable for mass production.
Description
I.Products Description
The Automated Axle Shaft Head Welding Machine is an advanced robotic welding system designed for high-efficiency, high-strength joining of axle shaft ends in automotive, heavy-duty truck, and off-road vehicle applications. Integrating CNC controls or industrial robotics, it ensures consistent weld quality with minimal thermal distortion, tailored for mass production environments.
II.Key features
- Flexible Welding Processes
Supports MIG/MAG, laser hybrid welding, or submerged arc welding (SAW) for diverse material thicknesses (3–20mm).
Optional laser seam tracking to compensate for assembly tolerances (±0.2mm).
- Automated Operation
6-axis robotic arm or CNC gantry system with ±0.05mm repeatability.
Dual-station rotary positioner enables continuous loading/unloading (cycle time: ≤90 seconds/part).
- Precision Fixturing
Hydraulic/pneumatic clamping for axle shafts (diameter range: Φ50–Φ200mm).
Self-centering chucks ensure <0.1mm radial runout.
- Quality Assurance
Real-time weld monitoring (arc voltage/current feedback).
Optional in-line ultrasonic inspection for defect detection.
III.technical parameters
| Power Supply | 350–500A digital inverter (100% duty cycle) |
| Welding Speed | 0–80 cm/min (adjustable via HMI) |
| Axes | 3–6 programmable axes (X/Y/Z for torch + R-axis rotation) |
| Protection | IP54 enclosure with fume extraction ports |
IV.Machine Structure

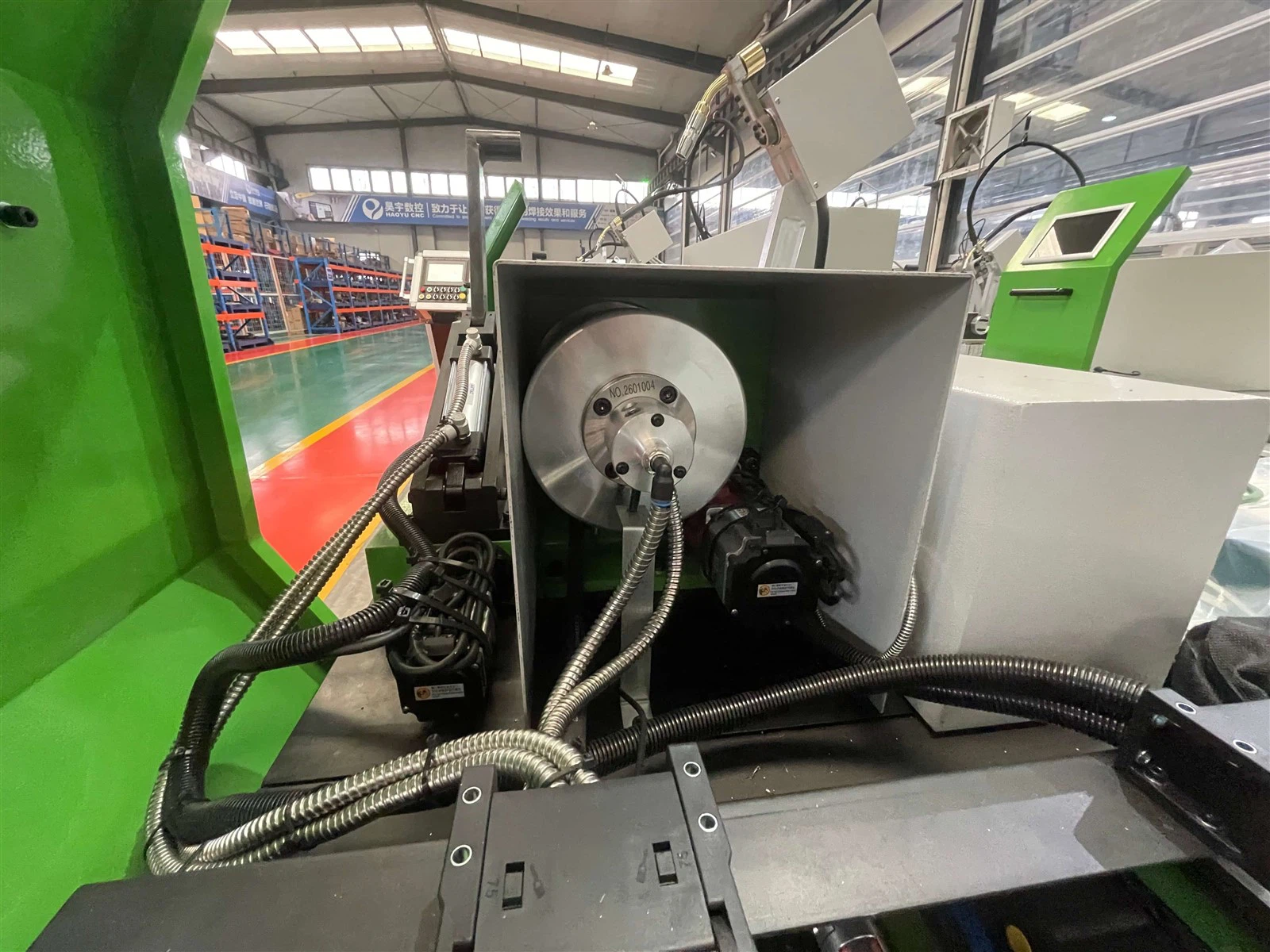

1.The servo motor located within the upper white protective cover is primarily responsible for driving the welding torch to rotate at multiple angles, ensuring flexible posture changes and achieving optimal wire feeding and welding angles when welding complex welds. The servo motor mounted on the machine bed provides macroscopic power, driving the entire motor assembly and welding torch to rotate via a transmission mechanism, thereby controlling the initiation and progression of the welding path. Working together, one managing precise movements and the other handling large-scale displacements, they form the core of the equipment's high-degree-of-freedom and high-precision welding capabilities.

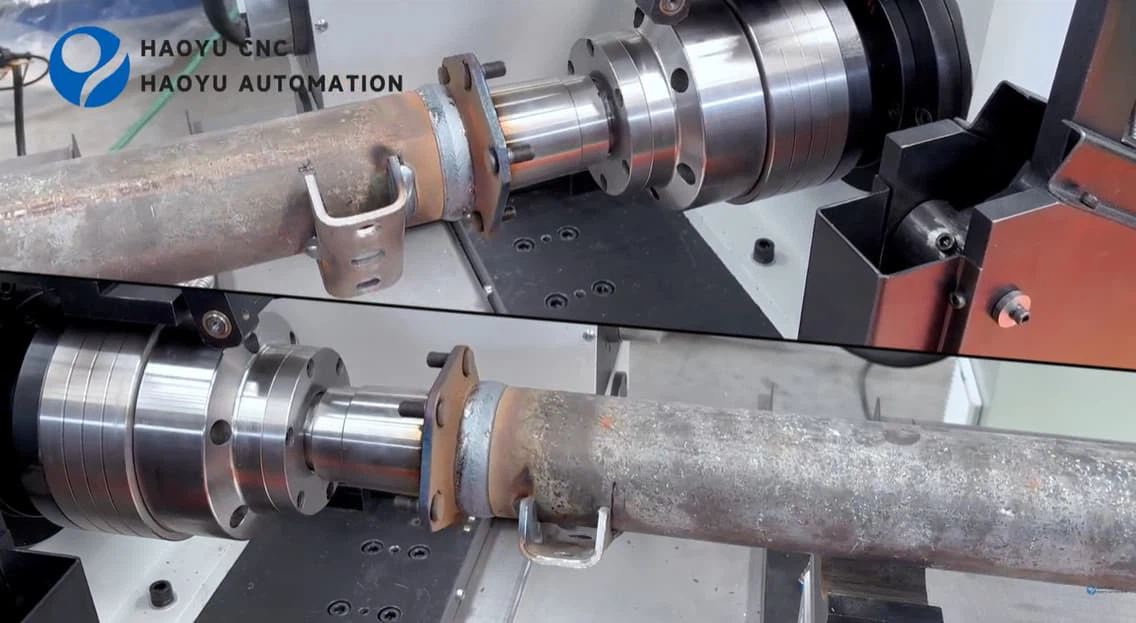

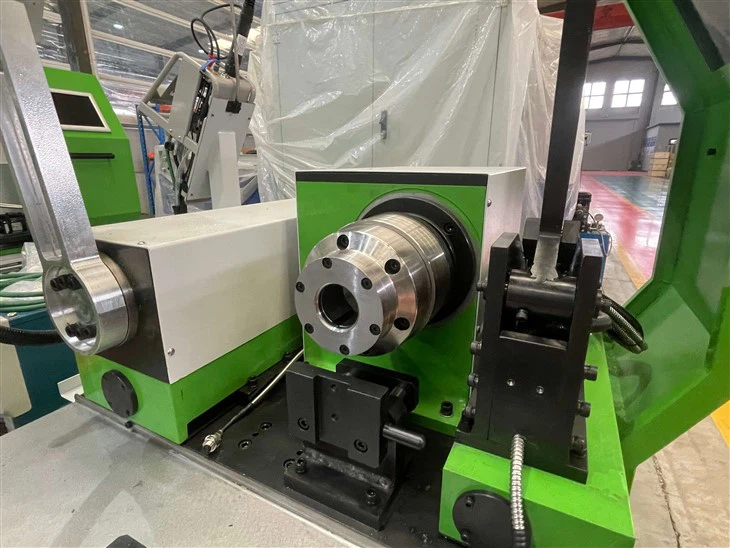

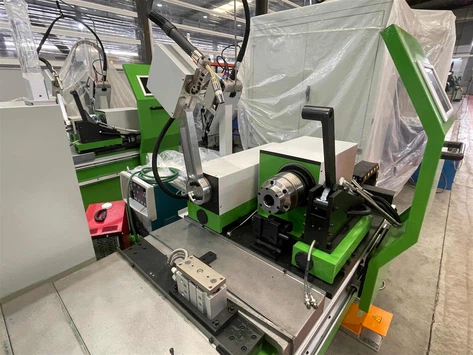

2.The MAG dual-gun axle welding machine features a opposed-position layout, with two spindle boxes mounted on either side of the machine bed. Each spindle box possesses high-precision movement capabilities, driven by a servo motor, enabling reciprocating motion on a linear guide rail to accommodate workpieces of varying lengths. Simultaneously, each spindle box integrates an independent servo drive system, directly controlling the chuck for precise rotation, ensuring stable workpiece repositioning during welding and meeting the requirements for simultaneous dual-gun welding.

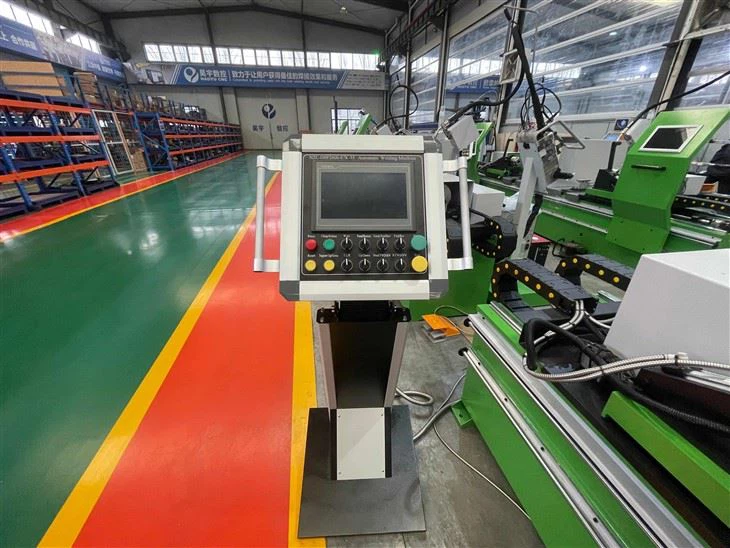

3.The panel box adopts a modular layout and typically integrates a touch-screen human-machine interface (HMI), parameter preset knobs, and status indicator lights, allowing operators to set and monitor key parameters such as welding current, voltage, wire feed speed, and program recipes from the best viewpoint without having to get close to the welding host (such as the positioner or welding torch area).

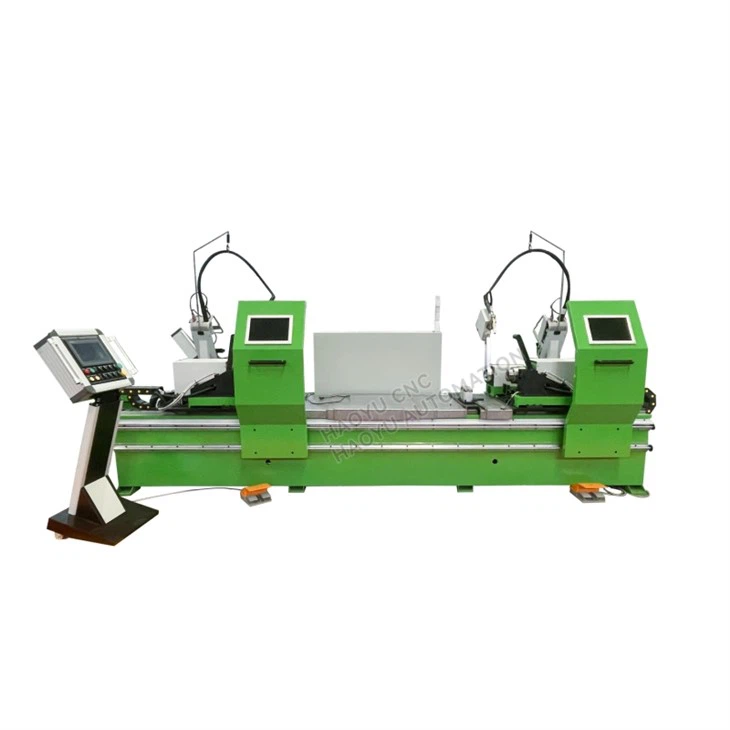

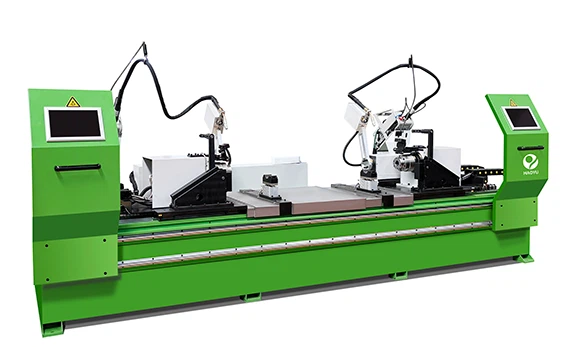

4.Renderings
V.Applications
- Automotive: Passenger car/truck axle assemblies.
- Construction Equipment: Loader/excavator axle reinforcement.
- Agriculture: Tractor axle head repairs.
VI.Vedio for your reference
CNC-Controlled Axle Shaft End Welding Machine
