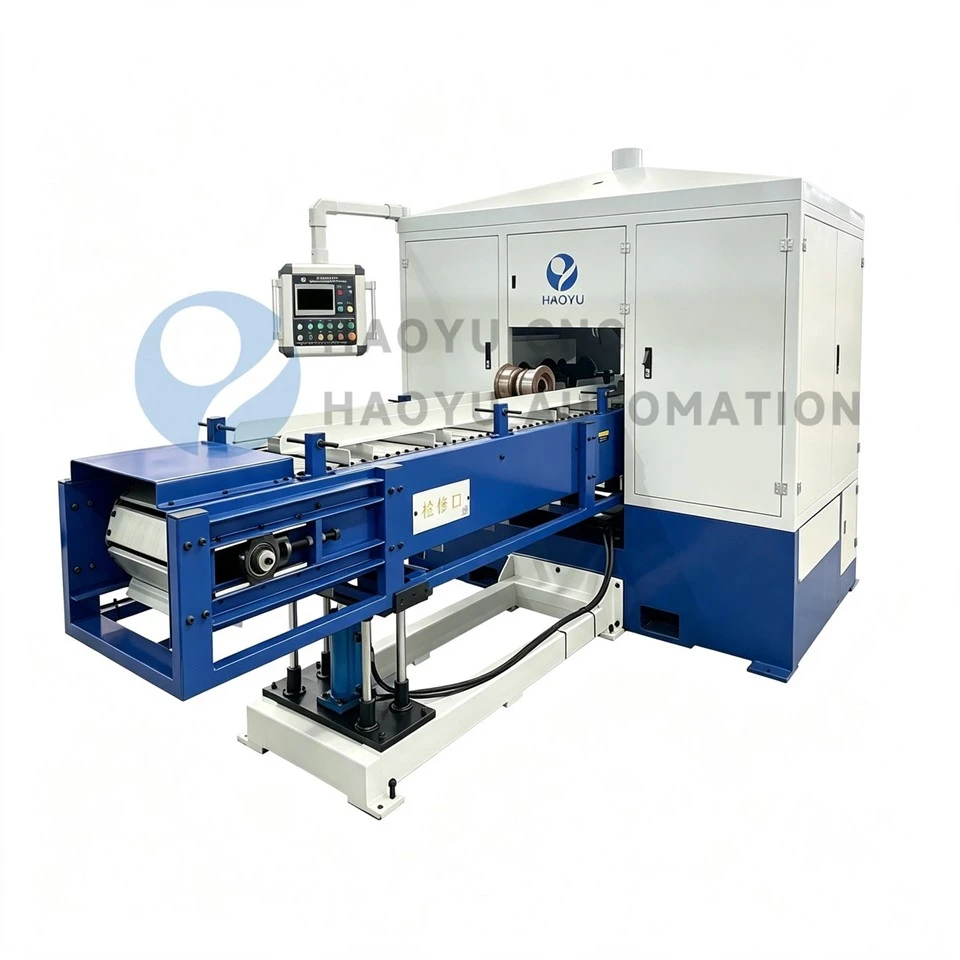

Double Station Welding Machine For Track Roller
This equipment is used for the automatic welding of track roller assemblies. It features a fully enclosed structure with a protective cover, and automatic feeding and unloading.
Description
I.Main Features
1. Fix the welding torch, rotate the workpiece, and ensure the welding position is horizontal.
2. The bed adopts a welded structure and undergoes overall heating and tempering treatment.
3. The welding station uses clamps for clamping, hydraulic centers for clamping, synchronous rotation, and a lower loading and unloading bracket.
4. It adopts the Japanese OMRON PLC, and the workpiece rotation adopts AC frequency conversion speed regulation, which is steplessly adjustable and improves reliability.
5. The weld appearance is aesthetically pleasing, and the penetration depth and width meet the requirements.
6. The welding torch oscillation and lifting mechanism is used for multi-layer welding of wide weld seams.
II.Technical parameters
| Welding current | 60-500A |
| Welding voltage |
16-40V |
| Wheel length |
110-350MM |
| Diameter |
130-320MM |
| Grid voltage | Three-phase 380V±15% |
| Compressed air | 0.4～0.6MPA |
III.Work procedures
How does this welding equipment work?
Manual loading → workpiece clamping → flame preheating gun positioning → preheating → reaching set temperature → preheating gun retraction → transfer to welding station → pneumatic feeding of welding gun to welding position → CO2 gas supply → arc ignition → welding → reaching predetermined welding length → arc termination → stopping CO2 gas supply → rapid retraction of welding gun → workpiece release → automatic unloading.
IV.Equipment Structure

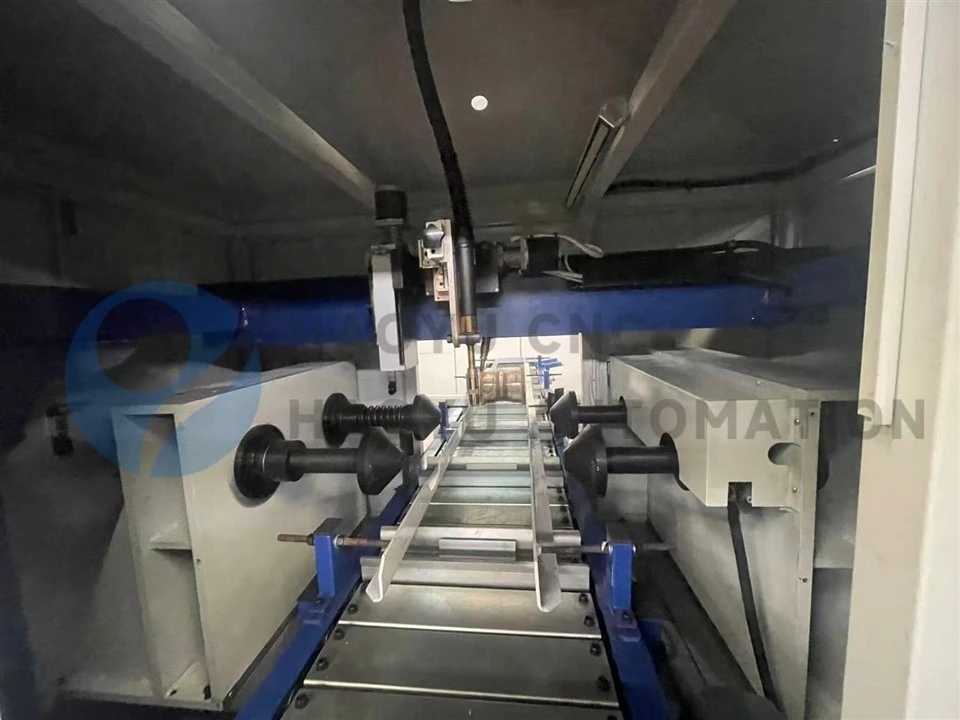

- Automatic workpiece transfer device:
A chain conveyor system is used, with clamps positioning the workpieces on the left and right sides to ensure they don't loosen during movement. Cylinder movement is used for switching between workstations.

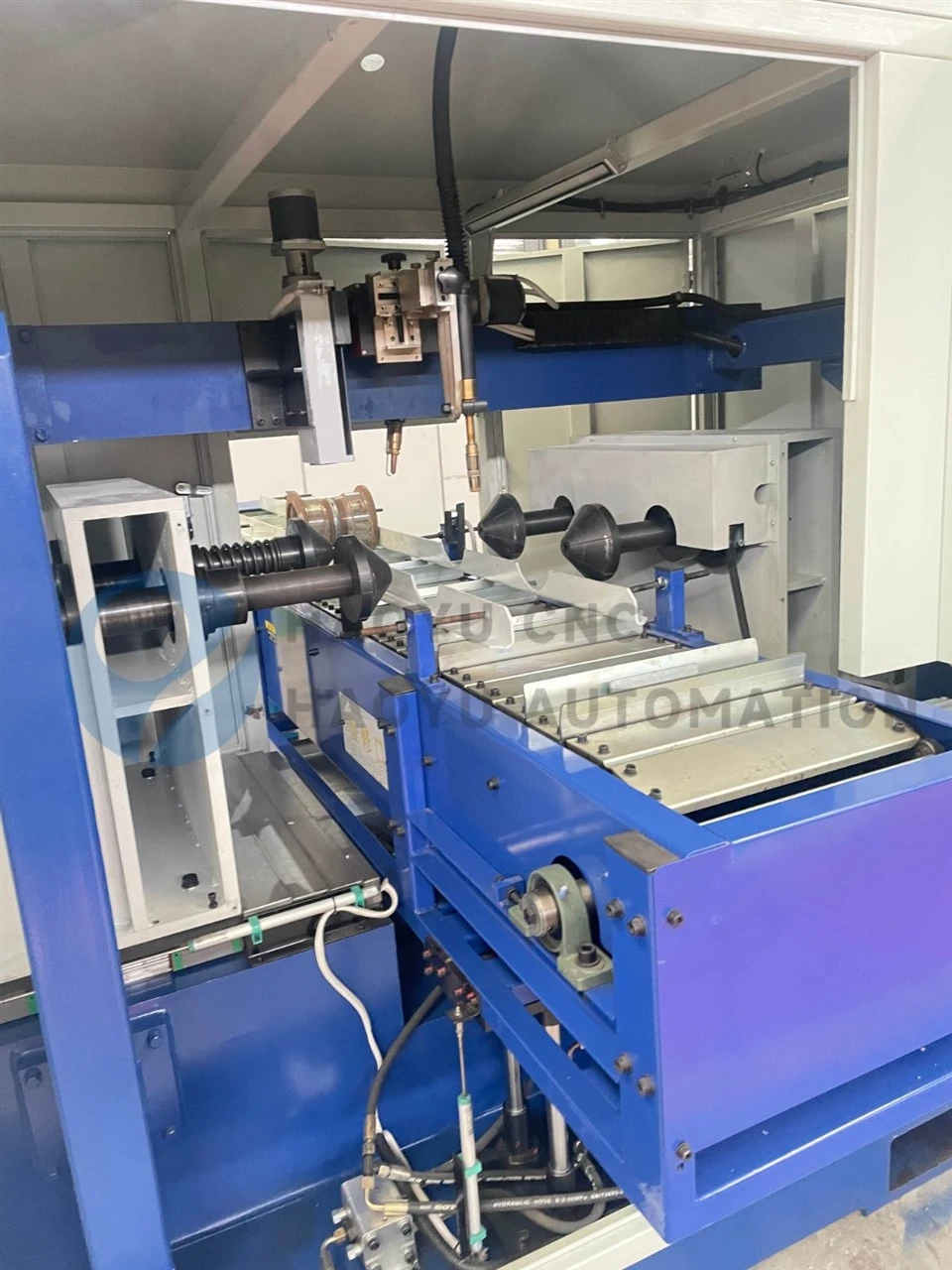

2. Welding torch.
The welding torch can be adjusted up and down, left and right, and for fine angle adjustments. The fine adjustment uses a dovetail design and a lead screw, ensuring accurate adjustment and high positioning precision. It can be tightened after adjustment.
Others for your reference
V.More similar products are available for your reference.
Automatic Track Roller Welding Machine
Automatic MIG Track Roller Circular Seam Welding Machine
Automatic track roller welding machine
VI.FAQ
1. What is a double station track roller welding machine?
It is an automated welding machine designed for track roller components, featuring two independent workstations to improve welding efficiency and production capacity.
2. What type of track rollers can this machine weld?
The machine can be configured for different sizes and designs of track rollers. The workpiece diameter, length, and welding requirements can be customized according to the customer's products.
3. Is the track roller welding machine suitable for automatic production?
Yes. The machine can integrate automatic workpiece positioning, rotation, welding control, and other functions to meet continuous production requirements.
4. What welding process can be used?
The machine can be configured with suitable welding processes such as MIG/MAG or other welding methods according to the track roller material, joint design, and production requirements.
5. Can the machine weld different track roller sizes?
Yes. The welding machine can be designed with adjustable tooling and welding parameters to accommodate different track roller models and dimensions.
6. Can the double station track roller welding machine be customized?
Yes. We can customize the machine according to track roller dimensions, welding position, production capacity, welding process, automation requirements, and factory layout.
7. What industries use track roller welding machines?
Track roller welding machines are mainly used in the manufacturing of construction machinery, excavators, bulldozers, crawler machinery, and undercarriage components.
VII.Service Support
We have always been committed with the service idea of customer-centric, supply Installation, adjustment, training and maintenance in pre-sales and after-sales service.
1.Pre-sales Service
Before signing contract, customers can get production plan, technical consultant and equipment suggestion and etc.
2. Training
Customers can get free technical training in China factory. Mainly training are as follow:
- Training for machine
- Basic daily cleaning and maintenance for the machine
- Solutions for common hardware problems
3. Equipment Maintenance
- One year free maintenance, lifelong caring
- Free technical consultant
- Customer service responding in 2 hours
