Robot Welding Machine For Hydraulic Cylinder

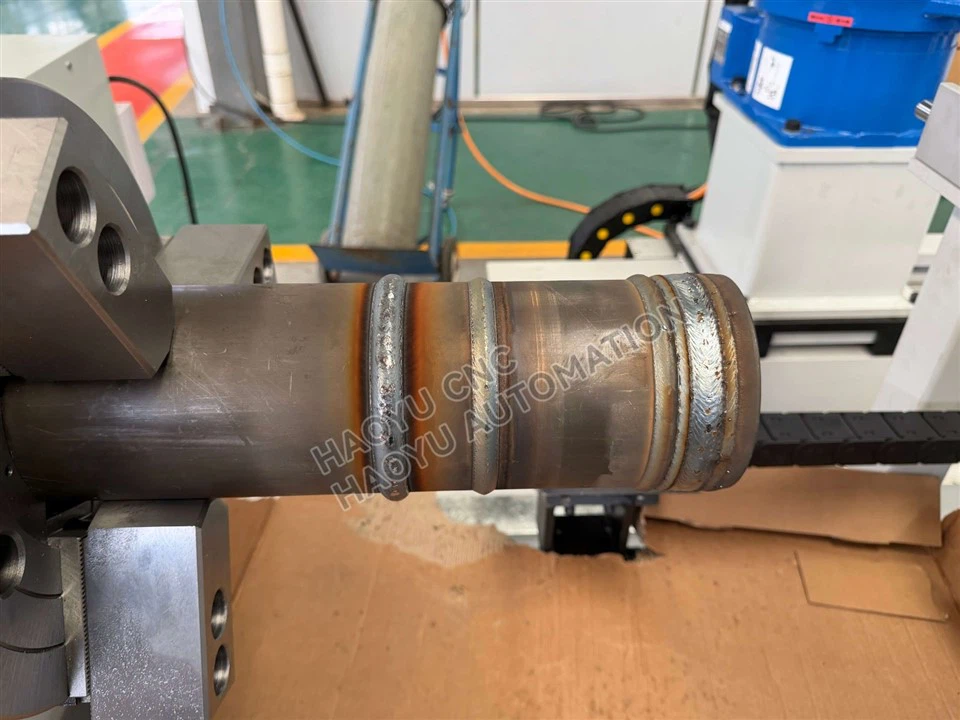

This machine is ideal for industries such as construction machinery, mining equipment, agricultural machinery, and heavy-duty vehicle manufacturing, where hydraulic cylinders play a critical role. By replacing manual welding processes with fully automated robotic operations, the system significantly improves weld quality, reduces labor costs, and enhances production throughput.

1.Industrial robot system:

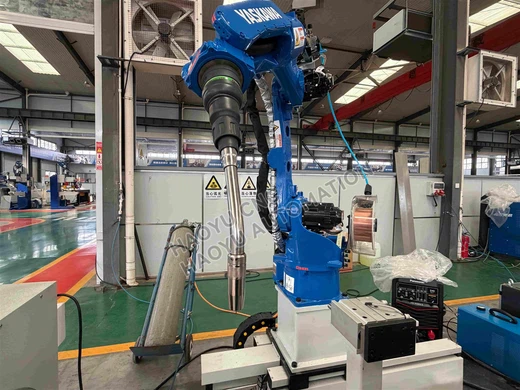

Equipped with a high-precision Yaskawa six-axis robot, it has flexible trajectory operation capabilities. When paired with a PLC, it can easily achieve multi-layer circumferential seam welding without trial teaching programming. Based on the characteristics of the robot itself, it can realize multi-layer multi-pass welding, circular arc welding, and complex spatial curve welding.

2.Welding power supply and wire feeding system

The fully digital Panasonic welding machine is used, which has separate current and voltage adjustment functions. Combined with the dual-drive wire feeding mechanism, it ensures stable arc, beautiful weld formation and minimal spatter during the welding process.

3.High-precision positioner

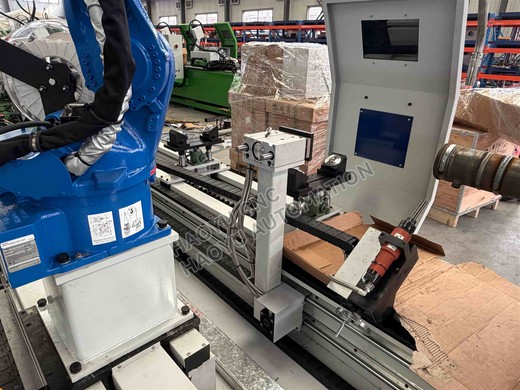

Typically employs a headstock + tailstock structure. The headstock is driven by a servo motor, while the tailstock is pneumatically extendable to accommodate workpieces of varying lengths. The positioner is linked with the robot (external axis) to ensure the welding torch is always in the optimal position during welding, guaranteeing both weld penetration and weld width.

4.Others for your reference

Slag removal machine: Driven by a pneumatic device, after the circumferential or longitudinal seam welding is completed in the hydraulic cylinder, it automatically and precisely knocks and scrapes away the slag and spatter on and around the weld surface.

Workpiece positioning mechanism: This device typically integrates a cylinder to confirm the position of workpieces, ensuring accuracy during repeated loading and unloading, and enabling more efficient batch welding.

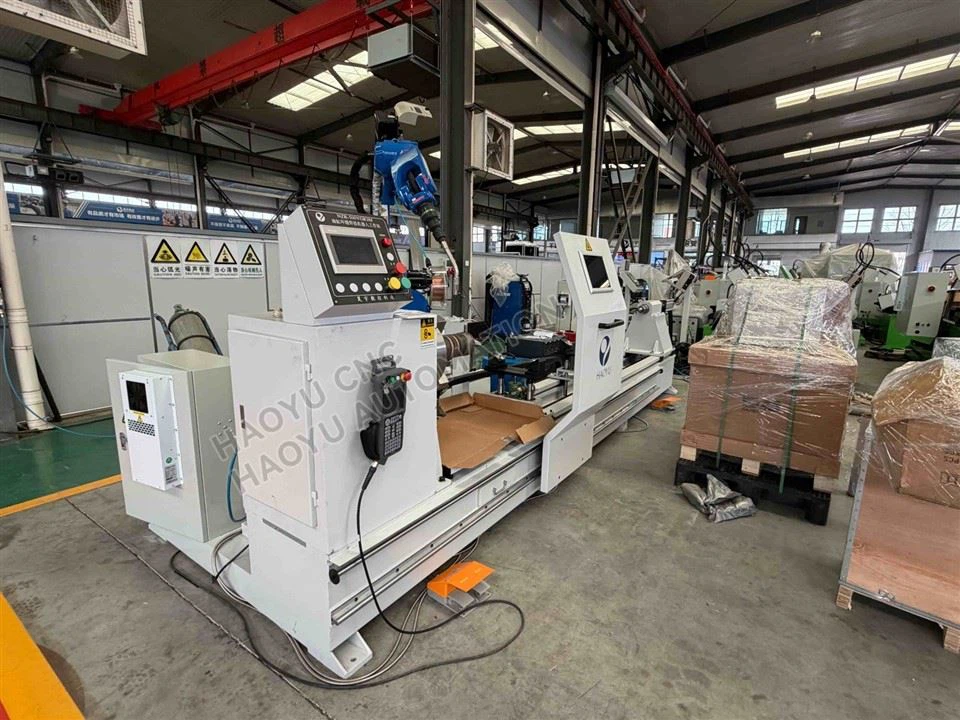

Renderings

Robotic cylinder welding machine

1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement.
