High Efficiency Robot Seam Welding Machine

This equipment is mainly used for MAG (magnetic arc welding) welding of medium and large carbon steel and stainless steel components such as trailer bodies, RV bodies, and structural parts for construction machinery. Its core design concept is to overlap the workpiece loading and unloading time with the robot's welding time; that is, while one station is welding, another station is loading and unloading workpieces, thereby greatly improving the equipment's effective utilization rate.

Robot welding machine

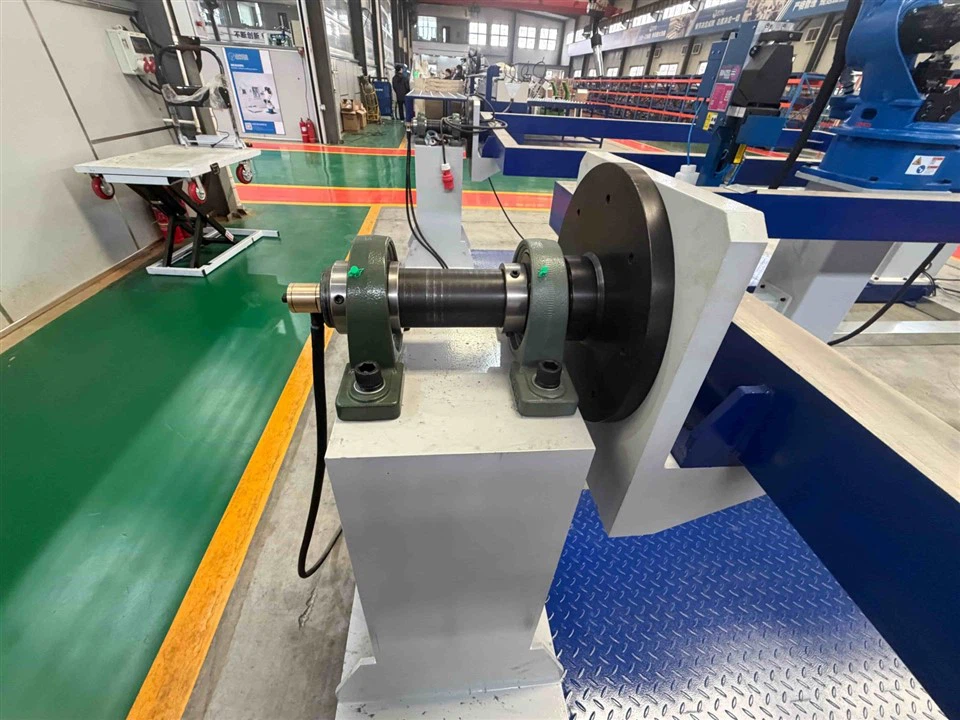

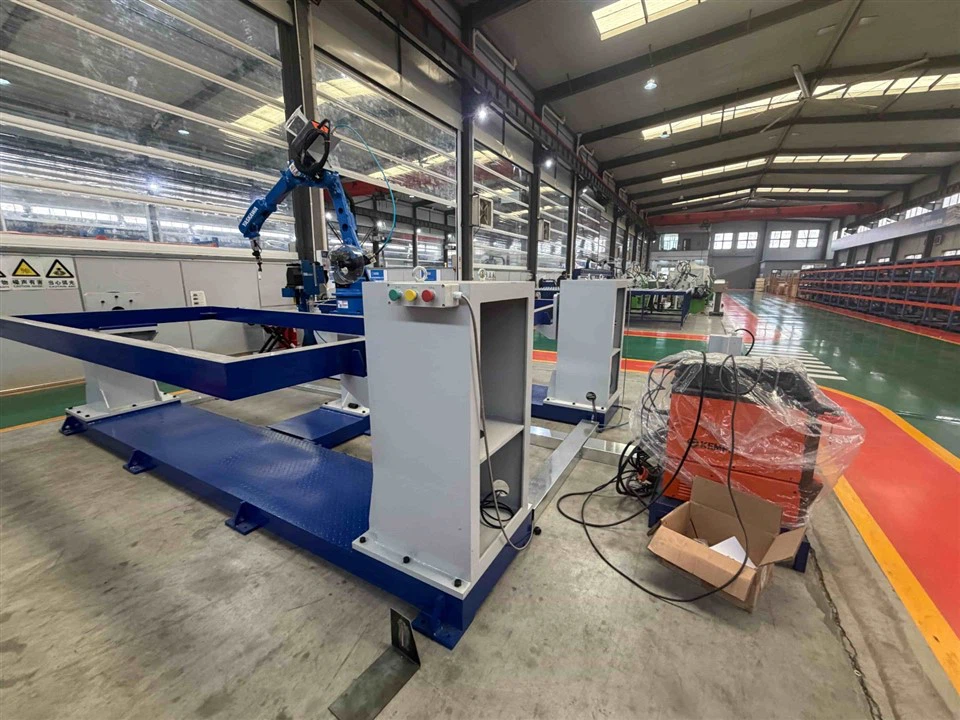

1.This dual-station positioner adopts a head-and-tail frame structure, specifically designed for long workpieces such as trailers or RV bodies, enabling stable support at both ends. Its active end is equipped with a servo motor drive, capable of precisely controlling workpiece rotation and positioning to meet the needs of multi-position welding processes; the driven end provides follow-up support, ensuring the synchronization and stability of long workpieces during rotation.

2.Mounted on a fixed base, positioned between two workstations, the robot is equipped with an anti-collision welding torch and an automatic wire feeder.

• Features: High-efficiency dual-station production: Utilizing a dual-station layout, it enables parallel operation of welding and clamping simultaneously. For applications like trailer and RV bodies with long welds and large workpieces, this mode significantly reduces robot downtime.
• High-precision positioning linkage: Equipped with a high-precision servo-driven positioner, it can coordinate with the robot. When welding complex box structures, the positioner's rotation allows for adjusting the weld at any position to the optimal boat-shaped welding posture, ensuring aesthetically pleasing weld formation and uniform penetration.
• Excellent process adaptability: Equipped with an intelligent MAG welding power source, it achieves ultra-low spatter welding, effectively controlling deformation, especially when welding thin-plate box bodies. It also supports welding of various materials such as carbon steel and stainless steel.

1.Trailer Manufacturing: Primarily used for welding the main beams, suspension systems, side beams, and load-bearing structures of trailers. Since trailer components are mostly made of medium to thick plates, the high deposition rate of MAG welding significantly improves production efficiency. The dual-station design ensures that long workpieces can be easily clamped.

2.RV/Motorhome Body Manufacturing: RV bodies are mostly thin-plate structures, requiring extremely high standards for weld aesthetics and deformation control. This specialized machine, through precise parameter control and positioner rotation, achieves smooth welding of fillet welds, producing aesthetically pleasing fish-scale weld patterns with minimal subsequent grinding. Some high-end models are equipped with pulsed MAG technology, effectively solving the problem of burn-through in thin plates.
