Mainly used in welding hydraulic cylinder circular seam automatically, also can do multi-layer welding automatically. To guarantee the welding specification is even and uniform, welding seam has good and uniform appearance. It is convenient and reliable to use and the welding quality meets to the requirement.
Description

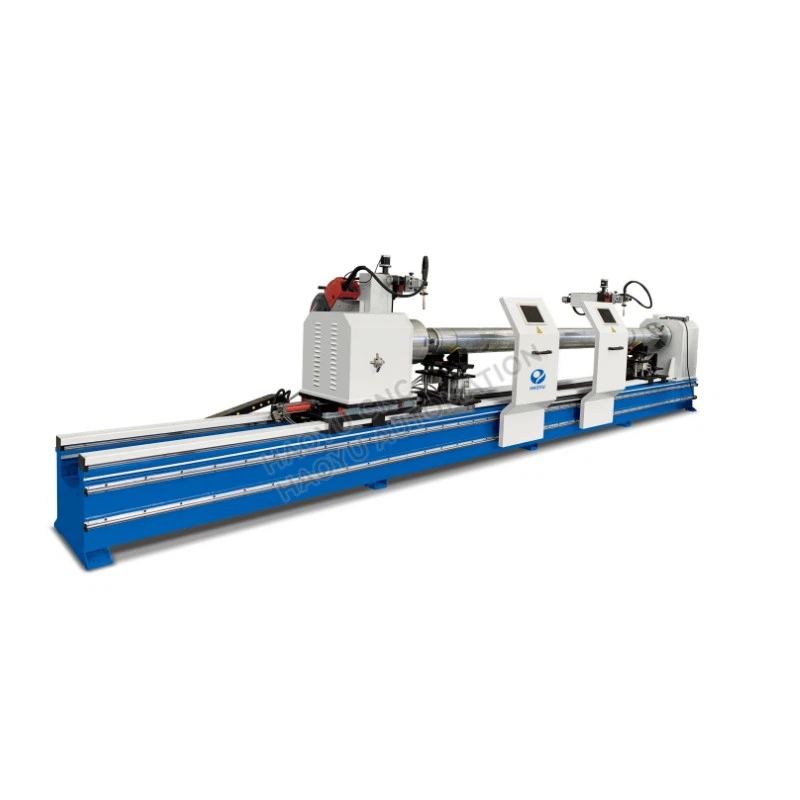

Auto hydraulic cylinder seam welding machine for sale
I.Technical parameter
Hydraulic cylinder welder:
|
Rotary axis rotation speed |
0.2-10R/MIN stepless adjustment |
|
Welding current |
50-500A, 100% duty cycle |
|
Welding Torch Adjustment |
lifting distance: 100mm |
|
left-right distance: 100mm |
|
|
tilting angle: 25°～ 60° |
|
|
Air compressor |
0.4～0.6MPA |
|
Working voltage |
380V 3phases 50hz for welding power 220V single phase 50hz for main machine |
|
Welding torch oscillating scope adjustment |
0～40mm |
|
Welding torch oscillating frequency range |
0-30 times/min |
|
Welding Torch standing time on both sides |
0-10 seconds |
|
Welding torch standing time in the middle |
0-10 seconds |
|
Welding torch pneumatic feeding value |
200mm |
|
Tail stock welding torch pneumatic feeding value |
150mm |
II.Machine structure

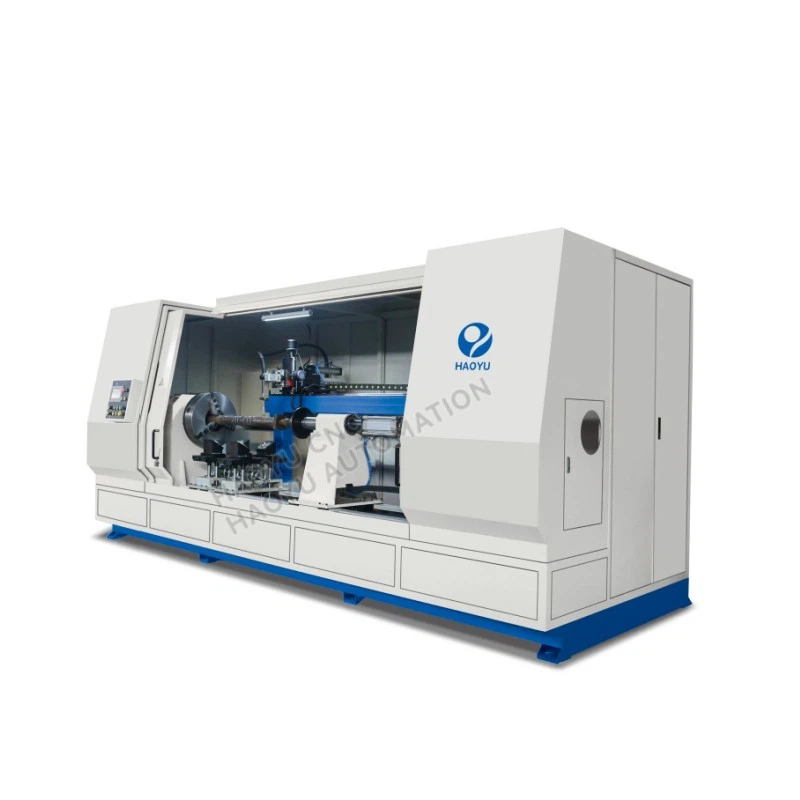

Hydraulic cylinder welding machine for piston rod
1.Welding positioner (headstock and tailstock):
- Active rotating headstock:** Includes a servo motor, reducer, and pneumatic chuck or self-centering clamping mechanism, used to clamp one end of the workpiece and provide rotational power.
- Modible tailstock:** Used to hold the other end of the hydraulic cylinder, typically with a manual or pneumatic moving mechanism to accommodate cylinders of different lengths.
2.Welding manipulator/welding cross slide:
- The crossbeam is equipped with an electric cross slide, which enables precise adjustment and automatic feeding of the welding torch in the X/Y/Z directions.
3.Welding torch and oscillation mechanism:
- One or more welding torches are configured according to the welding process requirements (capable of welding both sides simultaneously).
- Oscillator: Used for wider welds, to perform sawtooth or sinusoidal oscillation to increase the weld width.
4.Welding Power Source and Wire Feeding Mechanism:
- A high-performance welding power source selected based on the process (gas shielded welding or submerged arc welding).
- Includes the wire feeder and welding torch cooling system (if required).
5.Control System (PLC/CNC System):
- Core: Typically uses a PLC or a dedicated welding CNC system. Features parameter memory, multi-segment welding parameter setting, and arc initiation/out processing.
- Touchscreen Human-Machine Interface: Facilitates parameter input and status monitoring for operators.

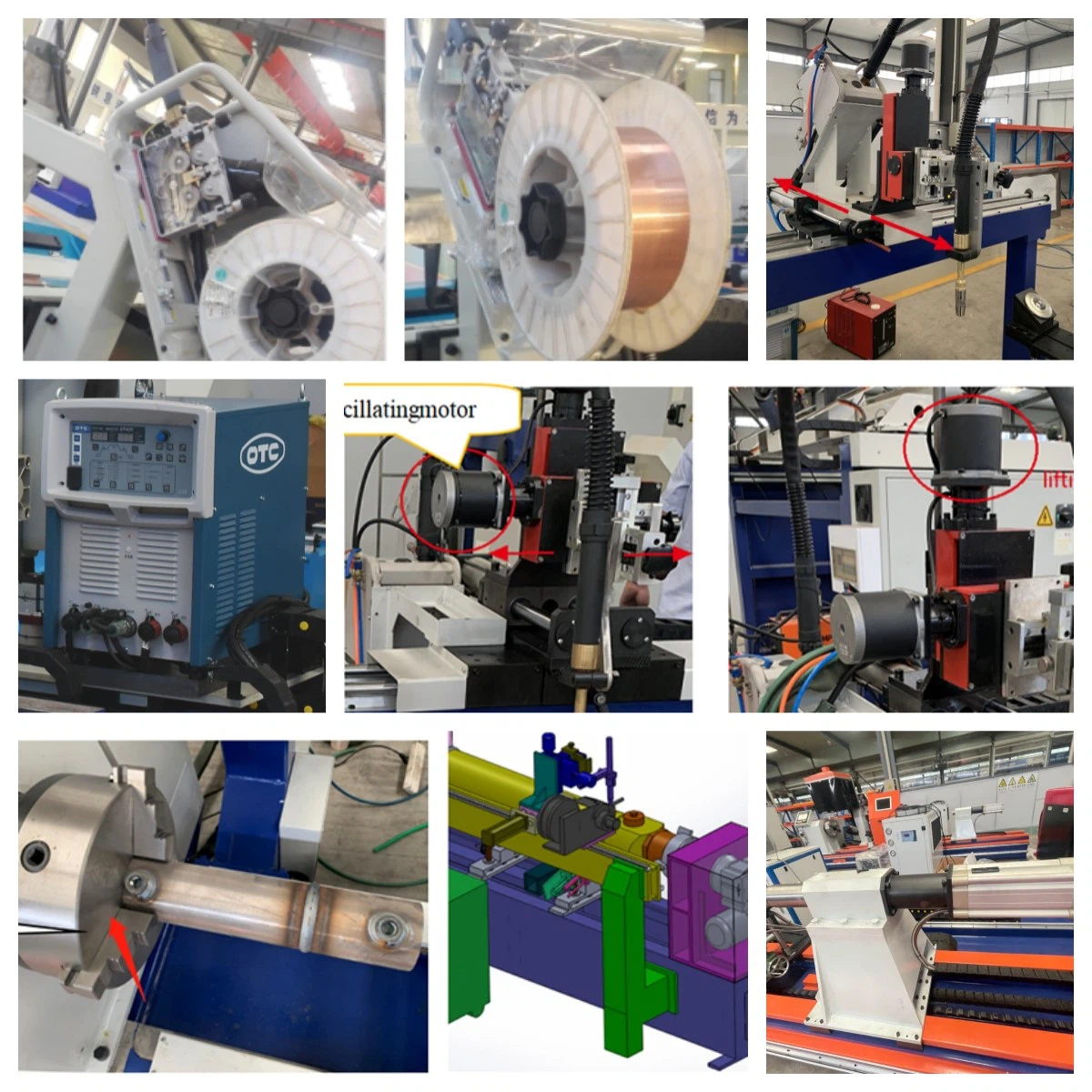

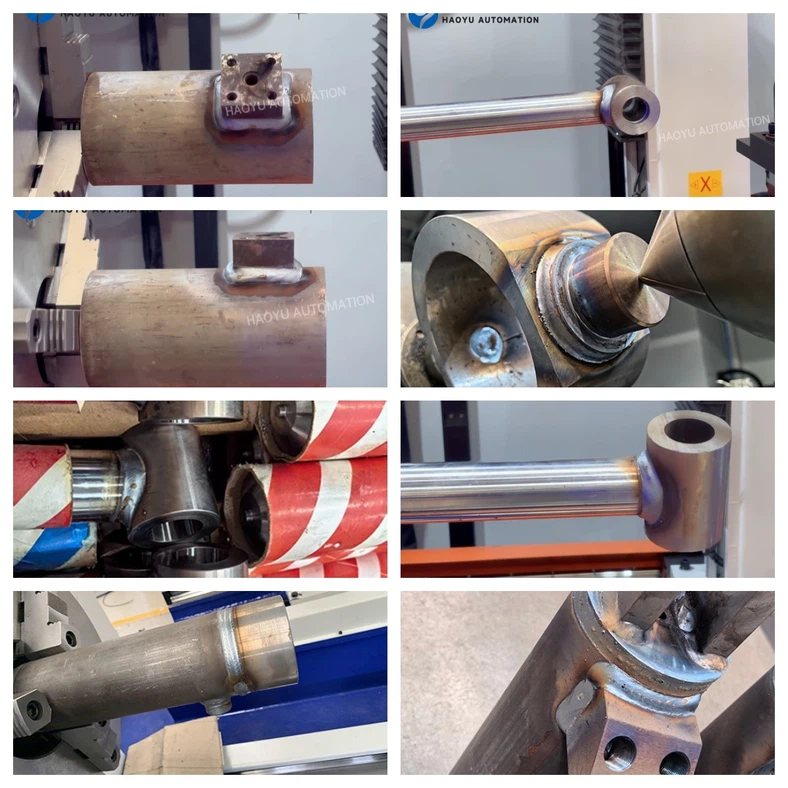

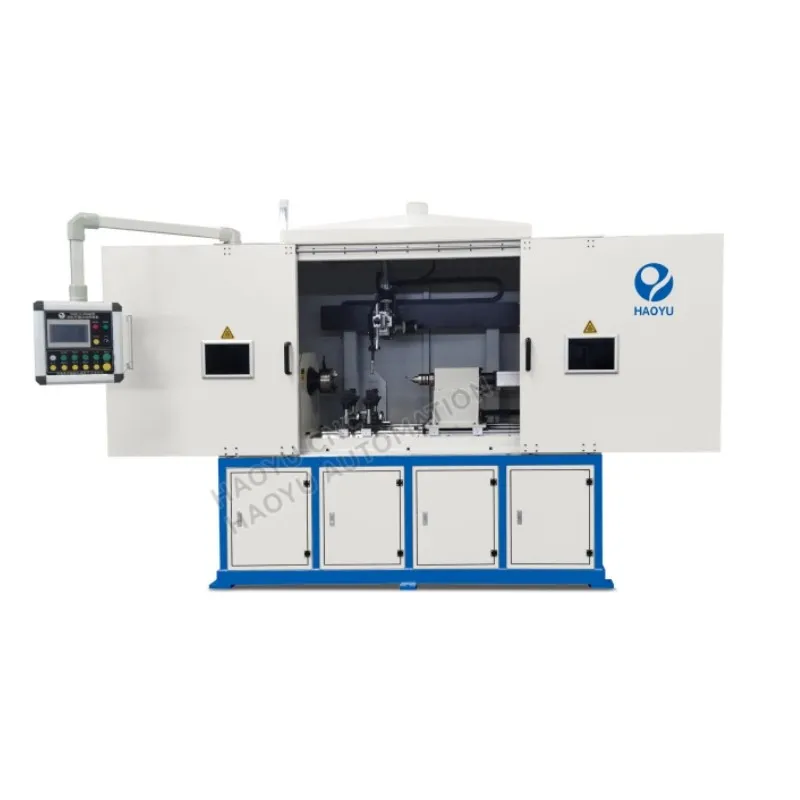

6.Renderings
III.Vedio for your reference
Hydraulic cylinder circular seam welding machine
IV.Package
1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement
