Automatic Cylinder Oil Nozzle Welding Machine

Automatic rotating gun welding machinealso known as vertical circumferential weldingmachine, can weld circumferential seam with double axis can choose gas shielded welding, automatic argonarc welding, laser welding machine and other welder to form a set of circumferential seam automatic welding system, The adjustment mechanism can adjust the wirefeeding position of the welding torch in all directionsby rotating the welding torch to ensure the sealing ofthe welding process is firm. The welding speed can beadjusted by setting the plc screen

We will develop a professional welding plan based on the specifications of the workpiece.

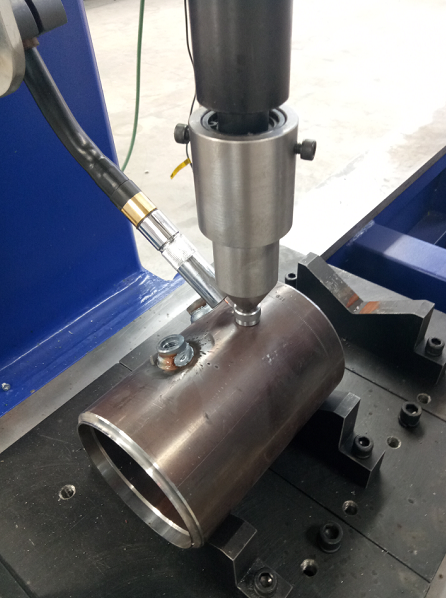

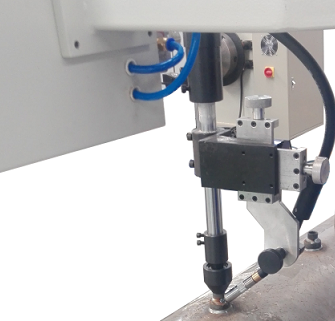

1.Welding torch tilts to a certain angle, can be adjusted up-down, side to side and angled turn. Workpiece is fixed while the welding torch is rotating.

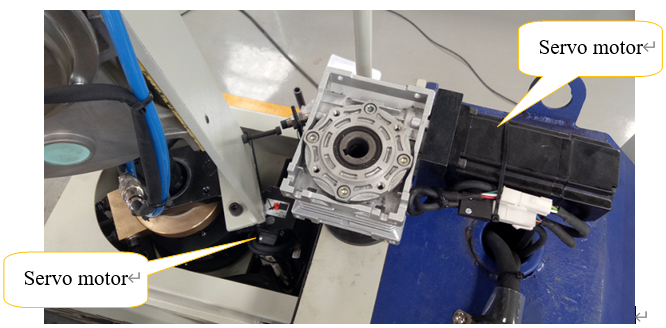

2.The rotatory head is moved up and down by servo motor, rotary head falls while machine is welding, and lifts while loading and unloading.

3.Using Japan Panasonic PLC to control the whole operation. CNC system is used to control rotation of machine head. Servo motor is driven by AC servo driver.

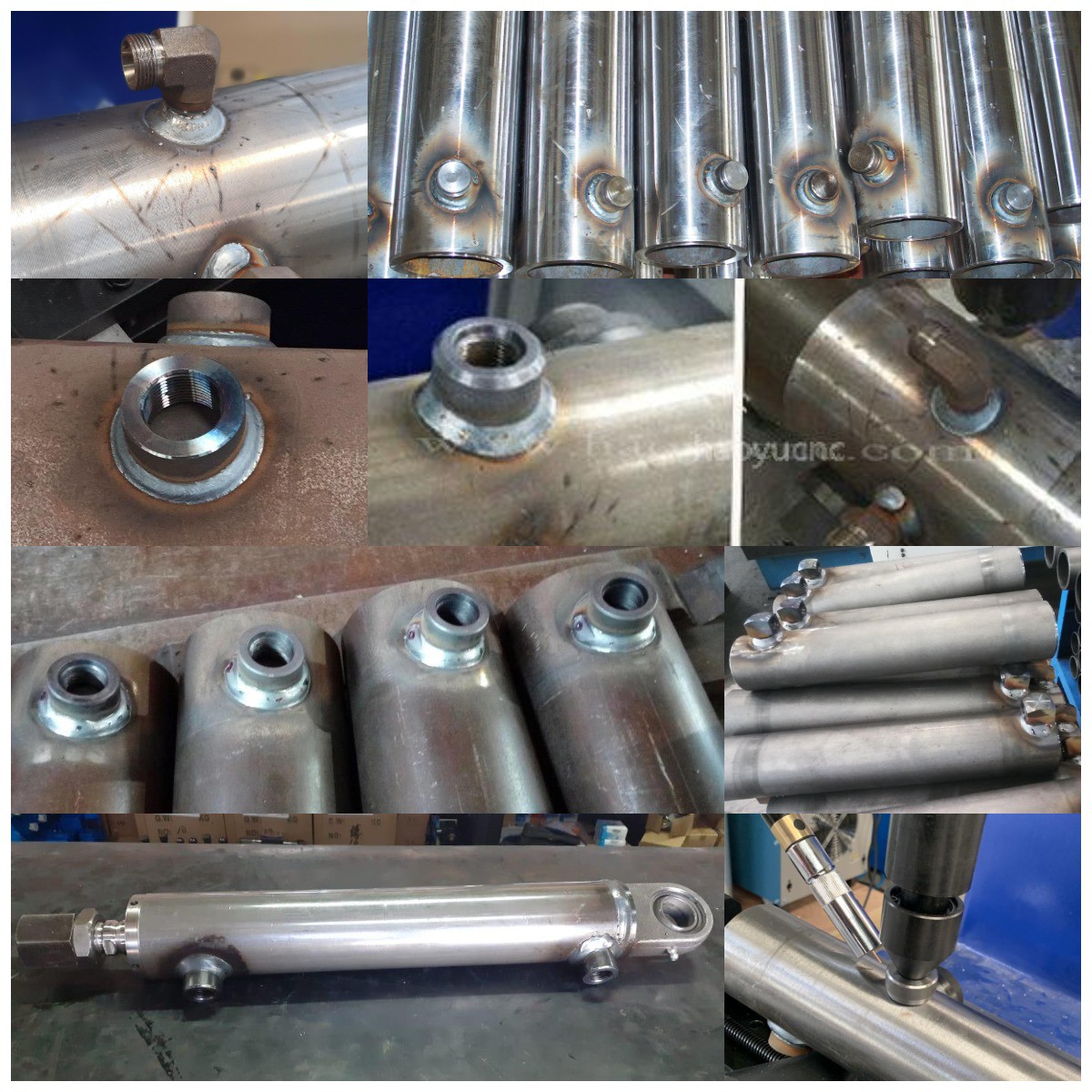

4.Workpiece rendering

Automatic cylinder oil nozzle welding machine

Manually loading →automatically move workpiece to welding station → welding torch falls, thimble presses workpiece tightly→ shielding gas supply→ high voltage, slow wire feed for arc igniting →torch rotation and welding → weld the set length →torch stops→ small current, low voltage for arc ending →stop supplying shielding gas→ welding torch returns to origin→ automatically move workpiece to unloading place → manual unloading.
