Mixing Chamber Automatic Cladding Machine

• Uniform weld penetration: Automated control ensures the consistency and stability of welding parameters.
• Low defect rate: Significantly reduces common defects in manual welding such as porosity, slag inclusions, and lack of fusion.
• Stable hardness: The alloy composition and hardness distribution of the weld overlay are uniform, ensuring wear resistance.
• Continuous operation: Enables 24-hour uninterrupted welding.
• Welding parameters and procedures can be recorded and stored, enabling quality traceability.

• Automated Welding: The welding torch's movement is controlled by a precision CNC system or PLC, achieving automated and unmanned welding.
• Guaranteed Welding Quality: Precise control of welding parameters (such as current, voltage, speed, and oscillation amplitude) ensures uniform weld overlay thickness, no defects, and a strong bond with the base material.
• Increased Efficiency: Capable of 24/7 continuous operation, welding speeds far exceeding manual welding significantly reduce equipment downtime.
• Complex Surface Handling: The mixing chamber has complex shapes; specialized machines are typically equipped with multi-axis linkage systems, allowing for perfect welding along complex curved surfaces.

1.The cross-shaped traveling axis equipped on the mixing chamber welding machine is the core motion mechanism for achieving automated welding. It typically consists of mutually perpendicular and cooperating transverse (X-axis) and longitudinal (Y-axis) slides, forming a stable "+" shape. The welding torch is precisely mounted at the end of this mechanism, and driven by a servo system, the cross-shaped traveling axis can move the welding torch in a precise two-dimensional planar trajectory across the complex curved surface of the mixing chamber.

 2.In a specialized welding machine for a mixing chamber, the bearings used to support and drive the rotation of the workpiece are the core transmission components of the equipment. They typically employ heavy-duty rolling bearings (such as self-aligning roller bearings) or sliding bearings. These bearings must possess high load capacity, excellent impact resistance, and wear resistance to withstand the unbalanced mass of the workpiece during welding, the combined radial and axial loads generated by continuous rotation, and the effects of thermal deformation. Their inner and outer ring structures undergo special heat treatment and surface strengthening, and are combined with a sealing system to prevent the intrusion of metal dust and welding spatter, ensuring long-term stable operation under low-speed, heavy-load conditions, thereby guaranteeing the precision and continuity of the welding process.

3.The control panel of the internal mixing chamber welding machine is the core operation and monitoring center of the entire equipment. It typically uses a user-friendly touchscreen interface, integrating all the control functions required for automated welding. Operators can intuitively set and adjust a series of key process parameters through the panel, such as welding speed, welding current and voltage, wire feed speed, oscillation amplitude and frequency, as well as preheating and interpass temperature. The panel dynamically displays the status of each actuator, welding trajectory, fault alarm information, and equipment operation log in real time, ensuring the stability and transparency of the welding process.



Other products for your reference



Inner hole cladding machine

Robot laser overlay machine

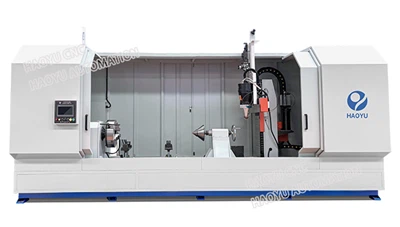

Laser welding wire cladding machine
