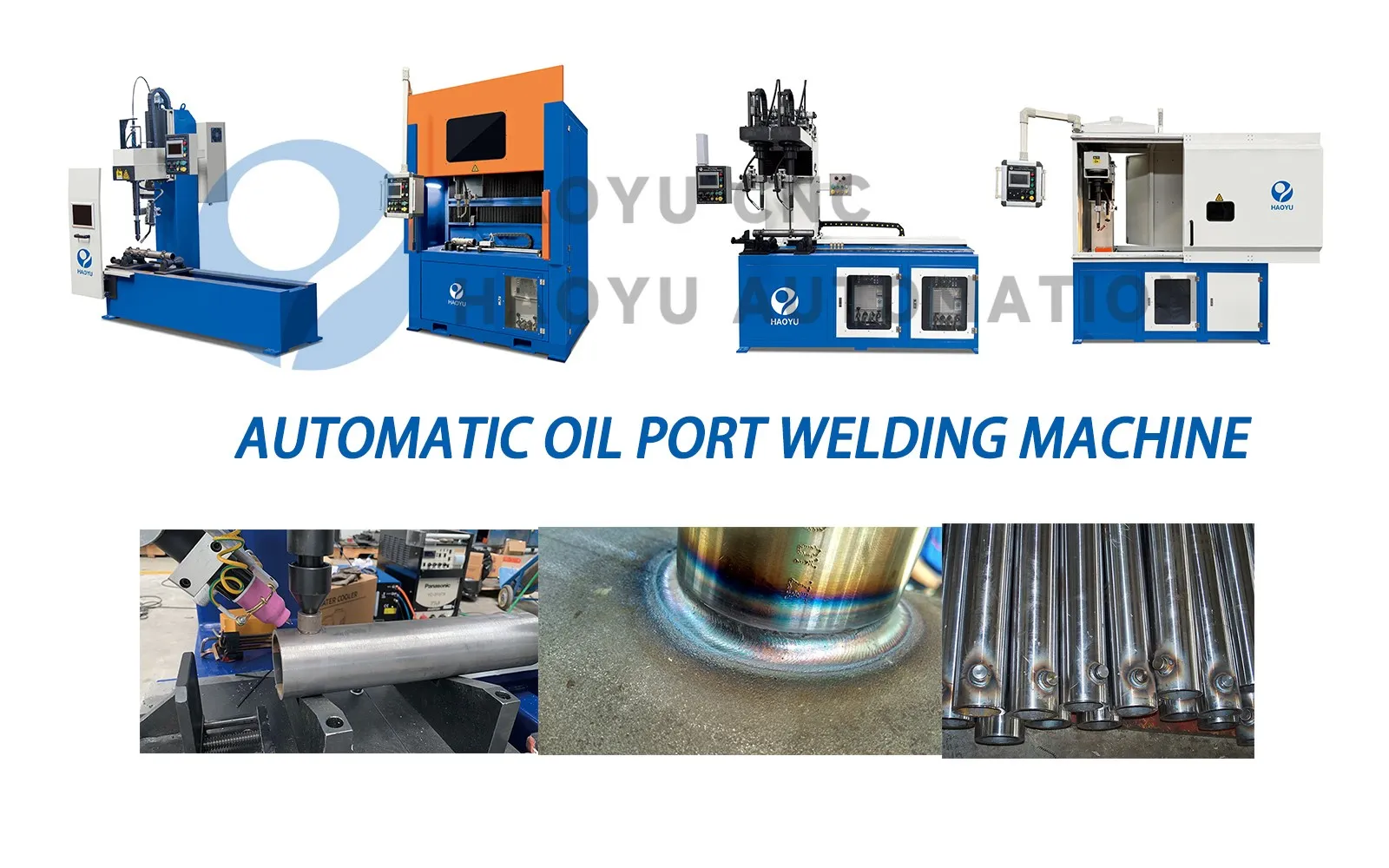

Industrial Oil Port MIG Welding Machine For Sale
The CNC circumferential welding machine for nuts should be equipped with a hydraulic cylinder for automatic welding of various round nuts and circumferential welds, ensuring uniform and consistent welding specifications, uniform and aesthetically pleasing weld formation, ease of use, reliability, and welding quality that meets requirements.
Description
Industrial Oil Port MIG Welding Machine For Sale
I.Industrial Oil Port MIG Welding Machine For Sale Welding process
(1) The welding machine adopts the MIG welding method. The welding torch rotates, the workpiece is fixed, and the welding position is horizontal. It is also supported by a V-shaped material support frame.
(2) The welding torch lifting head uses an electric lifting method.
(3) The welding power supply of the welding machine has high voltage, slow wire feed arc ignition, reliable arc ignition, and low voltage, low current arc termination.
II.Industrial Oil Port MIG Welding Machine For Sale Parameters
| Turntable speed | 1-20rpm |
| Welding current | 0-400A |
| Welding torch vertical adjustment | 30mm |
| Welding torch left and right adjustment | 30mm |
| Adjusting the tilt angle of the welding torch | 30-40 |
| Adaptable to workpiece length | 400-2000mm |
| Adaptable to workpiece diameter | 60-200mm |
III.Industrial Oil Port MIG Welding Machine For Sale Structure

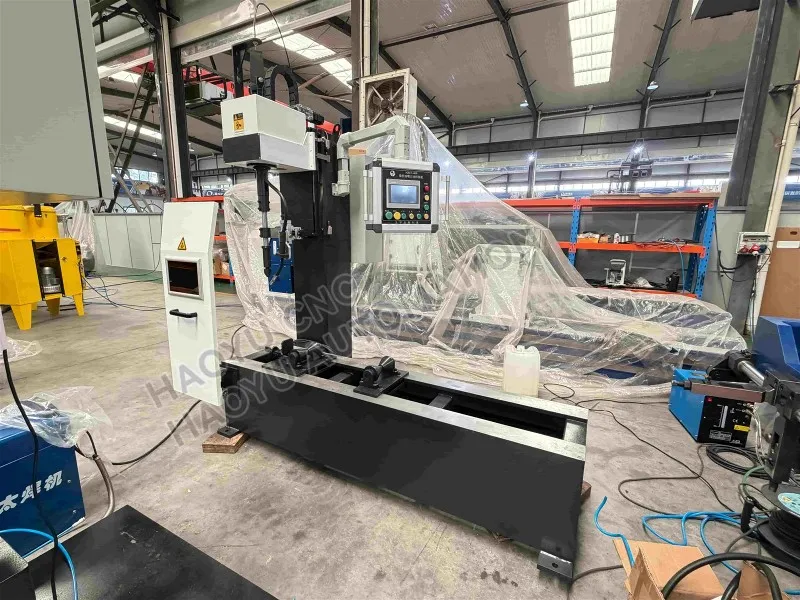

1.Machine body
Composed of a base, crossbeam, and column. The base houses the positioning fixtures and the column/crossbeam. The base has a machined surface that is aged as a whole, serving as the installation reference surface. The welding torch rotating head is mounted on the crossbeam.
2. Welding Torch Rotation Mechanism
Composed of an AC servo motor, reducer, and welding torch clamping mechanism, the speed is adjusted using an AC servo motor driver. The reducer employs a worm gear reduction and has an aluminum alloy housing. It offers high output torque and is easy to install and maintain. The rotating head is equipped with a rotating gas distribution ring to guide protective gas to the welding torch.

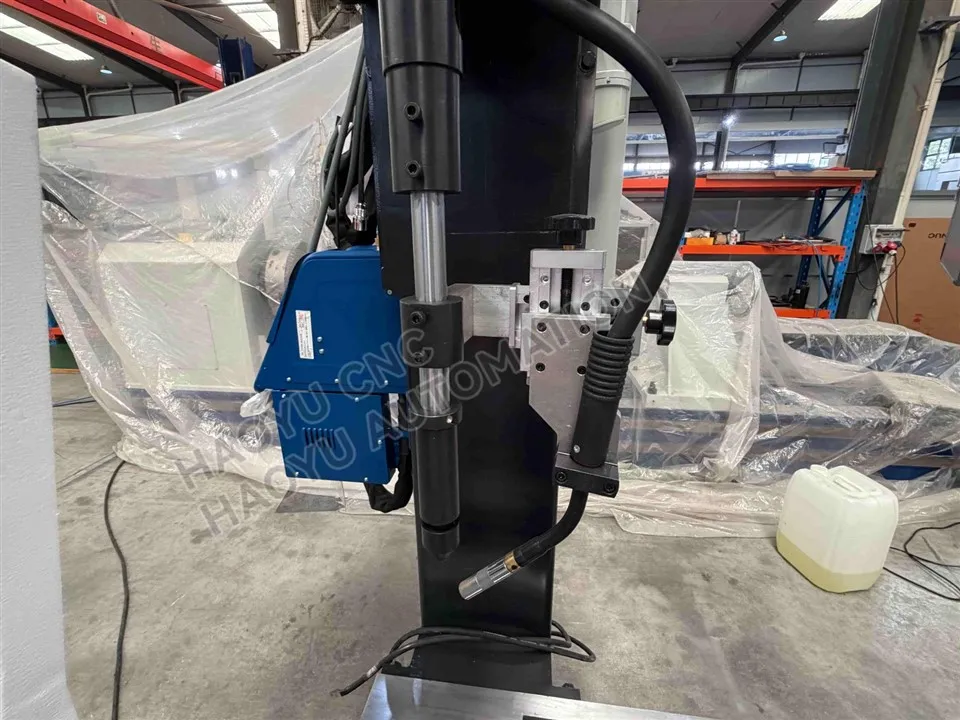

3.Welding Inspection Clamping and Adjustment Mechanism
The welding torch utilizes a short wire-pushing distance to guarantee consistent wire feeding performance. It allows for fine adjustments in vertical, horizontal, and angular directions. The precision tuning of the torch is achieved through a dovetail joint structure combined with a lead screw, ensuring high positioning accuracy. Once adjustment is completed, the mechanism can be securely locked in place.
4.Control System

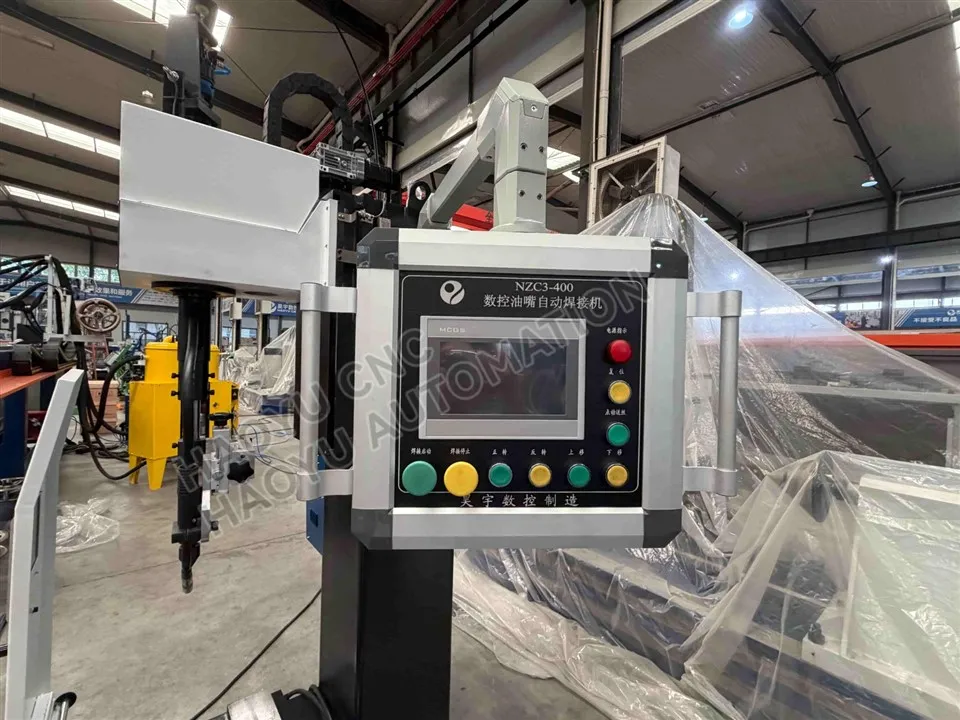

An Omron PLC from Japan, housed in the distribution cabinet to prevent external welding interference, is responsible for precisely controlling the welding sequence and actions. The HMI provides a touchscreen for operators to monitor parameters and access process recipes. Working together, the two ensure a stable and consistent welding process for the nozzles.
IV.Vedio for your reference
Automated MAG Welding System for Oil Nozzle
V.Others products for your reference
VI.Package
1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement.
