Automatic nozzle welding machine

• It should meet the requirement of automatically welding various ports/nozzles of hydraulic cylinder circular seam.
• MAG welding with wire feeder.
• Make sure the welding specification is uniform and even, welding seam has good appearance. Easy and reliable to operate. Quality can meet welding requirement.

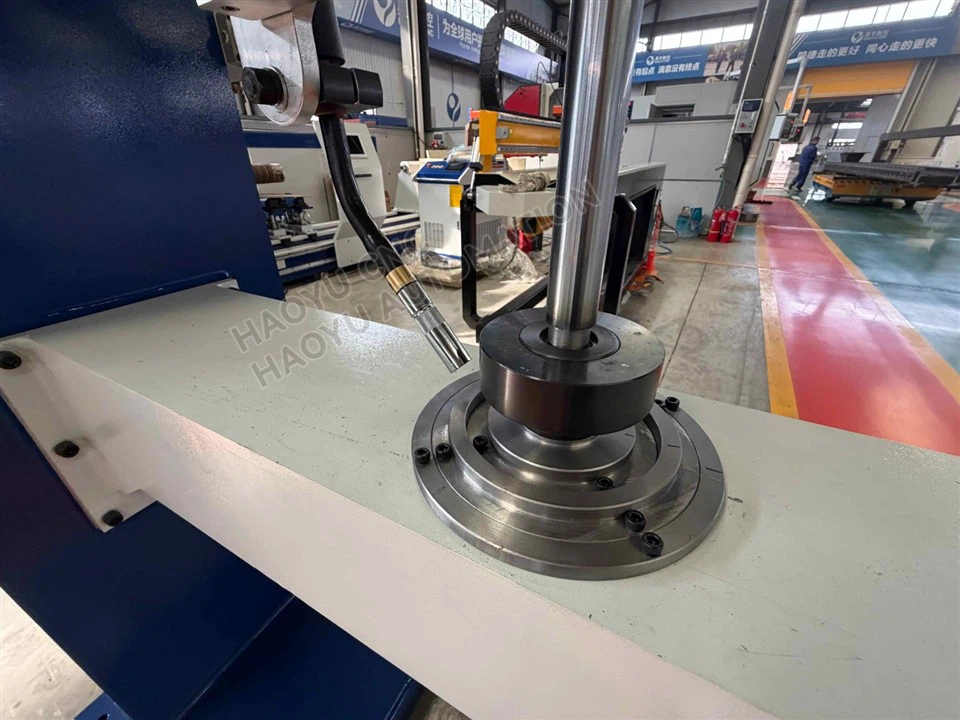

• Customized tooling: Its conical structure is designed to achieve automatic centering during workpiece clamping. When the end face of the oil nozzle workpiece contacts the conical tip, the conical surface can automatically correct the positional deviation between the workpiece axis and the equipment spindle using geometric guidance, ensuring that the workpiece axis precisely coincides with the welding rotation center.

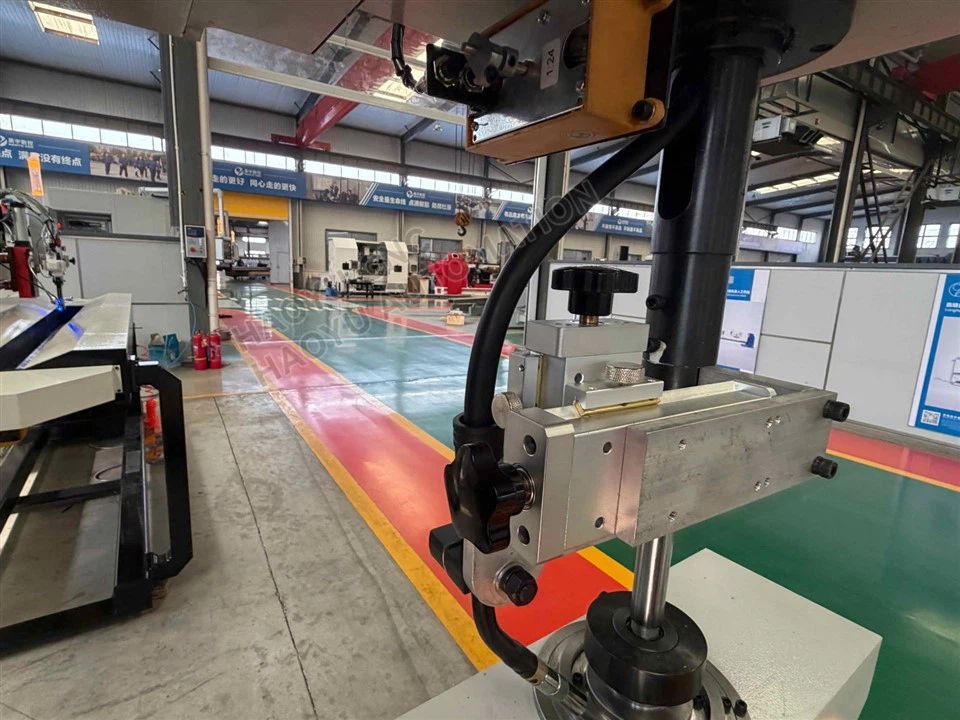

• Welding torch adjustment mechanism: The welding torch is adjusted by a dovetail ball screw, allowing for fine-tuning in all directions to ensure accurate welding positioning. The torch can be locked after adjustment.

• Welding Torch Rotation Mechanism：It consists of AC servo motor, planetary reducer, gear reducer and welding torch clamping mechanism. Rotary head is configured air and electric distributing ring, lead the shielding gas and welding current to the welding torch, welding torch can rotate continuously without tangling of air pipe.

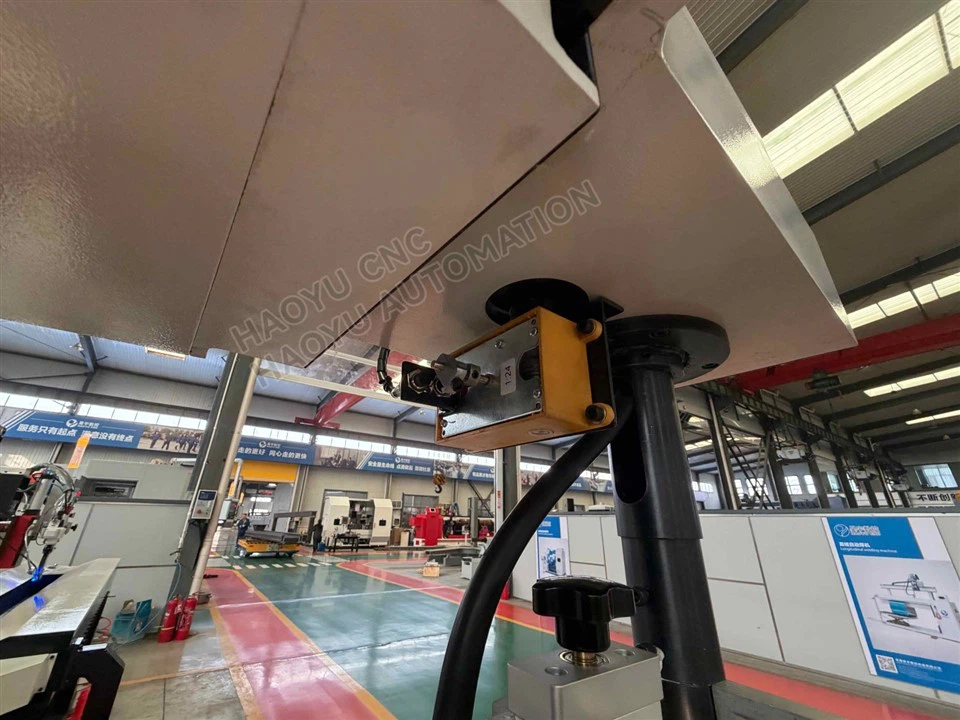

•  Limit switch: Its core function is to precisely define the rotation range of the machine head, preventing mechanical collisions or equipment damage caused by overtravel. This switch typically uses contact mechanical contacts or non-contact proximity sensors. When the machine head rotates to the preset safety boundary, the limit switch is immediately triggered, instantly cutting off the power source of the rotary drive mechanism or sending a reversing signal, thereby strictly locking the machine head within the predetermined working range.

Oil nut welding machine

 Automatic grab oil port welding machine

Welcome see more vedios on our youtube channel:  https://www.youtube.com/@HAOYUWelding

1.Normally we will use fumigation plywood case for packaging; for some big machine, we can use steel pallet and plastic filme cover.All machines are paint with anti rust paint or oil before leaving factory.
2.Package can be as customers' requirement
